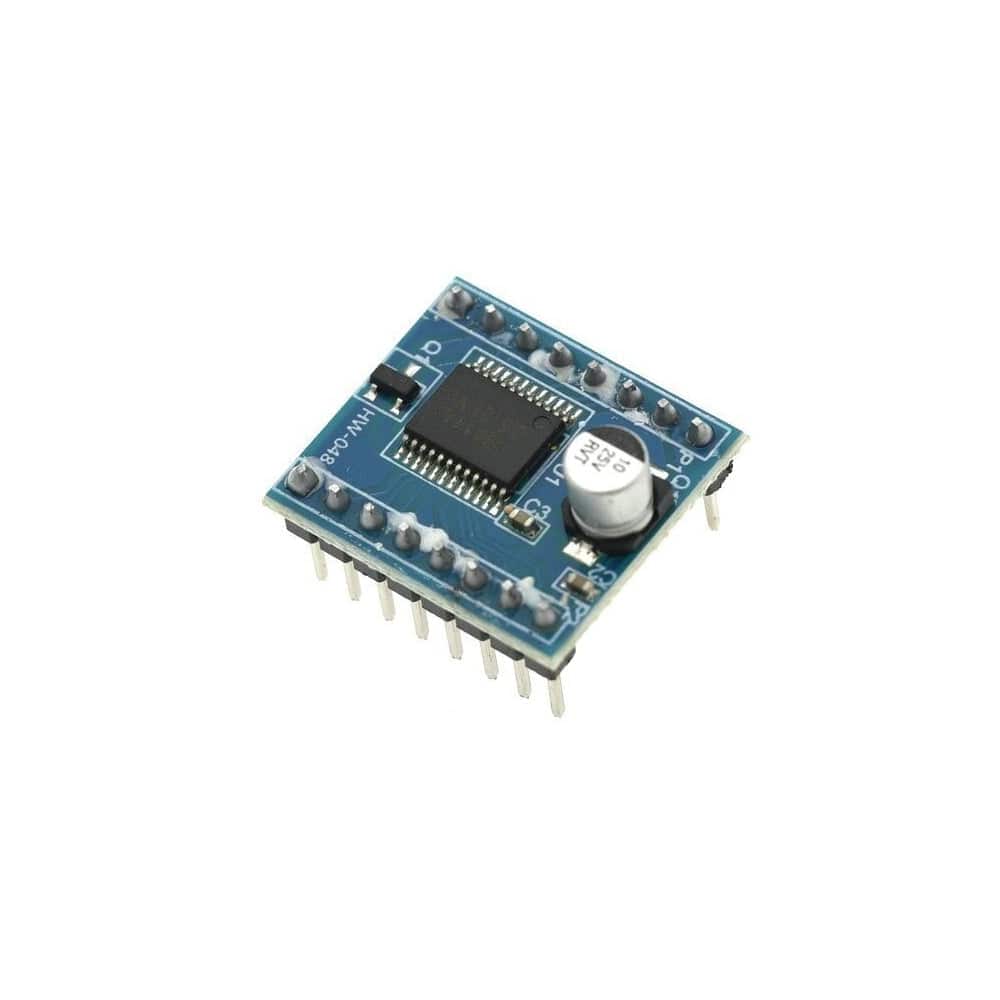

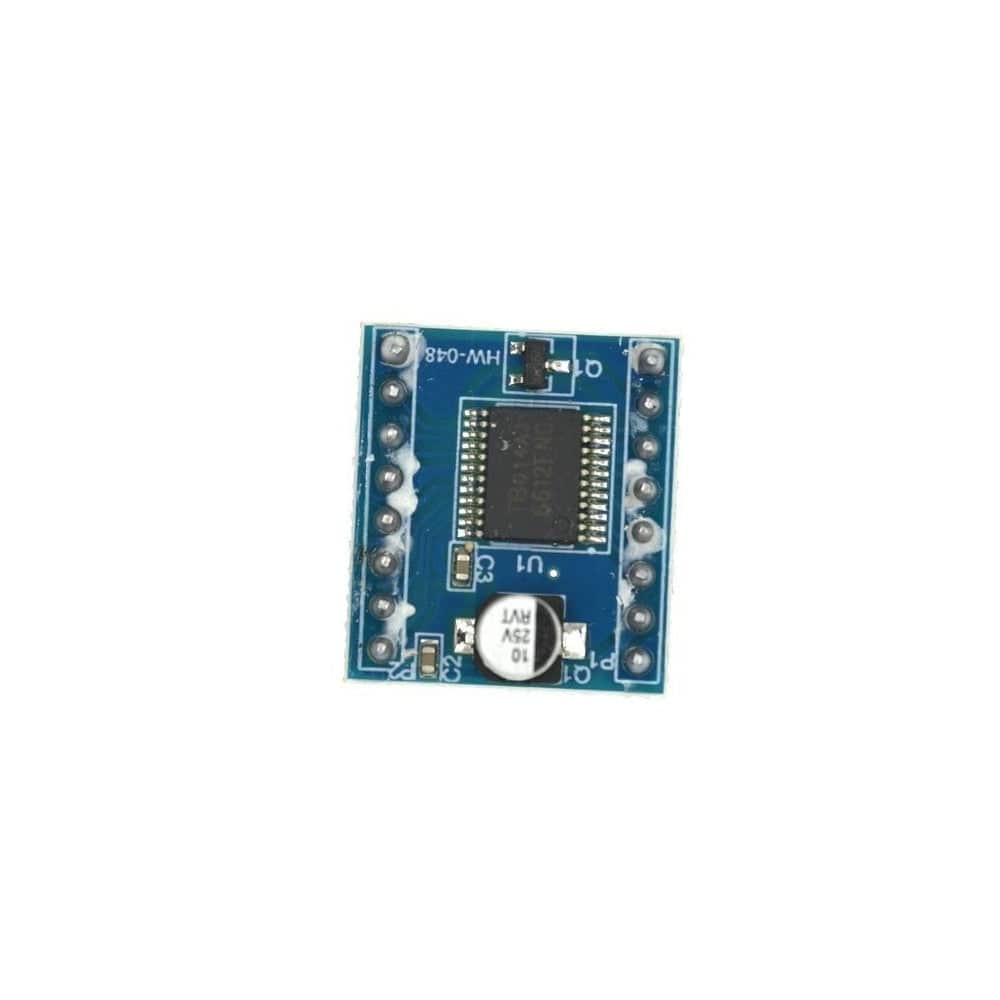

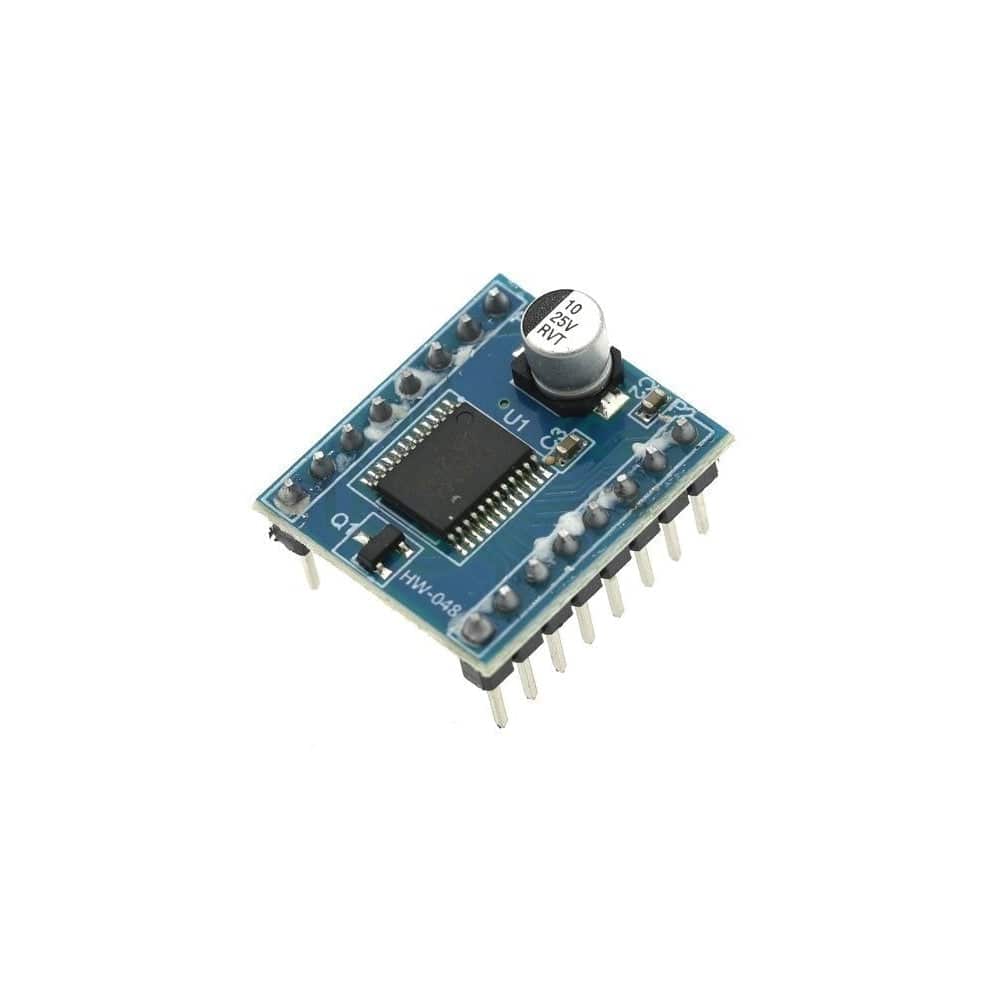

TB6612 Motor Driver TB6612FNG Module 3PI Supporting - RS5540

TB6612 Motor Driver TB6612FNG Module 3PI Supporting - RS5540

SKU:RS5540

20 in stock

Regular price Rs. 299.00
Regular price Sale price Rs. 299.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Supply voltage (VCC): 5V
  • Motor Supply Voltage (VM): 5V ~ 13.5V
  • Continuous Drive Current: 1.2A Output per Channel
  • Peak Current: 2A/3.2 A (continuous pulse / single pulse)
  • PWM Supports Frequencies: 100kHz

Description:

This is a new drive device that can independently control two bidirectional DC motors. It has a high level of integration, while providing sufficient output capability, operating performance and energy consumption also have advantages, so the integration miniaturization of the motor control system, can be ideal as a motor driving device. It has a high current MOSFET-H-bridge and dual circuit outputs that can drive two motors.

Motor Driver TB6612FNG Module 3PI Supporting highest output per channel 1.2 A continuous drive current, peak current start-up 2A/3.2 A (continuous pulse / single pulse). It has 4 kinds of motor control modes: Forward / Reverse / Brake / Stop.

Compared with the traditional L298N, the efficiency of this module is much higher and the size is also greatly reduced. In the rated range, the chip basically does not get hot, so we recommend friends with a certain degree of hands-on ability to use it. Be careful when wiring. Positive and negative polarity.

Specifications:

  • Supply voltage (VCC): 5V
  • Motor Supply Voltage (VM): 5V ~ 13.5V
  • Continuous Drive Current: 1.2A Output per Channel
  • Peak Current: 2A/3.2 A (continuous pulse / single pulse)
  • PWM Supports Frequencies: 100kHz
  • Working Temperature: -20 ~ 85 °C

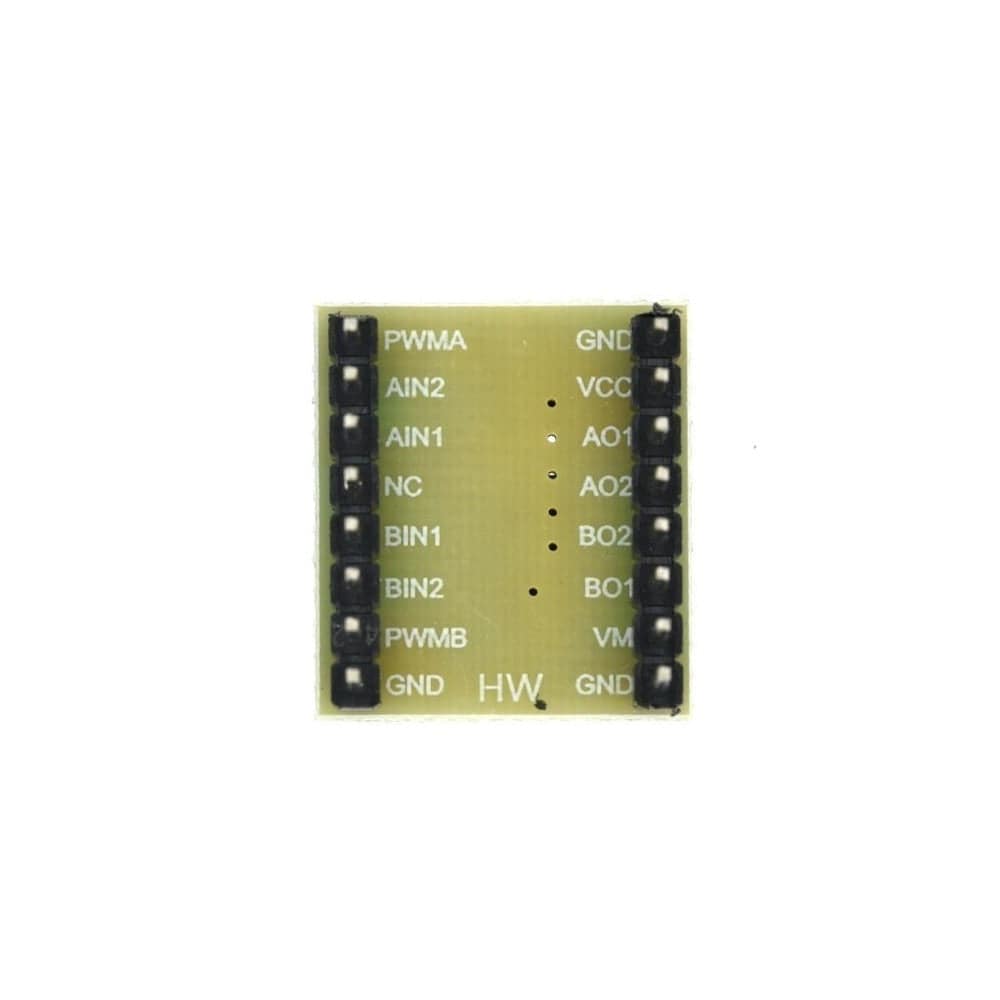

Interface Description:

  • AIN1.AIN2 Channel A input
  • AO1.AO2 Channel A Output
  • BIN1.BIN2 Input Channel B
  • BO1.BO2 Channel B Output

Package Included:

1 x TB6612 Motor Driver TB6612FNG Module 3PI Supporting
