Description:

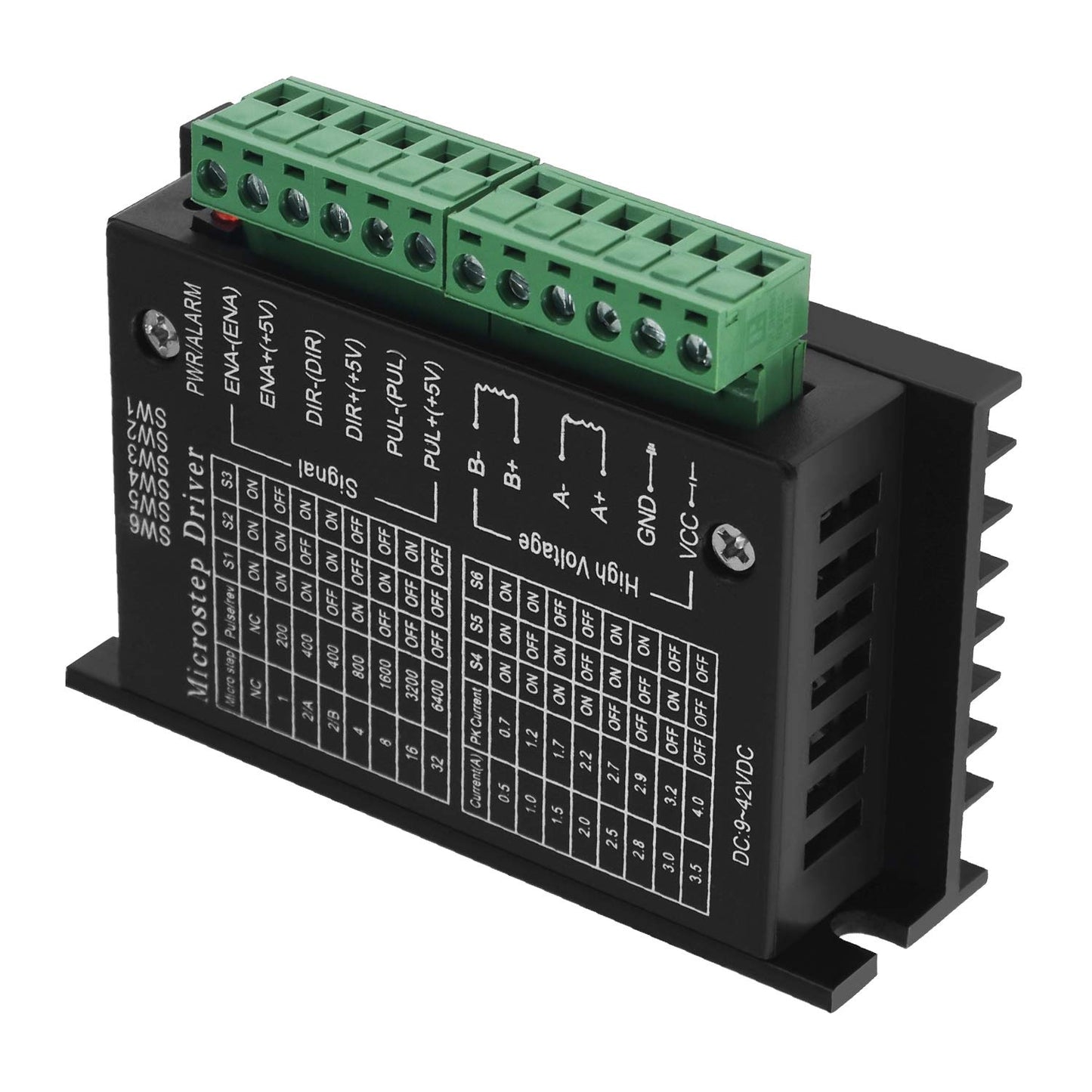

TB6600 Stepper Motor Controller is an easy-to-use professional stepper motor driver, which can control a two-phase stepping motor. It is compatible with Arduino and other microcontrollers that can output a 5V digital pulse signal.

TB6600 Stepper Motor Controller has a wide range of power inputs and a 9-42VDC power supply. It can output a 4A peak current, which is enough for most stepper motors. The stepper driver supports speed and direction control.

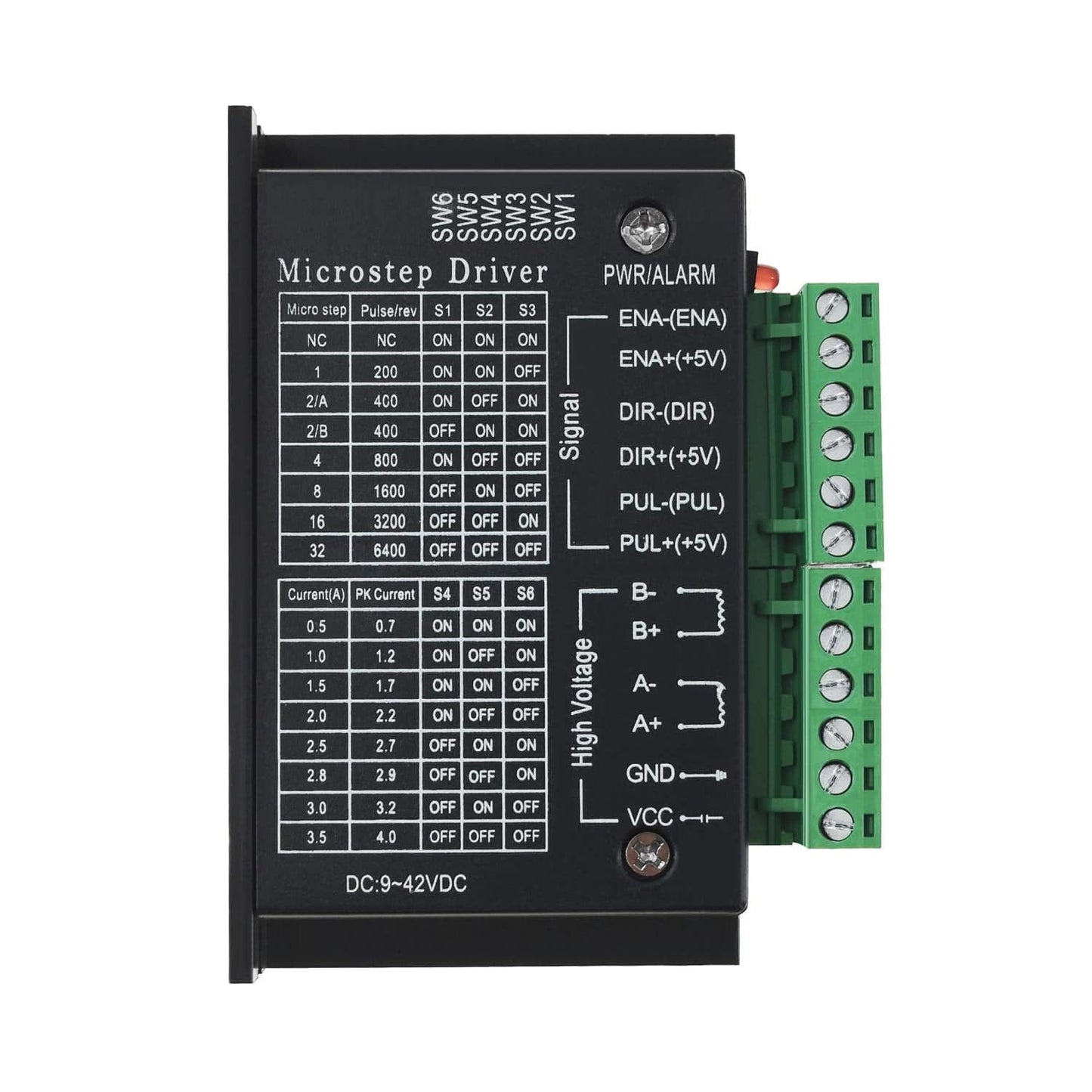

You can set its micro step and output current with a 6 DIP switch. There are 7 kinds of micro steps (1, 2 / A, 2 / B, 4, 8, 16, 32) and 8 kinds of current control (0.5A, 1A, 1.5A, 2A, 2.5A, 2.8A, 3.0A, 3.5A) in all. all signal terminals adopt high-speed optocoupler isolation, enhancing its anti-high-frequency interference ability. It can drive 57, 42-type two-phase, four-phase, hybrid stepper motors as a professional device.

TB6600 Stepper Motor Controller 4A 9~42V TTL 16 Micro-Step CNC 1 Axis Upgraded Version of the 42/57/86 Stepper Motor segment increased to 32 segments, suitable for high subdivision applications. Ideal for step motor: 57, 42, 86Type 4 phase 2 phase (4 line 6 line 8).

Specifications:

  • Voltage Rating: 9~42V DC
  • Current Rating: 5A
  • Control Signal Voltage: 3.3~24V
  • Output Power: 160W
  • Supply Current: 0~5A
  • Micro Step: 1, 16, 2A, 2B, 32, 8
  • Operating Temperature: -10~50°C

Features:

  • TB6600 Stepper Motor Controller has an H bridge bipolar constant current drive.
  • The biggest 4.0 A Eight kinds of output current are optional.
  • The biggest 32 To subdivide 6 kinds of subdivision modes selectable.
  • Input signal high-speed photoelectric isolation.
  • A total of standard single pulse interface.
  • TB6600 Stepper Motor Controller has an offline retention function.

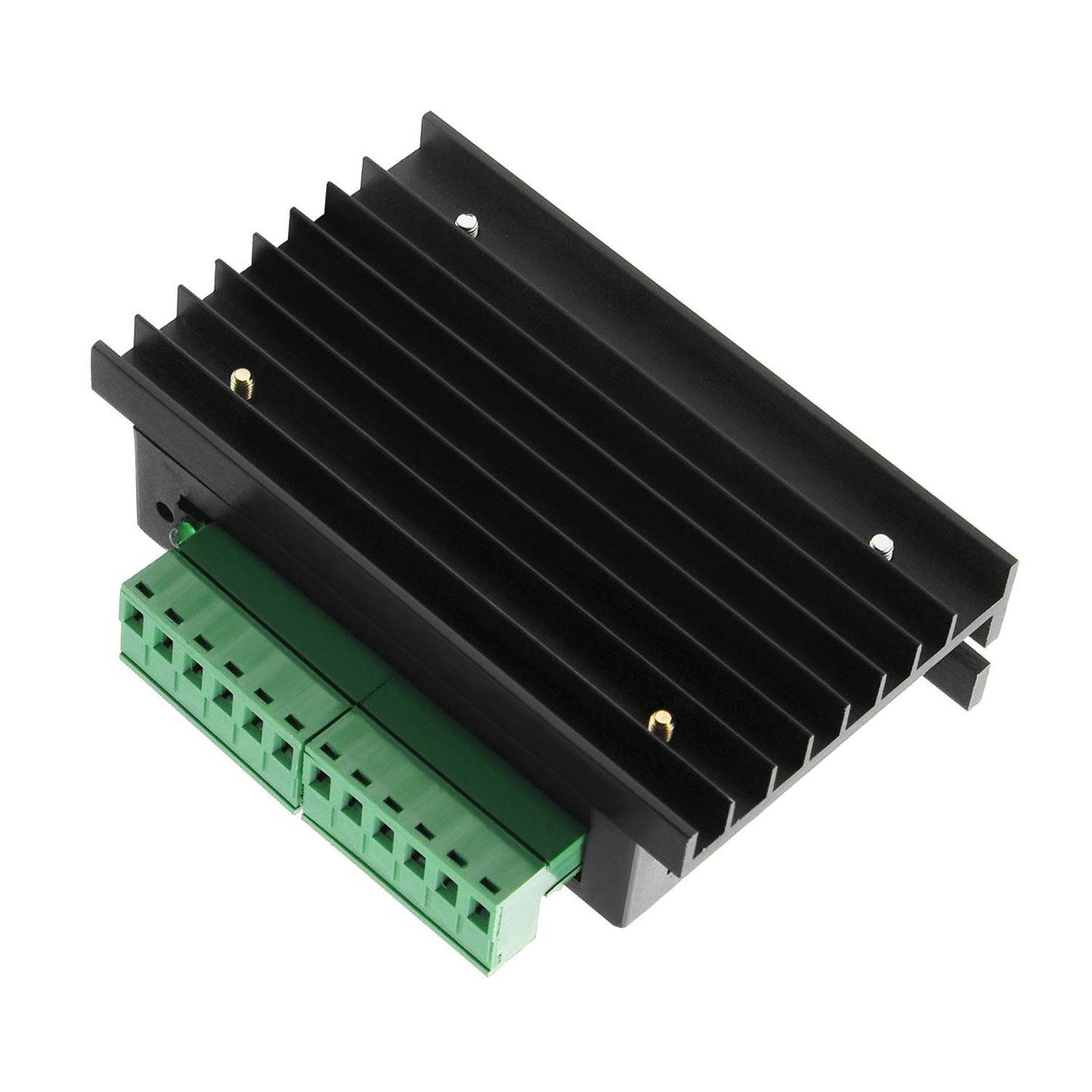

  • The semi-enclosed casing can adapt to a more stringent environment.
  • Provide energy-saving half-automatic current lock function.

Package Included:

1 X TB6600 Stepper Motor Controller TB6600 Stepper Motor Driver Controller 4A 9-42V TTL 16 Micro-Step CNC 1 Axis
