Description:

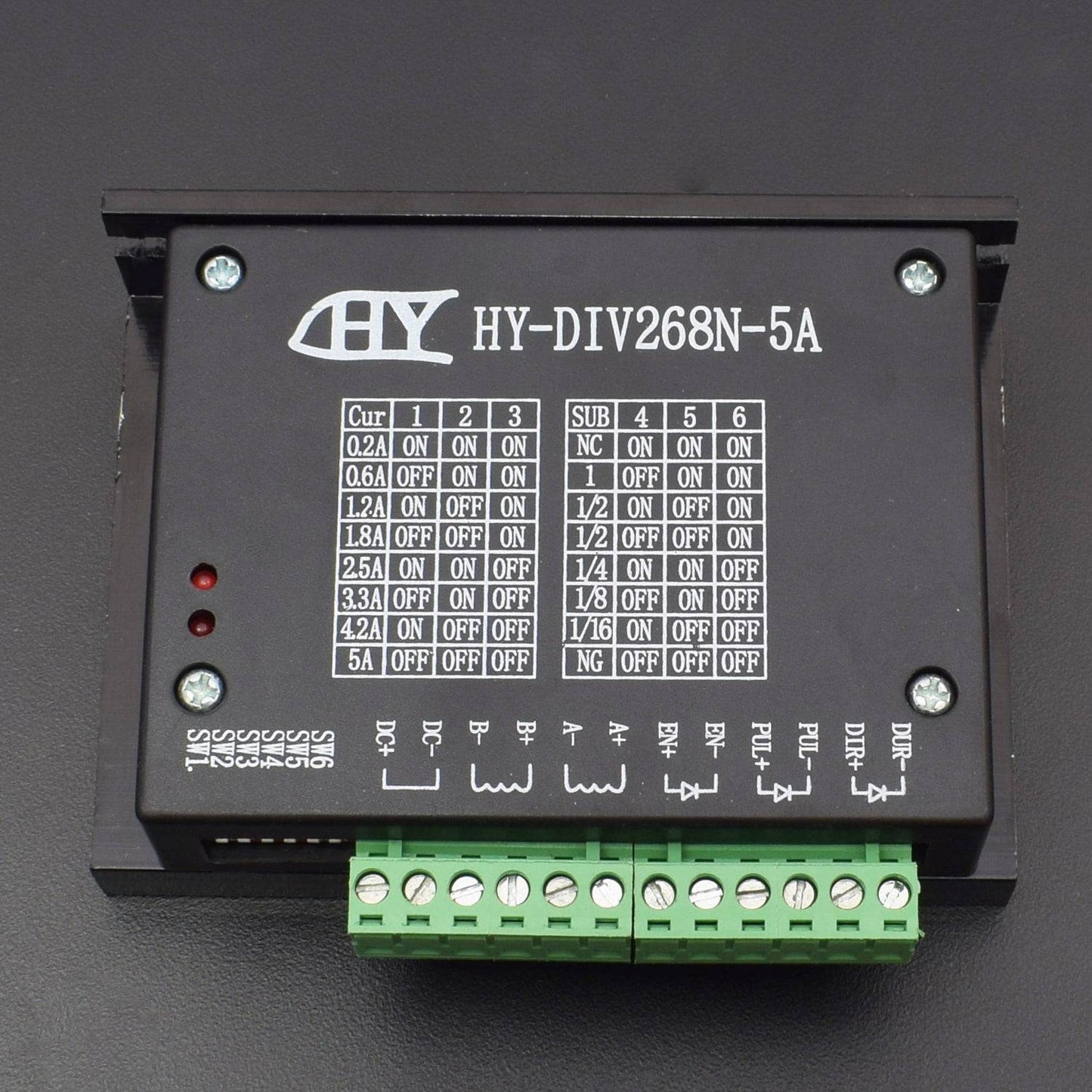

HY-DIV268N-5A subdivision-type two-phase hybrid stepping motor drive use DC 12 ~ 48V power supply.
It is suitable for driving two-phase hybrid stepping motor, whose dynamic voltage is 12 to 48V, the current is less than 5A and the outer diameter 35~86 mm. This drive use the drive's current loop subdivision control, the motor torque ripple is very small, low-speed running is very smooth, almost no vibration and noise. High-speed torque is much higher than other two-phase drive, high positioning accuracy. It is used widely for the engraving machine, CNC machine tools, packaging machinery and other high resolution requirements on the device.
Specification:
| Input Supply Voltage |
12 ~ 48V DC |
| Supply Current |
1 to 5A |
| Max. Output Current |
0.2 to 5A |
| Max Power Output |
160W |
| Operating Temperature |
-10 to 45°C |
Features:
- H bridge bipolar constant phase flow drive
- The maximum 4.0A of the eight kinds of output current
- The largest 32 subdivision of the 6 models are optional
- Input signal high speed photoelectric isolation
- Common-anode standard single pulse interface
- Offline to maintain the function

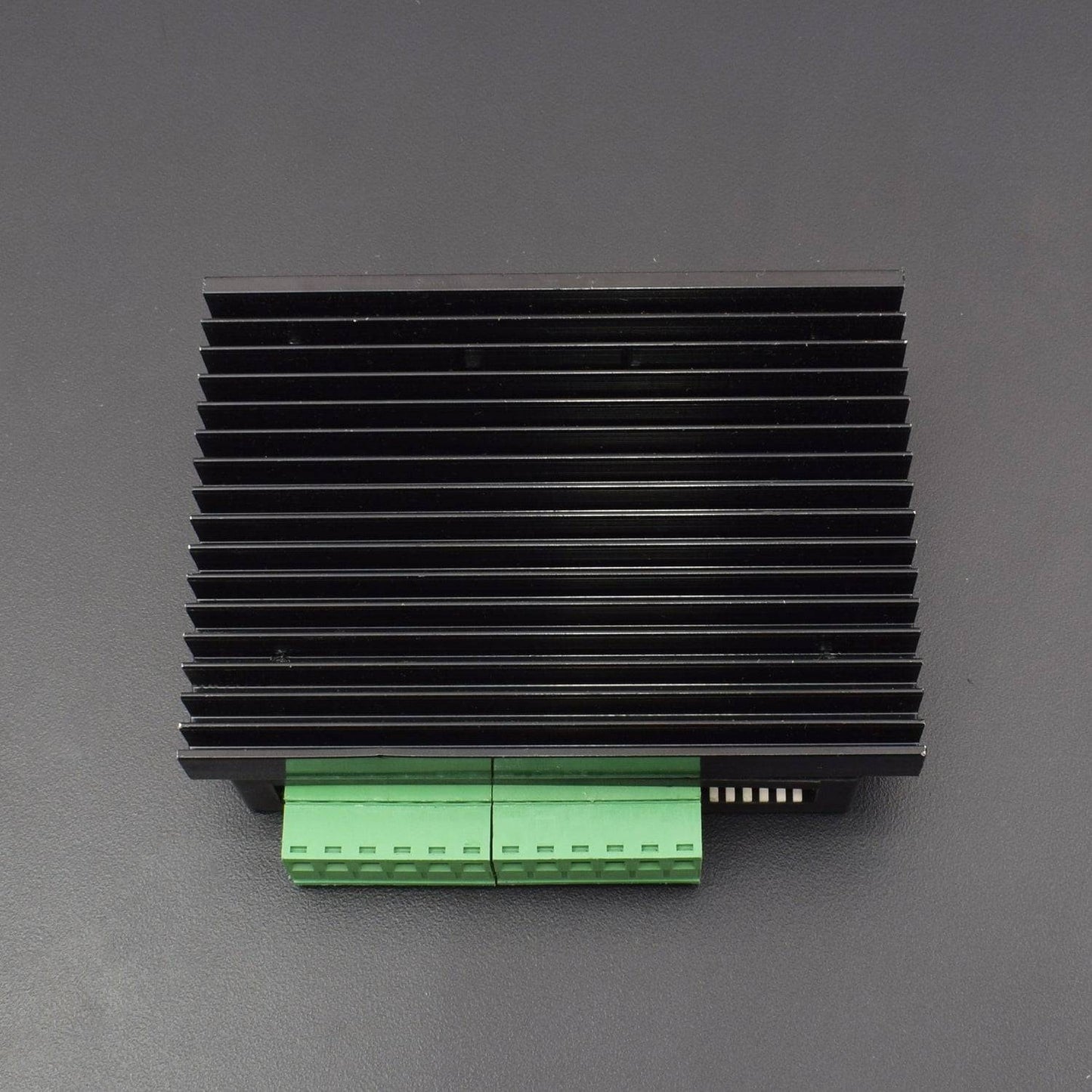

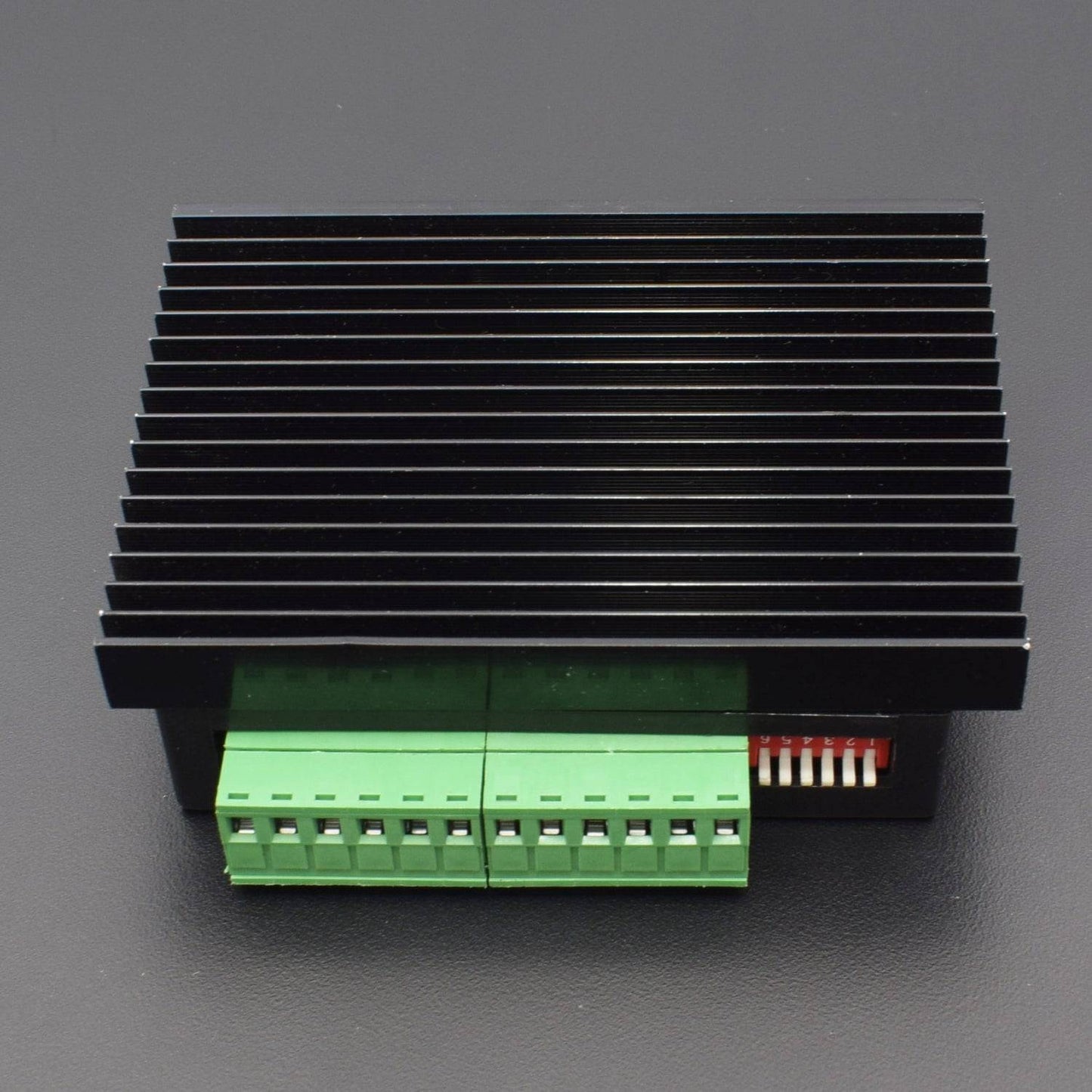

- Semi closed enclosure can be adapted to a more stringent environment
- To provide energy-saving semi-automatic current lock function
- Built-in temperature protection and over current protection.
Package Included:
1 x TB6600 5A Stepper Motor Driver CNC Controller, Stepper Motor Driver Nema For CNC
