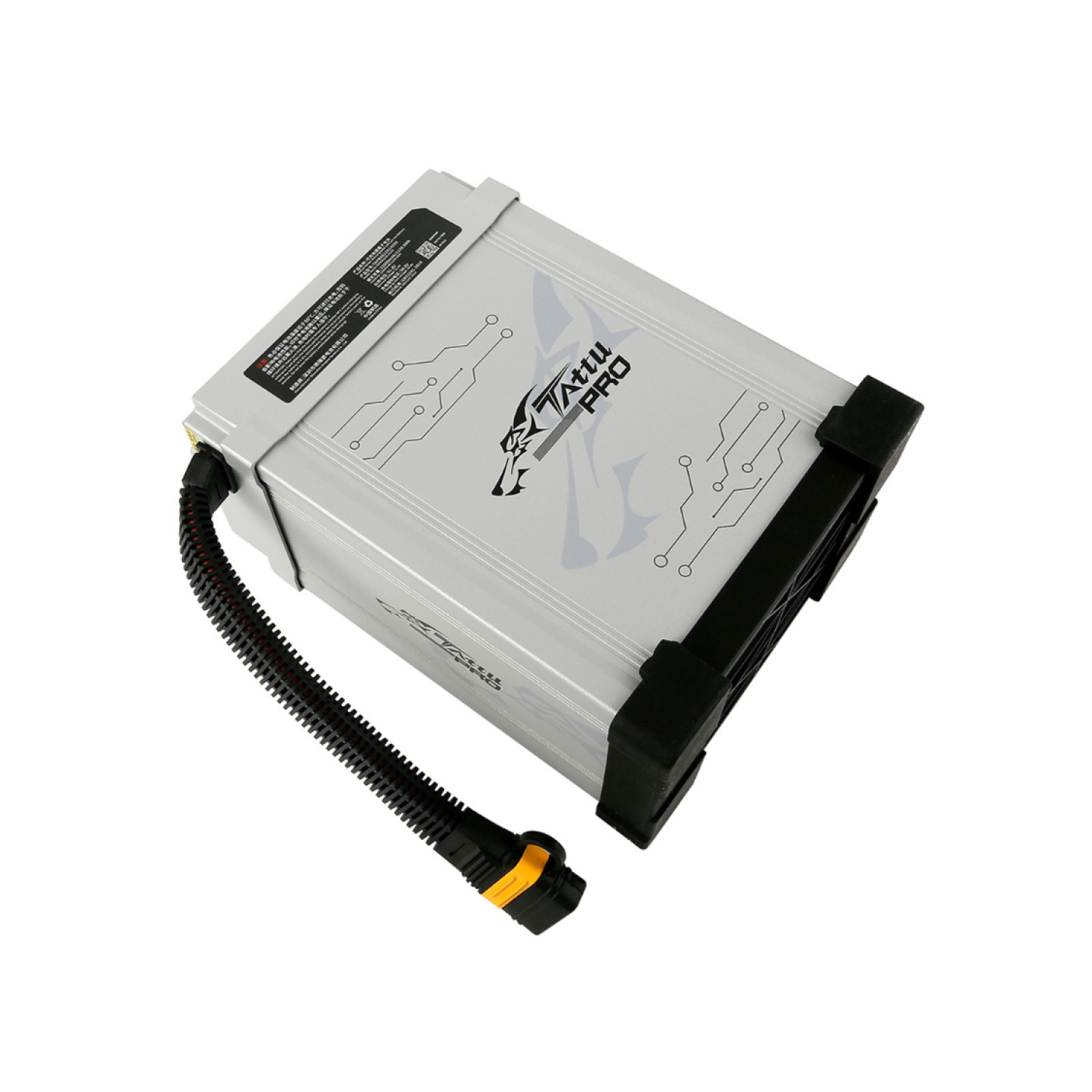

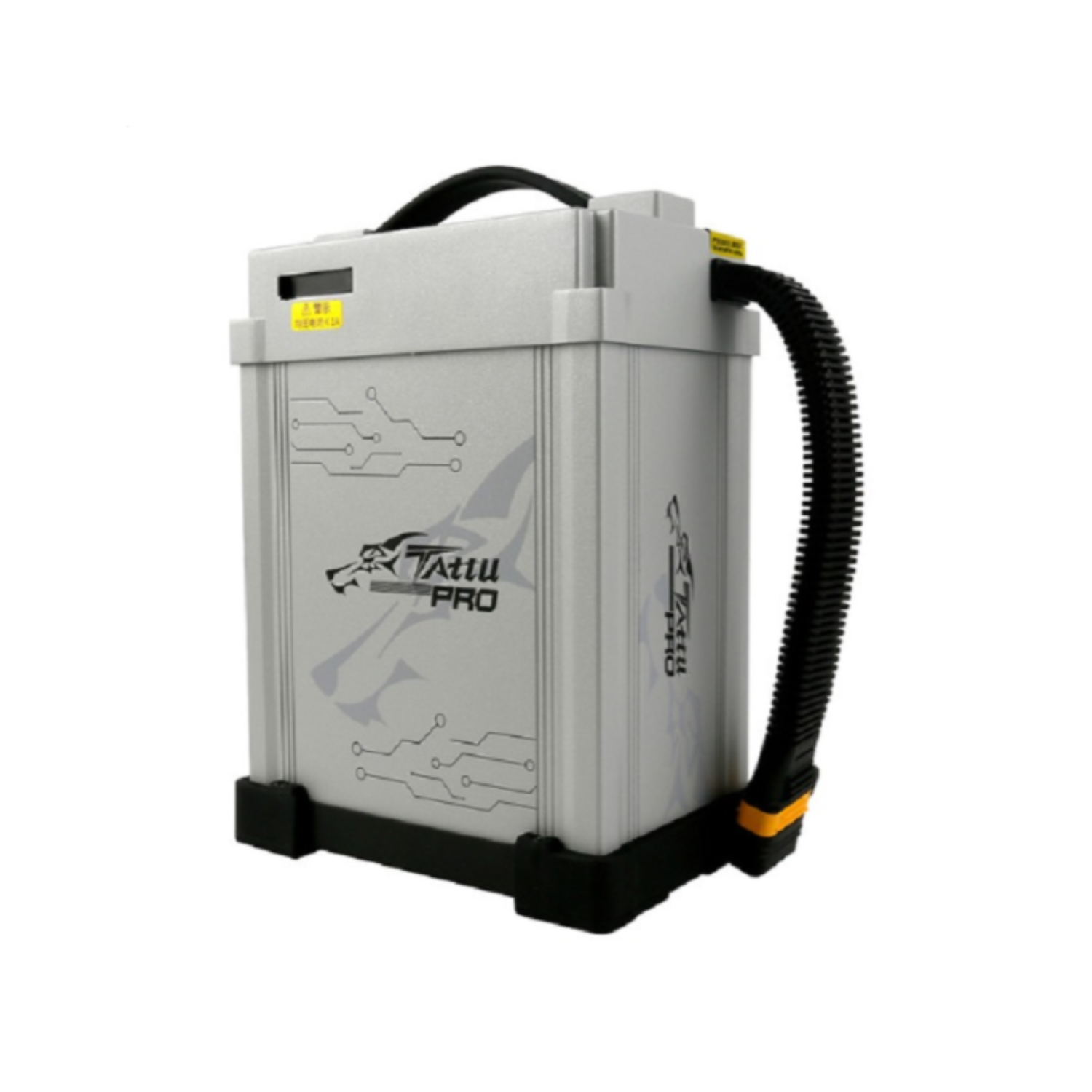

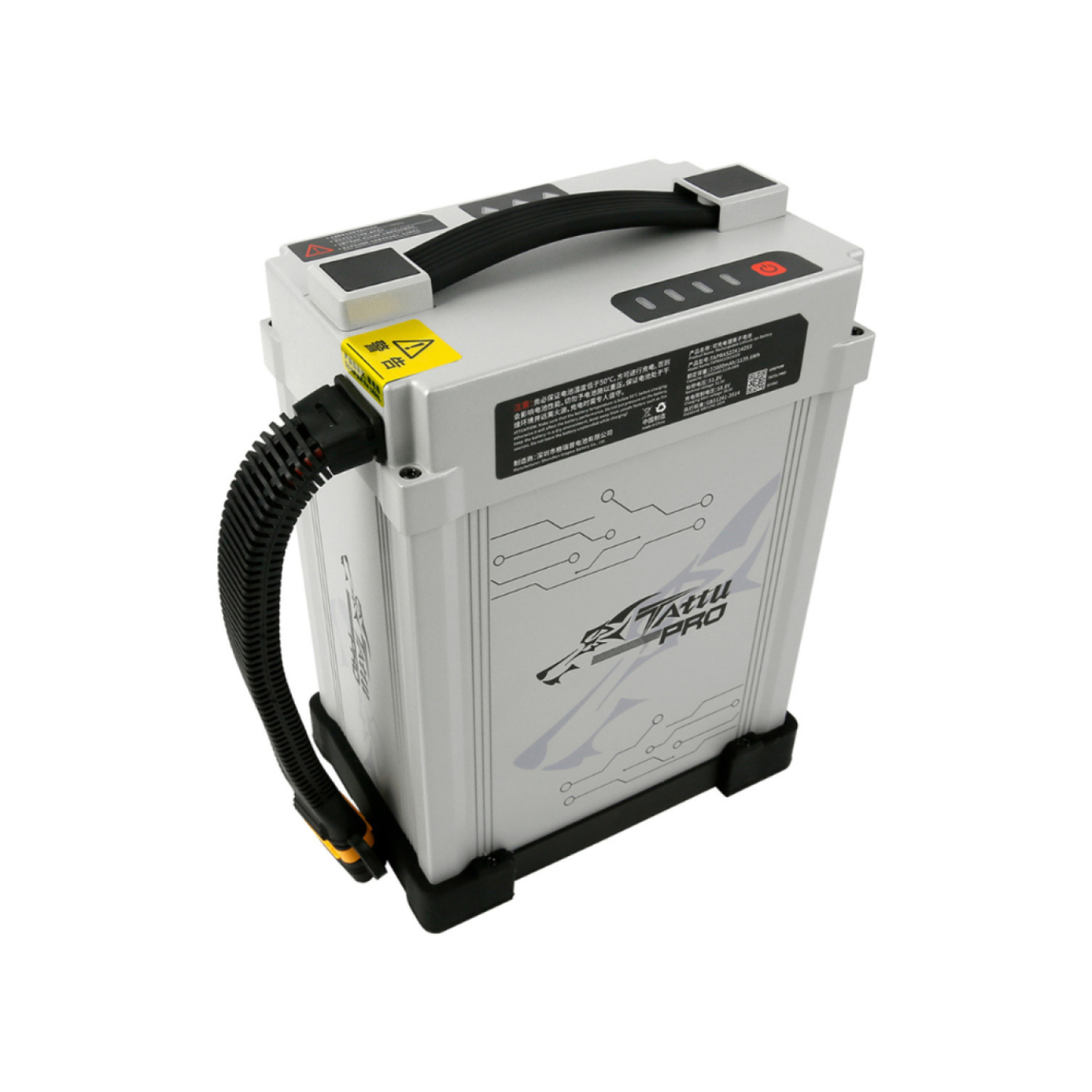

Description:
The TATTU Pro 22000mAh 12S1P Lipo Smart Battery Pack is engineered for demanding commercial drone applications. With a substantial capacity of 22000mAh and a 25C discharge rate.
it ensures reliable power delivery for extended flight times. The AS150U-F connector facilitates secure and efficient connections, while the advanced Battery Management System (BMS) offers real-time data monitoring, including voltage, current, and temperature, to optimize performance and safety.
Specifications:
- Connector Type: AS150U-F
- Minimum Capacity: 22000mAh
- Configuration: 12S1P / 44.4V / 12 Cells
- Max Continuous Discharge Current: 100A
- Max Fast Charging Current: 66A
- Peak Discharge Current: 150A (<3S)
- Max Burst Discharge Rate: 50°C
- Max Charging Voltage: 50.4V (4.2V/cell)
- Recommended Landing Voltage: 43.2V (3.6V/cell)
- Recommended Forced Landing Voltage: 42.6V (3.55V/cell)
- Recommended Forced Landing Voltage: 42.6V (3.55V/cell): +10°C to +45°C
- Recommended Discharging Temperature: +10°C to +60°C
- Discharge Wire Length(±2mm): 230mm
- Discharge Rate: 25°C
- Power (Wh): 976.8Wh
- Voltage(V): 44.4V
Features:
- AS150U-F plug
- Suitable for long flight times.
- 25C continuous discharge rate.
Package Included:
1 x TATTU Pro 22000mAh 44.4V 25C Lipo Battery Pack
