Description:
This compact and easy-to-use module is designed to provide reliable and accurate tilt detection. Built around the reliable SW-460D or SW-520D tilt sensor (not Mercury type), it offers a simple yet effective solution for a wide range of applications.
The module operates on a simple principle. When the module is within a certain threshold angle, it outputs a logic LOW signal. However, when the module is tilted beyond the threshold angle (typically between 45 and 130 degrees, though this can vary depending on the angular velocity), it outputs a logic HIGH signal. This digital output can be easily read by a microcontroller or other compatible devices.
Specifications:
- Supply Voltage: 3.3 V to 5V
- Model Type: Vibration Sensor Module
- Maximum Output Current: 15mA
- Maximum Operating Temperature: 0°C to + 80°C
Features:
- This small module is easy to use.
- A fixed bolt hole for easy installation
- Wide voltage LM393 comparator
- Ball Rolling type of tilt sensor.
Package Included:

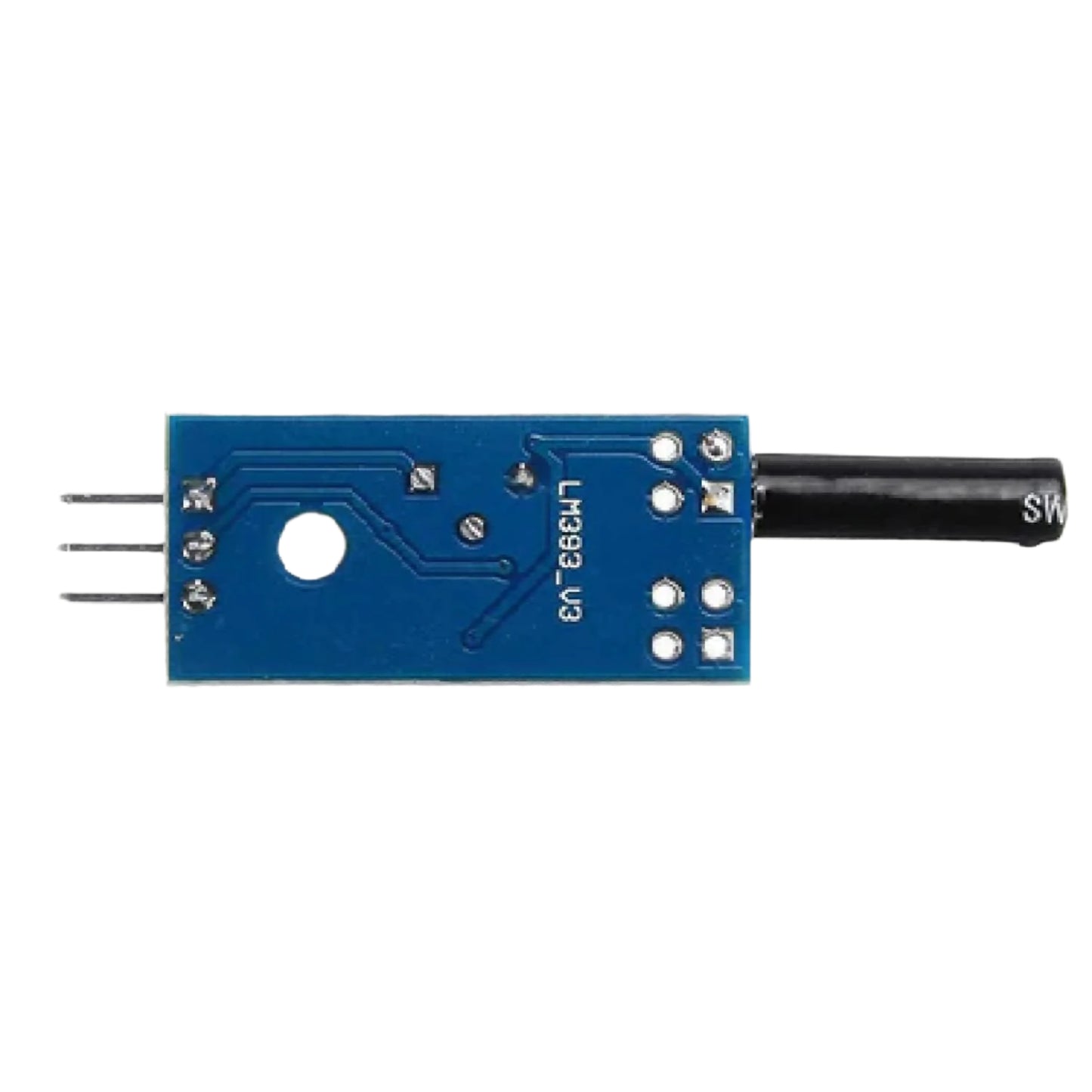

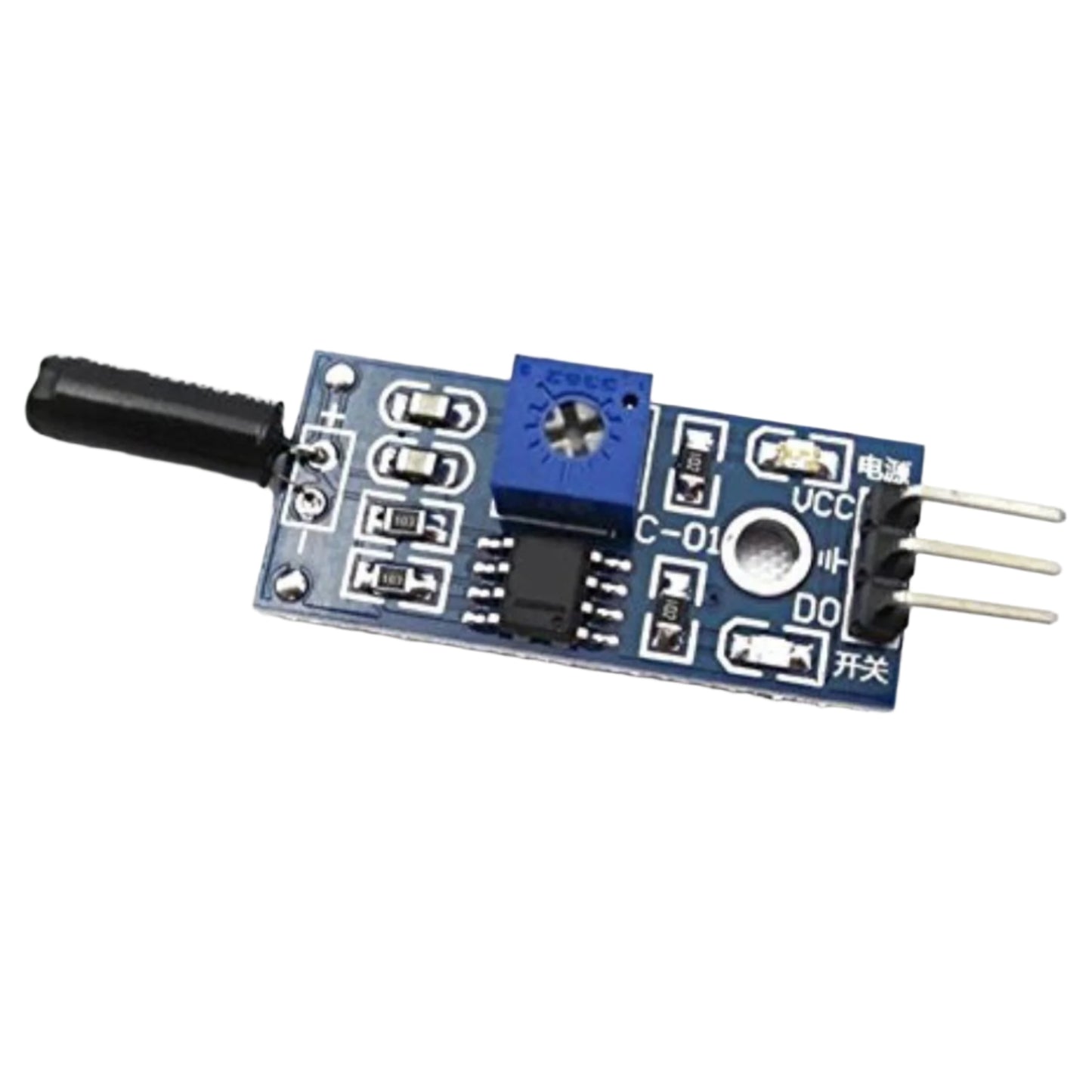

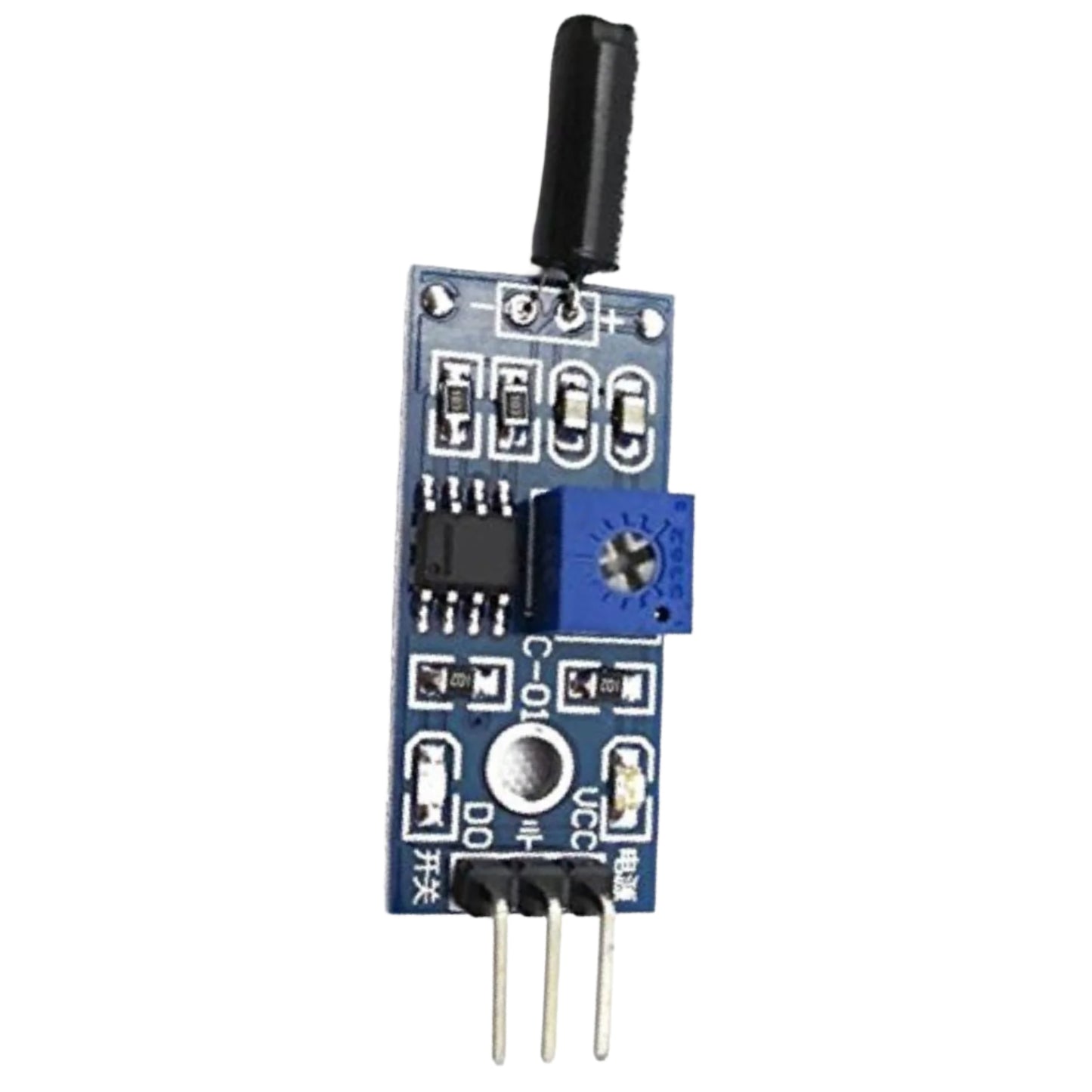

1 x Tilt Sensor Module Black
