Description:
25A ESC:
This is Electronic Speed Controller (ESC) for car. High power system for RC model is very dangerous, so please read this manual carefully. Since we can't control over the correct use, installation, application, or maintenance of our products, we'veno liability shall be assumed nor accepted for any damages,
losses or costs resulting from the use of the product. Any claimsarising from the operating, failure of malfunctioning etc. will be denied. We assume no liability for personal injury,consequential damages resulting from our product or our workmanship.
2435 3300KV Brushless Motor:
This high-performance 2435 3300KV brushless motor from SURPASSHOBBY is designed to deliver exceptional speed and power for your 1/16th and 1/18th scale RC cars.
S0017M 17G Servo:
The S0017M is a high-performance 17g servo designed for demanding applications. It delivers exceptional power and precision with a rated torque of ≥1.5kgf/cm and a maximum torque of ≥1.8kgf/cm.
Specifications:
25A ESC:
- Brand: SURPASSHOBBY
- Name: KK 25A ESC
- Cont.Current/Burst Current: 25A/100A
- Motor Type: Sensorless Brushless Motor
- 1. on-road: 24XX-Size or smaller motor with the KV<7200KV
- 2. off-road/Buggy/Monster: 24XX-size or smaller motor with the KV <4800KV
- Suitable Car: 1/20 1/18 1/16 Car
- Resistance: 0.0014ohm
- Battery: 2S Lipo/4-6Cells NiMH
- BEC Output: 5.0V/2A(analog mode)
- Dimensions/Weight: 40x32x15mm/33g
- Model: S0017P
2435 3300KV Brushless Motor:
- Brand: SURPASSHOBBY
- Series: KK
- Name: 2435 RC Motor
- Color: red
- KV(RPM/Volt): 3300KV
- Watt:300
- Max RPM: 60000
- Max voltage: <13.2V
- Max amps: 22A
- Rotor poles: 4
- Diameter: 24mm
- Length: 34mm
- Shaft: 2.0mm
- Shaft length: 12mm
-
Connector: 3.5mm gold
S0017M 17G Servo:
- Model: S0017M
- Rated Torque: ≥1.5kgf/cm
- Max. Torque: ≥1.8kgf/cm
- Voltage: 5.0V
- No Load Speed: ≤0.135/60
Features:
25A ESC:
- Water- proof and dust-proof for all-weather races; (Note: please uninstall the cooling fan before using this ESC in water;Clean and dry it soon after the use to avoid the connectors get rusty.)
- Specially designed for RC car with excellent start-up, acceleration and linearity features.
- Compatible with sensorless brushless motor.
- The strong resistant current capability, excellent heat dissipation.
- Multiple protection features: Low voltage cut-off protection for litium or nickel battery /Over-heat protectionThrote signal loss protection / Motor blocked protection/
- Easily programmed and compatible with pocket-sized program card.
2435 3300KV Brushless Motor:
- 4 Pole 12 Slot Hi-torque Motor Design.
- High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.
- Universal fit, for all 1:16,1:18 2S RC car.
- Precision balanced rotor,smoothness for best reliability and maximum RPM.
- Stator - Super Thin (0.35mm) Laminations.
S0017M 17G Servo:
- With a rated torque of ≥1.5kgf/cm and a maximum torque of ≥1.8kgf/cm, this servo delivers strong rotational force for precise control in various applications.
- The no-load speed of ≤0.135/60 ensures quick and responsive movements, making it suitable for dynamic control systems.
- Operating at 5.0V, it's compatible with most common RC power sources, simplifying integration into your projects.
- The S0017M is designed for durability and consistent operation in demanding environments, ensuring reliable performance over time.

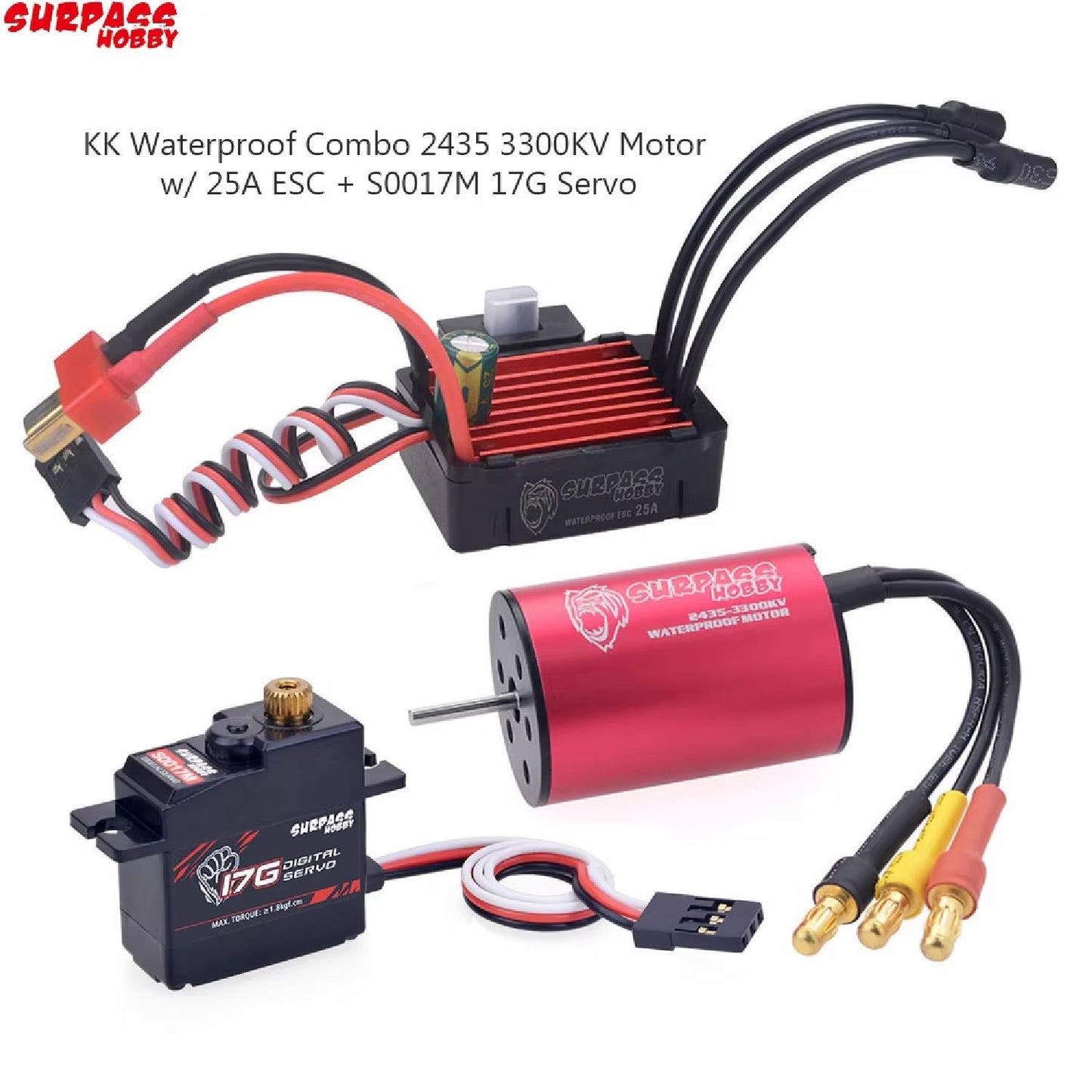

Package Included:
- 1 x 25A ESC
- 1 x 2435 3300KV Brushless Motor
- 1 x S0017M 17G Servo
