Description:

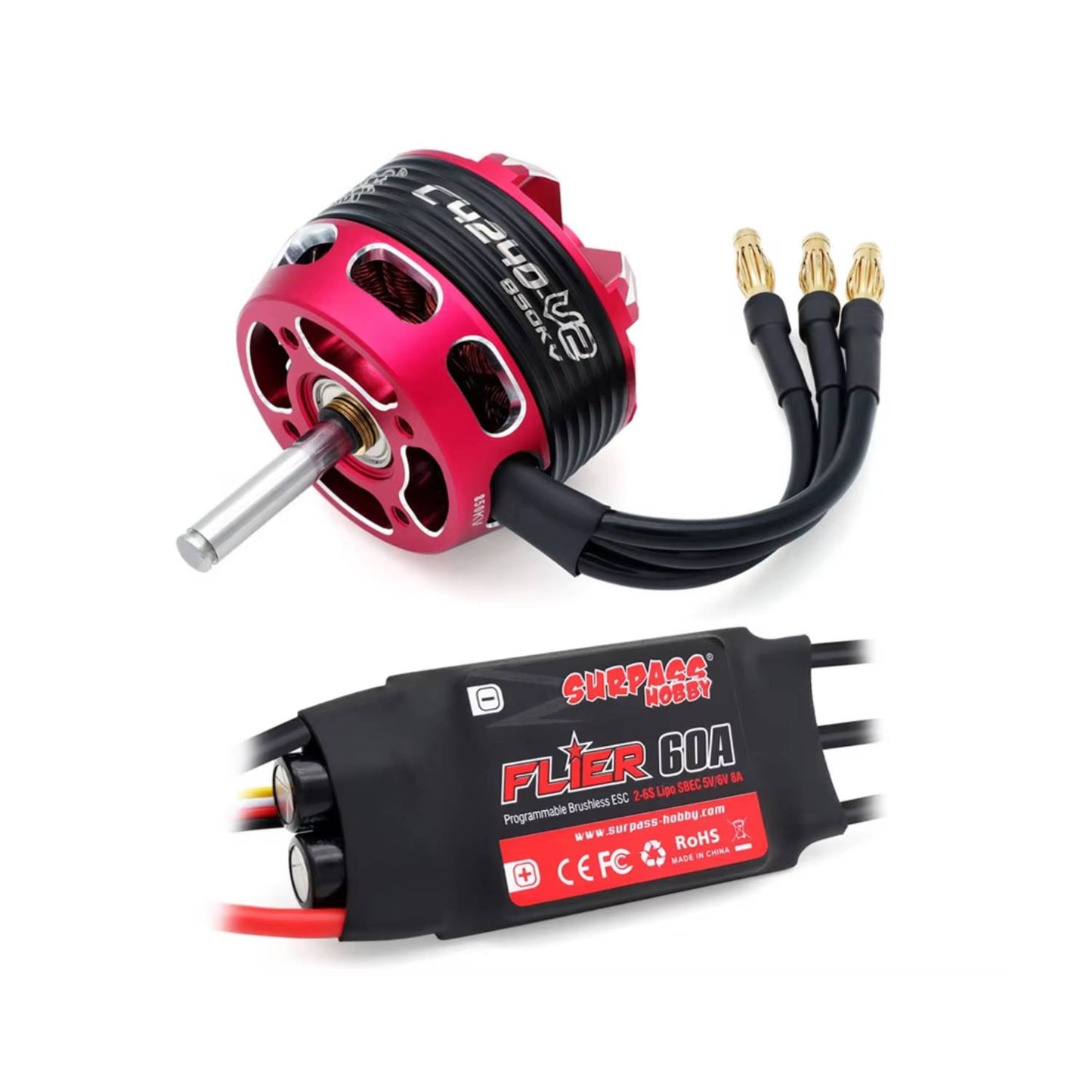

C4240 850KV Brushless Outrunner Motor:
This high-performance motor boasts a powerful 640W output and a rapid 850KV/V no-load speed constant, making it ideal for demanding applications. Designed for 12-28V operation, it can handle currents up to 45A. its compact 42x37.5mm size and lightweight construction contribute to excellent power-to-weight ratio.

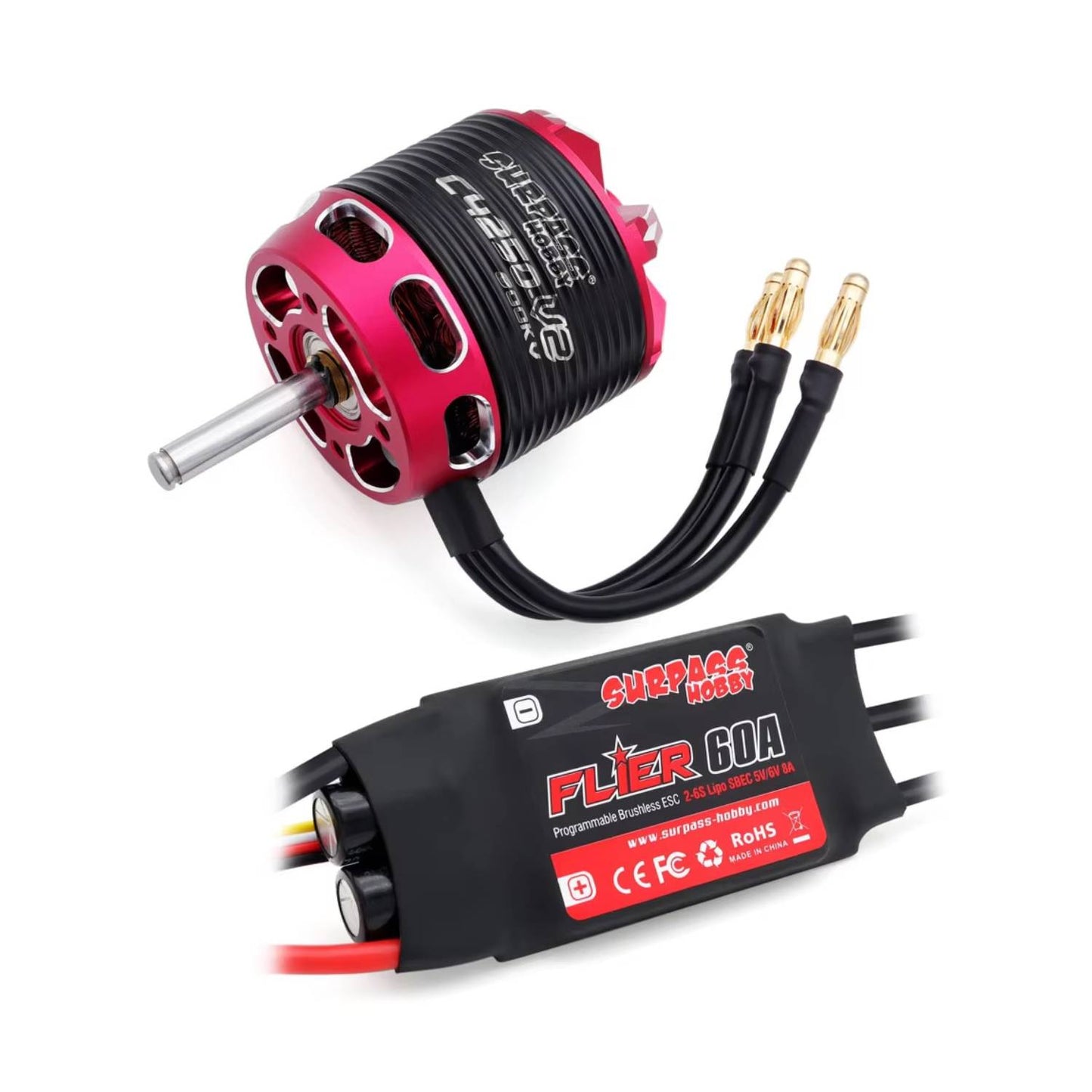

C4250 800KV Brushless Outrunner Motor:
This high-performance motor packs a powerful punch with a 1250W output and a rapid 800KV/V no-load speed constant, making it ideal for demanding applications. Designed for 10-20V operation, it can handle currents up to 62A. Its 14-pole rotor design ensures smooth and efficient operation.

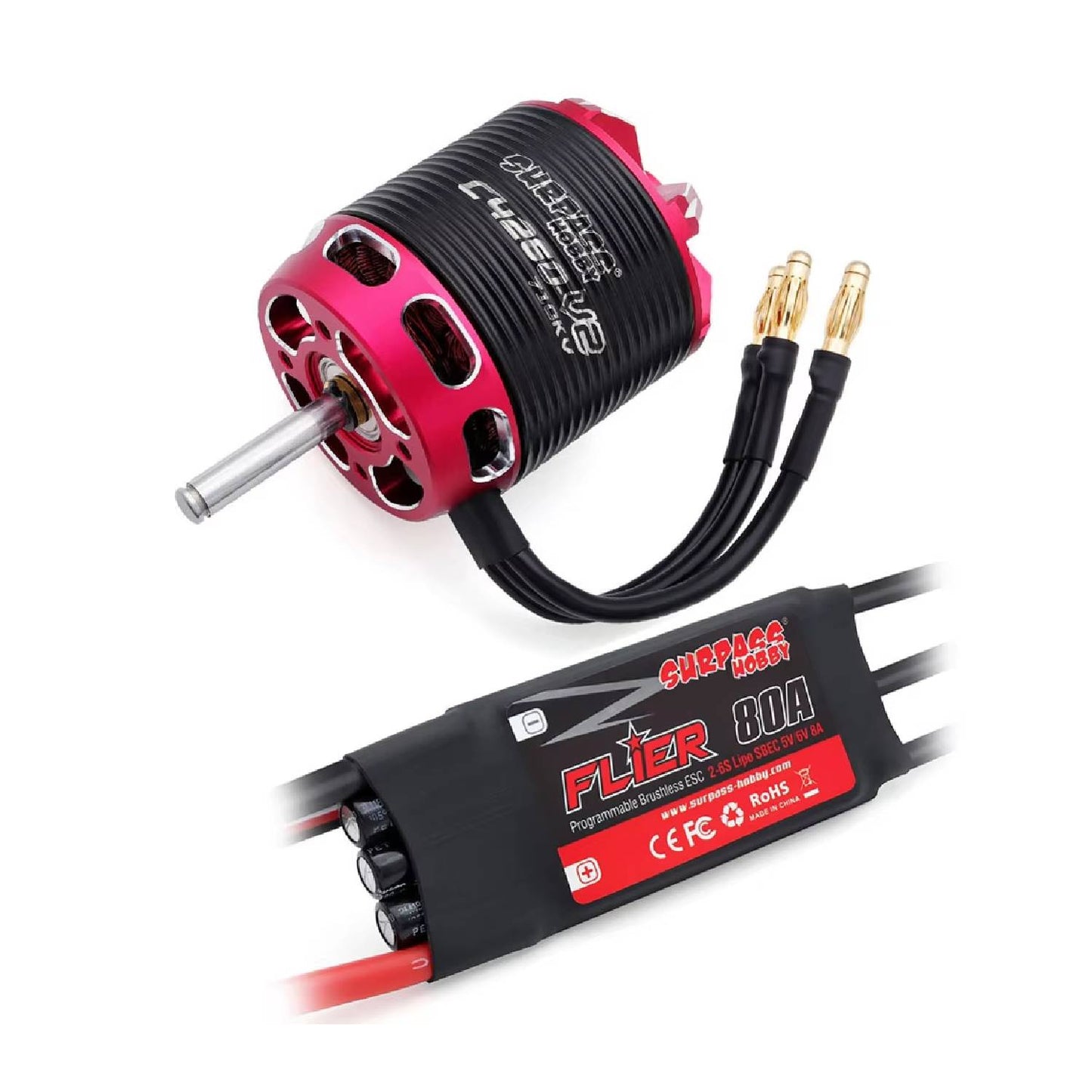

C4260 710KV Brushless Outrunner Motor:
This high-performance motor delivers exceptional power and speed with a 1650W output and a 710KV/V no-load speed constant. Designed for 10-20V operation, it can handle currents up to 82A, making it suitable for demanding applications. The 14-pole rotor design ensures smooth and efficient operation, while the low 2.7A no-load current minimizes power consumption.
60A Electronic Speed Controller (ESC):
This high-performance ESC is designed for demanding applications, featuring a robust 60A continuous current rating with a burst capacity of 80A for powerful acceleration and maneuvers.

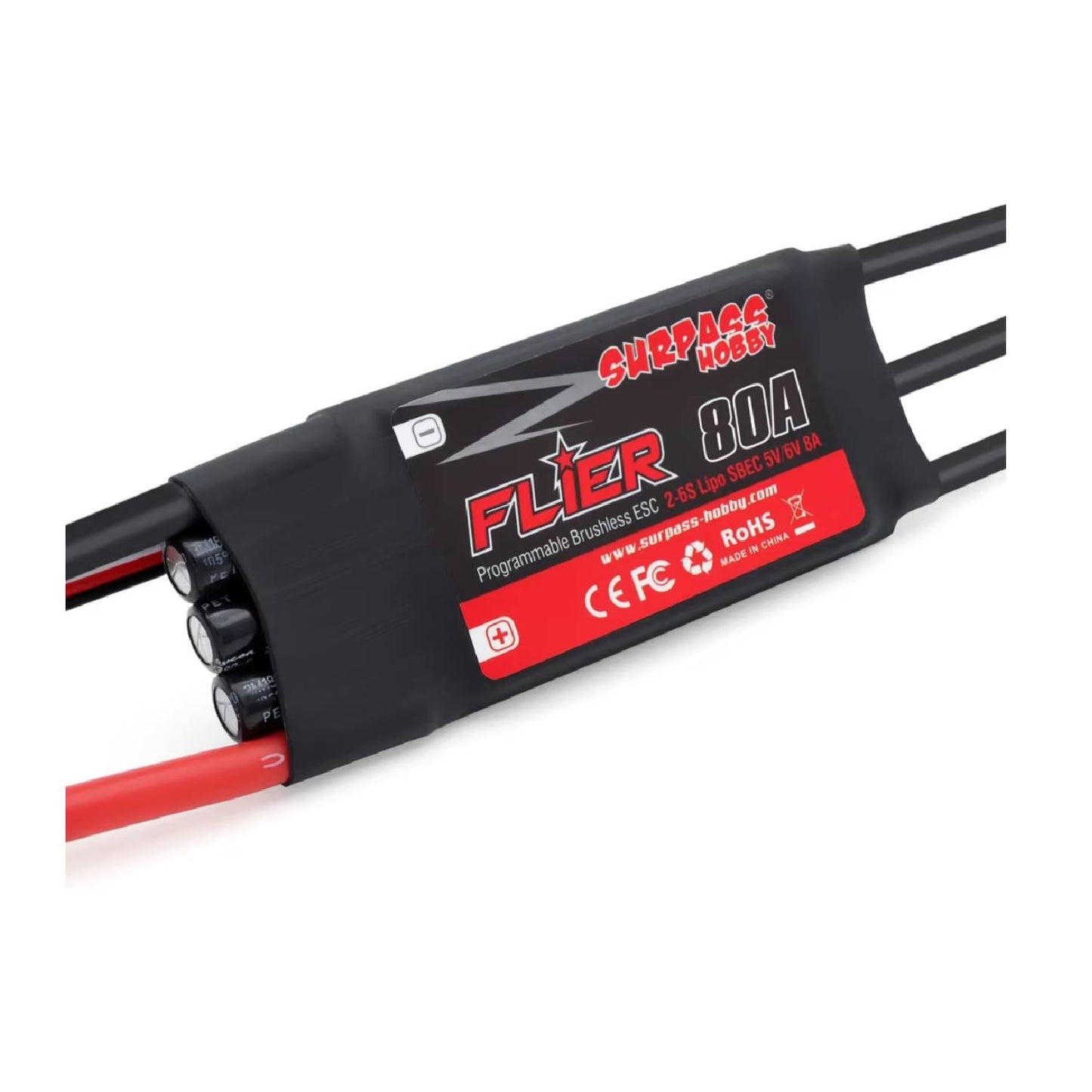

80A Electronic Speed Controller (ESC):
This high-performance ESC is designed for demanding applications, featuring a robust 80A continuous current rating with a burst capacity of 100A for powerful acceleration and maneuvers.
Specifications:
Brushless Outrunner Motor:
| Motor Type | C4240 / C4250 / C4260 |
| KV (RPM/Volt) | 850kv / 800kv / 710kv |
| Watt (W) | 640 / 1250 / 1650 |
| Voltage | 12-28 / 10-20 / 10-20 |
| Max Current(A) | 45 / 62 / 82 |
| Rotor Poles | 14 |
| No Load Current(A) | 1.0 / 2.3 / 2.7 |
| Resistance | 0.028 / 0.0212 / 0.0234 |
| Motor Size | 42 x 37.5 / 42 x 47.5 / 42 x 57.5 |
| Stator Size (mm) |
35 x 10 / 35 x 20 / 35 x 30
|
Electronic Speed Controller (ESC):
| ESC Type | 60A / 80A |
| Burst Current | 60A /80A ,80A /100A |
| Battery Cell | 5- 18 nc/2- 6lipo |
| Weight (g) |
50 , 75 |
| BEC Output | 5v/6v 8A |
| Size L x W x H | 70x34x10 / 90x37x10 |
| Connector (mm) | 4.0 |
| User Programme | Yes |
Features:
Brushless Outrunner Motor:
- 14 Pole Hi-torque rotor design, stable output power.
- Fits all fixed wing aircraft model.
- CNC Machined 6061 T6 aluminum front and rear cover.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- High Purity Copper Windings Maximizes Efficiency.
- Precision Engineered for Maximum Energy Conversion.
Electronic Speed Controller (ESC):
- Adopting new generation craft on the MOSFET, low heat generation, withstand large current instantly, and high reliability.
- Adopting high performance 32 bit microprocessor, stronger computing ability and faster running speed.
- Super smooth start-up and accurate throttle linearity.
- Higher driving efficiency and more energy-saving.
- Adjustable SBEC 5V/6V output voltage 5V/6V provides more powerful power to the servo. (60A/80A have SBEC adjustable)
- Multiple protections: start-up, over-heat, low-voltage cutoff, signal loss, phase loss etc.
- Support high RPM motors, and compatible with most motors in the market.
- Support programming via LCD program card, easier and more convenient operation (Extra LCD program card needed.)
Package Included:
- 1 x Brushless Outrunner Motor
- 1 x Electronic Speed Controller (ESC)
