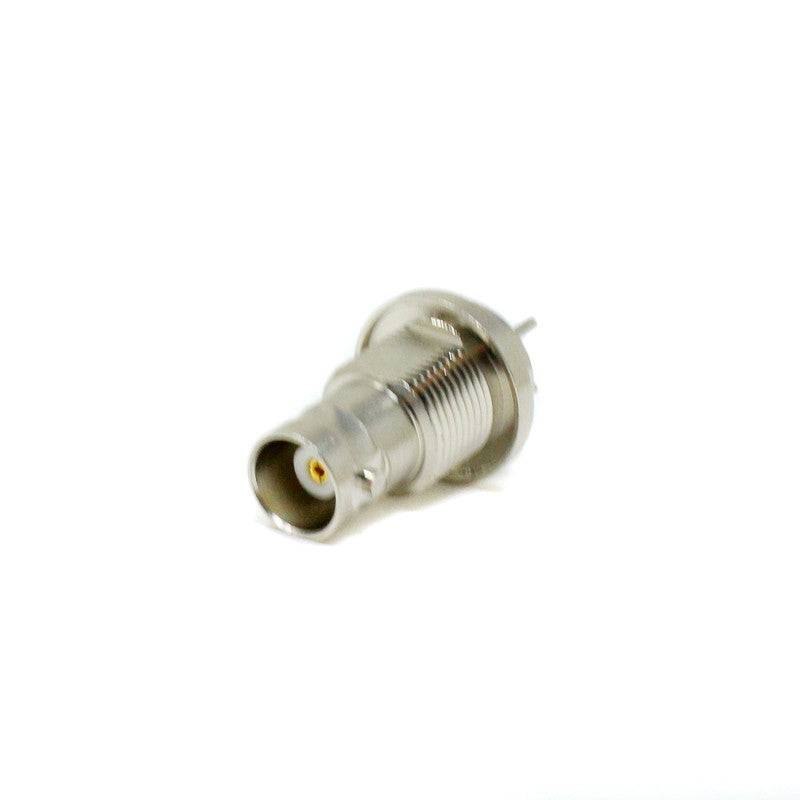

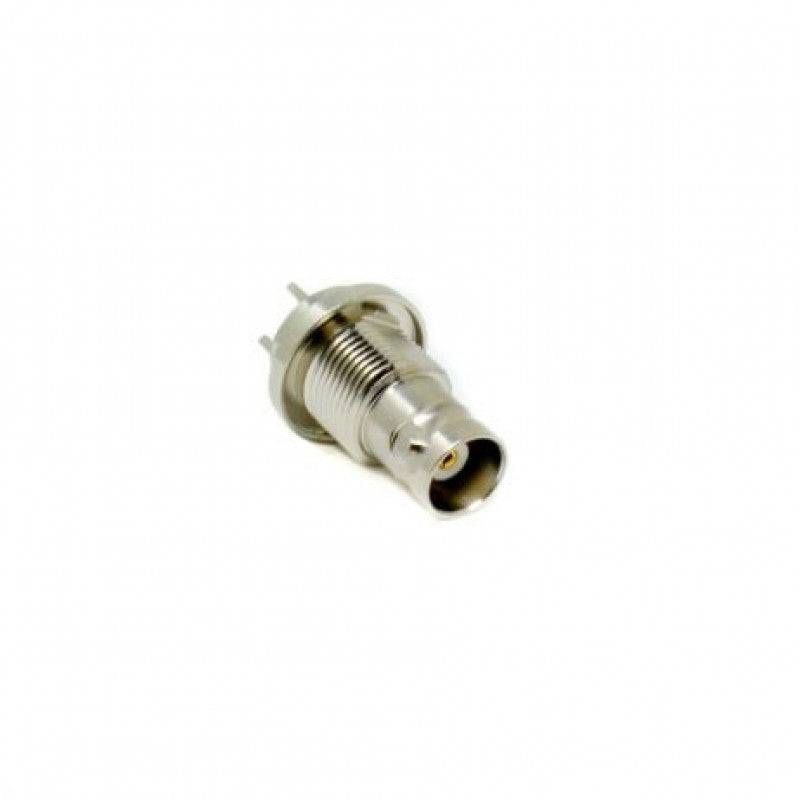

Straight BNC Jack Bulkhead PCB Mount - RS3176
Straight BNC Jack Bulkhead PCB Mount - RS3176
SKU:RS3176
12 in stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Environmental Characteristics: Teflon -55~+155 / POM -40~+60
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Description :
These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.
Main Application of BNC Connectors:
Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Features:
- Pcb Mount, Jack/female, Straight/180, 50;
- Compact Design for less installation space required;
- Easy quick connect and disconnect coupling;
Electrical Characteristics
- Impedance 50 ohm
- Frequency Range: 0~3 GHz
- VSWR: Straight type 1.22/3GHz / R/A type 1.30/3GHz
- Dielectric Withstanding Voltage: 1500 V rms
- Working Voltage: 500 V rms
- Center Contact Resistance 1.5 m (Milliohms max.)
- Outer Contact Resistance 2.0 m (Milliohms max.)
- Insulation Resistance 5 10 m (Milliohms min.)
Mechanical Characteristics
- Coupling: bayonet
- Contact Retention: 6 lbs min.
- Mating Durability: 500 cycles
Environmental Characteristics
- Environmental Characteristics: Teflon -55~+155 / POM -40~+60
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101
Specifications:
- Brand : REES52
- Orientation : Straight
- Gender : Female
- Mounting Type : PCB Mount / Panel Mount
- Termination Style : Solder Type
- Mounting Feature : Bulkhead / Through Hole
- Function : Other
- Polarity : Standard
- Body Material : Copper Alloy
- Body Plating : Nickel Plating
- Impedance : 50/75 ohms
Package Included:

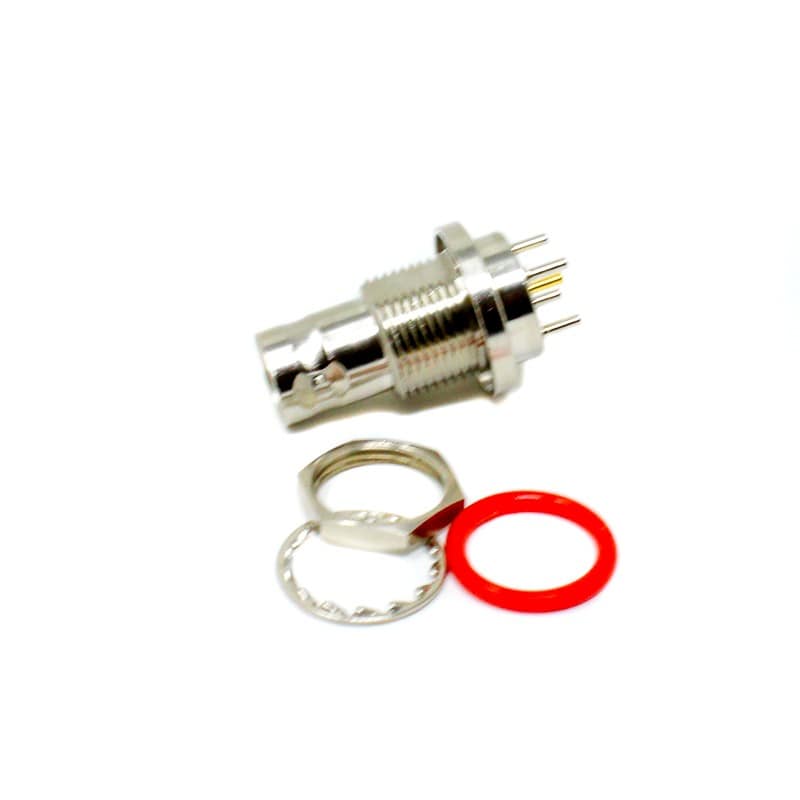

1 x Straight BNC Jack Bulkhead PCB Mount
