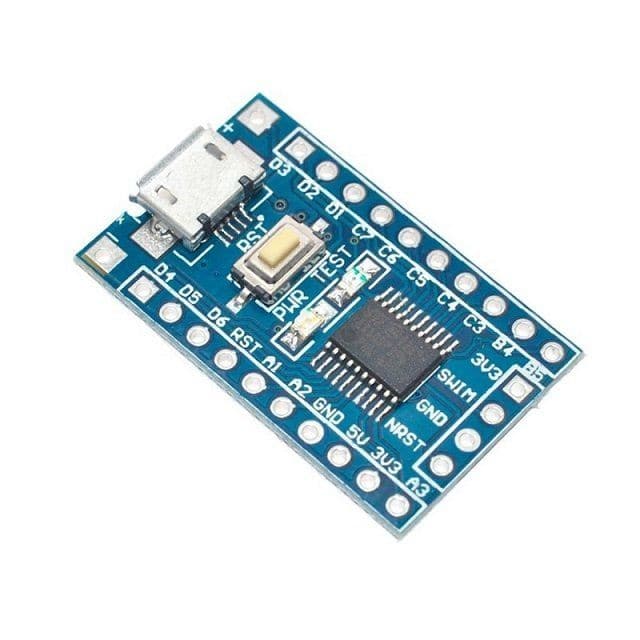

STM8S103F3P6 System Board STM8S STM8 Development Board Minimum Core Board- NA267

STM8S103F3P6 System Board STM8S STM8 Development Board Minimum Core Board- NA267

NA267

Low stock: 1 left

Rs. 160.00
Rs. 160.00
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details
  • Voltage Range: 4.5V~15V
  • IC Chip: STM32F103C8T6
  • Reset Button: YES
  • USB Type: Micro USB

Description:

The advantage of the Core Board STM8S103F3P6 STM8 Development Board Minimum System Board is this development board uses the Micro USB to link to the power. The Micro USB line is compatible with a Smartphone cable which means we can get the data easily. We do not use the USB MINI cable to link to power because the USB MINI cable has out of style and is very difficult to get. This STM8S development board draws our attention because of its low price, humanity design and availability of complete information. You can use a 2.54 pin on the board or power supply pad, the pad when using the power supply, an input voltage range of 4.5V-15V can output to the outside through pin 3.3V. This development board uses a MicroUSB cable supply, compatible with smartphone lines, data lines are simple and easy to get, but not USB MINI line-powered, USB MINI line is not easy to find, and has been gradually phased out. Other manufacturers of products used in MINI-USB ports, this is not applicable for customers.

Specification:

  • Voltage Range: 4.5V~15V
  • IC Chip: STM32F103C8T6
  • Reset Button: YES
  • USB Type: Micro USB

Features:

  • Chipboard STM32F103C8T6
  • Onboard, SWIM interface and reset button
  • Micro USB line or the 2.54 pin to link to the power with the input voltage 4.5V-15V.
  • The power light and the Demo indicator light
  • Leads all the pins and has a detailed label for the Pins.
  • Support SWIM debug mode.

STM8S103F3P6 Performance Comparison:

  • STM8S003F3 chips only 128 bytes of EEPROM, STM8S103F3 640 bytes
  • STM8S003F3 chip FLASH erase only 100 times, STM8S103F3 can erase ten thousand times
  • STM8S103F2 chip FLASH only 4K bytes, STM8S103F3 have 8K bytes
  • Conclusion: STM8S003F3 is only suitable for mature products, and STM8S003F3 core board is not suitable for development. However, STM8S103F3 suitable for the development of the use of, our board of this development is the use of this chip
  • Size:28mm*17mm*5mm

Package Included:

1 x STM8S103F3P6 System Board
