Description:

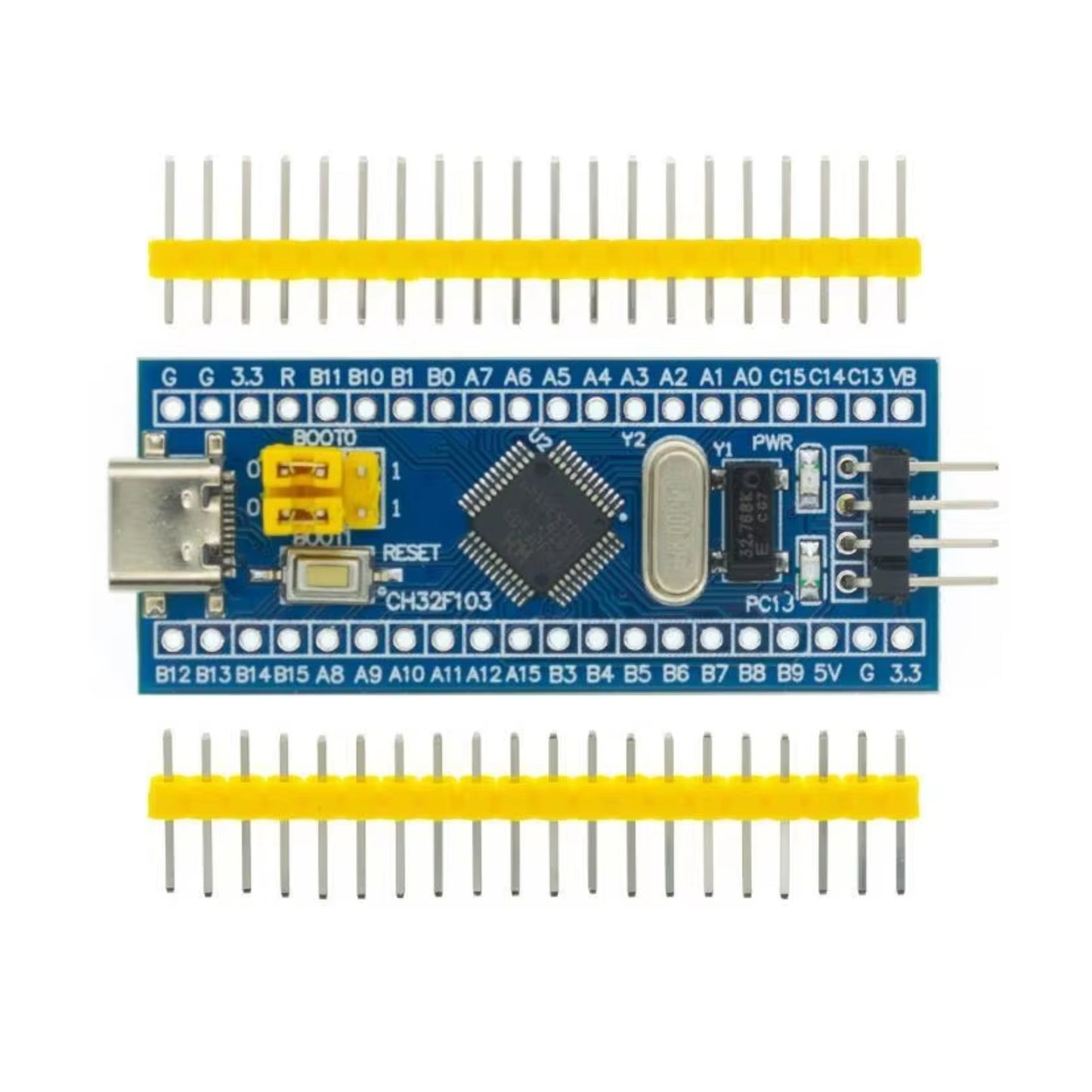

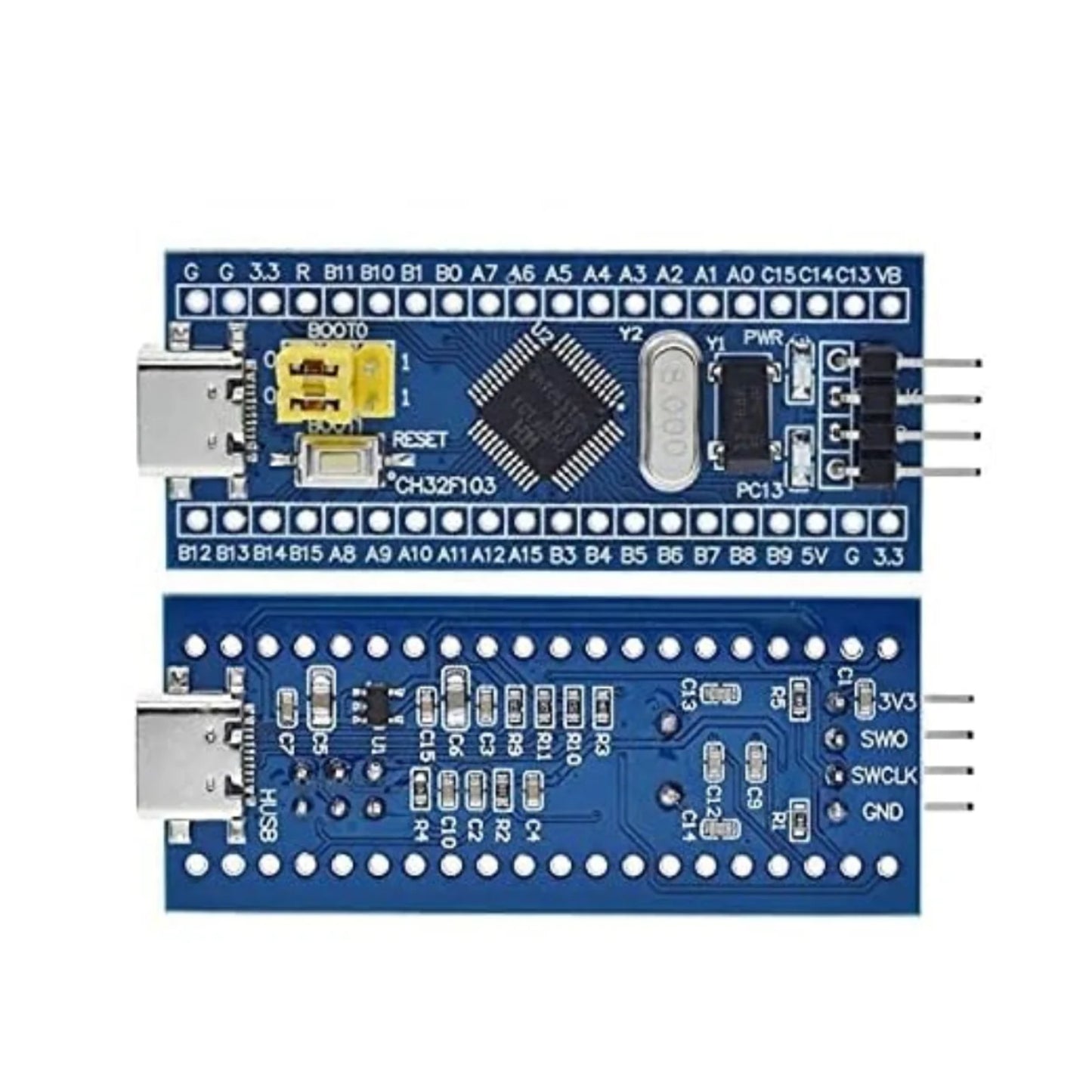

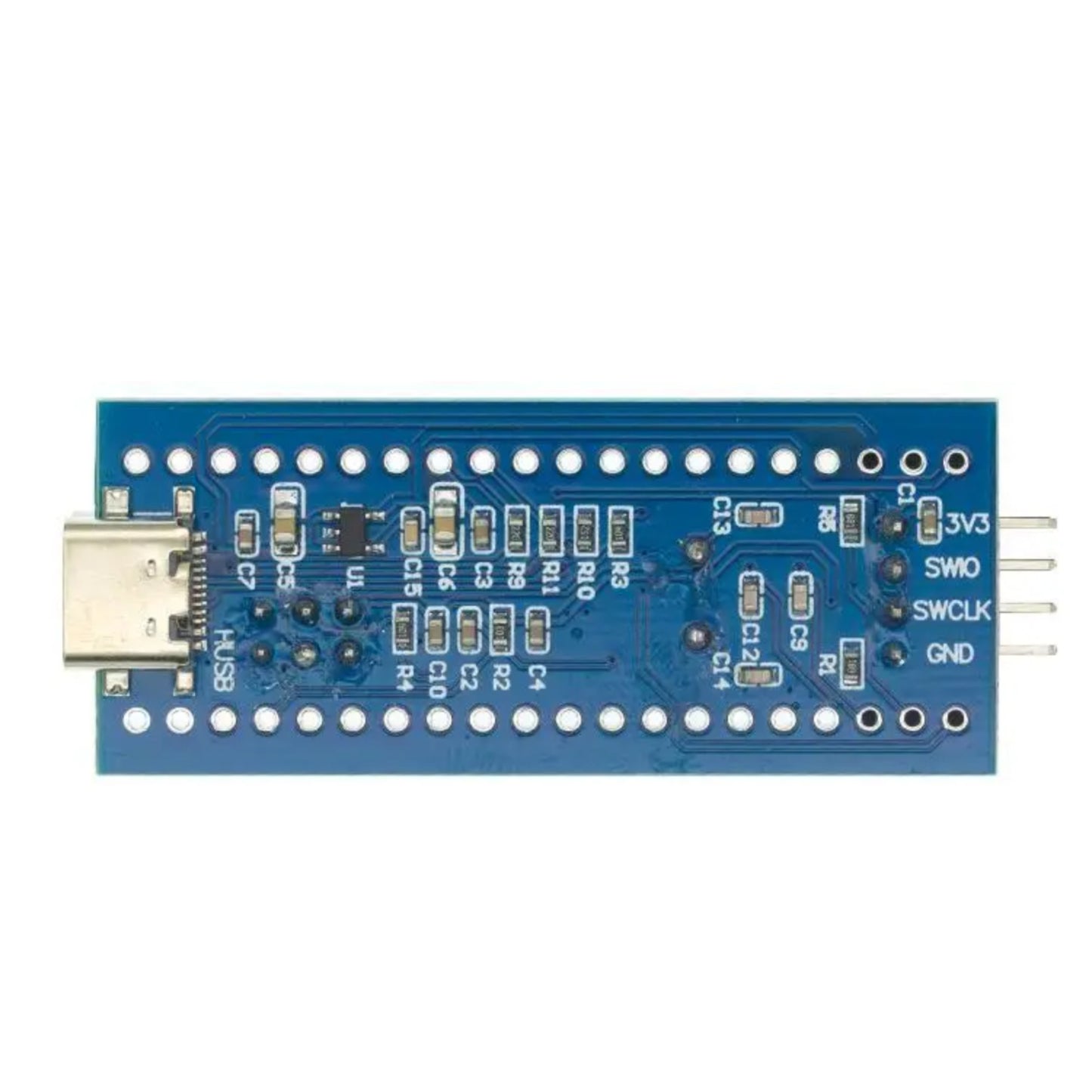

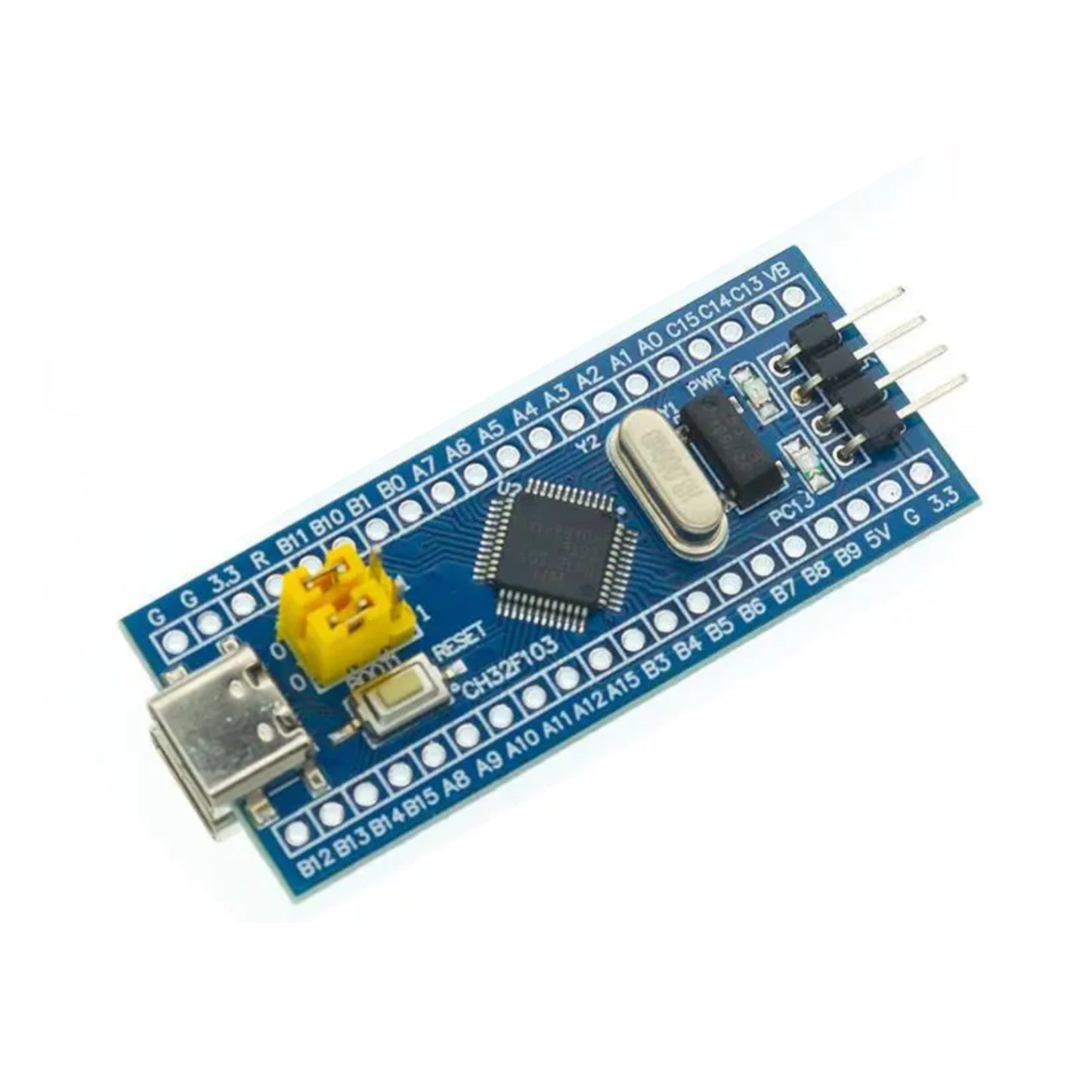

The STM32F103C8T6 TYPE-C is a compact development board powered by WCH’s 32-bit ARM Cortex-M3 microcontroller. It features a USB Type-C interface for easy connectivity, a user LED, reset and boot selection buttons, and supports USB device, host, and OTG modes.
Specifications:
- Model: STM32F103C8T6
- Input Voltage: 3~5V
- Operating Voltage: 3.3V
- Core: ARM 32 Cortex-M3 CPU
- CPU Frequency: Up to 72MHz
- Memory: 64KB FLASH, 20KB RAM
- Operating range: 40°C to +85°C
- SPI Peripherals: 2
- I2C Peripherals: 2
- Number of GPIO pins: 37
- Analog input Pins: 10 (12-bit)
Features:
- 72MHz work frequency.
- 64K flash memory, 20K SRAM.
- 2.0-3.6V power, I/O.
- Reset(POR/PDR).
- 4-16MHz crystal.
- Onboard Mini USB interface, you can give the board power supply and USB communication.
Package Included:

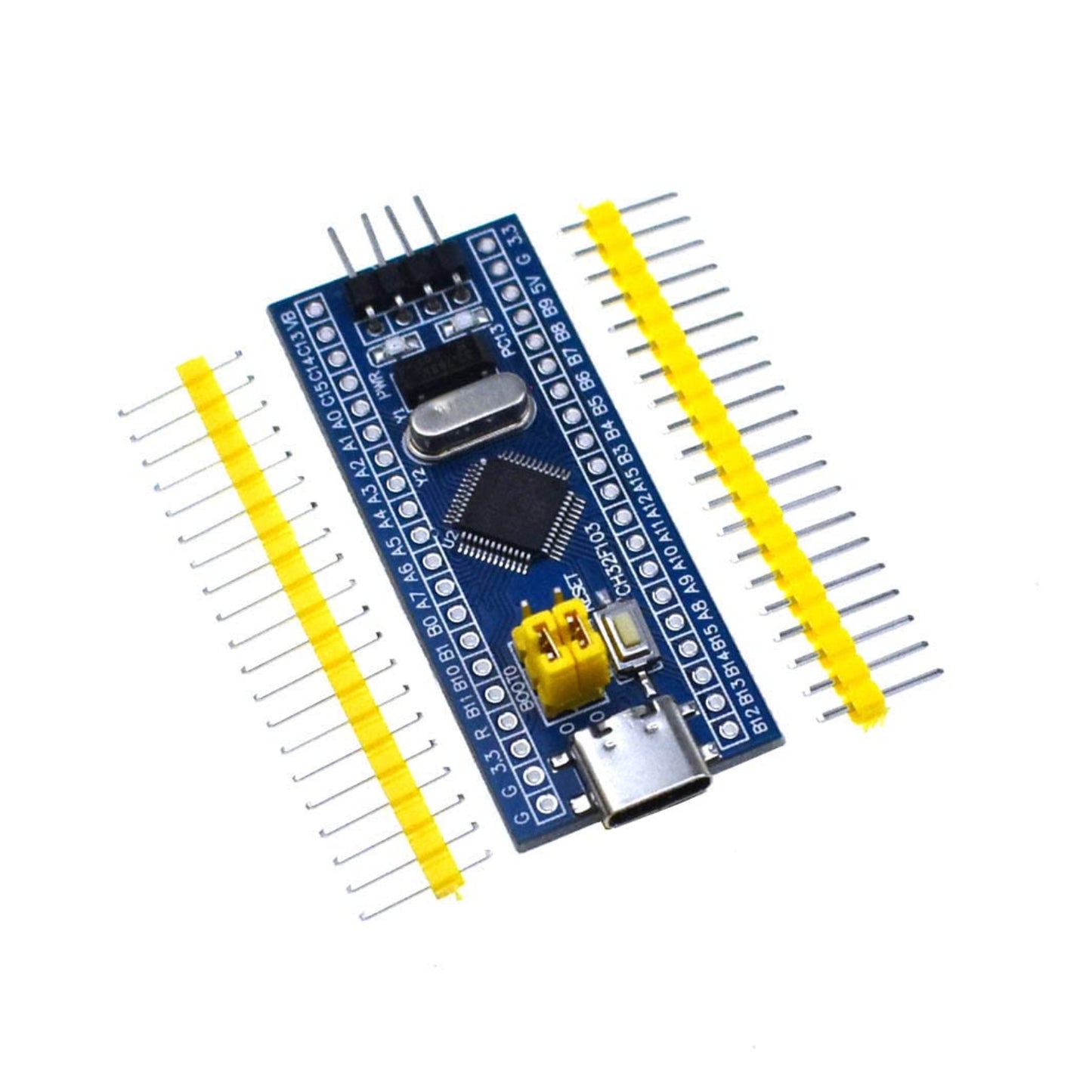

1 x STM32F103C8T6 Microcontroller Board Module For Arduino DIY Kit CH32F103C8T6, USB Type-C Development Board STM32 ARM Core Module Minimalistic STM32 Board For DIY Projects
