Description:

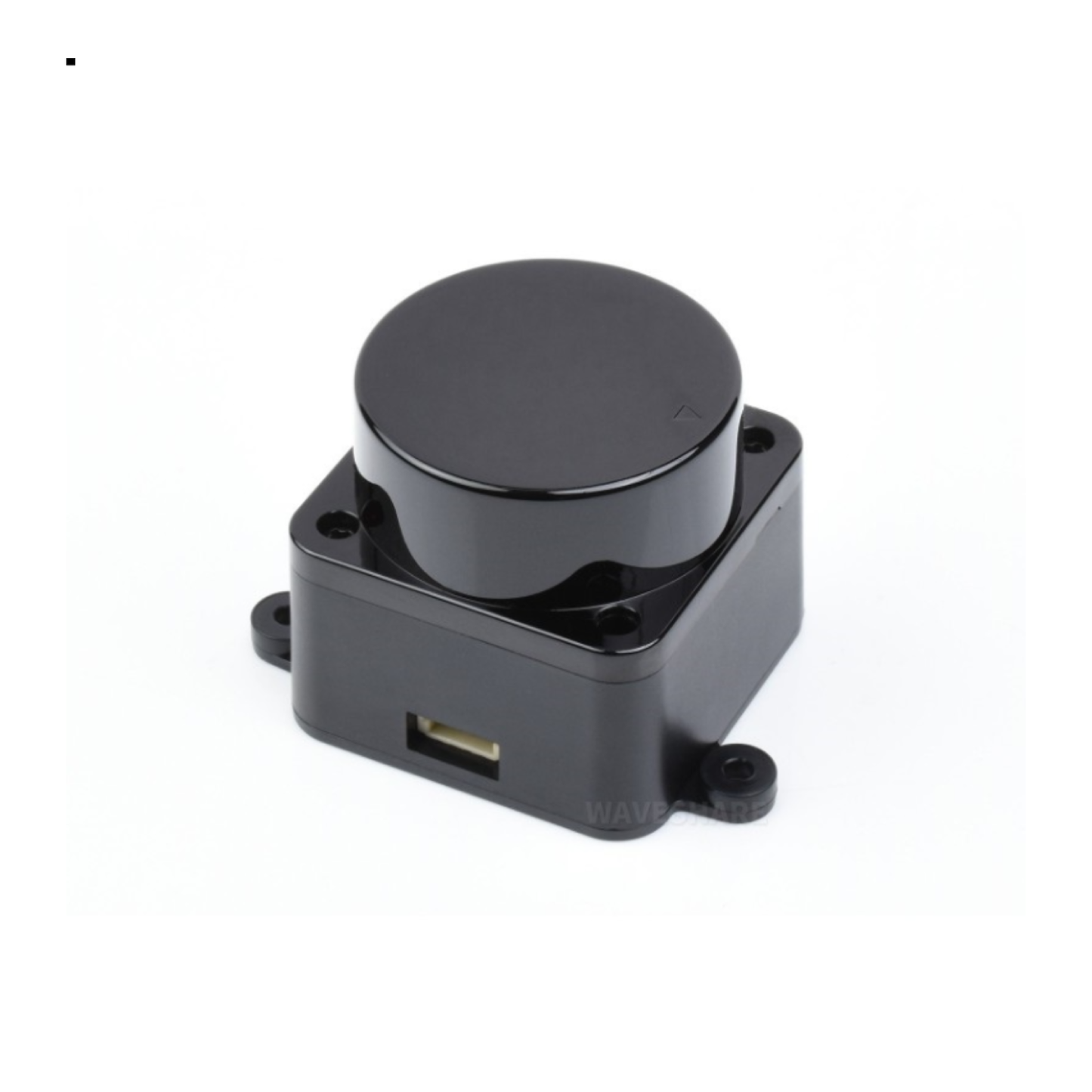

The STL27L TOF Laser Lidar Sensor is a cutting-edge device designed to enhance robotics capabilities. Using Time-of-Flight (TOF) laser pulse technology, it delivers precise ranging up to 25 meters with an impressive accuracy of +20mm. Featuring a 360° omni-directional scanning range, this sensor enables comprehensive detection for autonomous navigation and obstacle avoidance.
It integrates start-stop software control and advanced algorithms for improved performance. The sensor operates quietly thanks to its coaxial brushless motor, with a long lifespan of over 10,000 hours. With its multi-echo detection, ability to detect glass walls, and tolerance to ambient light levels of up to 60Klux, this compact and versatile sensor ensures safe, efficient, and seamless integration into robotics systems.
Specifications:
- Model: DTOF Laser Lidar Sensor- STL27L, 360° Omni-Directional Lidar, UART Bus
- Model Type: Laser LiDAR Sensor
- Ranging Distance: 0.03~25.00m (target surface reflectivity is 80.6%)
- Scanning Frequency(Hz): 10
- Acceptance Angle: 360
- Ranging Frequency: 21600Hz
- Angular Resolution (°): 0.167
- Wavelength (nm): 895 ~ 915
- Communication Mode: UART @ 921600
- Operating Temperature (°C): -10 to 50
- Power Supply(V): 4.5 to 5
- Power Consumption (W): 1.45
- Operating Current (mA): 290
- Lifespan: 10000+ hours
- Weight (g): 46.1
Features:
- Utilizes TOF (Time-of-Flight) ranging technology, measuring distance based on laser pulse flight time. Achieves a maximum range of 25m with +20mm accuracy within 8m.
- Efficient algorithm logic enables 360° detection for robots, autonomous mapping, and obstacle detection.
- Supports start-stop control via software, offering open-source resources for adapter board development, enabling personalized Lidar operation control.
- Features a coaxial brushless motor for quiet, friction-free operation. Supports high-speed wireless data transmission with a lifespan exceeding 10,000 hours, ensuring project reliability.
- Achieves 360° laser scanning for comprehensive mapping and obstacle point cloud information.
- Ranging radius up to 25m facilitates large-area cruising and mapping capabilities for robots.
- Scans at 10Hz and measures distance at 21600Hz for high real-time and accurate map building, reducing navigation blind spots.
- Supports multi-echo detection for glass wall detection, enhancing safety by reducing collisions during robot operation.
- Excellent filtering technology ensures strong ambient light tolerance up to 60Klux, suitable for diverse indoor and outdoor scenarios.
- Exquisite and compact design with lower power consumption. Easily embedded within robots to reduce overall size and improve maneuverability.
- Complies with FDA Class 1 human eye safety rating. Uses a low-power infrared laser emitter with modulated pulses for short emission periods, ensuring safety for humans and pets.
Package Included:
1 x STL27L DTOF Laser Lidar Sensor 360° Omni-Directional Lidar Sensor Perfect For Smart Vehicle and Robotics Applications
