Stepper Motor Driver TMC2208 Stepper Motor Driver Module - RS4763

Stepper Motor Driver TMC2208 Stepper Motor Driver Module - RS4763

SKU:RS4763

24 in stock

Regular price Rs. 240.00
Regular price Sale price Rs. 240.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

This is the latest version of the TMC2208 V1.2 takes the UART out and uses the UART function directly, eliminating the need for more wiring.

Flexible microPlyer interpolation unit, the component can provide up to 256 microstep / step resolution, even if the pulse rate is limited system can still be perfect to achieve sinusoidal control; As a stealth chip, fine music technology is widely used in 3D printing, so These components are also designed to be compatible with existing 3D printer electronics, eliminating the need for costly redesign. Both components have pulse/direction input and can be a completely independent operation. The configuration is implemented via a digital input.

Specifications:

  • Operating Voltage Range: 3.3-5V
  • Maximum Current: 1.2A per phase, 2A peak per phase

Features:

  • Works with 3.3V and 5V signals
  • Supports up to 1/256-step
  • Supported configuration via CFG pins or UART
  • Has StealthChop technology for quieter stepper motors
  • Has SpreadCycl technology for smoother movements
  • Security built-in for high temperatures, high currents, low voltage, and short circuit

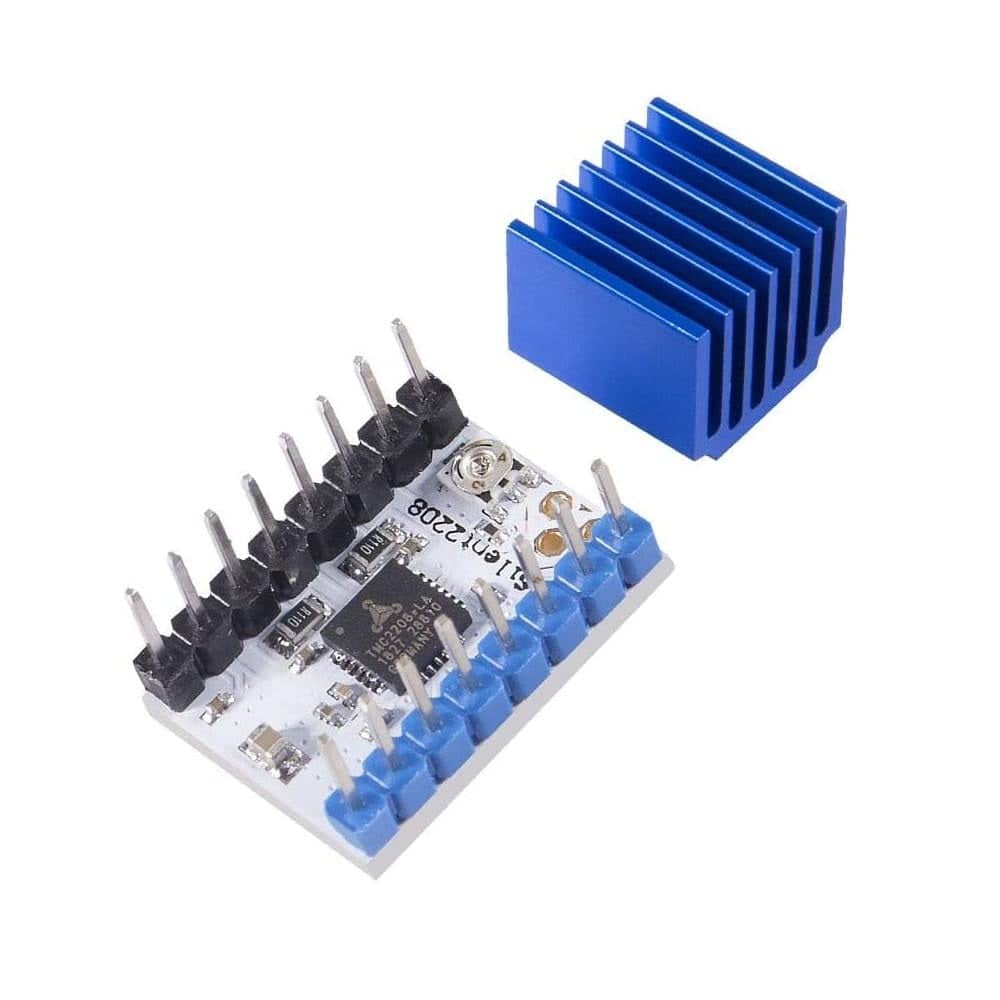

  • Comes with a heatsink for better cooling

Package Included:

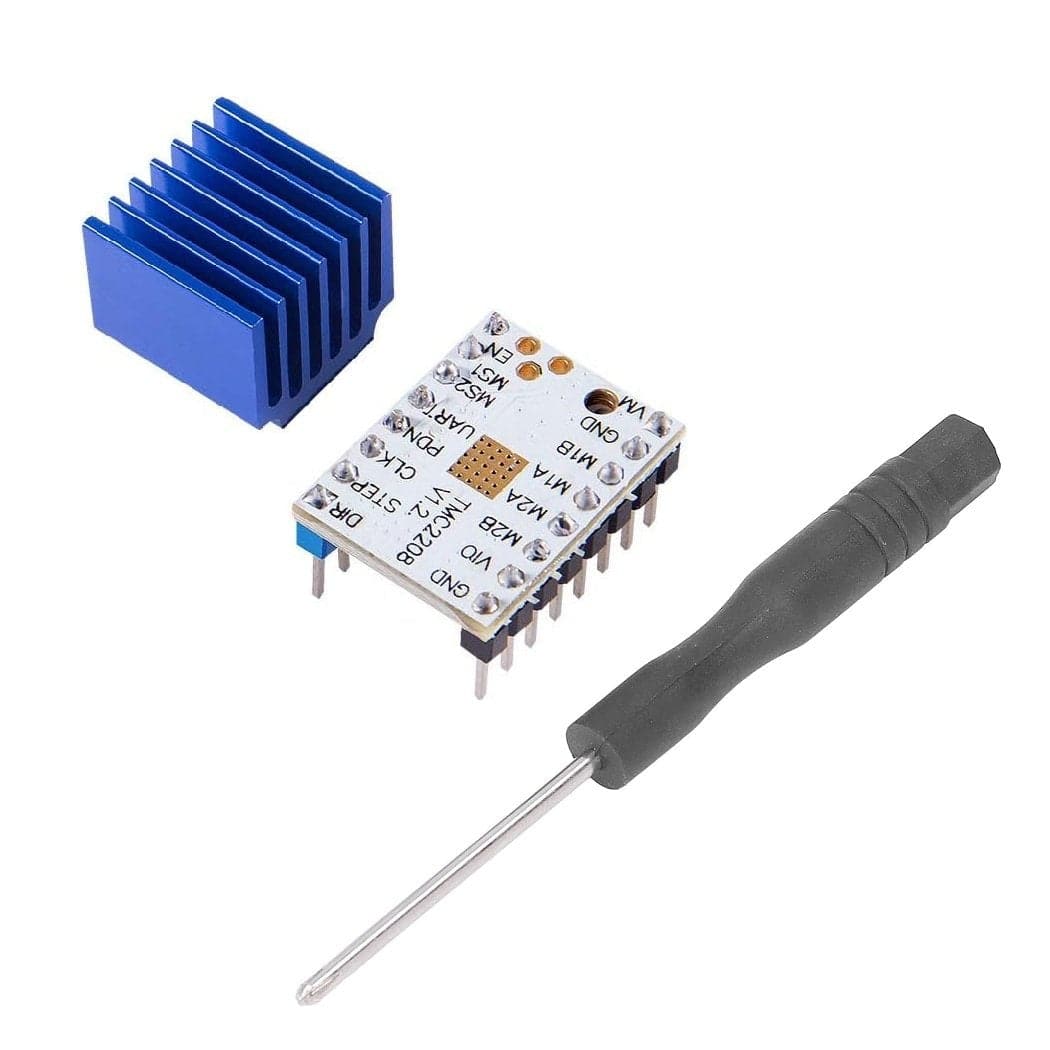

1 x Stepper Motor Driver TMC2208 Stepper Motor Driver Module
