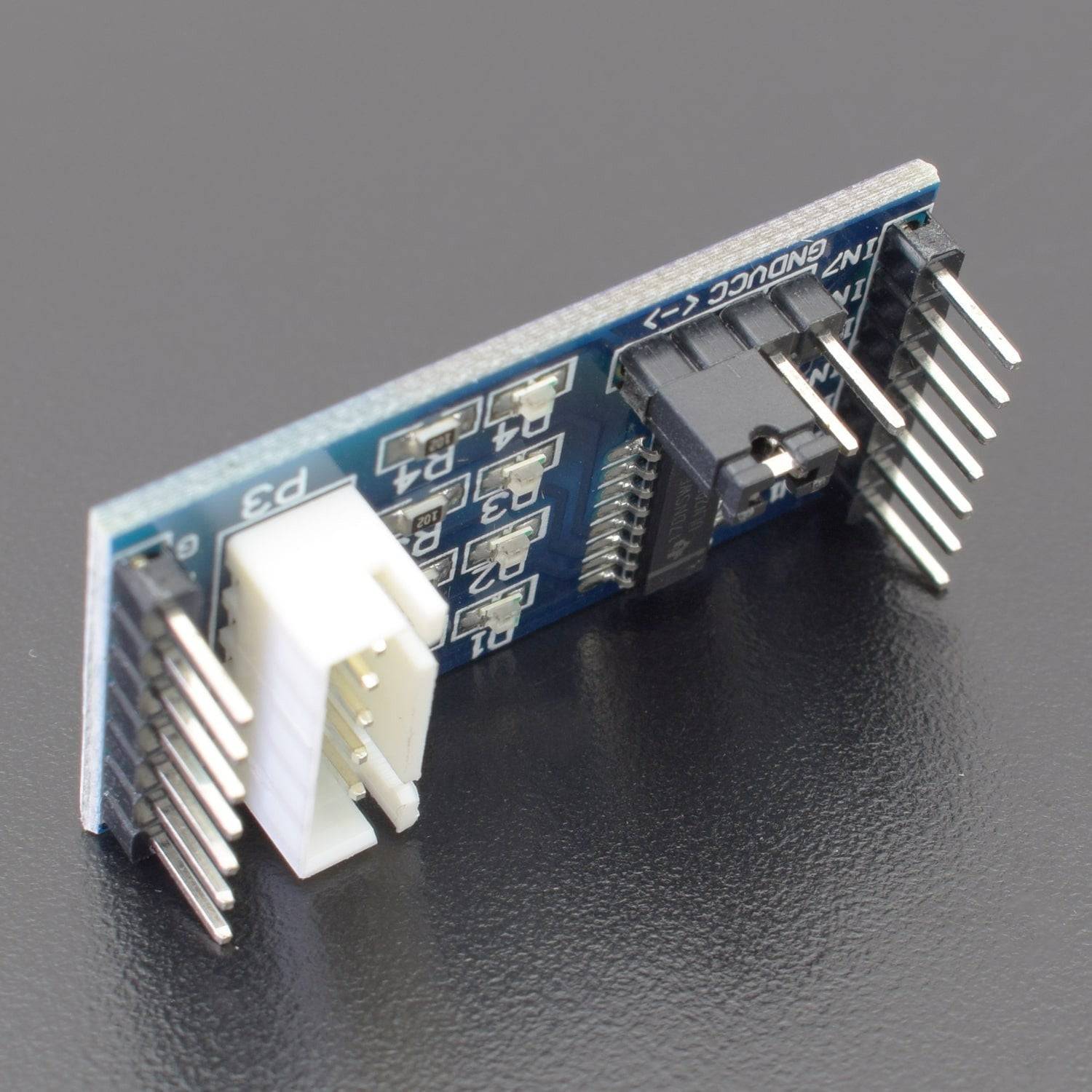

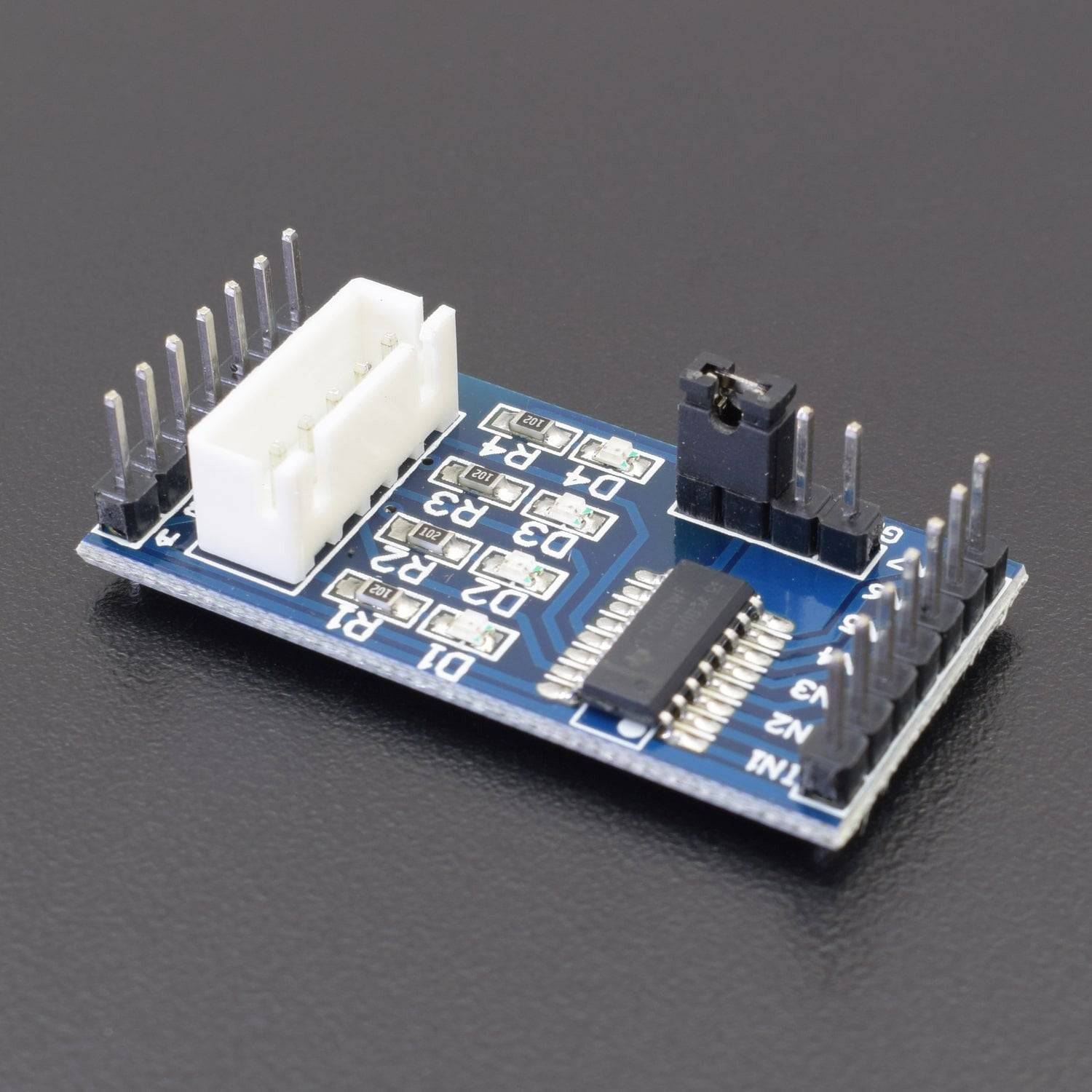

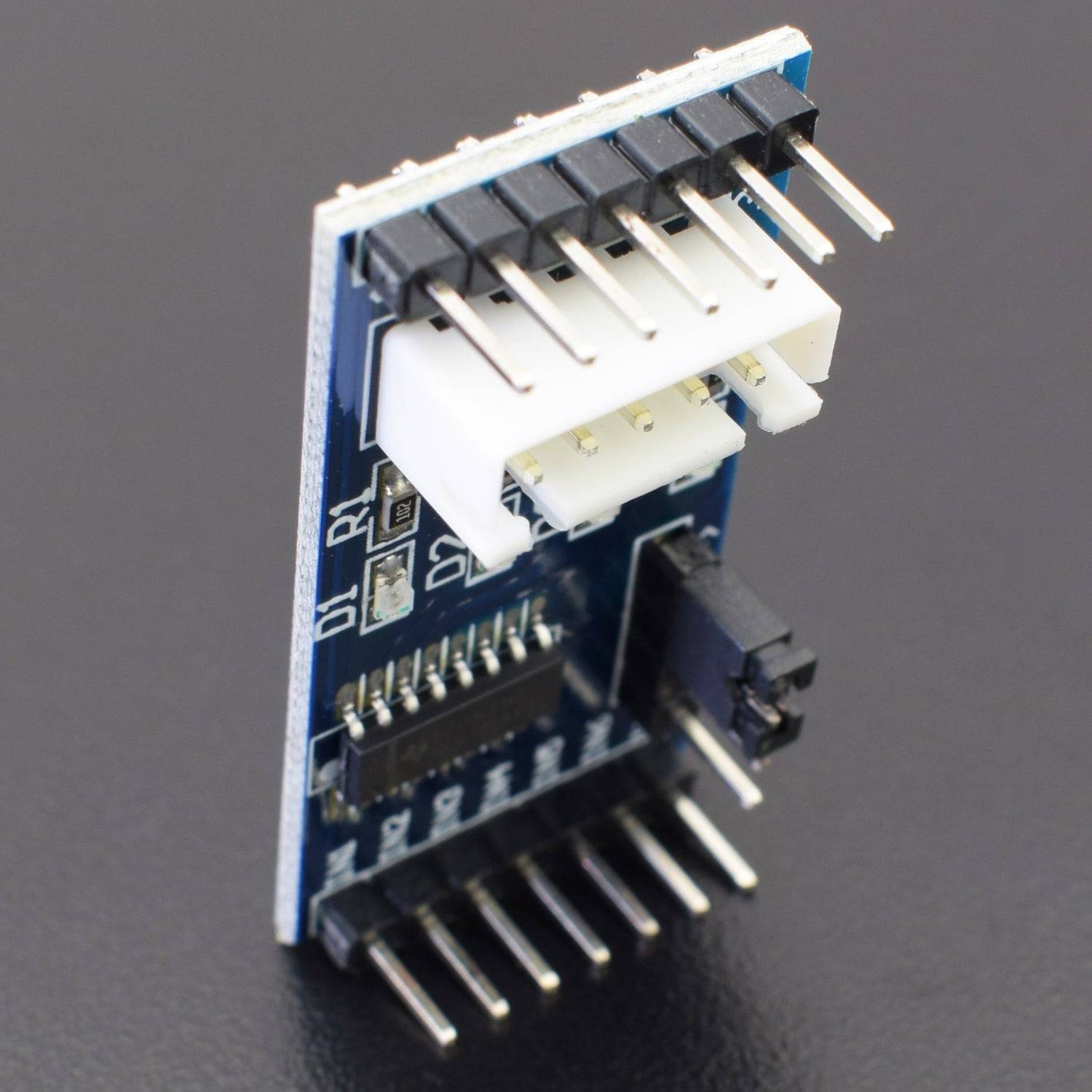

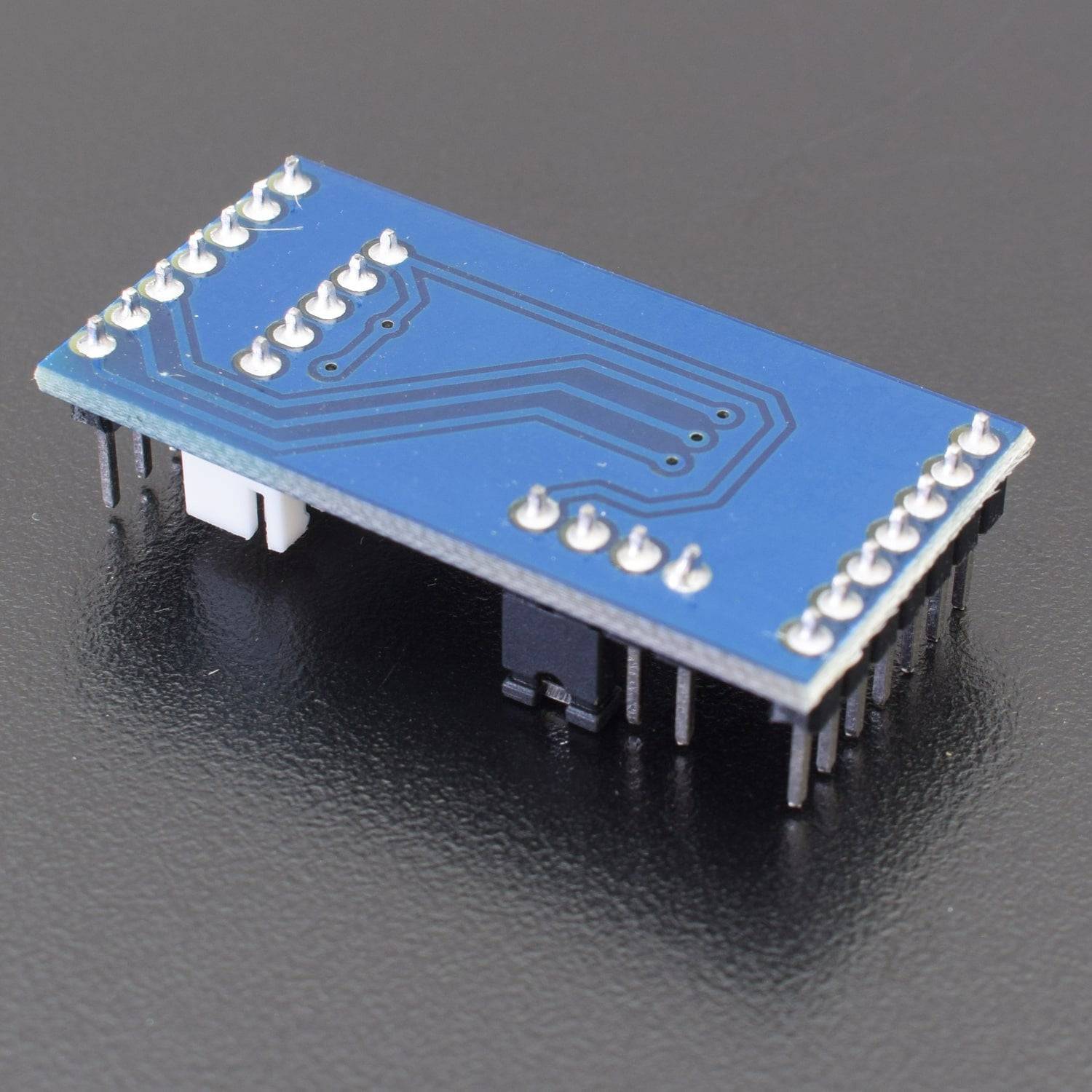

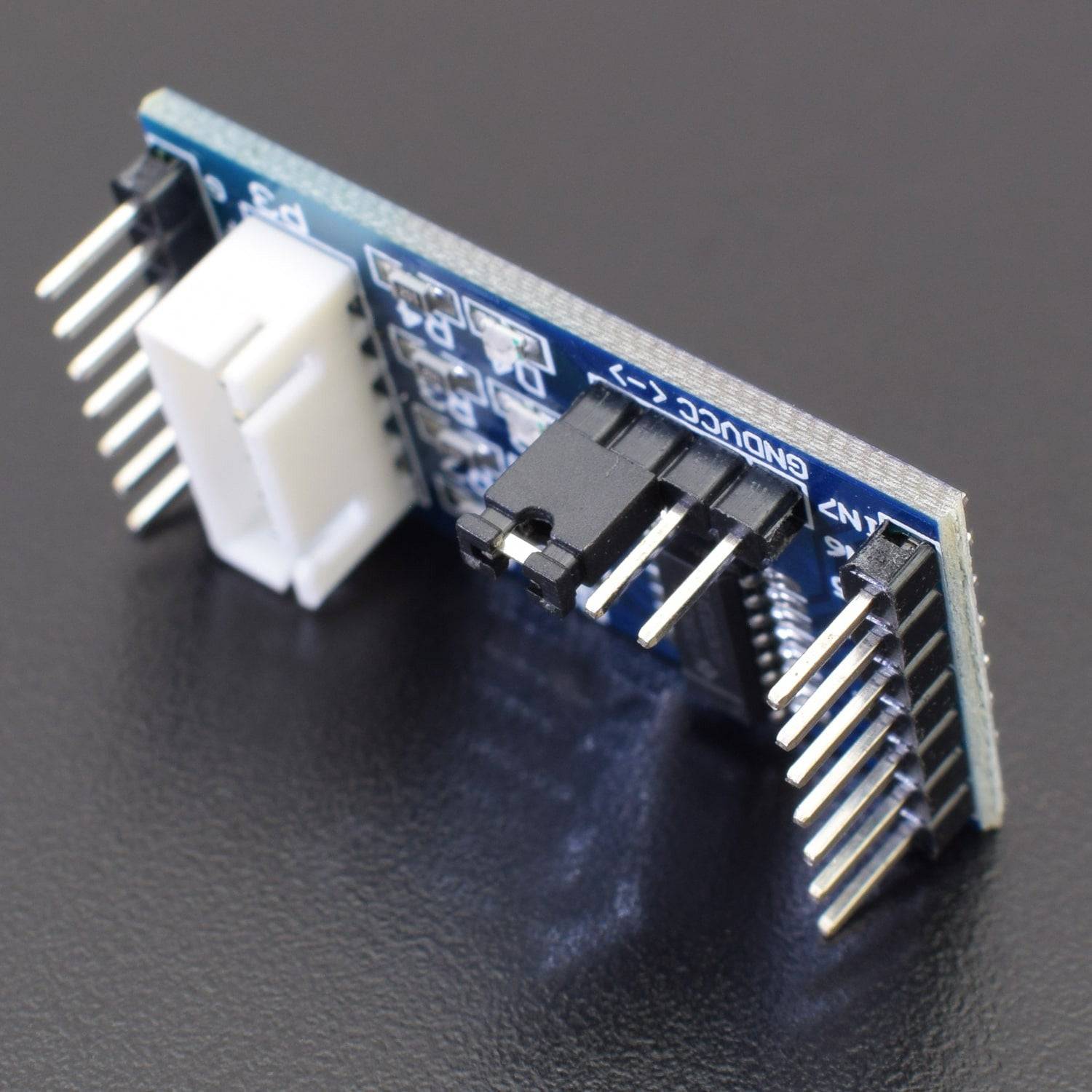

Stepper Motor Driver Board UL2003 SMD IC 5-Line 4-Phase Step Module - AA088

Stepper Motor Driver Board UL2003 SMD IC 5-Line 4-Phase Step Module - AA088

SKU:AA088

Low stock: 1 left

Regular price Rs. 80.00
Regular price Sale price Rs. 80.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

This is ULN2003 Driver Module Stepper Motor Driver, small size and easy to use. It uses the ULN2003 driver chip to amplify the control signal from the Arduino. This Ultra Lightweight and cheap option commonly used to run and control the small applications stepper motors. The step motor is to a machine to convert pulse to angular displacement. So if you give stepper driver a certain pulse signal, it will drive step motor to a certain angle. you can control the angle the stepper moved by the number of the pulse. And you also can control the speed of the stepper rotate by the frequency of the pulse. The following picture is the schematic of the stepper driver.

Specifications:

  • Supply Voltage: 5 ~ 12V
  • Logic Input: 3 ~ 5.5V
  • Operating Temperature: 25 ~ 90°C

Features:

  • 4-way signal indicator
  • Chip all the pins have Input leads Mounted for easy connection to use
  • XH-5P socket can be connected directly 28BYJ-48 Model stepper motor

Package Included:

1 x Stepper Motor Driver Board UL2003 SMD IC 5-Line 4-Phase Step Module
