- Power supply : 110-220VAC 10%, 50/60Hz (or DC12V / DC24V)
- Measurement temperature range : -55 C ~ +120 C
- Resolution : 0.1
- Accuracy : 1 C
- Relay output contact capacity(heating) : 10A/240VAC
- Relay output contact capacity(cooling) : 10A/240VCA
- Temperature sensor : NTC 10K
- Senor length : 1.0m
- Power consumption : <3W
- Shell material : gray ABS flame retardant plastic shell
Description :
STC- 3018 Dual Digital Temperature Controller is a Hygrometer C / F Thermostat. It has a Power supply of 110-220VAC. 5. It has application range is like home temperature control, farm, various cold storage, greenhouse, aquarium, etc.

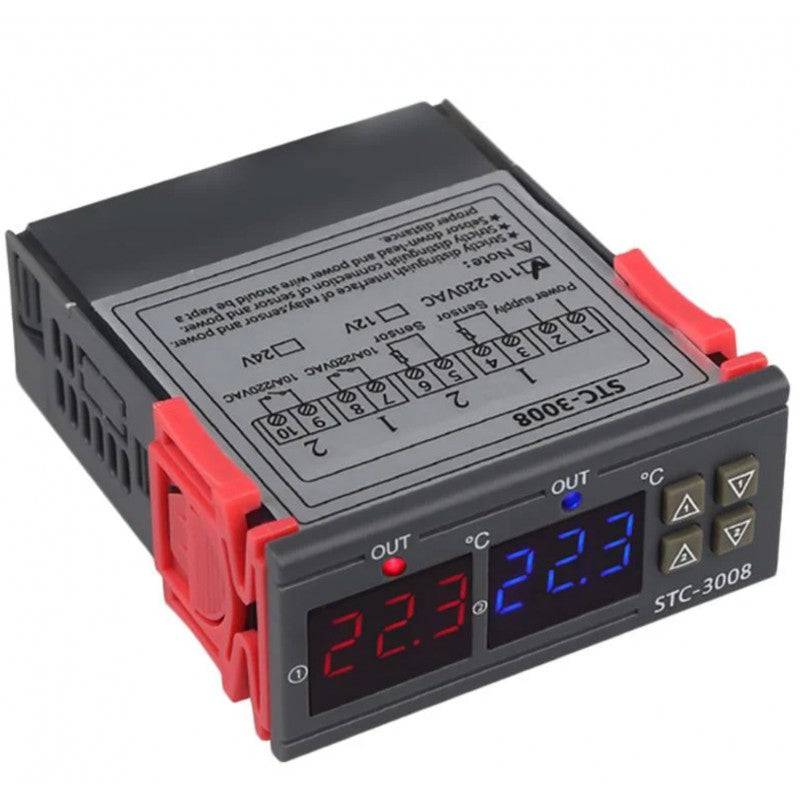

- Normal mode: The red digital tube on the left shows the real-time temperature, the blue digital tube on the right shows the set temperature.
- Setting mode: The red digital tube on the left displays the setting mode, the blue digital tube on the right displays the setting contents.
- How to set the start or stop temperature:
- Press the SET button once and the screen flashed, Press the up and Down button to set the temperature.
- Long press SETbutton for 5 seconds to enter set Mode
Features:
- Heating or cooling control. Red and blue dual led display
- Control mode of return difference; Temperature display resolution 0.1
- Multiple alarm mode selection; Switch between C and F
- Support temperature correction and support for power loss ( the parameters of the sudden power failure are still valid )
Specification :
- Power supply : 110-220VAC 10%, 50/60Hz (or DC12V / DC24V)
- Measurement temperature range : -55 C ~ +120 C
- Resolution : 0.1
- Accuracy : 1 C
- Relay output contact capacity(heating) : 10A/240VAC
- Relay output contact capacity(cooling) : 10A/240VCA
- Temperature sensor : NTC 10K
- Senor length : 1.0m
- Power consumption : <3W
- Shell material : gray ABS flame retardant plastic shell

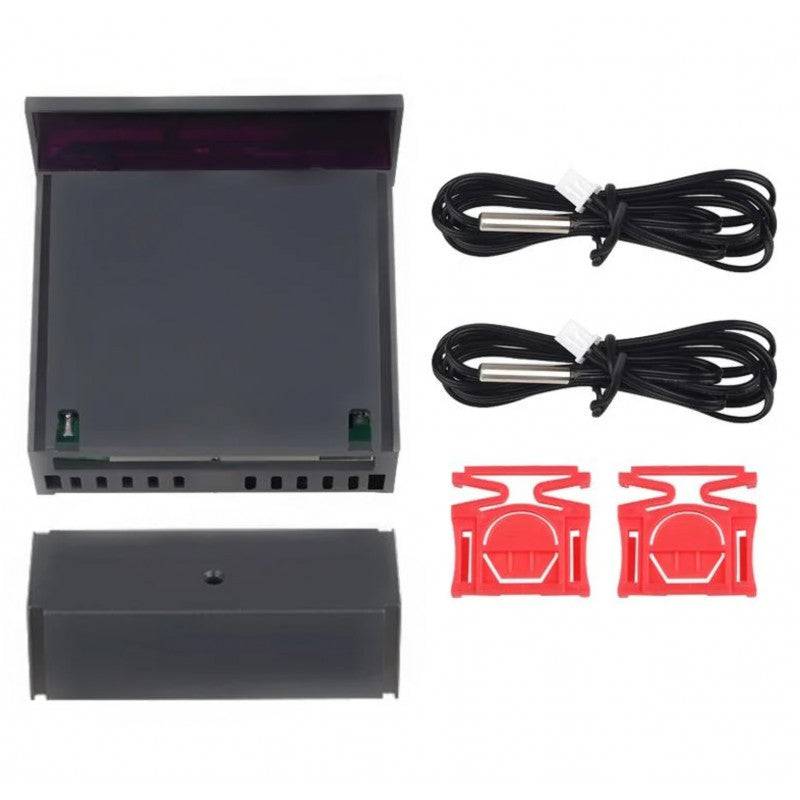

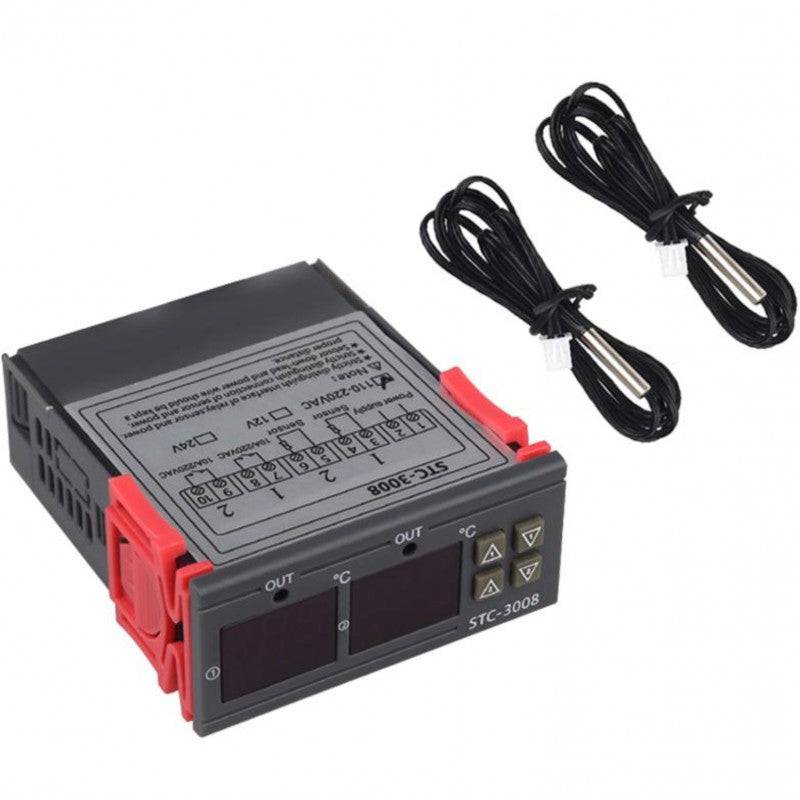

Package Included:
- 1 x STC- 3018 Dual Digital Temperature Controller Thermostat
- 1 x Waterproof Sensor
