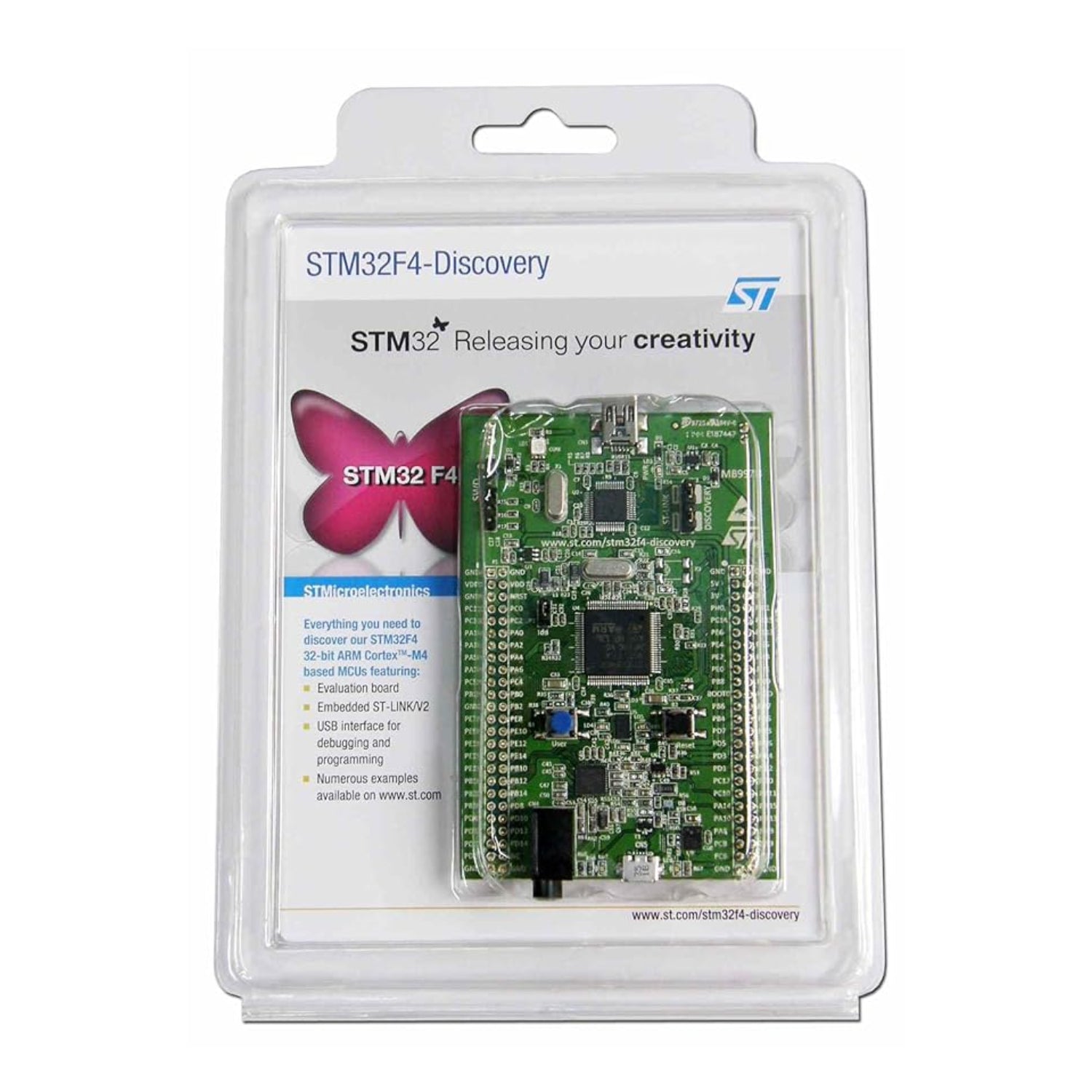

• STM32F407 Discovery Kit

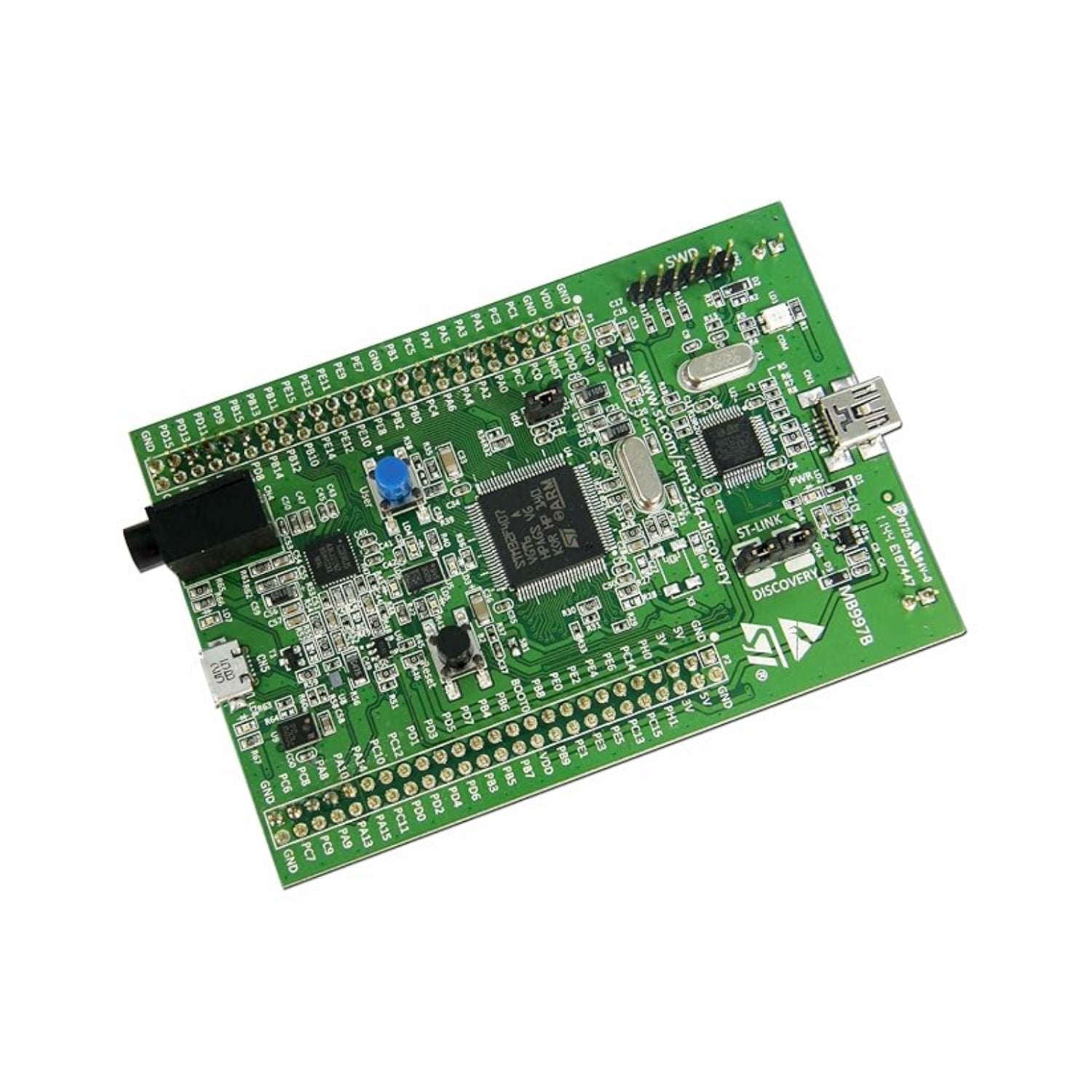

  • STM32F407VGT6 MCU Evaluation Board
1 2

Generic

ST STM32F4DISCOVERY Kit - STM32F407VGT6 MCU Evaluation Board with ST-LINK/V2 Debugger - RS2815

ST STM32F4DISCOVERY Kit - STM32F407VGT6 MCU Evaluation Board with ST-LINK/V2 Debugger - RS2815

RS2815

25 in stock

Rs. 2,789.00
Rs. 2,789.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The STM32F4DISCOVERY evaluation board is a cost-effective and comprehensive solution for developing high-performance applications leveraging the STM32F407VGT6 microcontroller (1MB Flash, 192KB SRAM, 168 MHz CPU). Designed for ease of use, this kit enables users to quickly develop applications featuring advanced audio functionality and embedded design.

Specifications:

  • Based On: STM32-based
  • Operating Voltage: 5VDC
  • Operating Temperature: 0 to 50°C
  • Microcontroller: STM32F407VGT6
  • Dimensions (L x W x H): 100 x 61 x 15mm
  • Weight: 58g

Features:

  • STM32F407VGT6 microcontroller featuring 32-bit Arm® Cortex®-M4 with FPU core, 1-Mbyte flash memory, and 192-Kbyte RAM in an LQFP100 package
  • USB OTG FS
  • MEMS 3-axis accelerometer
  • MEMS audio sensor omni-directional digital microphone
  • Audio DAC with integrated class D speaker driver
  • User and reset push buttons
  • Eight LEDs:
    • LD1 (red/green) for USB communication
    • LD2 (red) for 3.3 V power on
    • Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue)
    • Two USB OTG LEDs, LD7 (green) VBUS, and LD8 (red) over-current
  • Board connectors:
    • USB with Micro-AB
    • Stereo headphone output jack
    • 2.54 mm pitch extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
  • Flexible power-supply options: ST-LINK USB VBUS, USB connector, or external sources
  • External application power supply: 3 V and 5 V
  • Comprehensive free software including a variety of examples, part of the STM32CubeF4 MCU Package, or STSW-STM32068 for using legacy standard libraries
  • On-board ST-LINK/V2-A debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE

Useful Link:

User Manual

Package Included:

1 x STM32F4 Discovery Kit
