Description:
The SS41F and SS41G are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet, and are designed to respond to alternating North and South poles. A built-in regulator provides enhanced stability of operation over 4.5 Vdc to 24 Vdc supply voltage range, and internal circuitry is designed to prevent sensor damage in case the supply voltage polarity is accidentally reversed. The open-collector sinking output voltage is easily interfaced with a wide variety of electronic circuits. The SS41F is factory tested at 25 °C [77 °F] and the SS41G is factory tested at both 25 °C [77 °F] and 125 °C [257 °F]. Both products are designed for high volume applications.
Specifications:
- Absolute Maximum Ratings (at Ta=25 Celsius)
- Power supply voltage VCC: 4.5 ~ 24V
- Output current IO:25mA
- Operating ambient temperature TA: -40 ~ 150Celsius
- Storage temperature range TS: -55 ~ 150Celsius
Applications:
- Transportation
- Speed and RPM sensing
- Commutation and control of electric motors used in transportation Industrial and Commercial
- Flow-rate sensing for appliances
- Tachometer counter pickup
- Brushless dc motor commutation
- Motor and fan control for commercial, consumer or industrial equipment
Package Included:

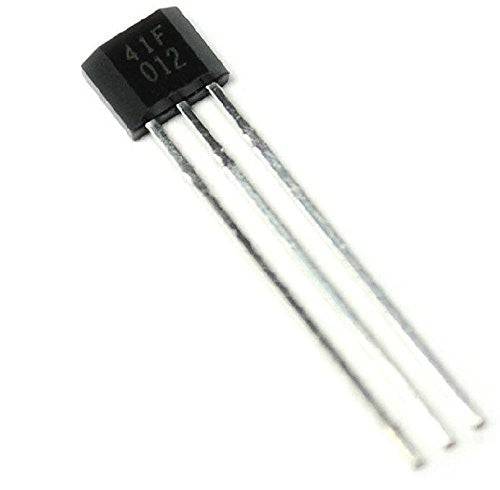

1 x SS41F 41F/0H41/SH41/S41 Bipolar Hall Effect Position Sensors
