Description:
Single channel simple magnetic relay for PCB mount. This relay is in line with international safety standard, control areas and load area have the isolation groove; blue KF301 terminal line more convenient. USES the loose quality goods relay, dc or ac signal control, can control 220 v ac load, have power and relay operation instructions, and bright, disconnect the dawn, signal input signal, the public end and will often start conduction, can be used as a microcontroller development board module, can be used as a home appliance control and one often opened a normally closed contact. Used widely in the remote control, communication, automatic control system, electronic equipments, etc.
Specifications:
- Rated load: 10A 250VAC/28VDC,10A 125VAC/28VDC,10A 125VAC/28VDC
- Contact resistance: =100m (ohm)
- Electrical life: 100,000
- Mechanical life: 10,000,000
- Coil rated voltage: 3-48VDC
- Coil power: 0.36W, 0.45W
- Coil pick-up voltage: =75%
- Coil drop-out voltage: =10%
- Ambient temperature: -25 degrees Celsius to +70 degrees Celsius
- Coil and contacts:1500VAC/min
- Contact and contacts: 1000VAC/min
- Insulation resistance: =100M ohm
- Mounting form: PCB
Features:
- 5 pins, SPDT type, plastic housing.
- Can adjust automatically, protect and transform the electric circuit.
Package Included:

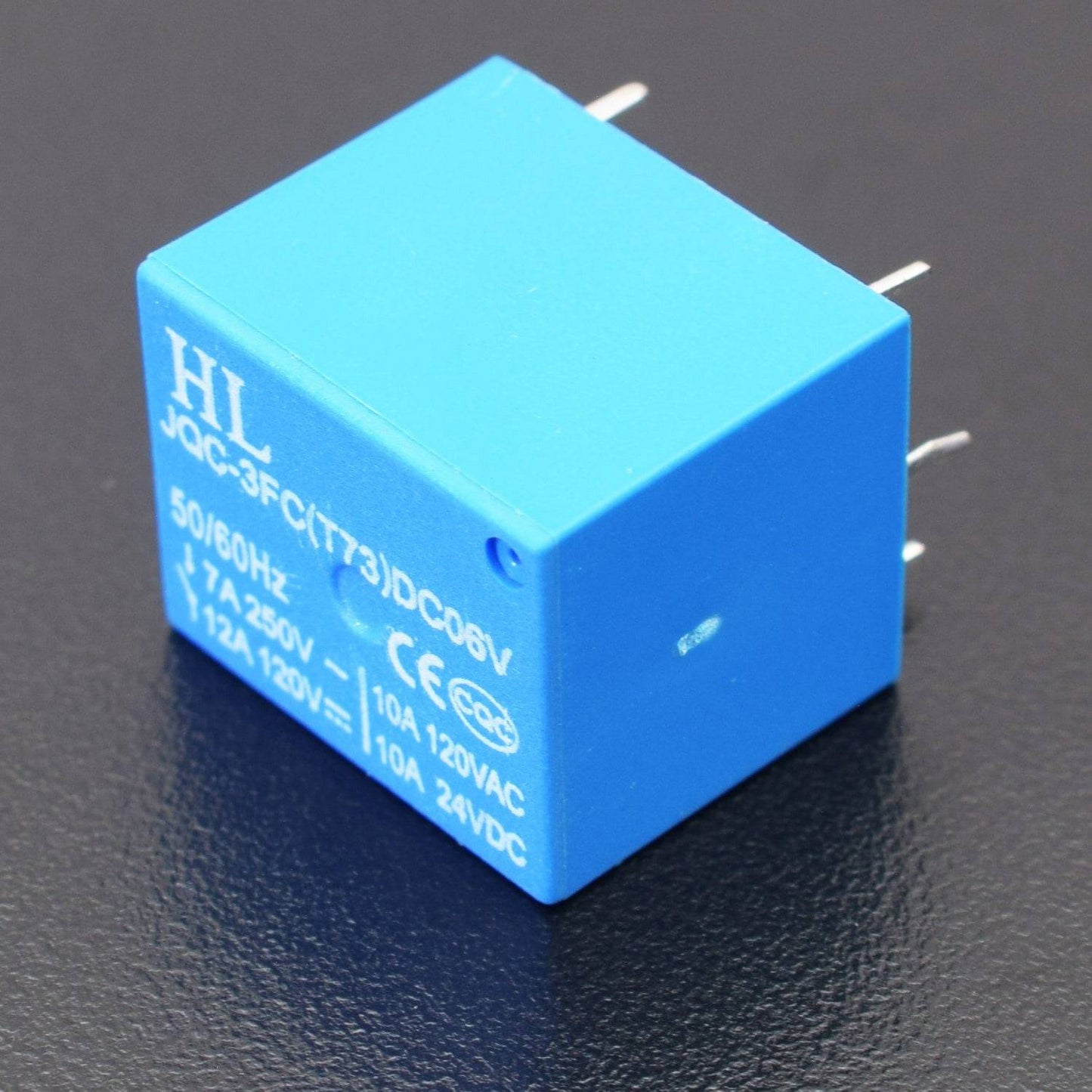

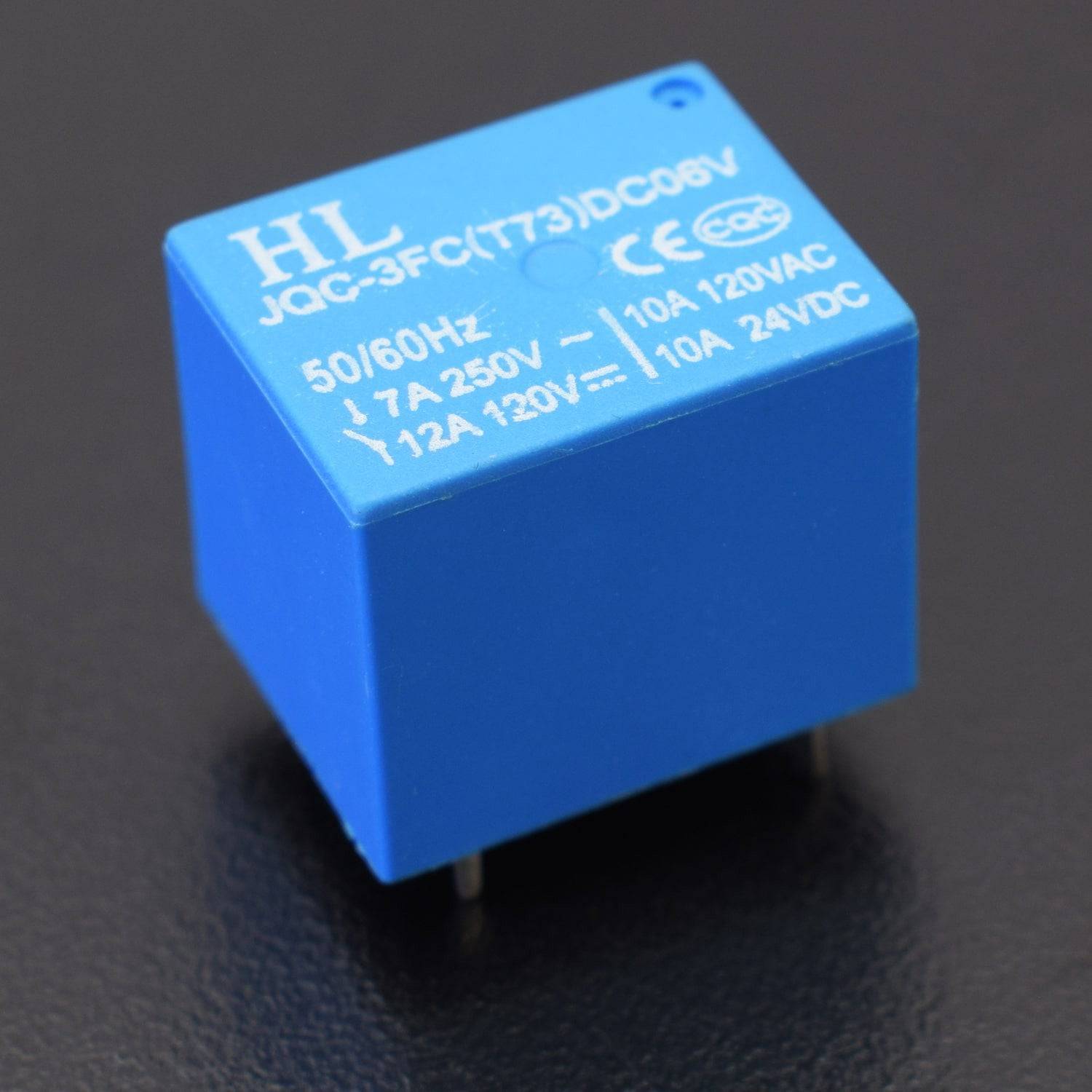

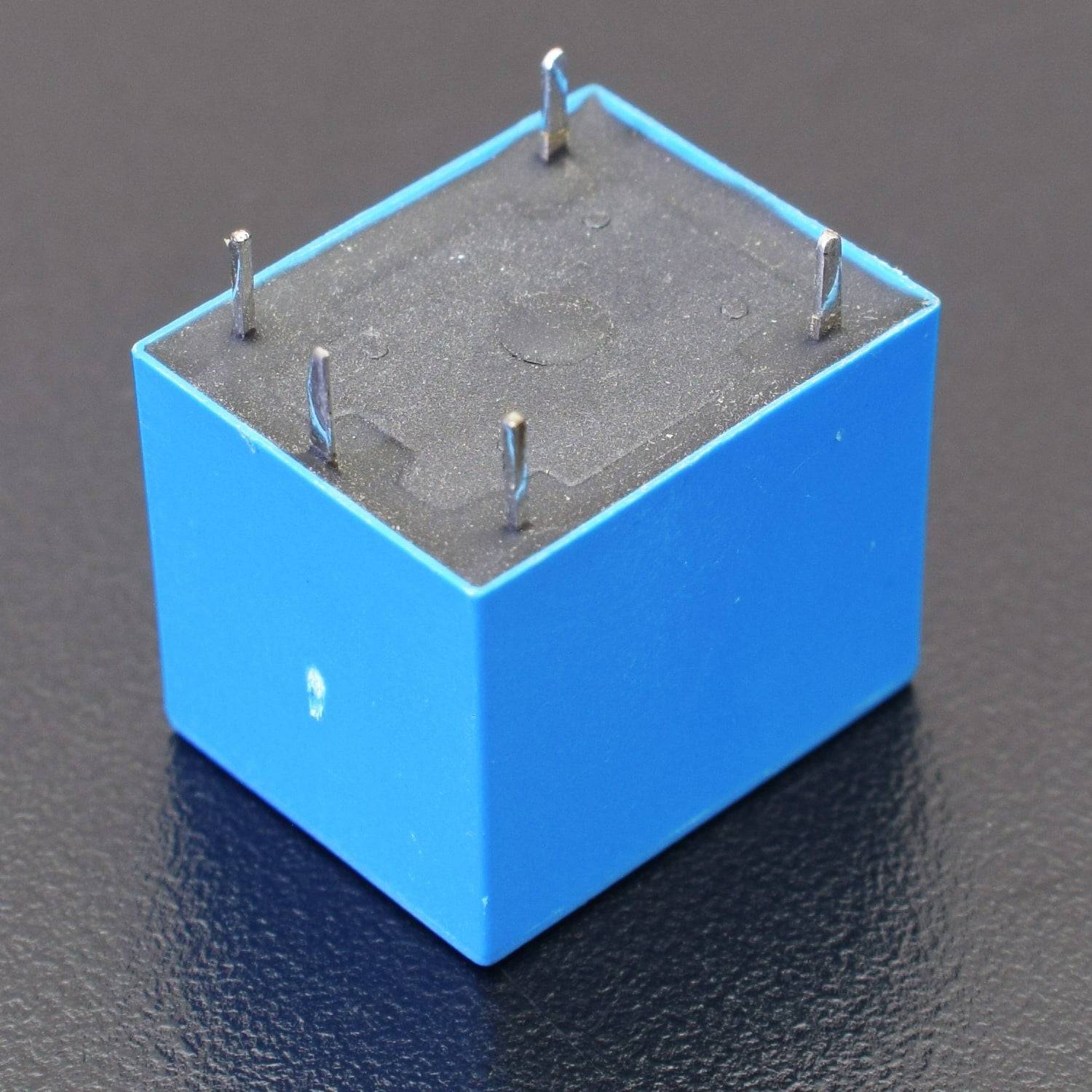

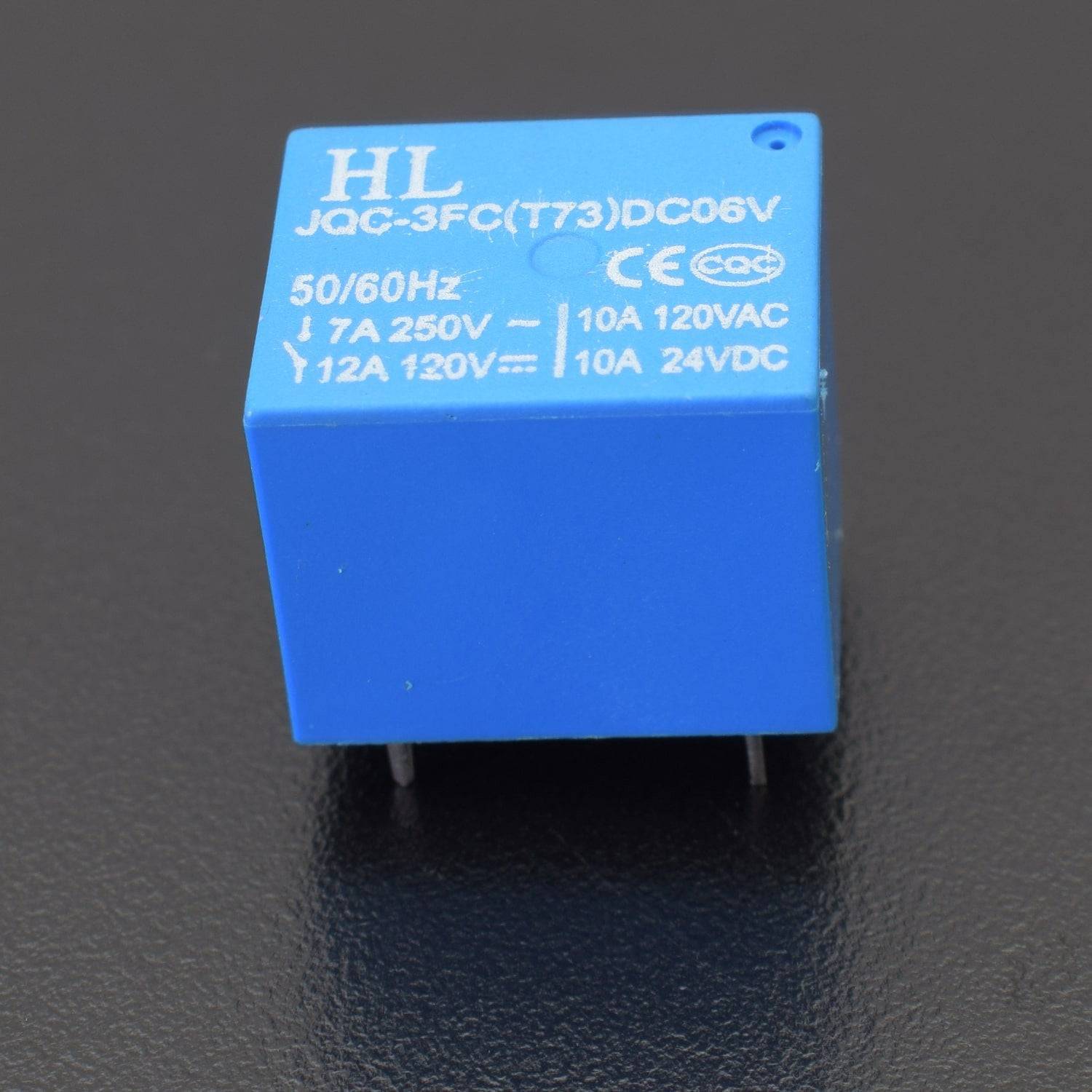

1 x SRD-6VDC-SL-C DC 6V SPDT 1NO 1NC 5 Pins Coil Power Relay
