Description:
The SPF5189Z RF Low Noise Amplifier is a high-performance pHEMT MMIC LNA designed for operation from 50MHz to 4000MHz.The on-chip active bias network provides stable current over temperature and processes threshold voltage variations.
The SPF5189Z offers ultra-low noise figures and high linearity performance in a gain block configuration. Its single-supply operation and integrated matching networks make implementation remarkably simple. A high maximum input power specification makes it ideal for high dynamic range receivers.
Specifications:
- High Linearity: OIP3=39.5dBm at 1960MHz P1dB=22.7dBm at 1960MHz
- Single-Supply Operation: 5V at lDo=90mA
- Flexible Biasing Options: 3V to 5V, Adjustable Current
Features:
- High-performance pHEMT MMIC LNA designed for operation from 50MHz to 4000MHz
- The on-chip active bias network provides stable current over temperature and process threshold voltage variations
- The SPF5189Z offers ultra-low noise figure and high linearity performance in a gain block configuration
- Its single-supply operation and integrated matching networks make implementation remarkably simple
-
A high maximum input power specification makes it ideal for high dynamic range receivers.
Package Included:

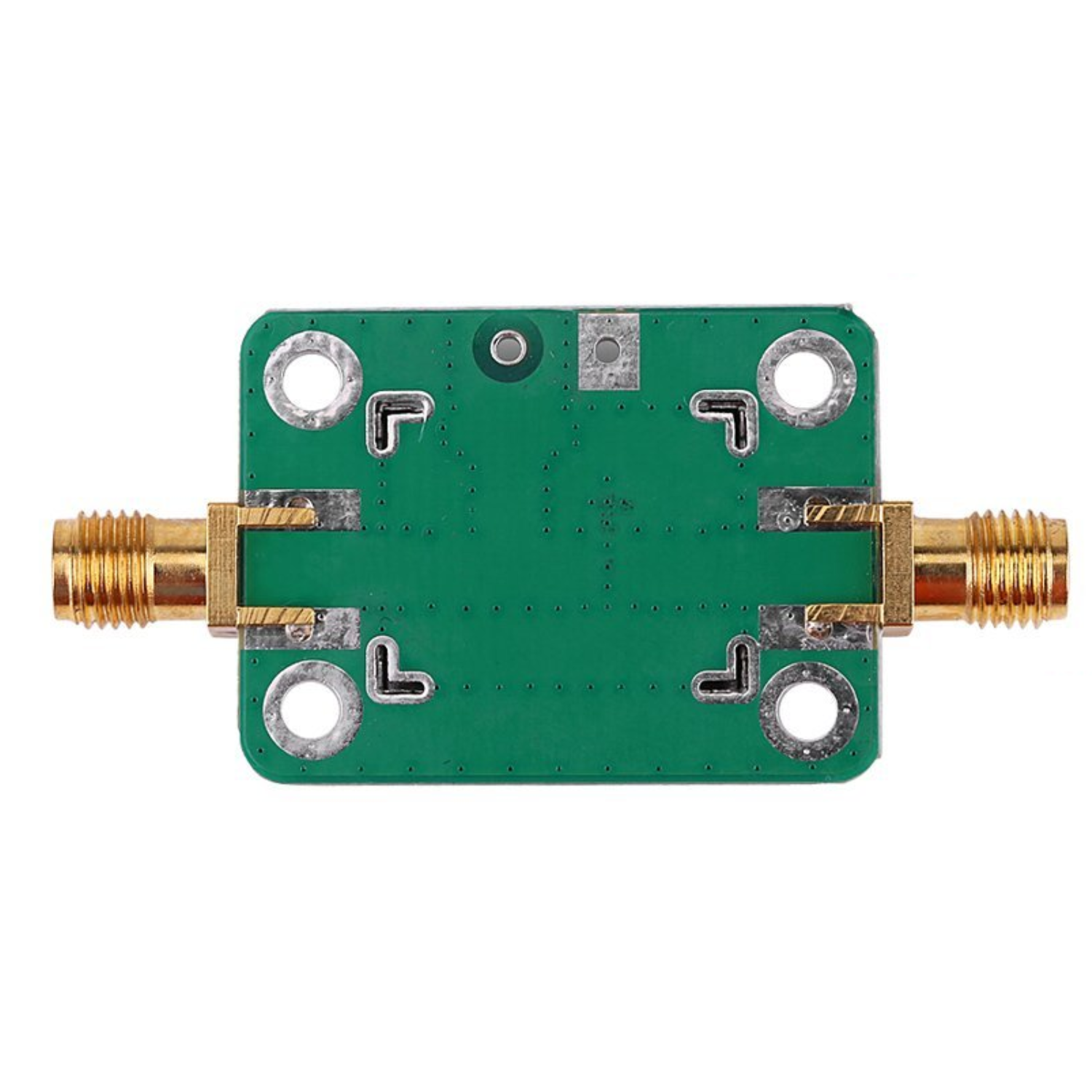

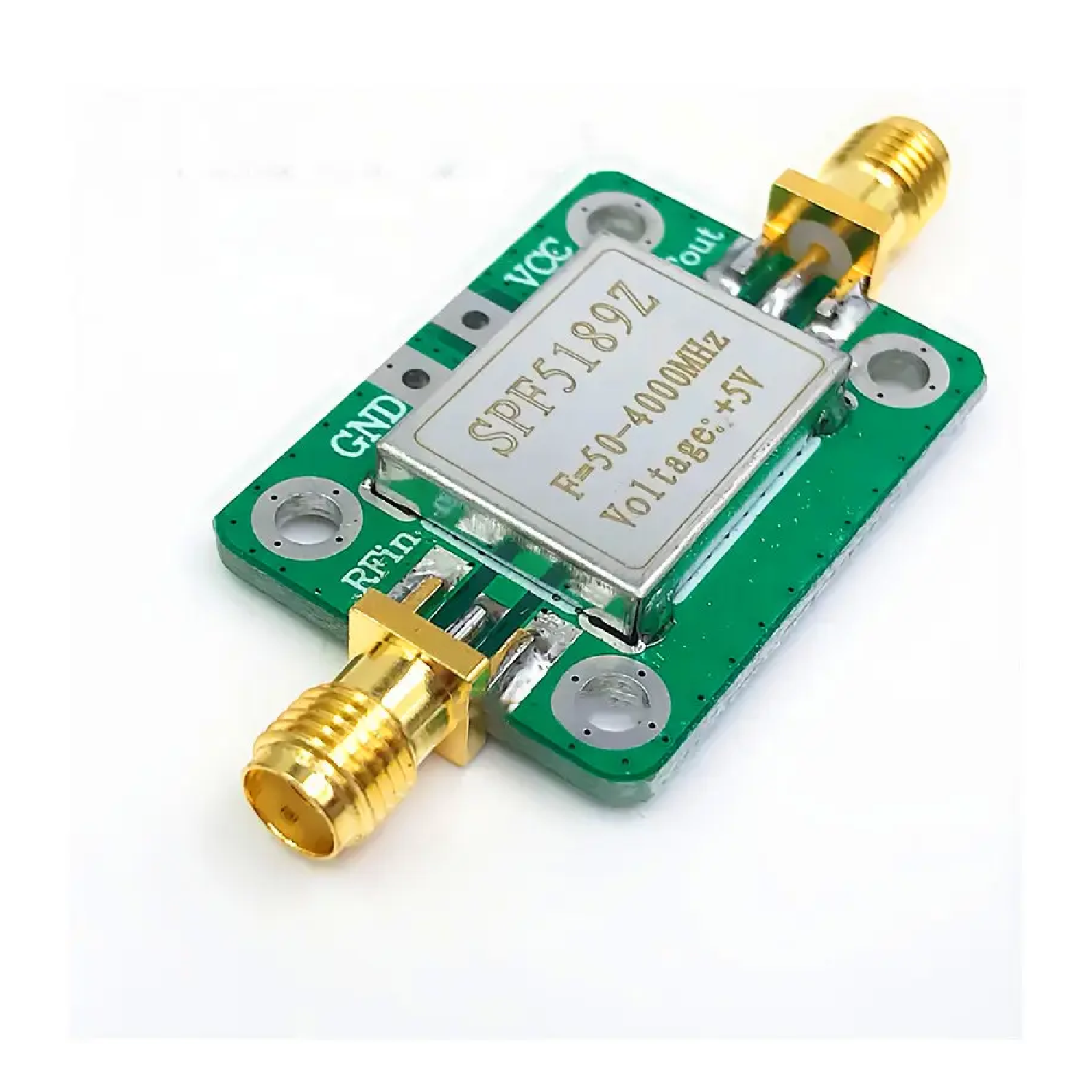

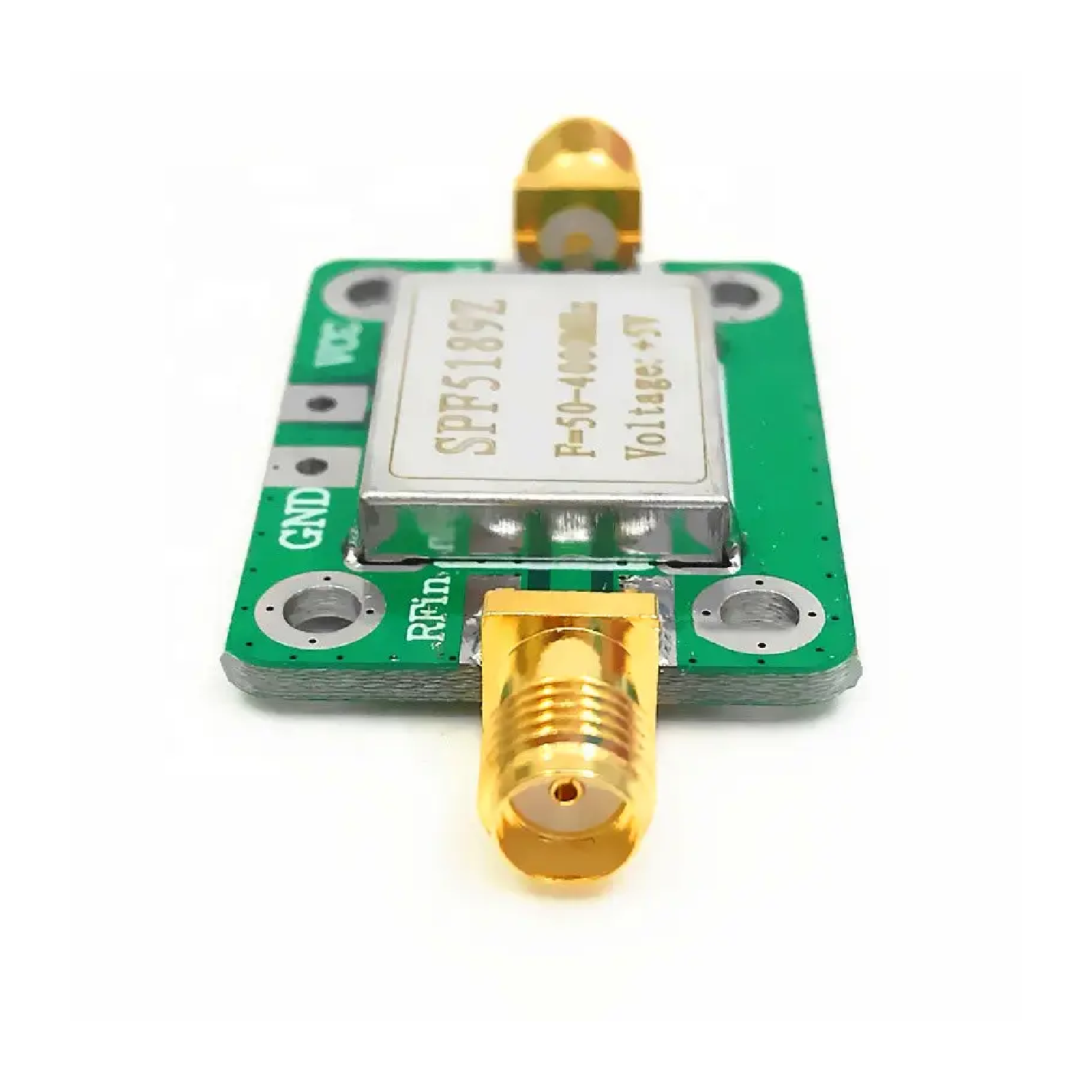

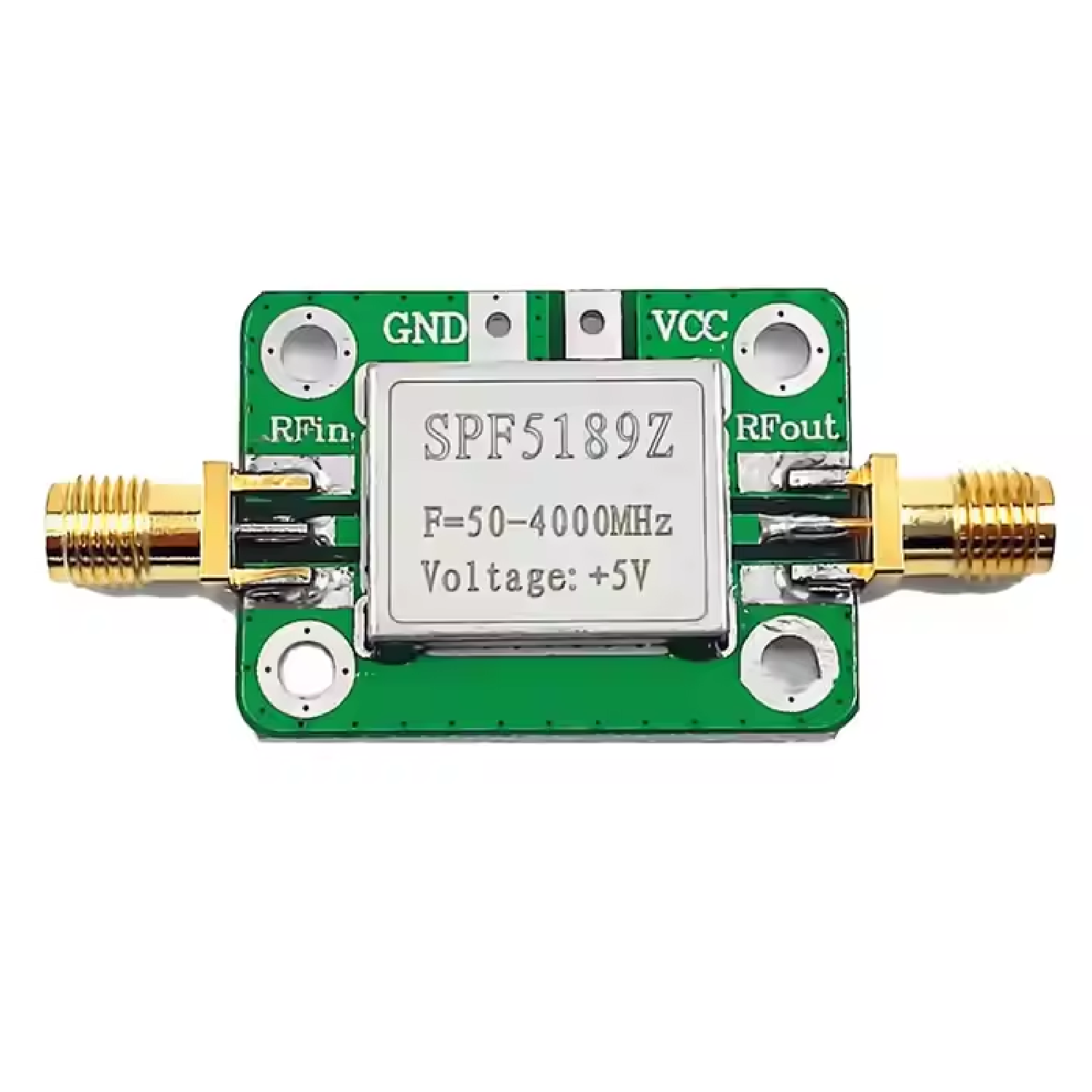

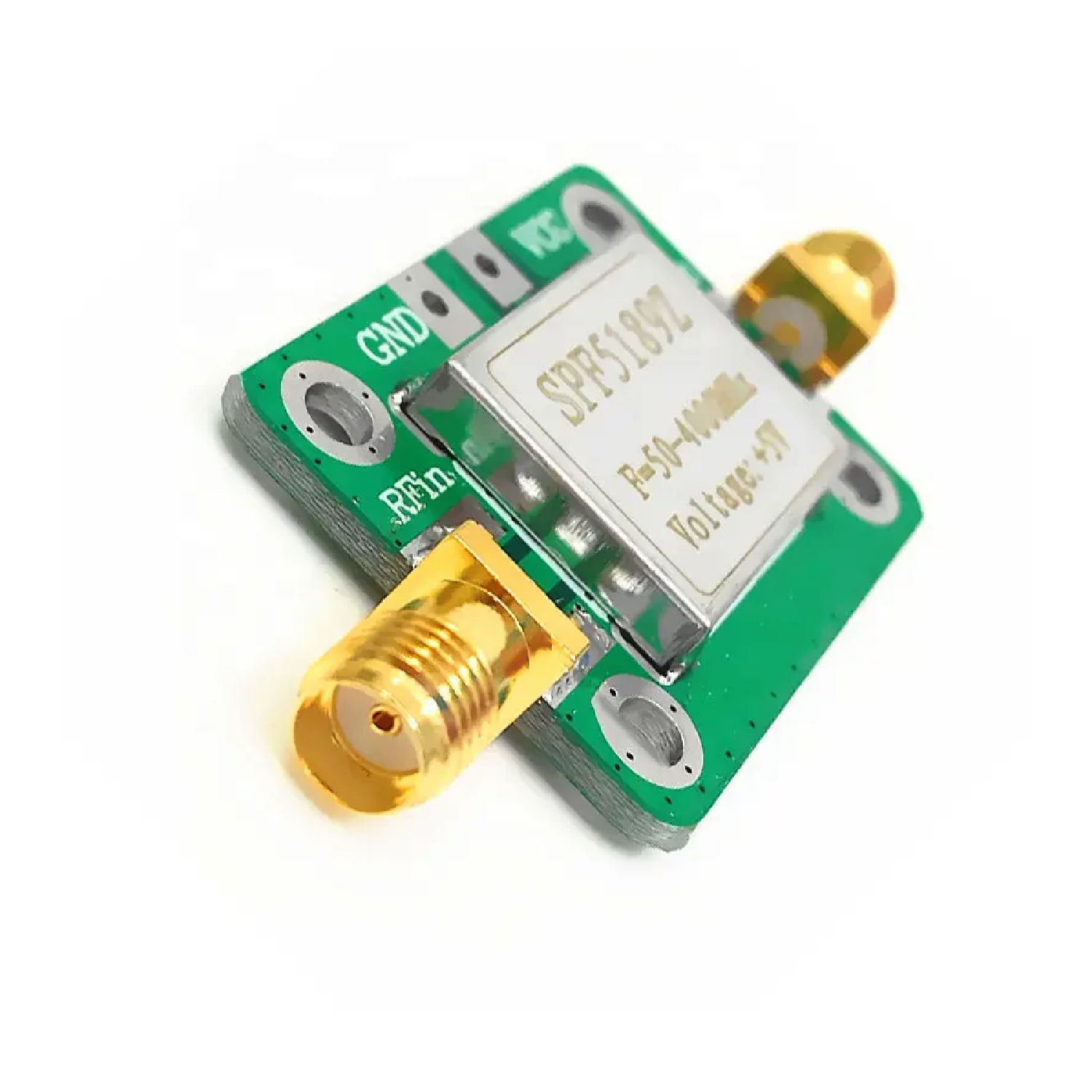

1 x SPF5189 RF Low Noise Amplifier
