SpeedyBee TX800 5.8GHz FPV Transmitter FPV Video RC Video Transmitter FPV Drone Video Transmitter Module High-Power Video Transmitter For Aerial Photography Drone Accessories- RS6573
SpeedyBee TX800 5.8GHz FPV Transmitter FPV Video RC Video Transmitter FPV Drone Video Transmitter Module High-Power Video Transmitter For Aerial Photography Drone Accessories- RS6573
SKU:RS6573
In stock
Regular price
Rs. 4,599.00
Regular price
Sale price
Rs. 4,599.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

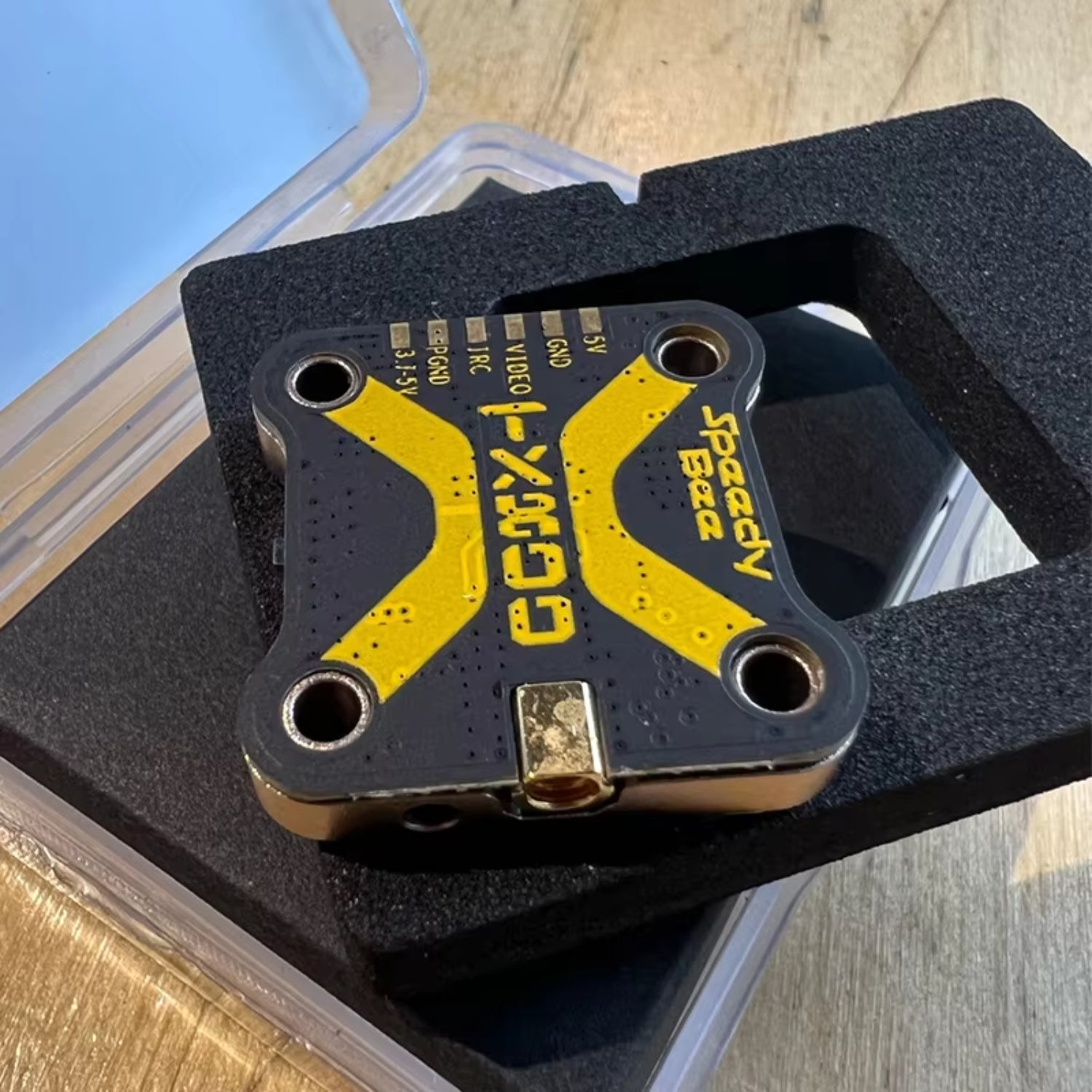

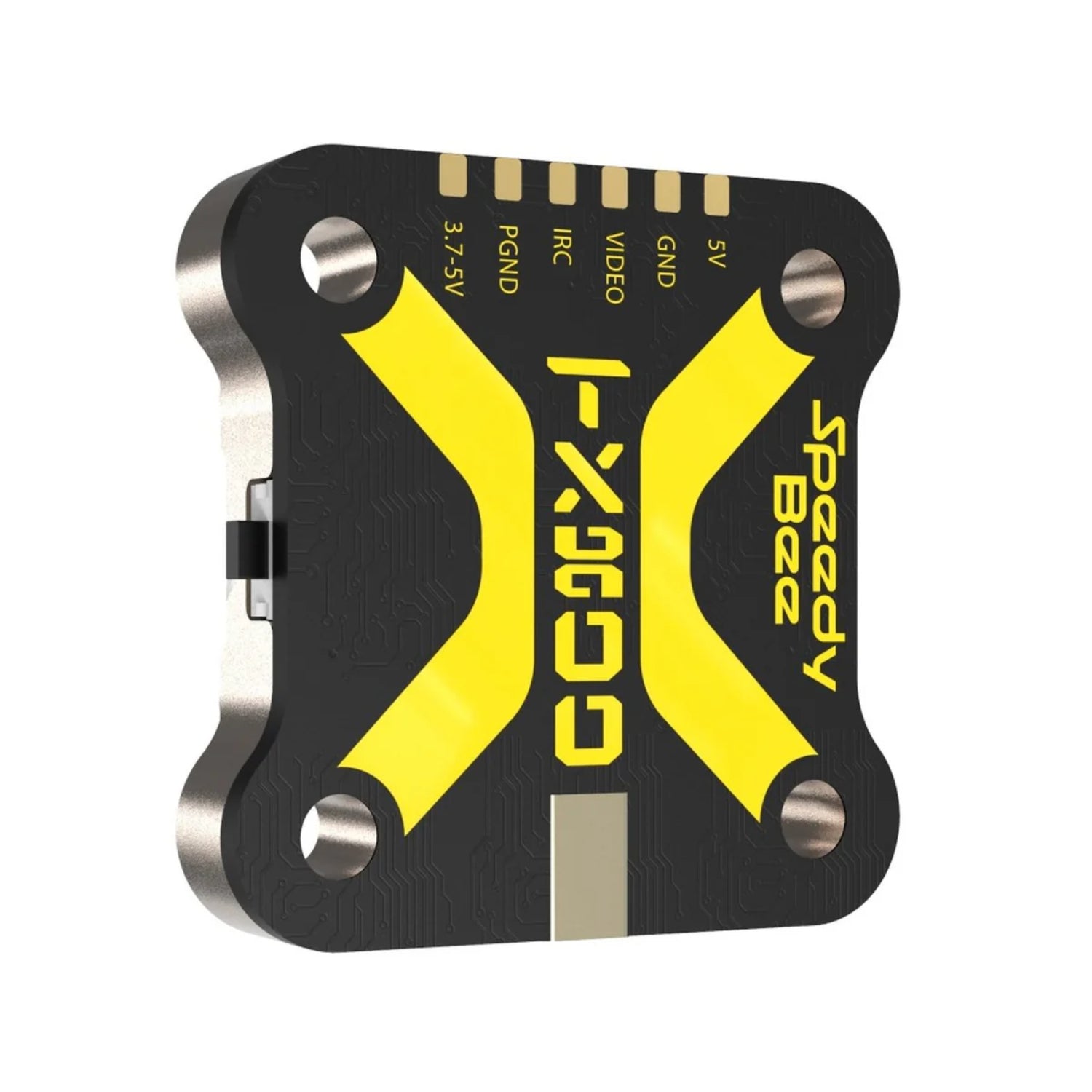

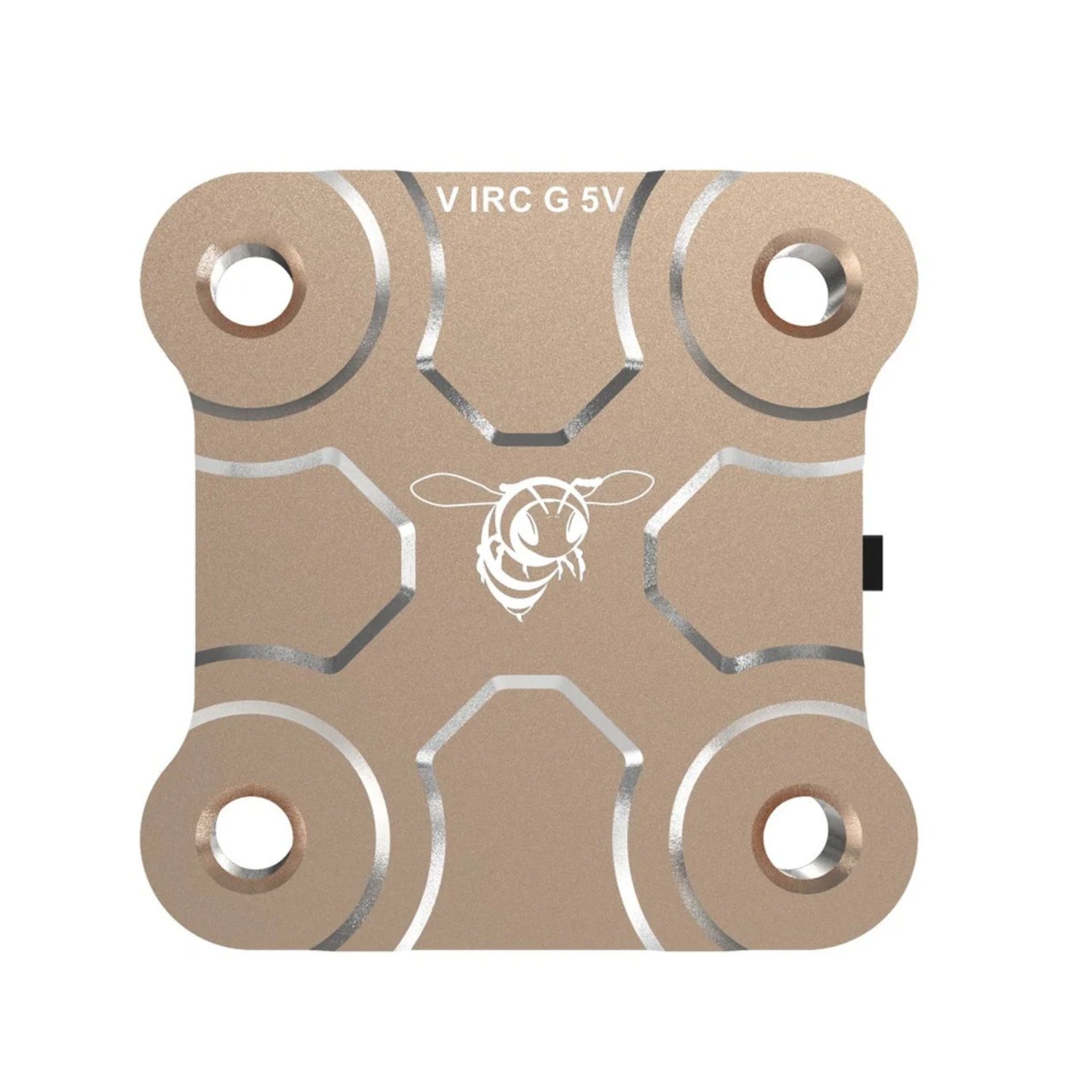

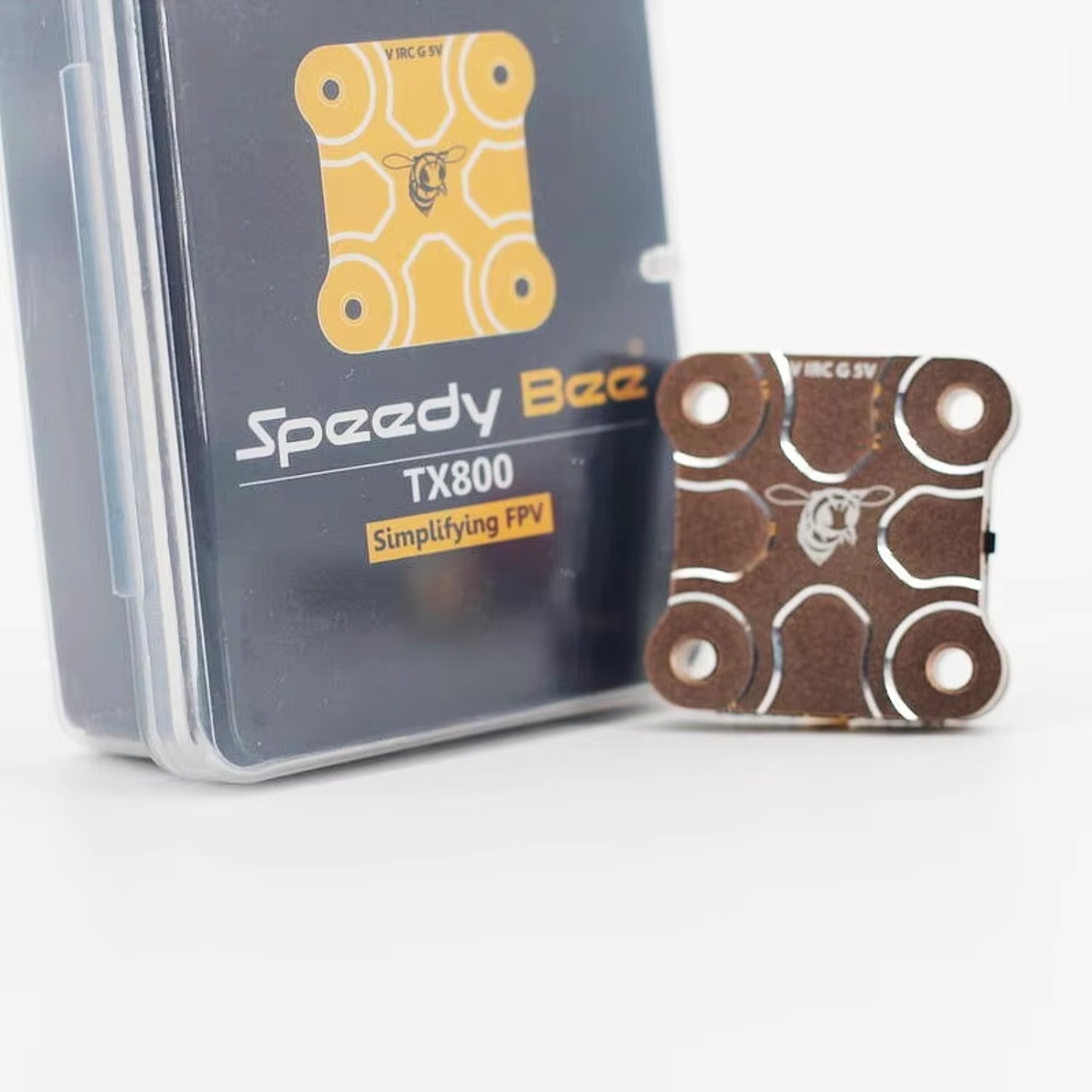

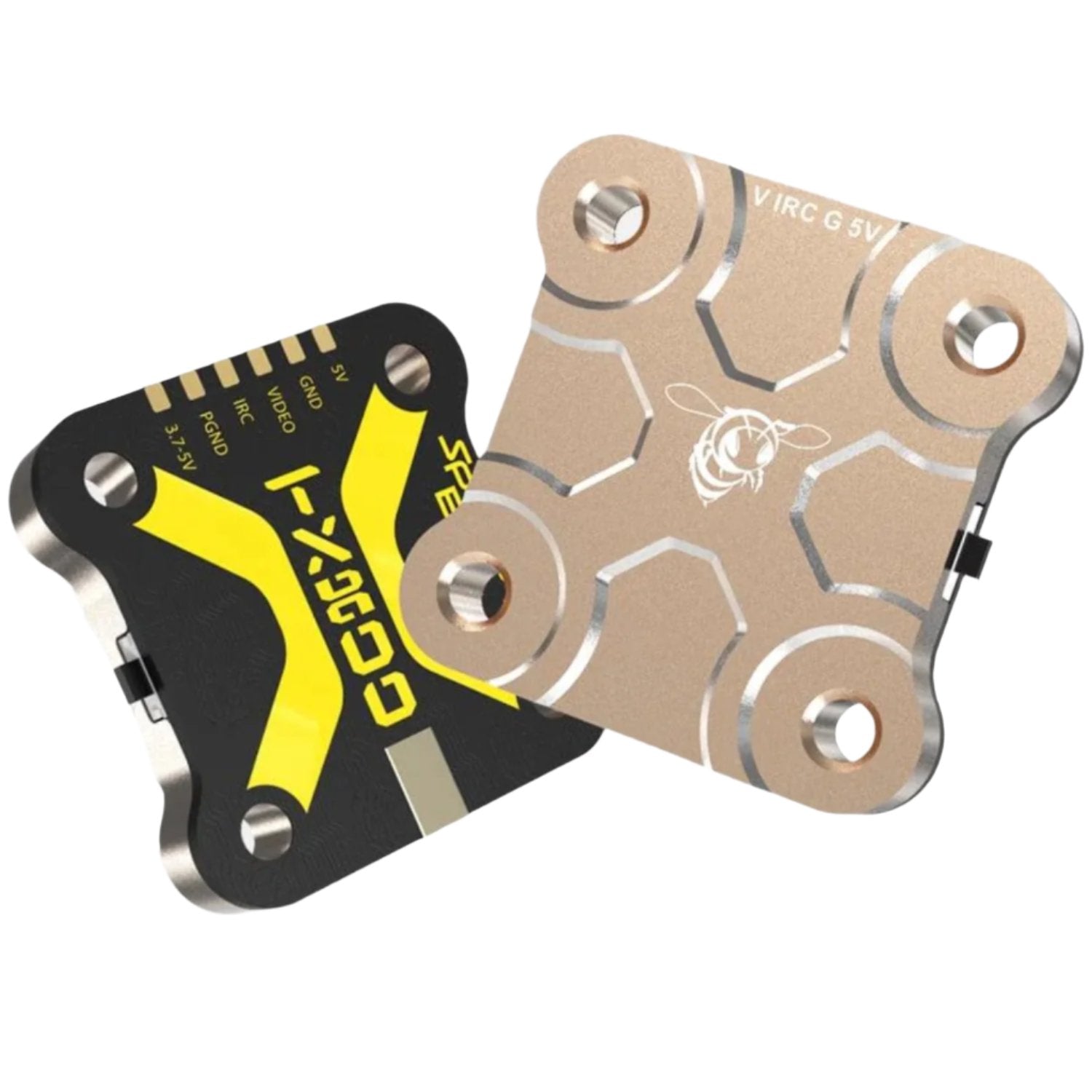

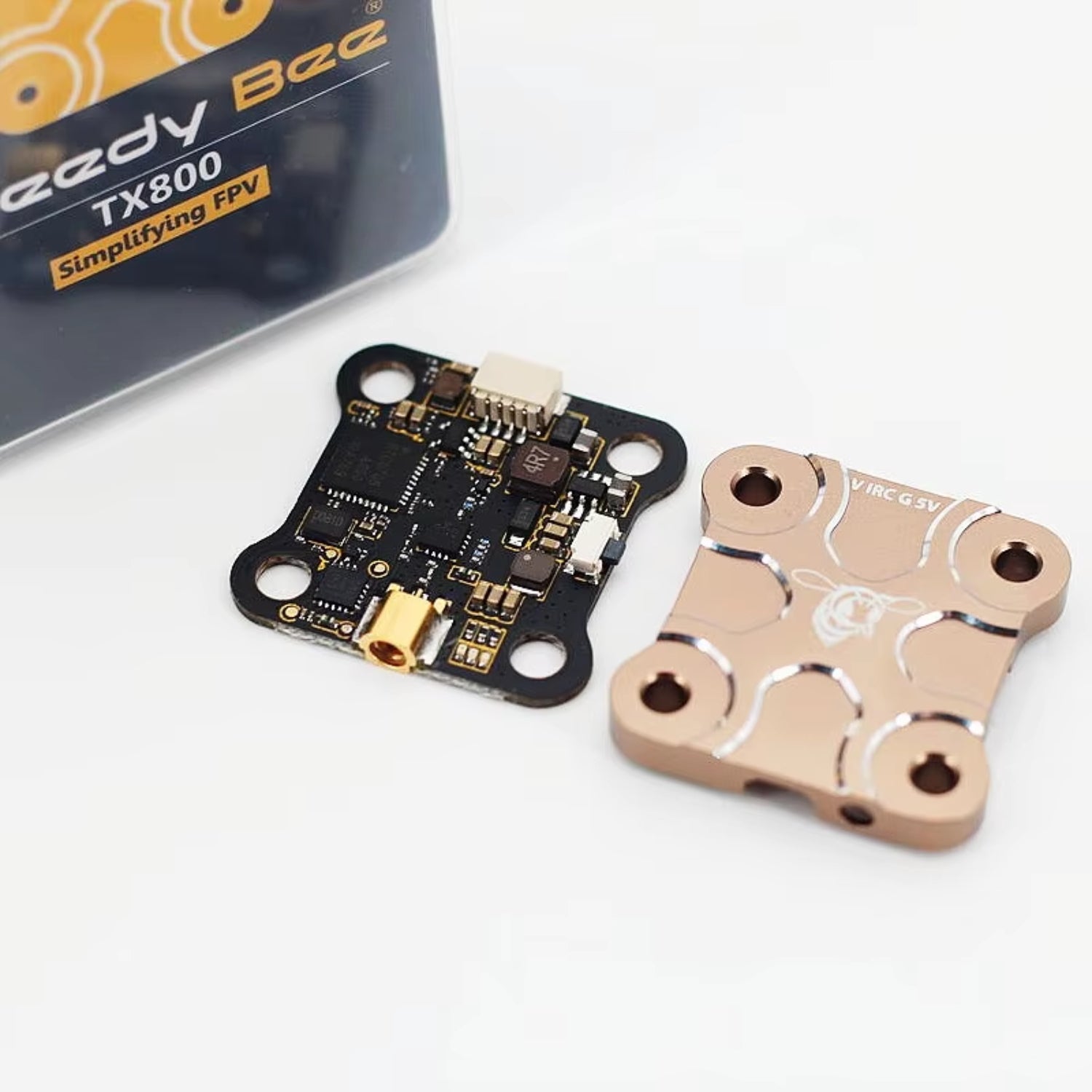

The SpeedyBee TX800 5.8GHz VTX is a compact, high-efficiency video transmitter, offering a variable power output from 25mW up to 800mW and including a Pit Mode. It has IRC Tramp support for easy setting changes remotely via FC control, or you can use a simple push button on the VTX if you prefer. The transmitter only measures 28x28mm in size and is perfect in a stack with 20x20mm M2 mounting holes. The TX800 has an MMCX antenna connection, but it also includes an SMA pigtail adapter and a dipole whip antenna.
Specifications:
- Frequency Channel: 5.8GHz 48CH
- Output Power: PIT/25mW/200mW/400mW/800mW
- Working Current: 5V@250~750mA
- Voltage out: 5V@max 250mA
- Voltage in: 3.7-5.5V
- Video input impedance: 75 Ohm
- Antenna Connector: MMCX
Connections:
Features:
- SpeedyBee TX800 5.8GHz video transmitter (VTX)
- Compact and lightweight form factor
- Smart features include Pit Mode and a built-in microphone
- Designed for FPV drones and racing quadcopters
- Adjustable power output options for compliance and range optimization
- Excellent video signal clarity and stability
- A reliable and versatile choice for FPV enthusiasts and racers.
Useful Link:
Package Included:
1 x SpeedyBee TX800 5.8GHz FPV Transmitter
