SpeedyBee TX800 5.8GHz 800mW FPV Video Transmitter (VTX) with Pit Mode & Smart Audio - For FPV Racing & Freestyle Drones - RS6573

SpeedyBee TX800 5.8GHz 800mW FPV Video Transmitter (VTX) with Pit Mode & Smart Audio - For FPV Racing & Freestyle Drones - RS6573

RS6573

In stock

Rs. 4,599.00
Rs. 4,599.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

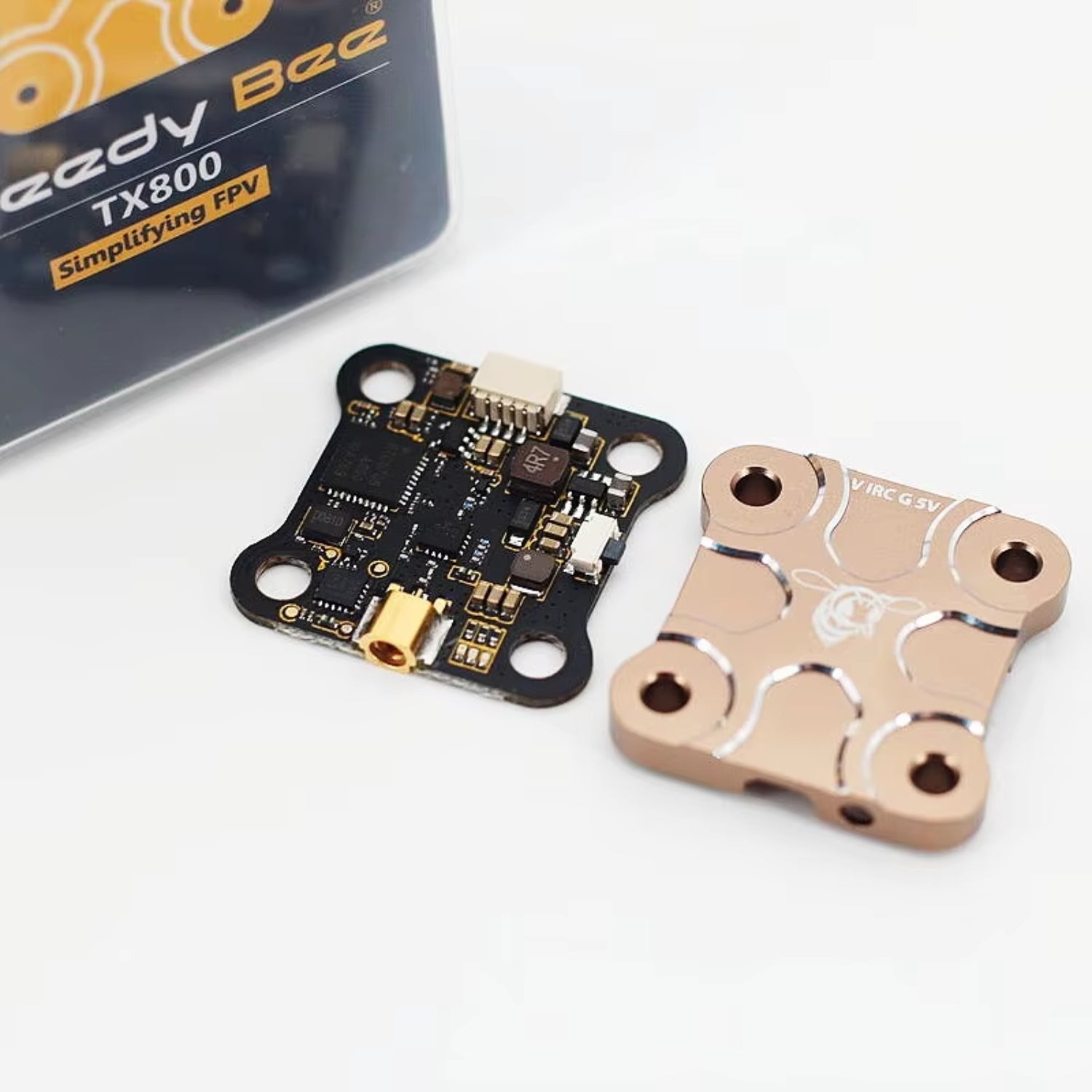

The SpeedyBee TX800 5.8GHz VTX is a compact, high-efficiency video transmitter, offering a variable power output from 25mW up to 800mW and including a Pit Mode. It has IRC Tramp support for easy setting changes remotely via FC control, or you can use a simple push button on the VTX if you prefer. The transmitter only measures 28x28mm in size and is perfect in a stack with 20x20mm M2 mounting holes. The TX800 has an MMCX antenna connection, but it also includes an SMA pigtail adapter and a dipole whip antenna.

Specifications:

  • Frequency Channel: 5.8GHz 48CH
  • Output Power: PIT/25mW/200mW/400mW/800mW
  • Working Current: 5V@250~750mA
  • Voltage out: 5V@max 250mA
  • Voltage in: 3.7-5.5V
  • Video input impedance: 75 Ohm
  • Antenna Connector: MMCX

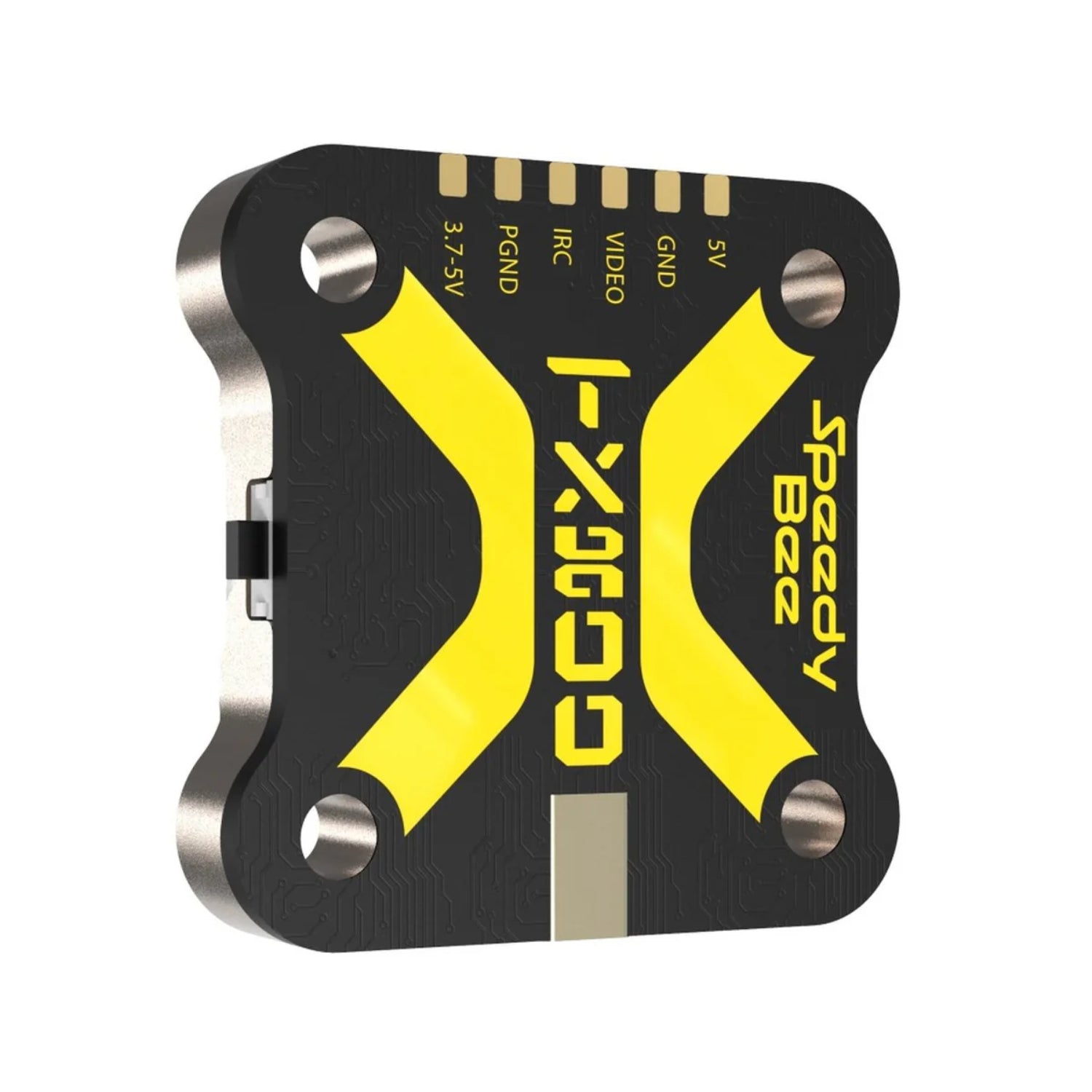

Connections:

Features:

  • SpeedyBee TX800 5.8GHz video transmitter (VTX)
  • Compact and lightweight form factor
  • Smart features include Pit Mode and a built-in microphone
  • Designed for FPV drones and racing quadcopters
  • Adjustable power output options for compliance and range optimization
  • Excellent video signal clarity and stability
  • A reliable and versatile choice for FPV enthusiasts and racers.

Useful Link:

Package Included:

1 x SpeedyBee TX800 5.8GHz FPV Transmitter
