Description:

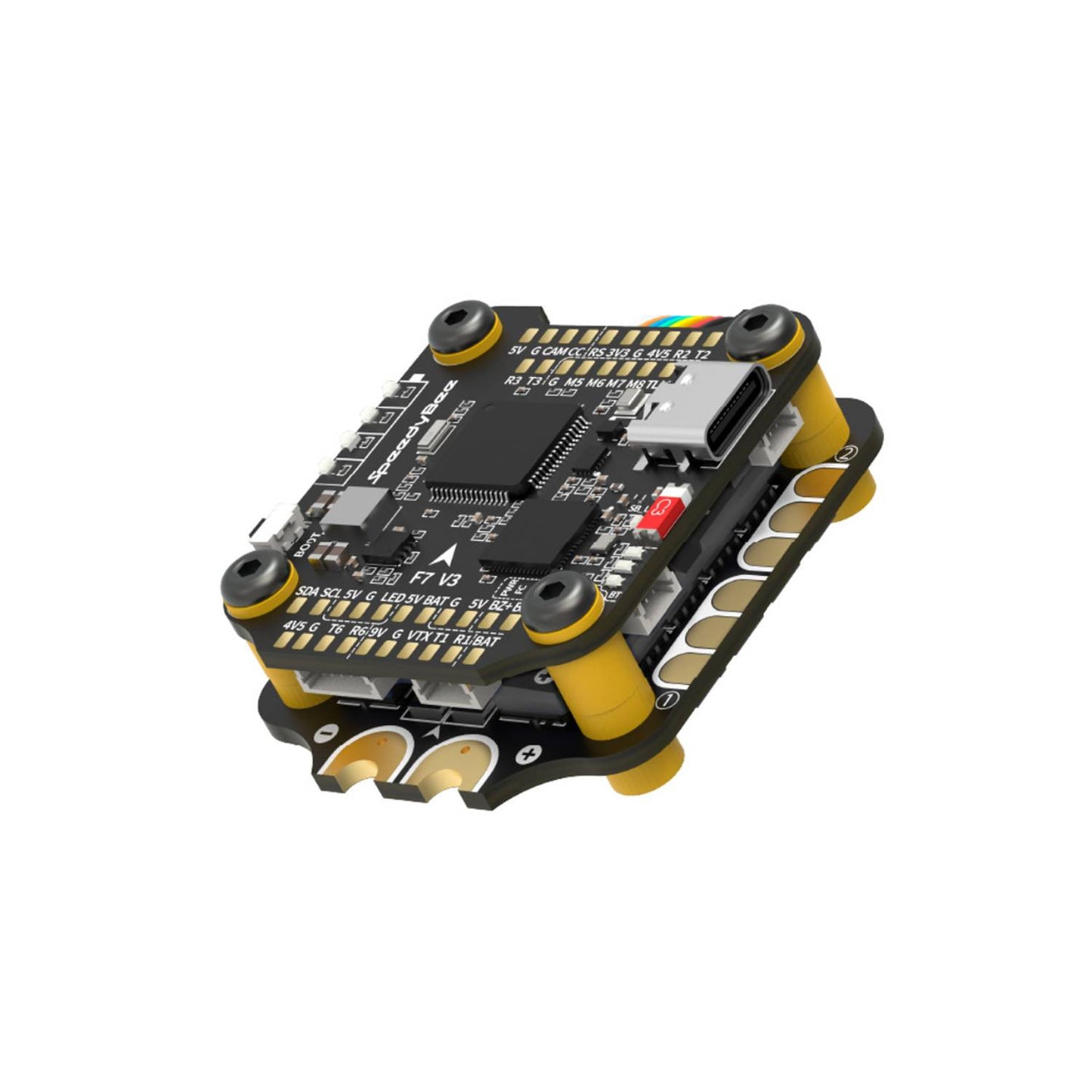

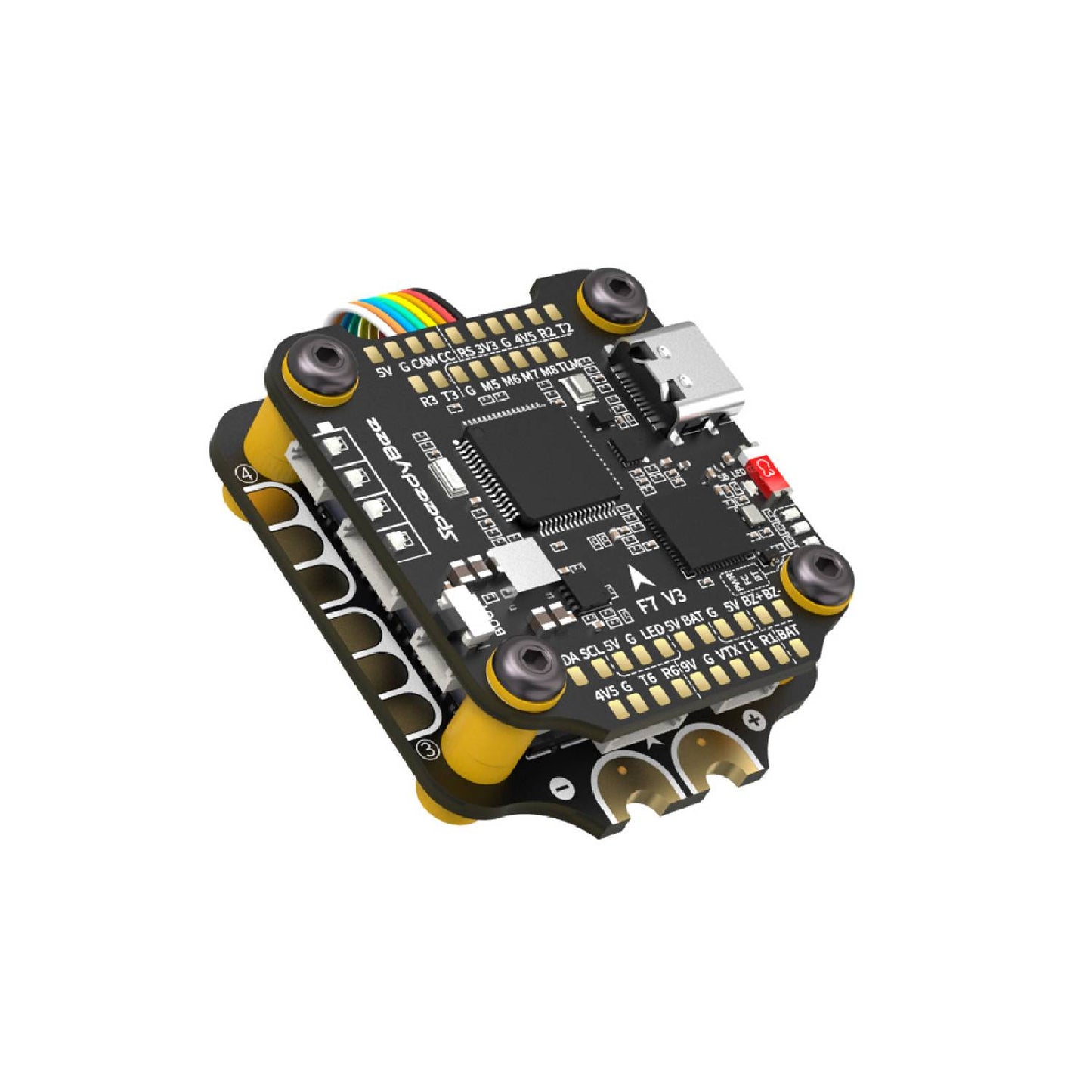

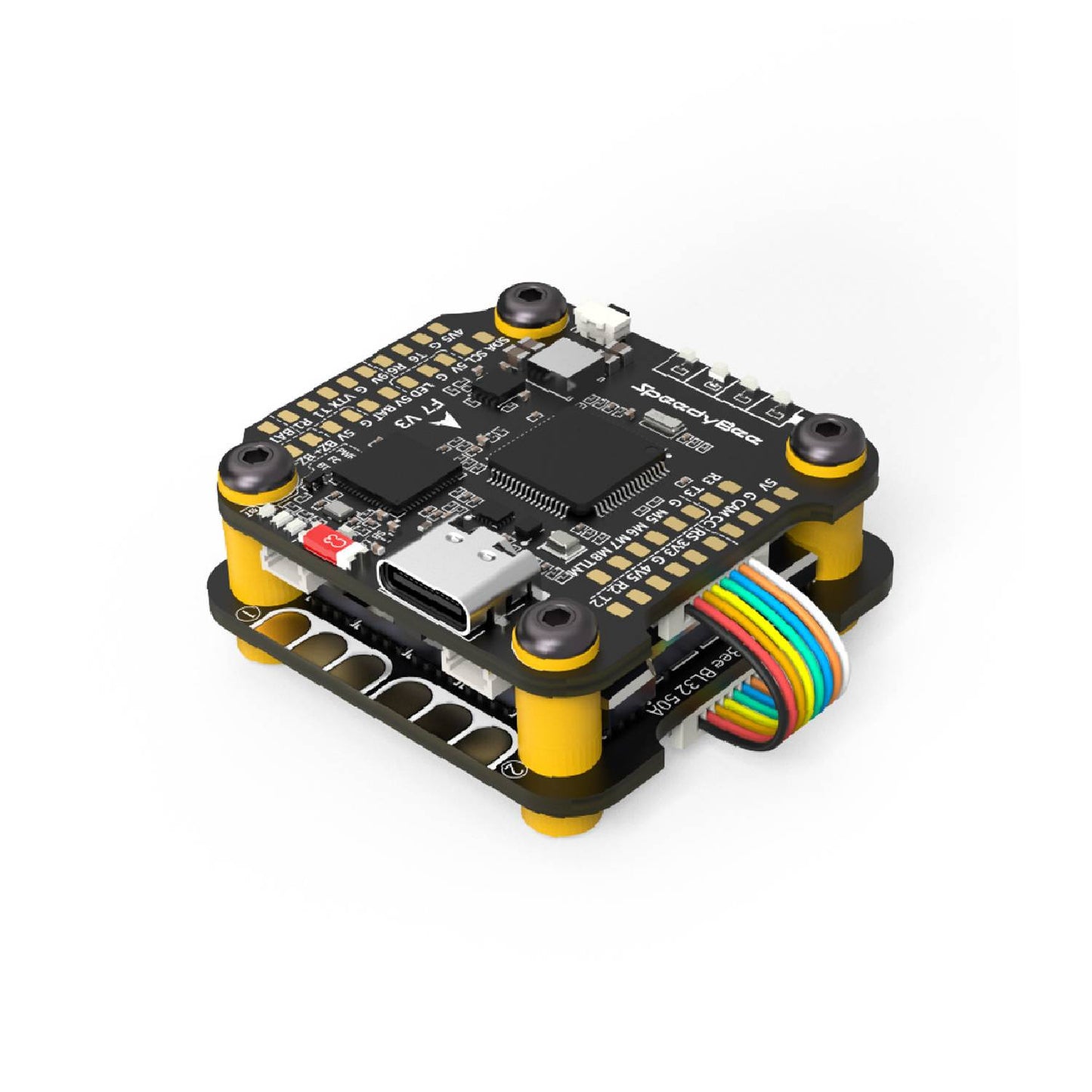

SpeedyBee F7 V3 Flight Controller BL32 50A 30×30 Stack – your premier choice for superior control and efficient power distribution. This dynamic duo features the sophisticated SpeedyBee F7 V3 Flight Controller alongside the powerful SpeedyBee BL32 50A 4-in-1 ESC, crafting an integrated flight system that delivers smooth and responsive flight characteristics.
Specifications:

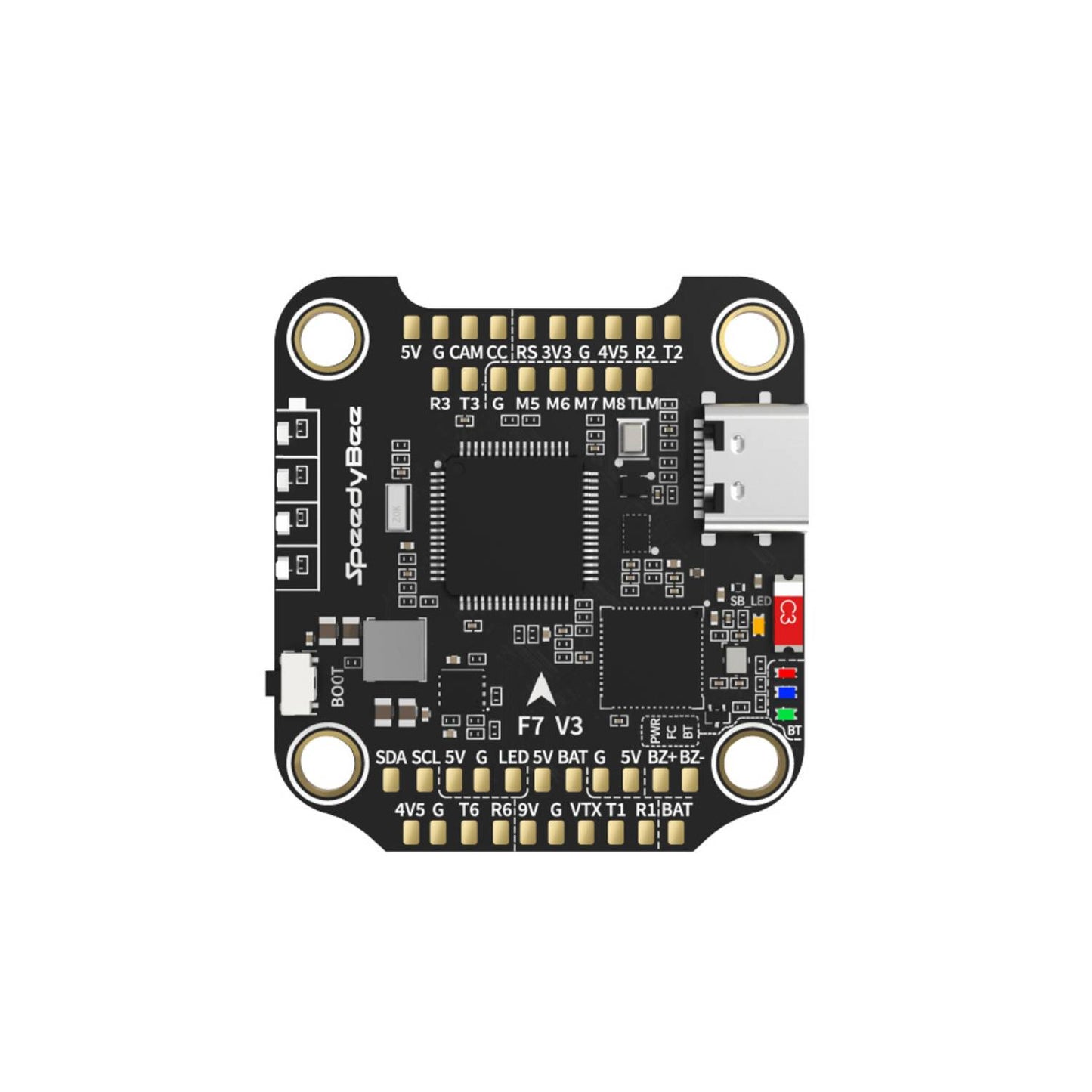

| Product Name | SpeedyBee F7 V3 Flight Controller |
| MCU | STM32F722 |
| IMU(Gyro) | BMI270 |
| USB Port Type | Type-C |
| Barometer | BMP280 |
| OSD Chip | AT7456E chip |
| BLE Bluetooth | Supported. Used for Flight Controller configuration, built-in a single 2.4 GHz Wi-Fi-and-Bluetooth combo chip |
| Flash FC Firmware Wirelessly | Supported. Please enter MENU > FC Firmware Flasher |
| Download/Analyze Blackbox | Supported. Please enter MENU > Blackbox Analyzer |
| DJI Air Unit Connection Way | Two ways supported: 6-pin connector or direct soldering. |
| 6-pin DJI Air Unit Plug | Supported. Completely compatible with DJI O3/RunCam Link/Caddx Vista/DJI Air Unit V1, no wire is needed to be changed. |
| Flash(for BlackBox) | 500MB |
| BetaFlight Camera Control Pad | Yes(CC pad on the front side) |
| Power Input | 3S - 6S Lipo |
| 5V Output | 10 groups of 5V output, three +5V pads and 1 BZ+ pad( used for Buzzer) on front side, and 6 +5V output included in the connectors on bottom side. The total current load is 2A. |
| 9V Output | 2 groups of 9V output, one +9V pad on the front side and the other included in a connector on the bottom side. The total current load is 4A. |
| 3.3V Output | Supported. Designed for 3.3V-input receivers. Up to 500mA current load. |
| 4.5V Output | Supported. Designed for the receiver and GPS module even when the FC is powered through the USB port. Up to 1A current load. |

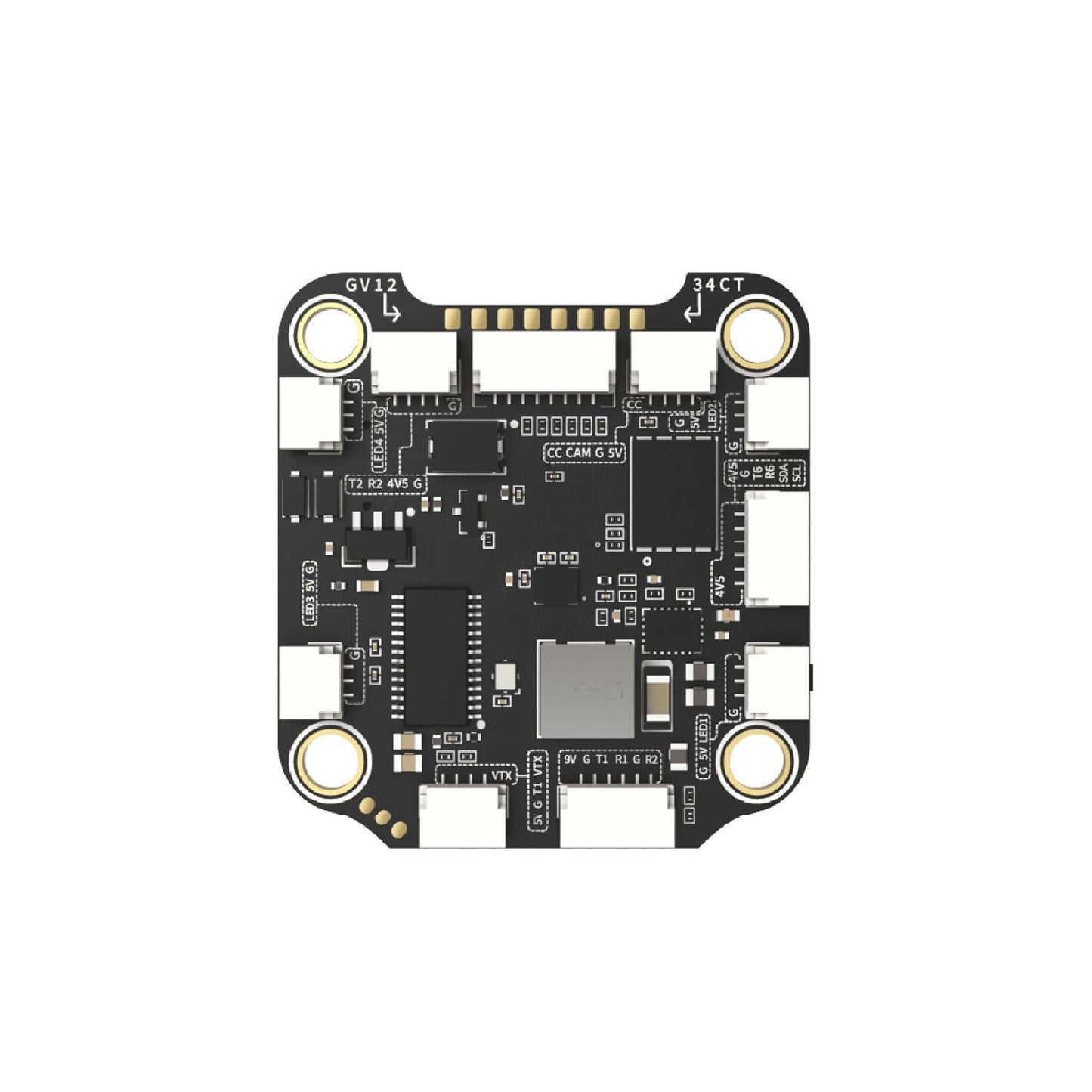

| ESC Signal Pads | M1 - M4 on the bottom side and M5-M8 on the front side. |
| CART | 5 sets(UART1, UART2, UART3, UART4(For ESC Telemetry), UART6) |
| ESC Telemetry UART | R4(UART4) |
| I2C | Supported. SDA & SCL pads on the front side. Used for magnetometer, sonar, etc. |
| LED Pad | Used for WS2812 LED controlled by Betaflight firmware. |
| Buzzer | BZ+ and BZ- pad used for 5V Buzzer |
| BOOT Button | Supported. [A]. Press and hold the BOOT button and power the FC on at the same time will force the FC to enter DFU mode, this is for firmware flashing when the FC gets bricked. [B]. When the FC is powered on and in standby mode, the BOOT button can be used to control the LED strips connected to LED1-LED4 connectors on the bottom side. By default, short-press the BOOT button to cycle the LED displaying mode. Long-press the BOOT button to switch between SpeedyBee-LED mode and BF-LED mode. Under BF-LED mode, all the LED1-LED4 strips will be controlled by Betaflight firmware. |
| RSSI Input | Supported. Named as RS on the front side. |
| SmartPort | Supported |
| Supported Flight Controller Firmware | BetaFlight(Default),INAV |
| Firmware Target Name | SPEEDYBEEF7V3 |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |

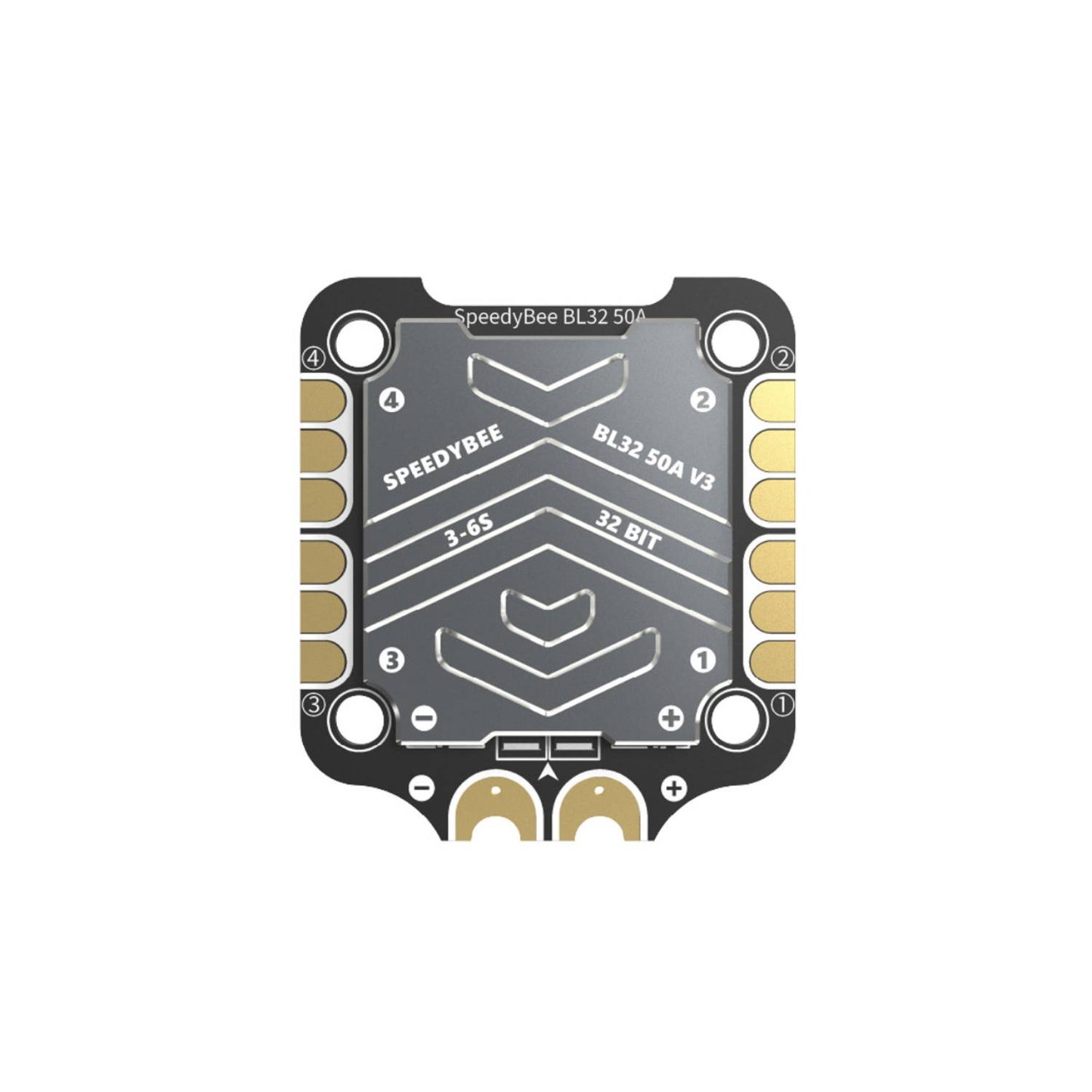

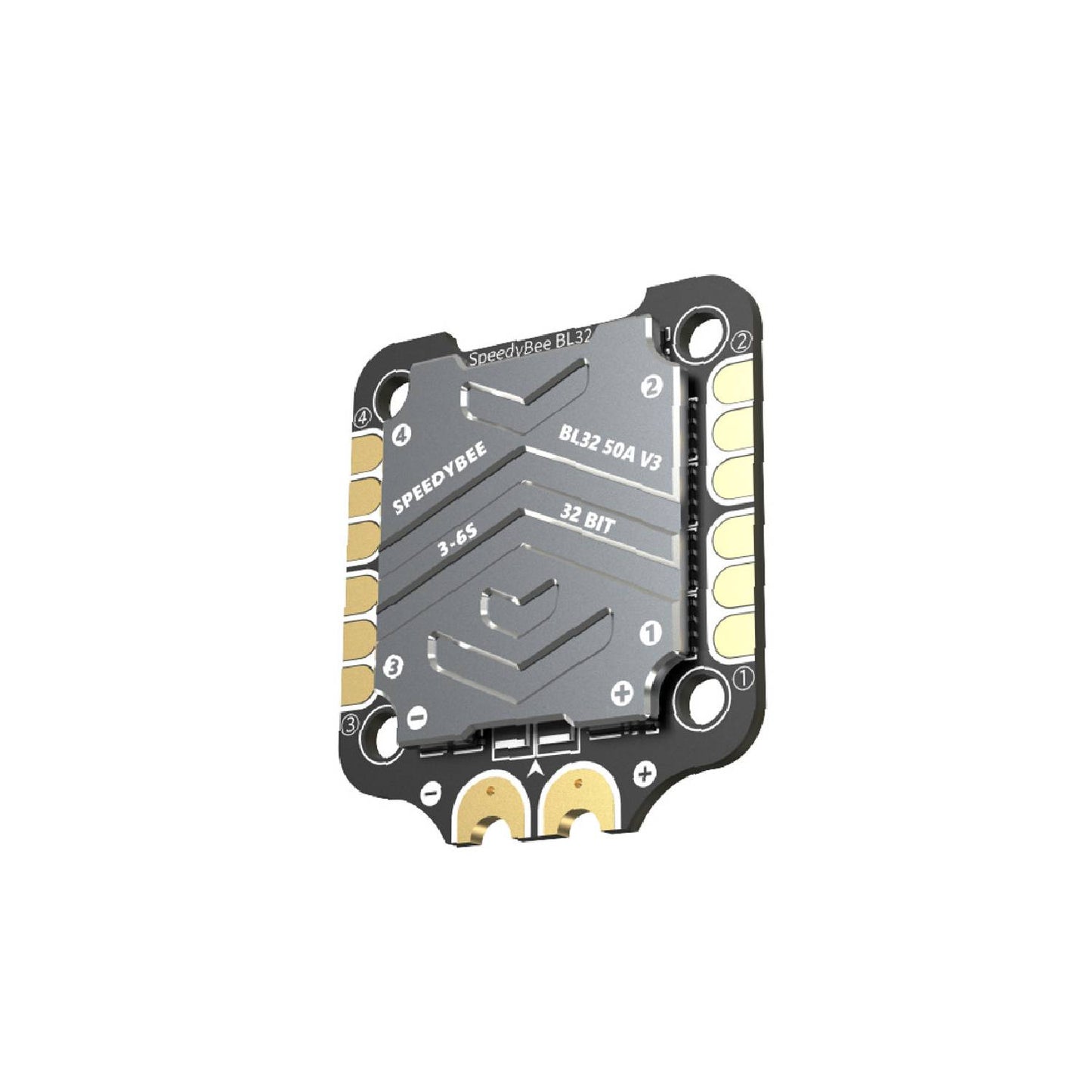

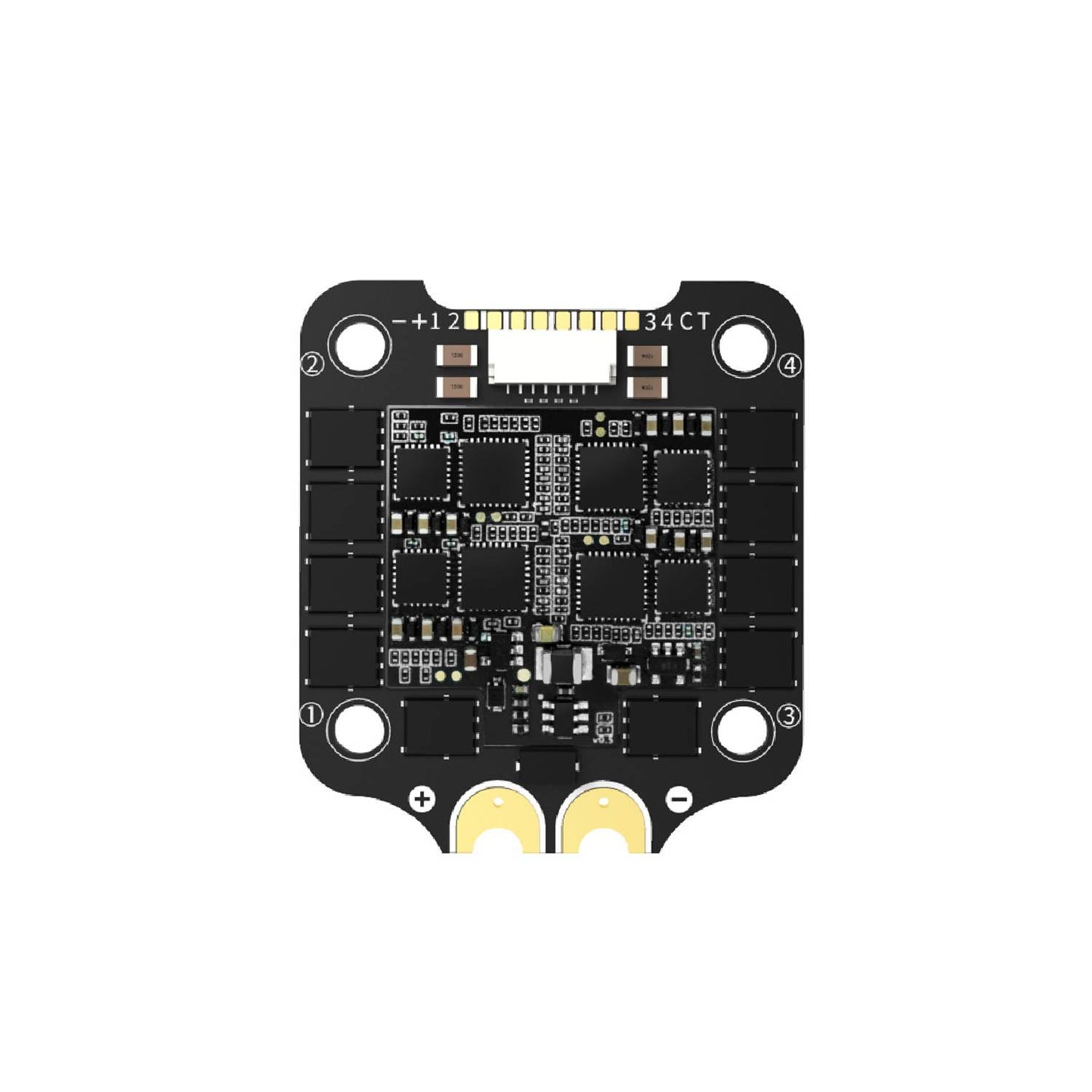

| Product Name | SpeedyBee BL32 50A 4-in-1 ESC |
| Firmware | SpeedyBee BL32 50A |
| Configurator Download Link | http://github.com/bitdump/BLHeli/releases |
| Continuous Current | 50A * 4 |
| Burst Current | 55A(5seconds) |
| TVS Protective diode | Yes |
| Heat Sink | Yes |
| External Capacitor | 1000uF Low ESR Capacitor(In the package) |
| ESC Protocol | DSHOT300/600 |
| PWM Frequency Range | 16KHz-128KHz |
| Power Input | 3-6S LiPo |
| Power Output | VBAT |
| Current Sensor | Support (Scale=490 Offset=0) |
| ESC Telemetry | supported |
| Mounting | 30.5 x 30.5mm( 4mm hole diameter) |
Features:
- Our ESC features a sophisticated 4-level LED battery indicator.
- It offers a smooth and seamless flight experience.
- It is capable of handling even the most powerful 6S motors with ease.
Package Included:
- 1 x SpeedyBee F7 V3 Flight Controller
- 1 x SpeedyBee BL32 50A 4-In-1 ESC
- 1 x DJI 6pin Cable(80mm)
- 1 x SH 1.0mm 25mm-Length 8pin Cable(For FC-ESC Connection)
- 1 x M3*8mm Silicone Grommets(For FC)
- 1 x M3*8.1mm Silicone Grommets(For ESC)
- 5 x M3*30mm Iner-Hexagon Screws
- 5 x M3 Silicone O Ring
- 5 x M3 Nylon Nut
- 1 x 35V 1000uF Low ESR Capacitor
- 1 x XT60 Power Cable(100mm)
- 1 x 4-pin SH 1.0 To 3+2pin JST1.25 FPV Cam Cable(30mm)
- 1 x 4-pin SH 1.0 To 3+2pin JST1.25 FPV Cam Cable(60mm)
- 1 x 4-pin SH 1.0 To 4pin JST1.25 FPV Cam Cable(60mm)
- 1 x 4-pin SH 1.0 Radio Receiver Cable(100mm)
- 1 x 4-pin SH1.0 To 4pin SH1.0 Analog VTX Cable
- 1 x 6-pin SH1.0 GPS Module Cable Without Connector On Another End(100mm)
- 1 x 6-pin SH1.0 GPS Module Cable Connector Of Another End
