Description:

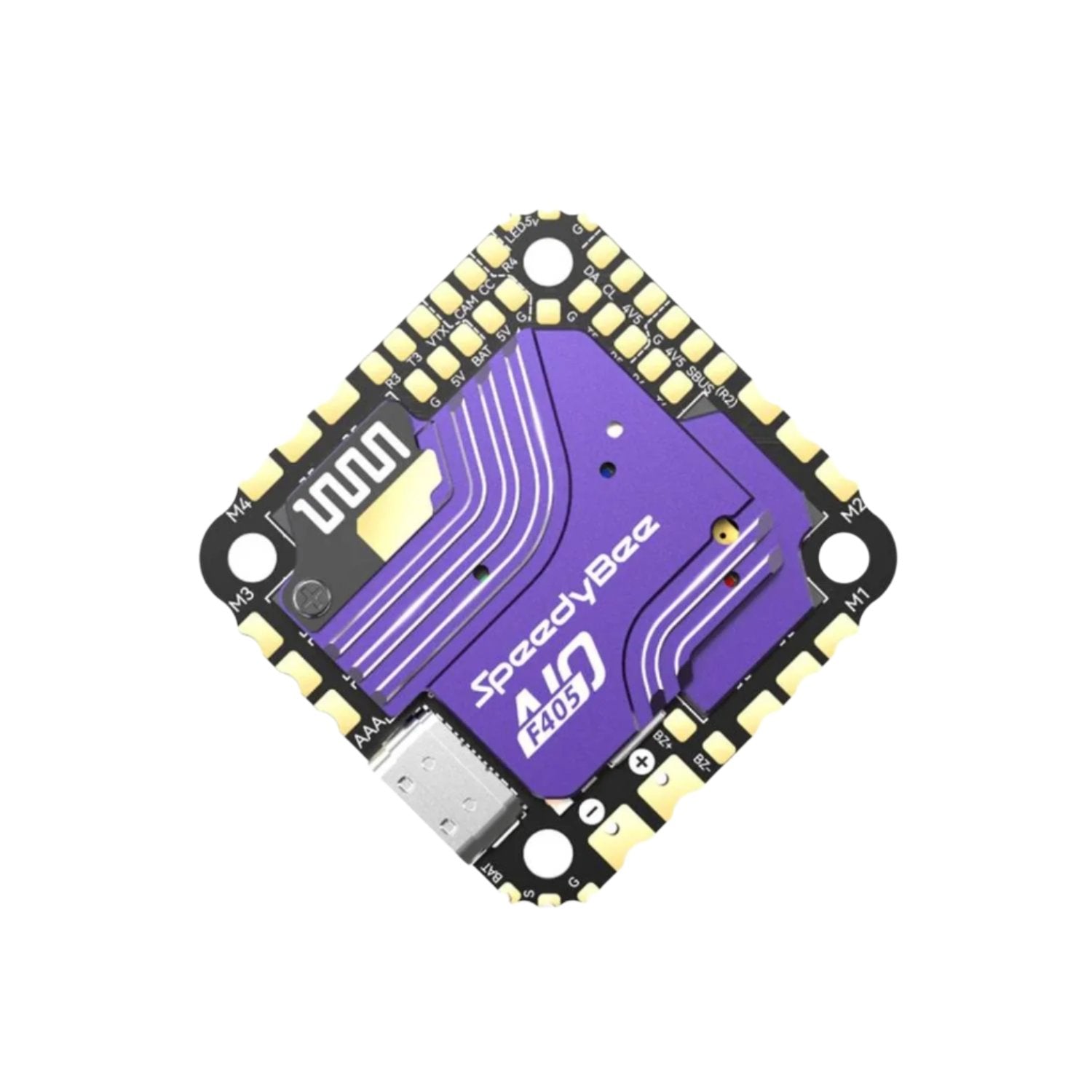

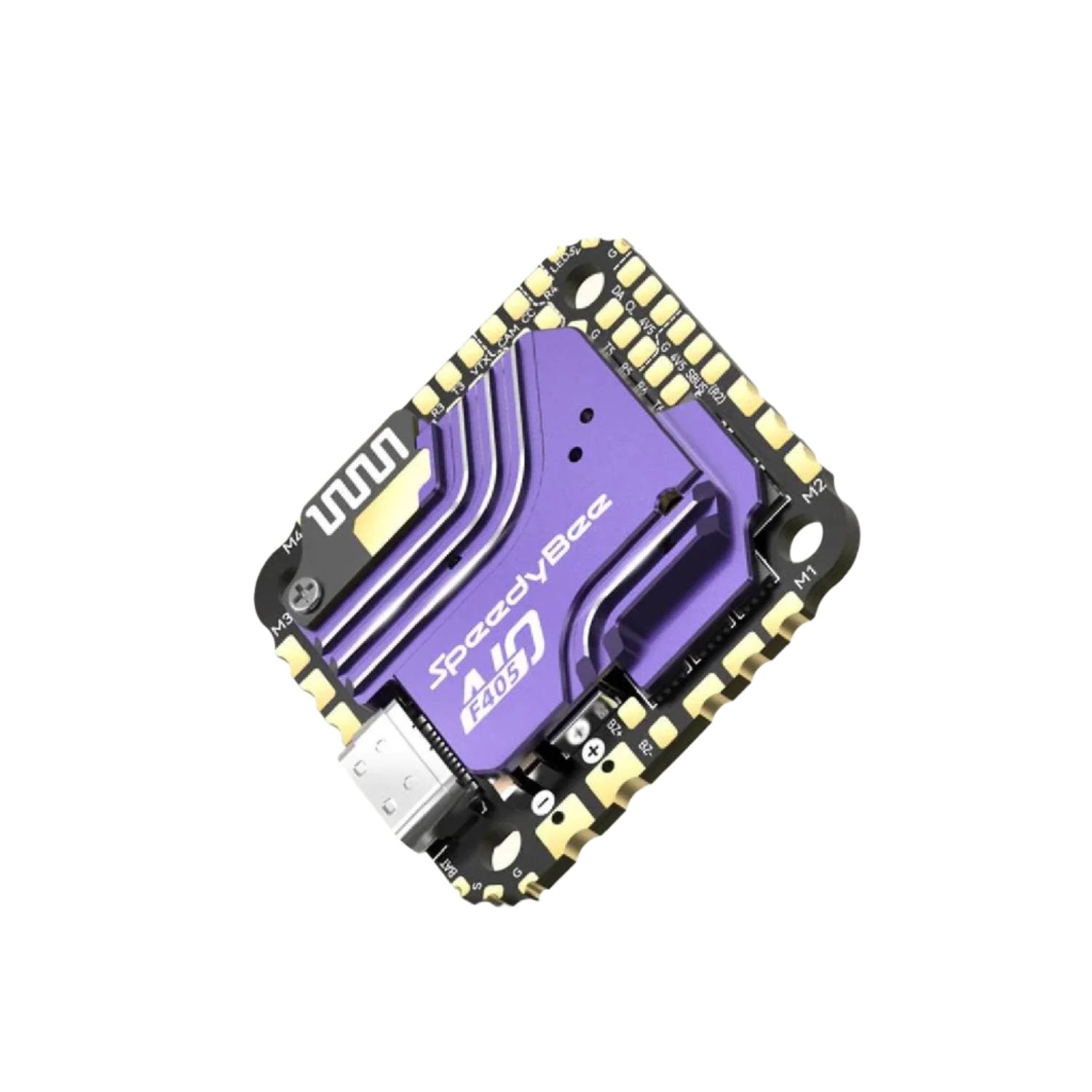

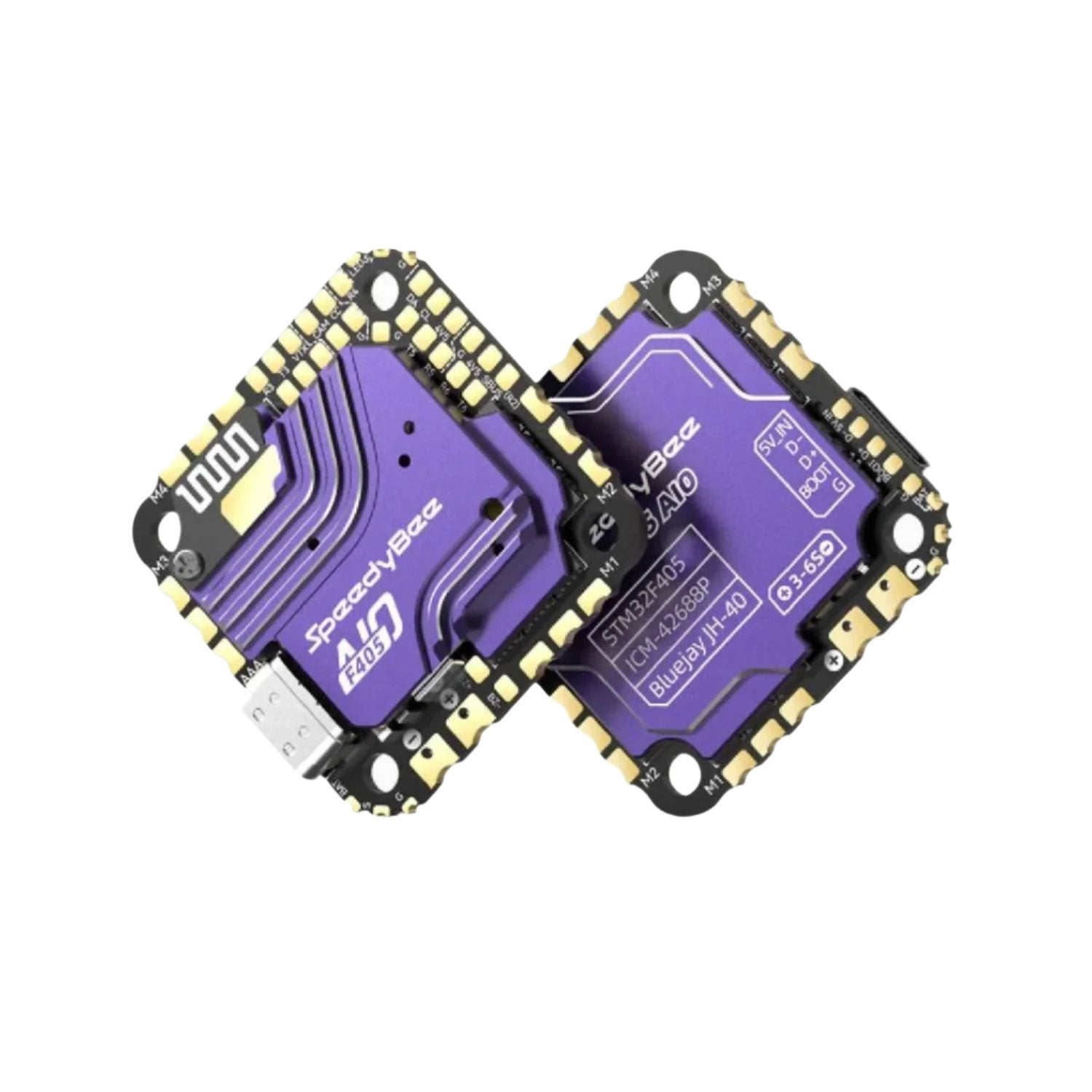

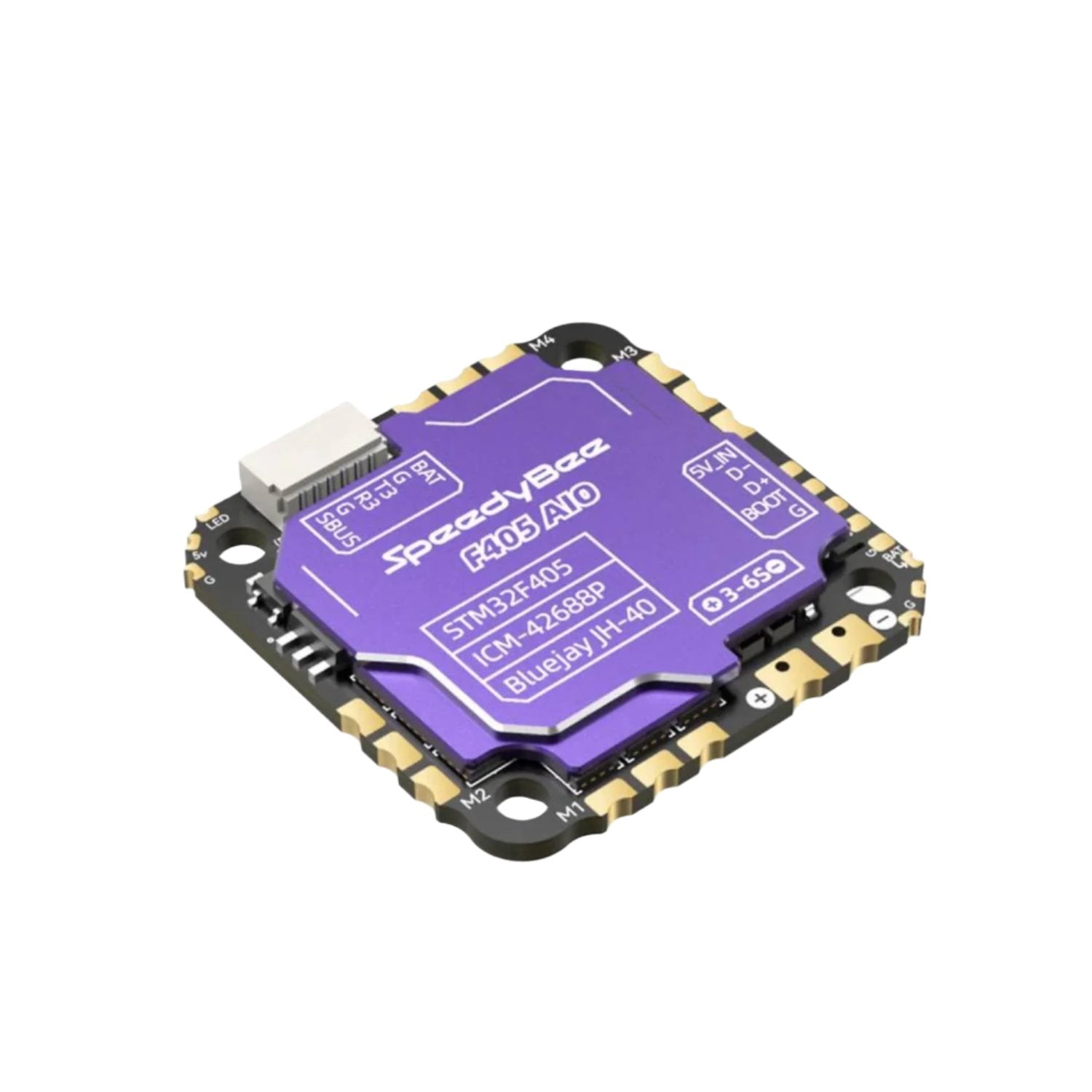

SpeedyBee F405 40A Bluejay 3-6S AIO Flight Controller/ESC - 25.5x25.5mm Boost your drone's speed, stability, and control with the SpeedyBee F405 40A Bluejay 3-6S AIO Flight Controller/ESC. Designed to fit in small spaces with its compact 25.5x25.5mm size, this all-in-one product provides a seamless experience for pilots, making it a must-have for any drone enthusiast.
Specifications:
Flight Controller
- Product Name: SpeedyBee F405 AIO
- MCU: STM32F405
- Gyro: ICM-42688P
- USB Port Type: Type-C
- Barometer: SPA06-003
- OSD: Supported
- Bluetooth BLE: Supported, Bluetooth speed enhancement - 2.0
- Wireless Flight Controller Firmware Update: Supported (no need to press physical BOOT button)
- Wireless Download & BlackBox Analysis: Not supported
- DJI Air Unit Connection Method: Supports both 6-pin direct insertion and soldering
- 6-pin DJI Sky Port Direct Insertion: Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order
- Flash (for BlackBox): 8MB
- Betaflight CC Pads (Camera Parameter Adjustment): Supported
- Input Voltage: 3S-6S LiPo battery
- 4V5 Output: Two 4V5 outputs; total current 1A
- 5V BEC Output: Three 5V outputs; total current 2A; shared with 4V5
- 9V BEC Output: None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A
- MOTOR: M1-M4
- UART: 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
- ESC Telemetry: None
- I2C: Supported
- LED Pads: Supported, used to control WS2812 LED lights
- Buzzer Pads: Supported, BZ+ and BZ- pads
- BOOT Button: Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
- RSSI Pads: None
- SmartPort: Not supported
- Supported Flight Controller Firmware: BetaFlight (Default), INAV
- Firmware Target Name: SPEEDYBEE F405AIO
- Mounting: 25.5 x 25.5mm, 3mm hole diameter
ESC
- Input Voltage: 3-6S LiPo battery
- Continuous Current: 40A
- Burst Current: 45A (10s)
- ESC Protocol: Supports DSHOT600/300; other protocols may cause severe errors, so please use them with caution.
- Output Voltage: VBAT battery voltage (used to power the flight controller)
- Current Sensor: Supported (Scale = 254, Offset = 0)
- Firmware: Bluejay JH-40 48kHz
Features:
- 40a powerful current, reliable performance.
- Rich accessories for easier assembly.
- Equipped with a new spa06-003 barometer, precision further improved.
- Equipped with lcm-42688 gyroscope, hardware filtering is further enhanced.

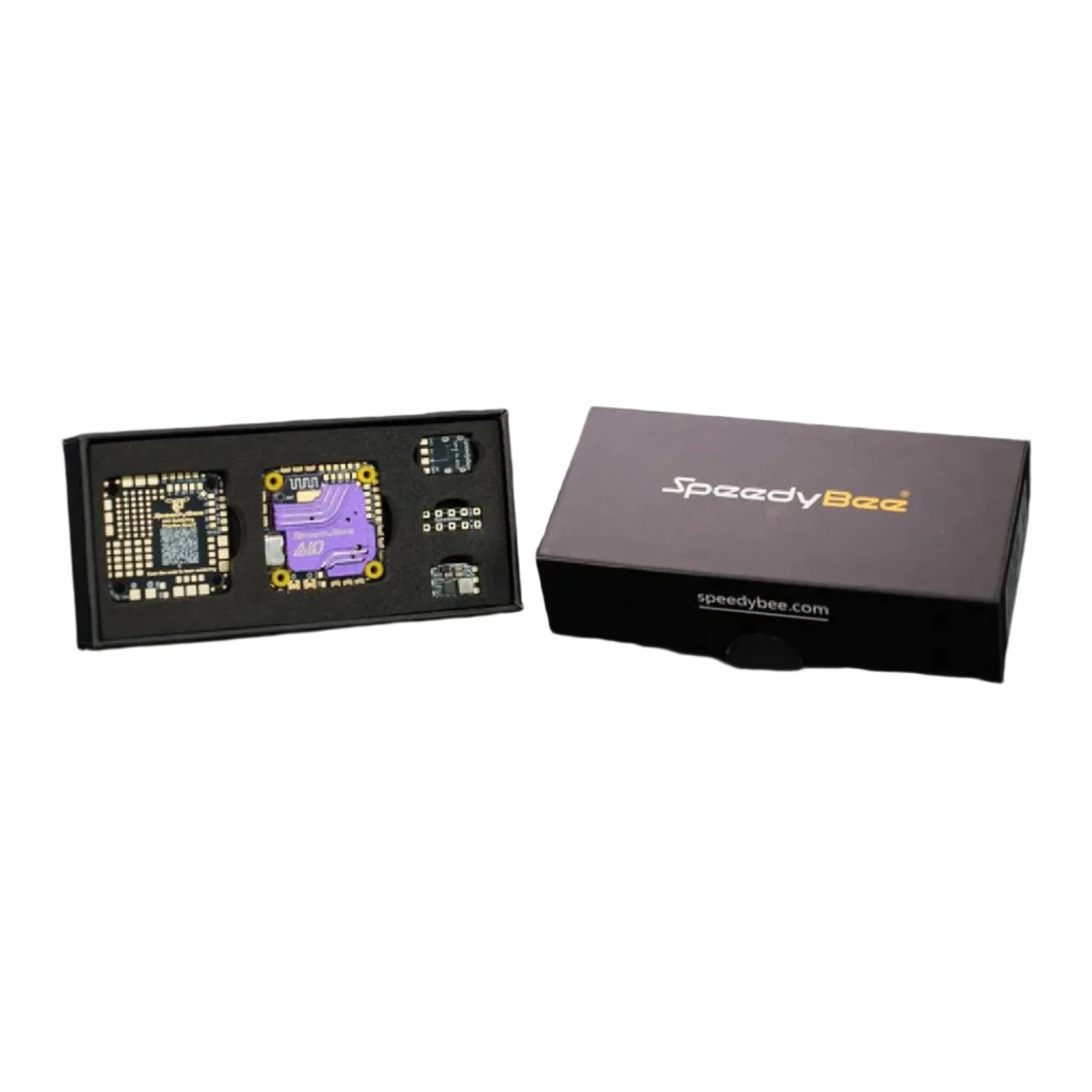

Package Included:
- 1 x SpeedyBee F405 AIO
- 1 x Soldering Practice Board
- 1 x DJI Air Unit 6Pin*80mm Connection Cable
- 1 x 35V 470uF Electrolytic Capacitor
- 5 x M2 Nylon Hex Nut
- 4 x M2 * 6.6mm Silicone Dampening Sleeves
- 5 x M2 Silicone Dampening Ring
- 1 x (7cm) XT30 Power Cable
- 1 x BEC
- 1 x User Manual
- 1 x Transparent Heat Shrink Tube For External BEC
- 1 x Type-C Extension Module
- 1 x Black Heat Shrink Tube For Type-C Extension Module
- 4 x M2*20mm Screws For F405 AIO & VTX Installation
- 1 x 6-Pin * 30mm Cable For External BEC
- 1 x Power Expansion Board
- 1 x 4-pin * 80mm Cable For Type-C Extension Module
- 4 x M2*12mm Screws For F405 AIO Installation
- 2 x Capacitor Heat Shrink Tube
