Description:

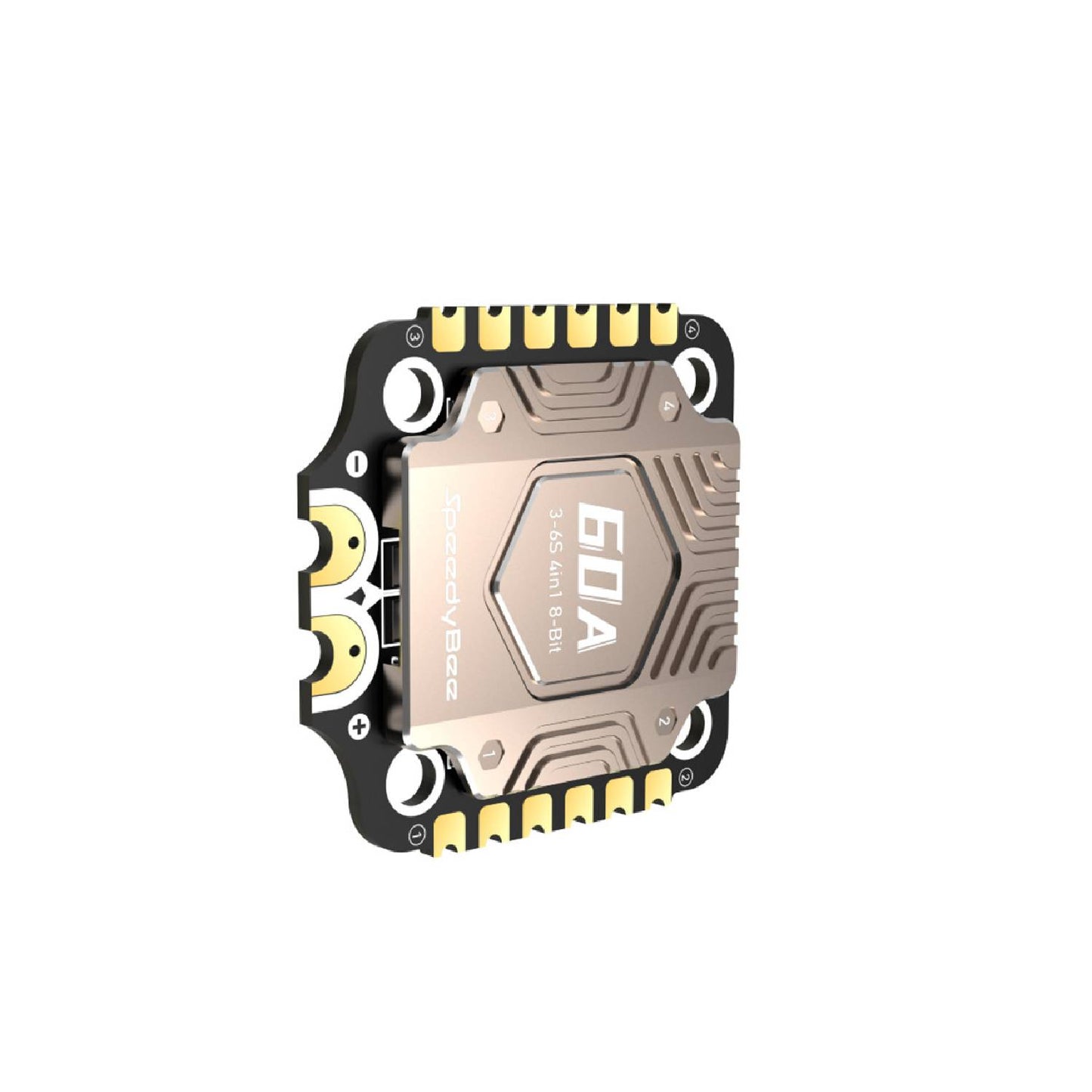

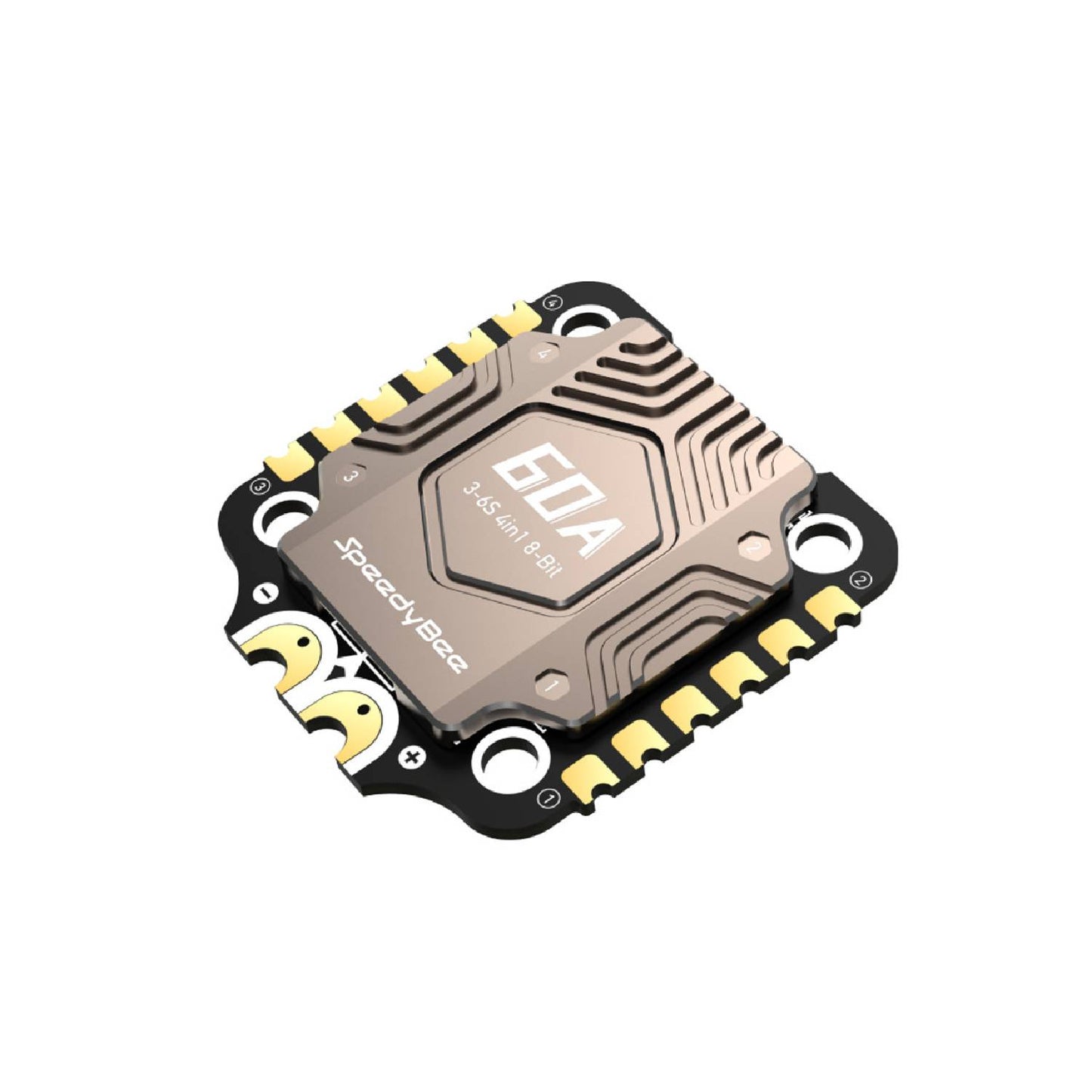

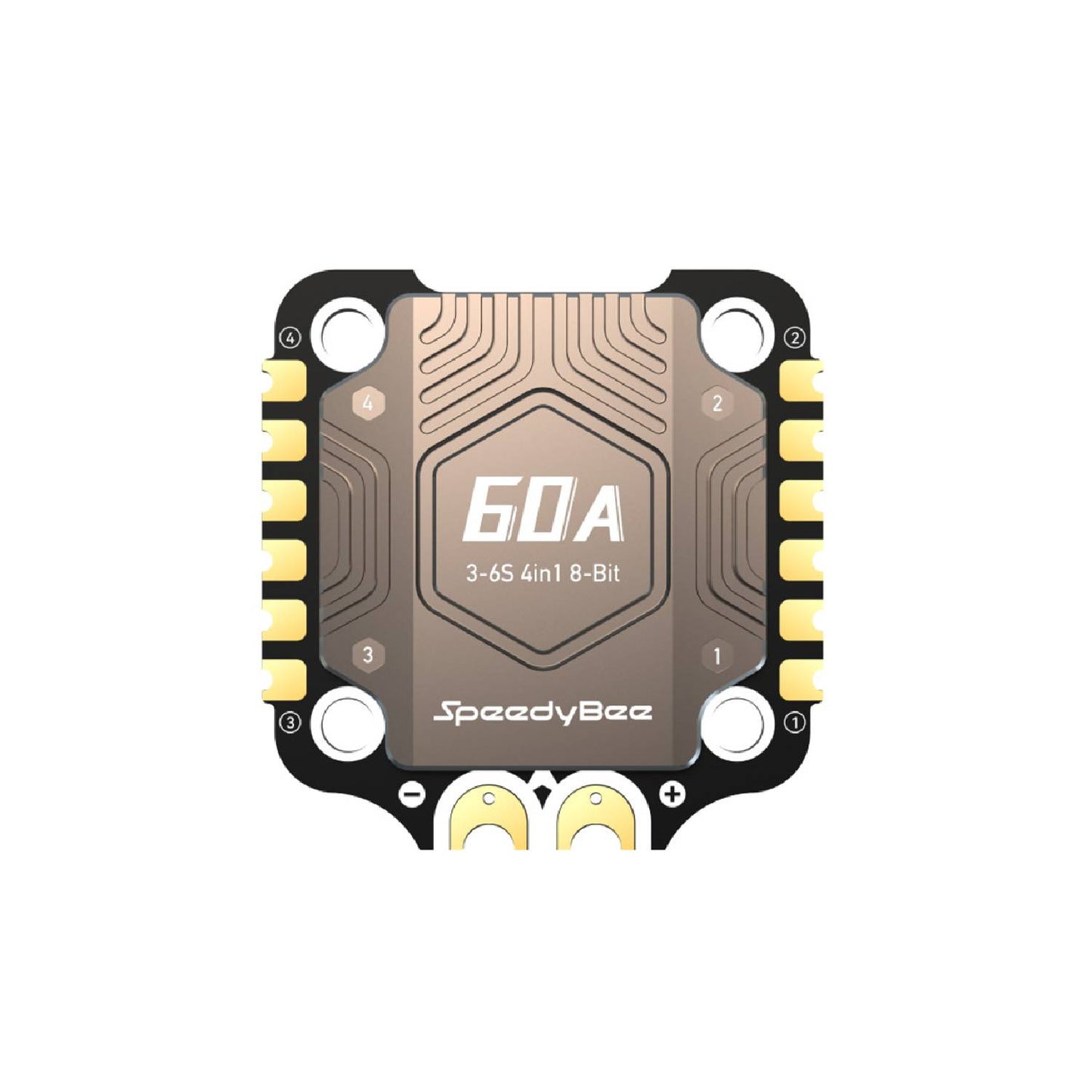

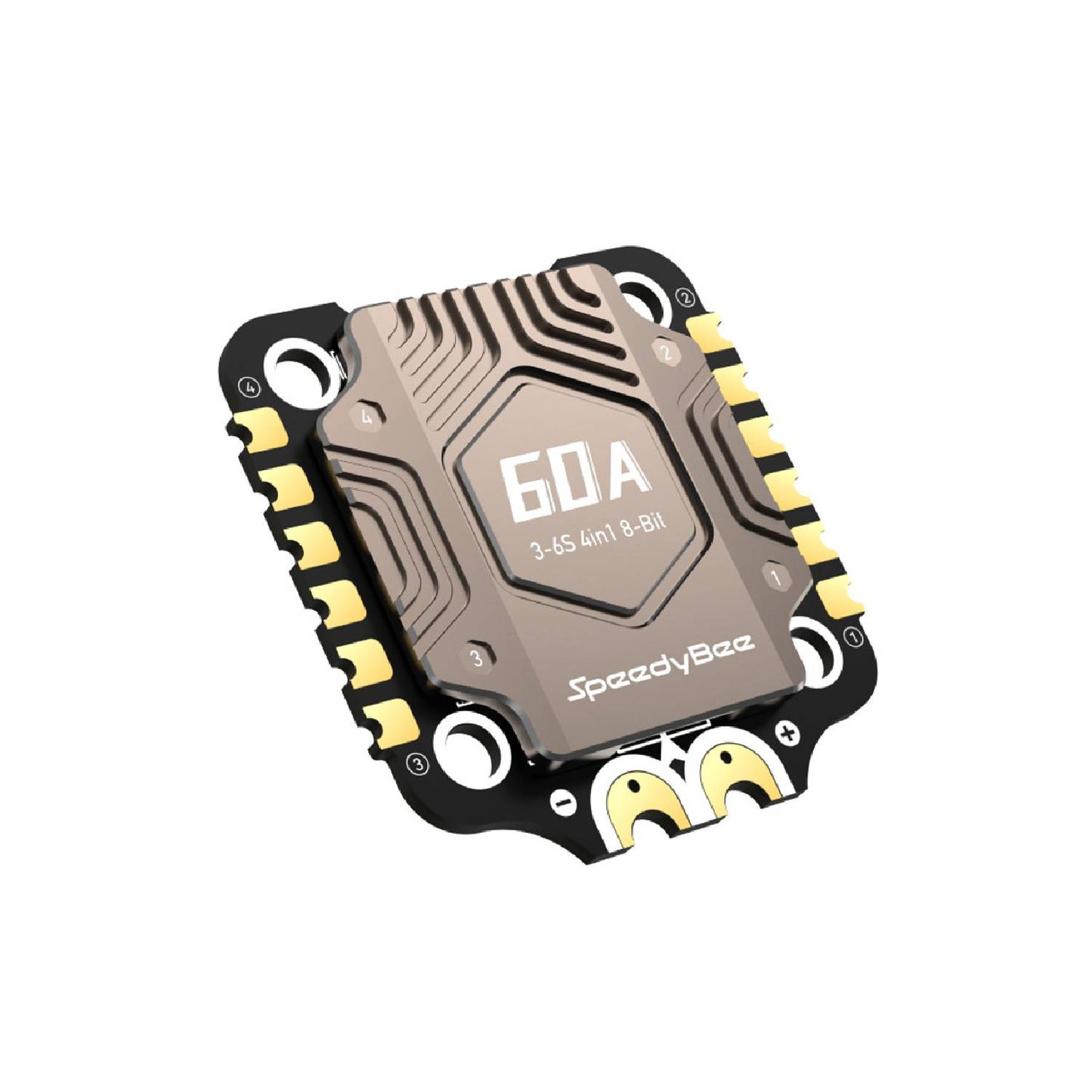

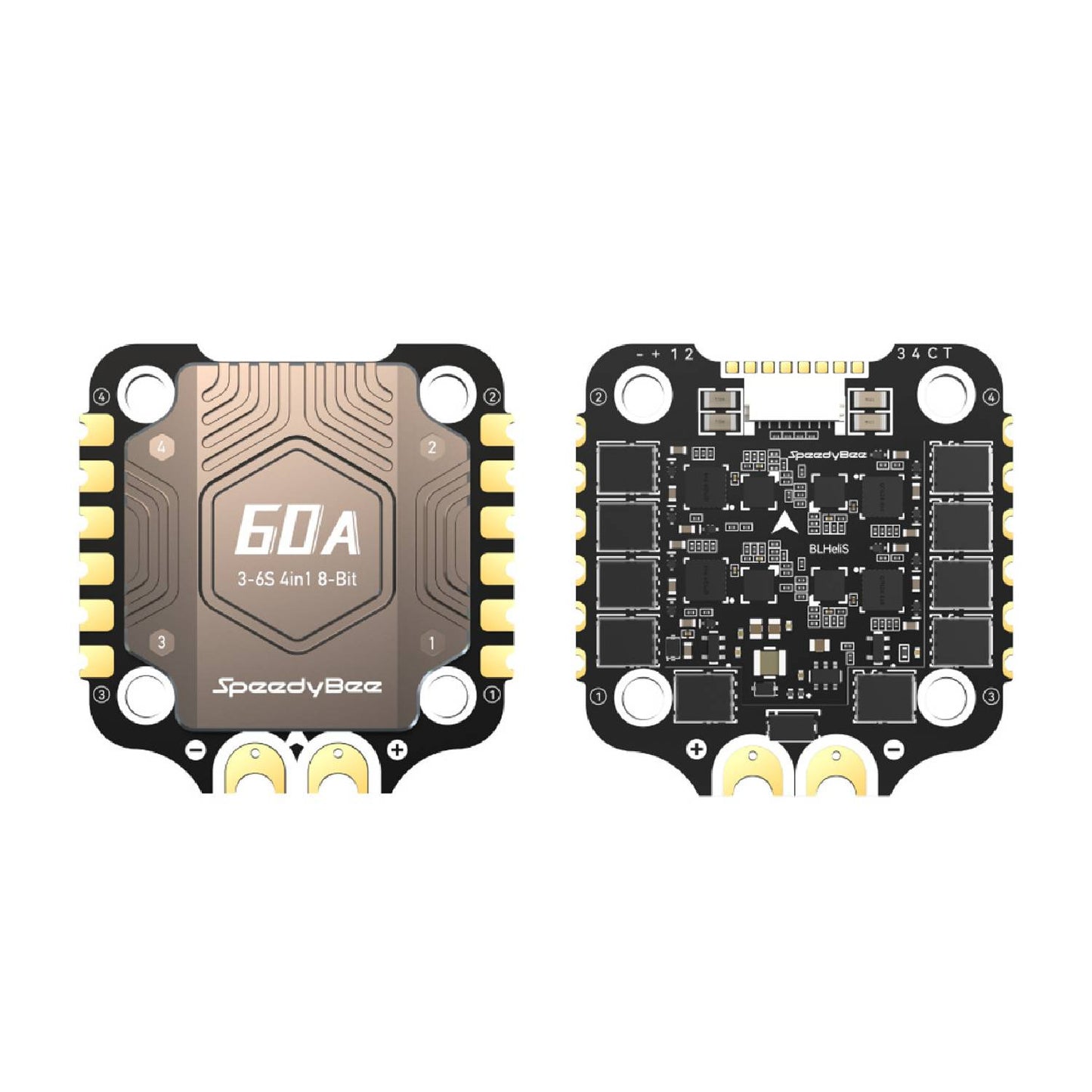

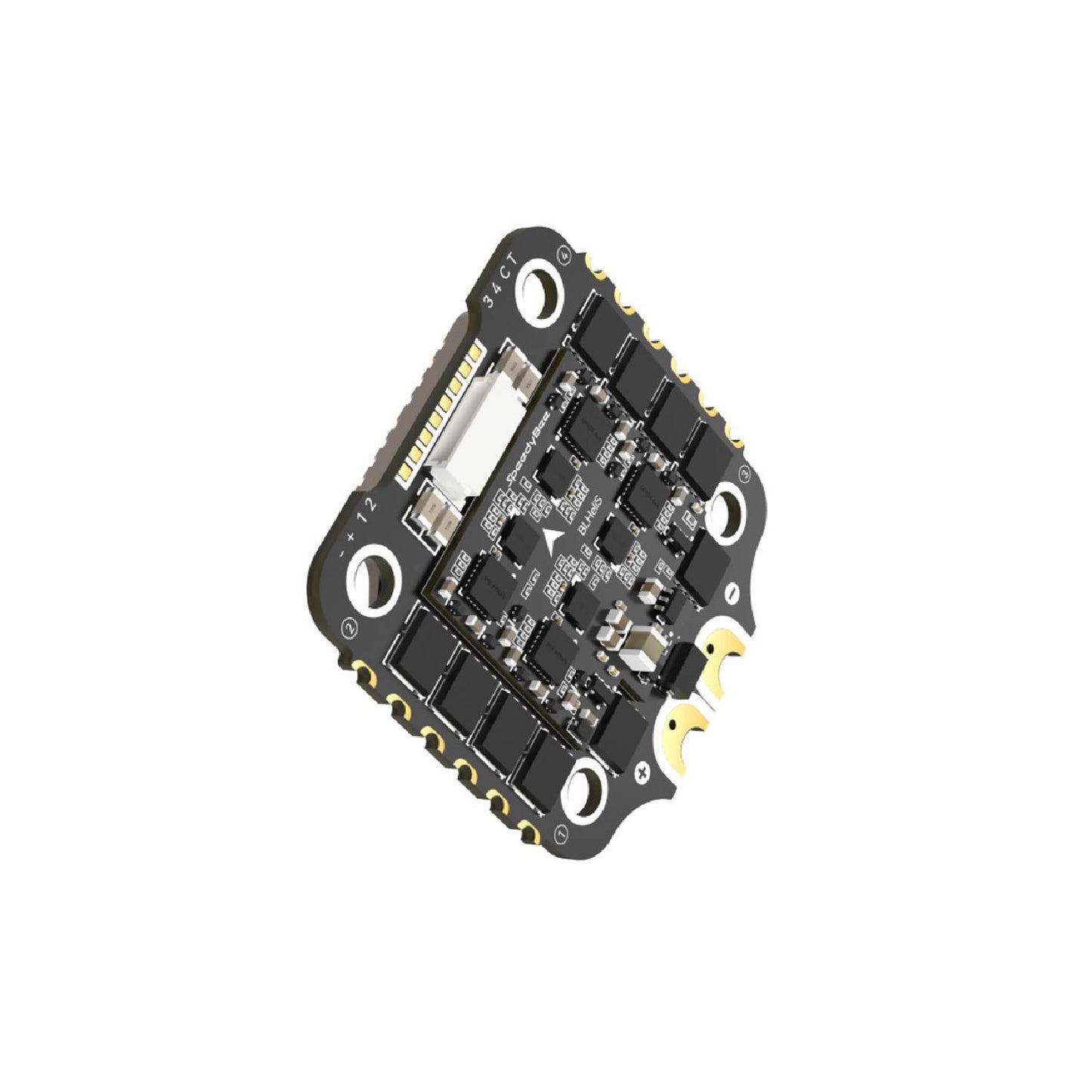

This SpeedyBee BLS 60A 4-in-1 ESC is the latest version of the SpeedyBee BLS ESC – the PCB has been refined, using increased copper thickness and enhanced MOSFET specifications. An aluminum alloy heat sink has also been added to ensure efficient MOSFET heat dissipation for stable ESC output.
A high-quality ESC for a great price. The SpeedyBee BLS 4in1 ESC is an excellent choice for a wide range of builds, from power-hungry freestyle drones to long-range cruisers. Each ESC motor output can withstand a true continuous current of 60A and 80A peak for 10 seconds. Built with the robust BB21 MCU, this ESC runs BLHeli_S firmware and operates under the Dshot 300/600 protocol.
Specifications:
- Firmware: BLHeli_S JH50
- Wireless Configuration: Full Configuration Supported in Speed Bee App
- Continuous Current: 60A * 4
- Burst Current: 80A * 4
- TVS Protective Diode: YES
- External Capacitor: 1000uF Low ESR Capacitor Included
- ESC Protocol: DShot 300/600
- Power Input: 3-6S LiPo
- Power Output: VBAT
- Current Sensor: Scale=400 Offset=0
- Mounting: 30.5 x 30.5mm ( 4mm hole diameter )
Features:
- High Current Rating: 60A continuous output, suitable for high-performance motors in racing and freestyle applications.
- 4-in-1 Design: Combines four ESCs into one compact unit, simplifying installation and reducing weight.
- FOC Technology: Provides smooth motor control, enhanced efficiency, and better throttle response.
- Versatile Protocol Support: Compatible with various flight controllers, ensuring easy integration into your drone setup.
- Multiple Protection Features: Includes over-voltage, over-current, and thermal protection for safe operation.
- Compact Size: 30x30mm form factor fits easily into most drone frames, maximizing space efficiency.
- User-Friendly Setup: Easy to configure with a range of customizable settings through compatible software.
- Durable Construction: Designed to withstand the rigors of high-speed flying, ensuring long-lasting performance.
Package Included:
- 1 x SpeedyBee BLS 60A 4-In-1 ESC

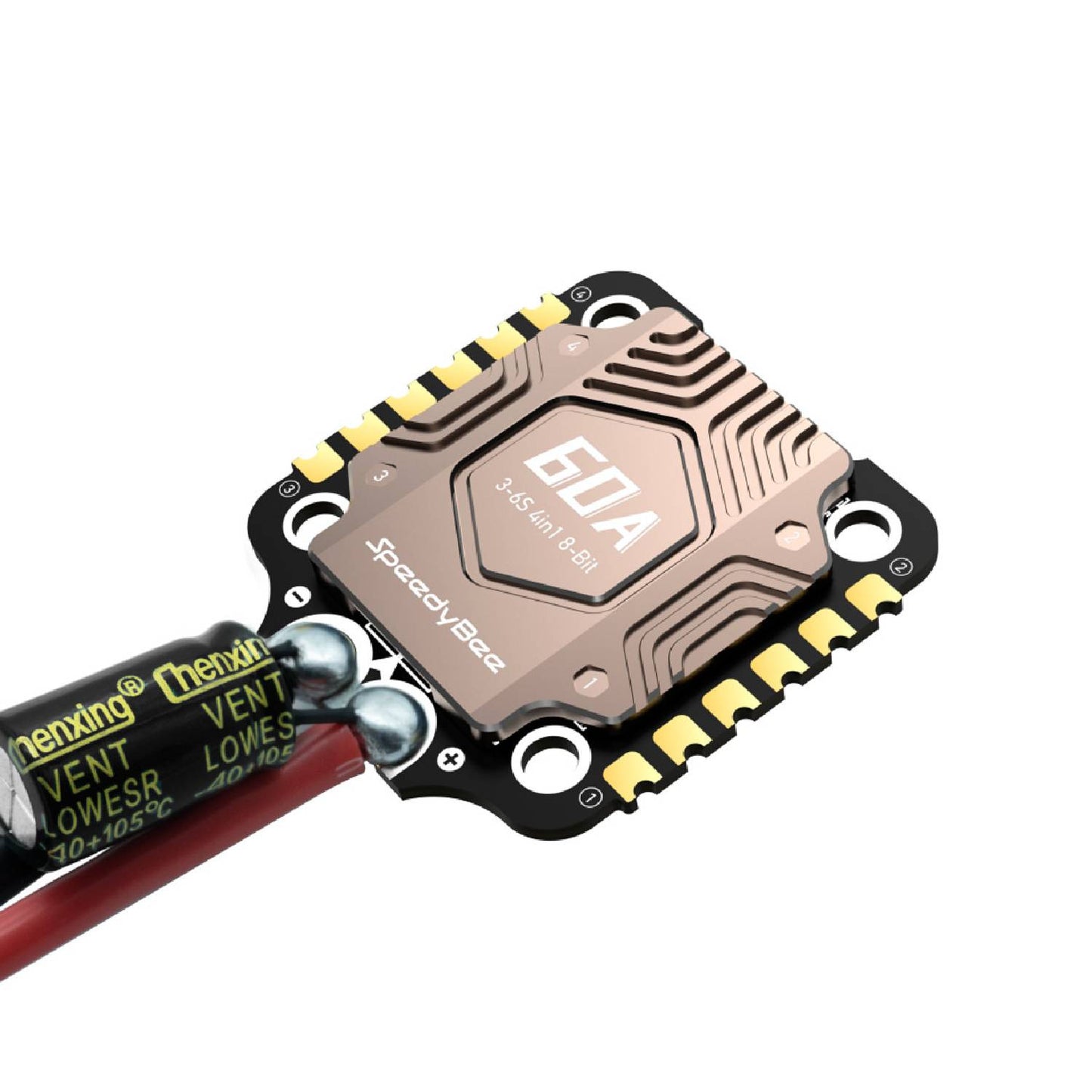

- 1 x 35V 1000uF Low ESR Capacitor
- 5 x M3 Silicone O Ring
- 1 x XT60 Power Cable (100mm)
- 1 x SH 1.0mm 25mm-Length 8pin Cable(For FC-ESC Connection)
- 1 x M3*8.1mm Silicone Grommets(For ESC)
