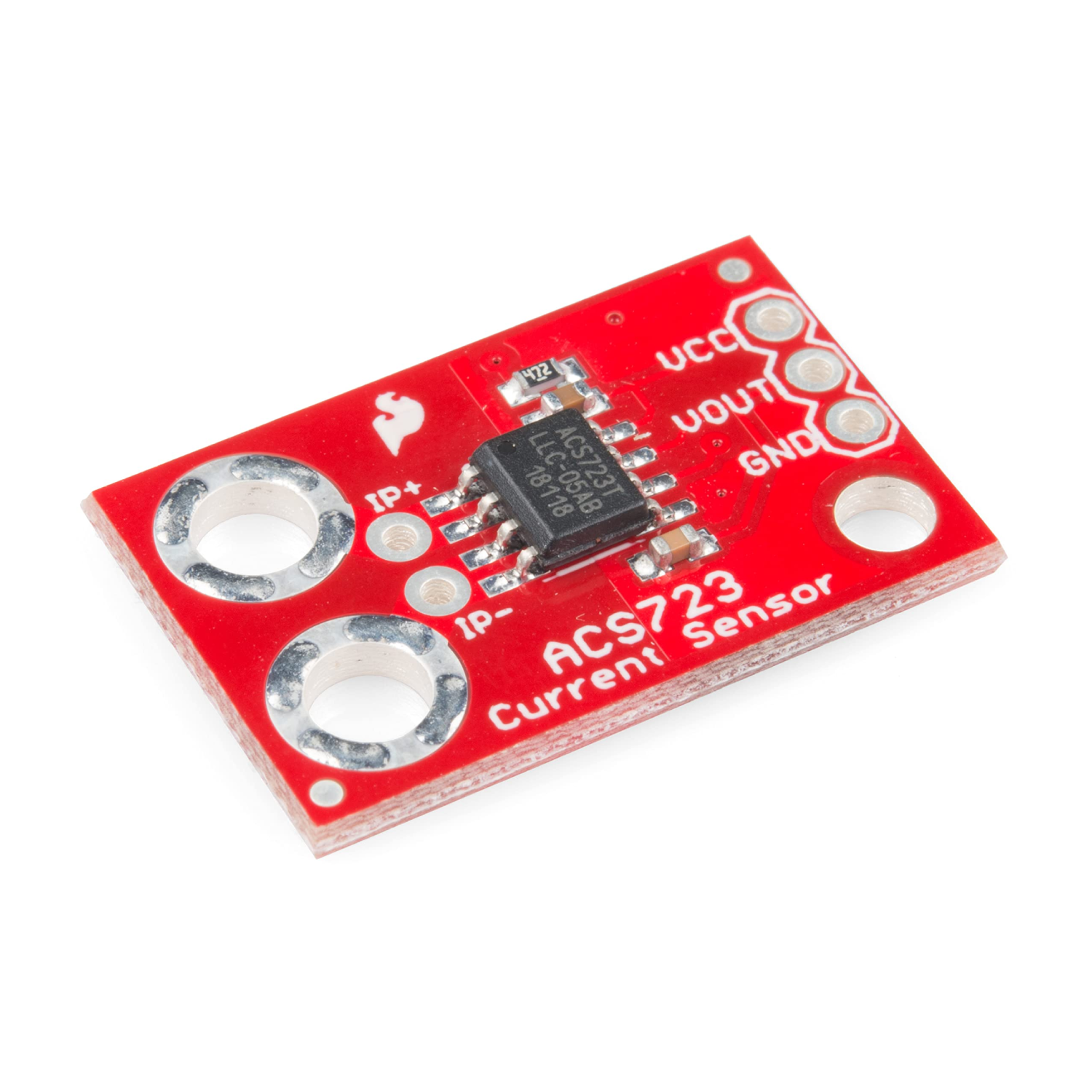

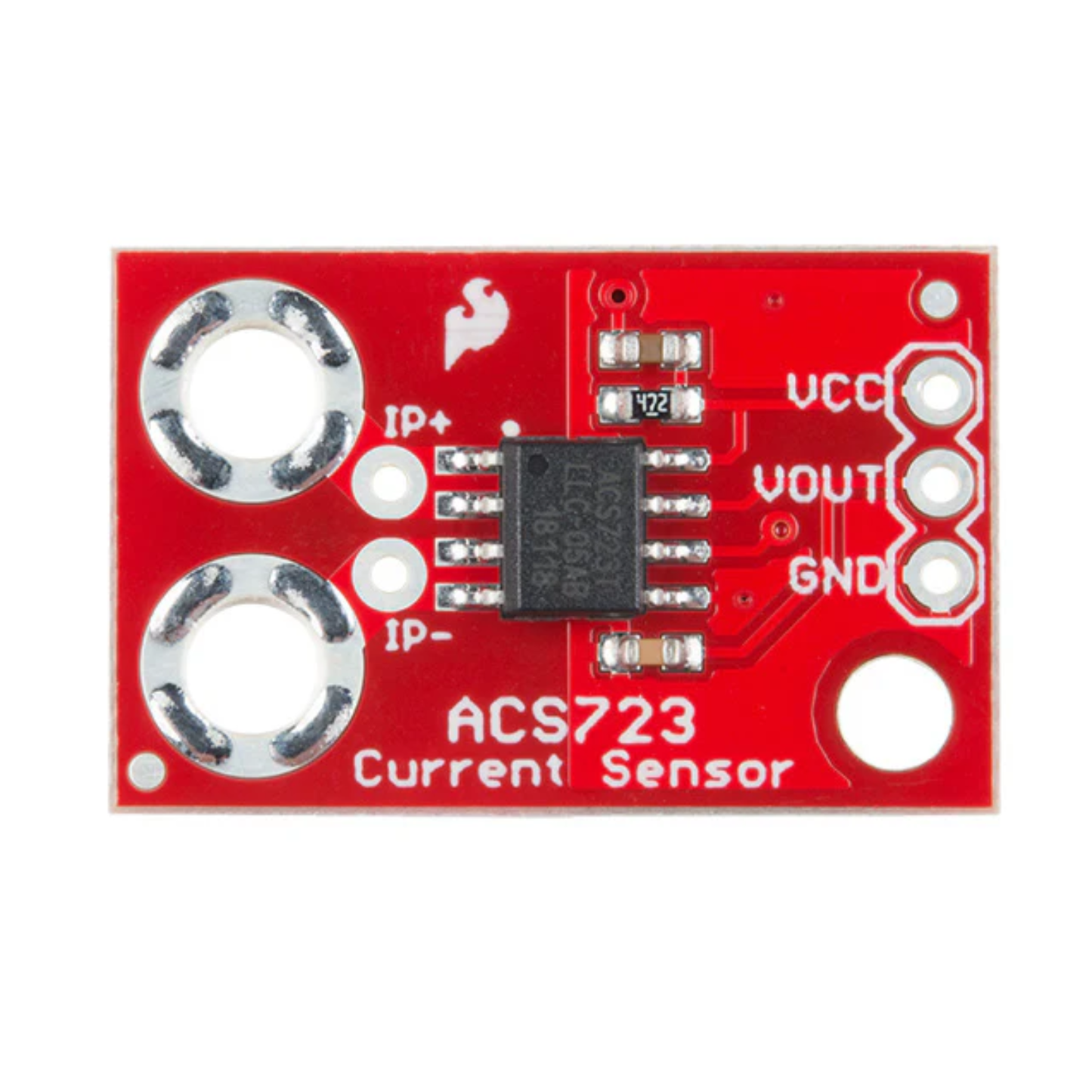

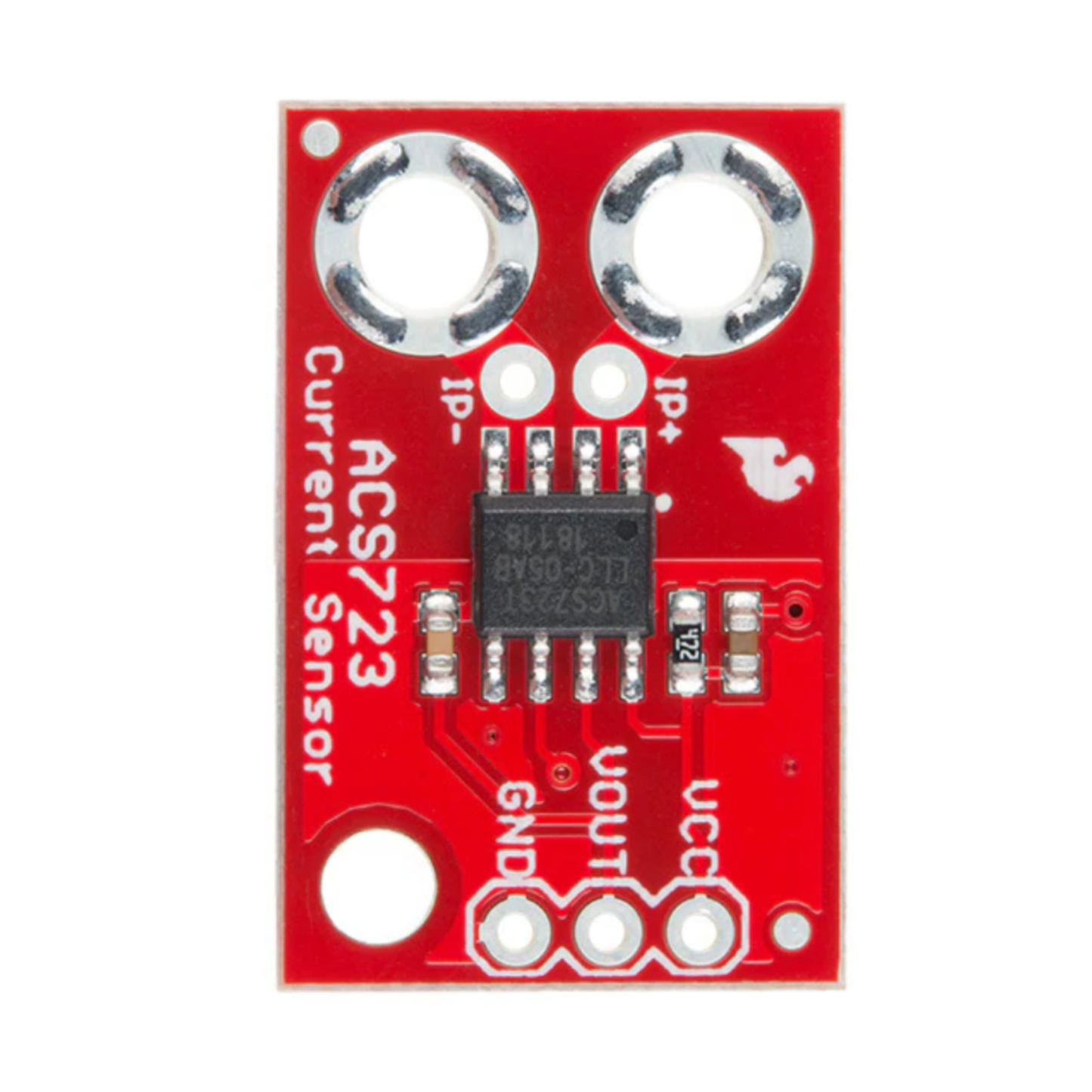

SparkFun SEN-13679 ±5A Current Sensor Breakout with ACS712 IC Low-Noise ACS712 Current Sensor Breakout For Precise Current Measurement

Description:

A key advantage of employing a Hall-effect sensor like the ACS723 is the inherent electrical isolation it provides between the sensed circuit and the sensing circuit. This isolation is crucial as it allows the sensing circuit, which might be connected to a microcontroller like an Arduino running at 5V, to remain completely isolated from the circuit being measured, which could be operating at significantly higher DC or AC voltages. This electrical isolation provides a critical layer of protection for the lower-voltage sensing circuitry.

The SparkFun Current Sensor Breakout is capable of measuring both direct current (DC) and alternating current (AC) up to a maximum of 5A.  This makes it suitable for a broad range of applications.  The board boasts full electrical isolation between the measured and sensed circuits, further enhancing its safety and versatility.  It has a base sensitivity of 400mV/A, meaning that for every Ampere of current flowing through the sensor, the output voltage changes by 400mV.  This sensitivity allows for precise current measurements.

Specifications:

• Item Type: Current Sensor
• Model Type: Current Sensor Breakout
• Operating Voltage: 5V
• Current-Sensing: 10mA up to 5A (AC and DC)

Features:

• Analog output with bandwidth adjustable to 80 kHz.

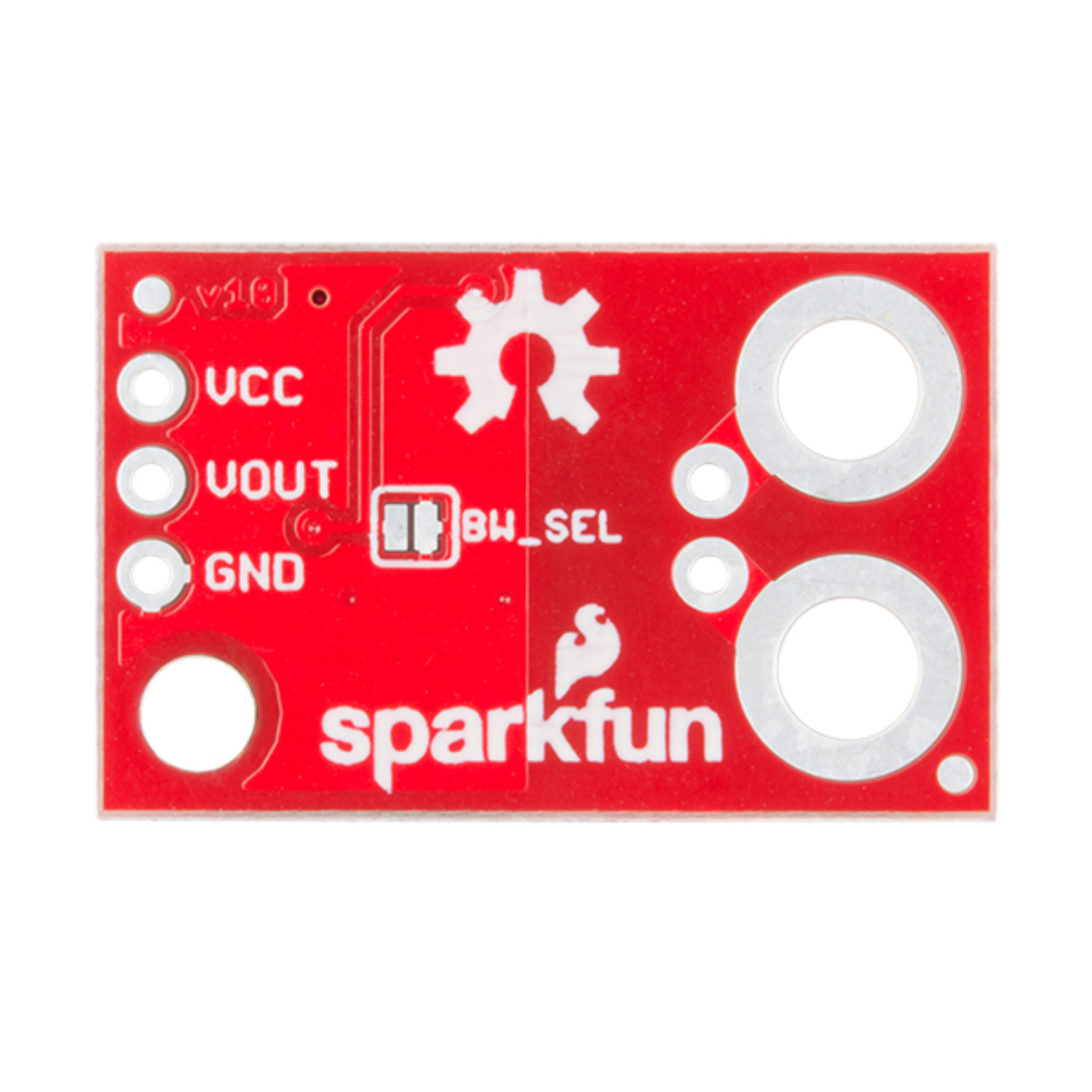

• The bandwidth on the ACS723 Sensor Breakout width filter has been set to 20  kHz to reduce noise when used at high gains. The full 80 KHz bandwidth that the sensor is capable of can be recovered by closing the JP1 (Bandwidth Select) jumper on the back of the board. See either the ACS723 schematic or the ACS723 Low Current schematic for more details.
• Measures DC and AC currents.
• Full electrical isolation of measured and sensed circuits.
• The version without the op-amp has a base sensitivity of 400mV/A.

Pin Description:

Package Included:

1 x SparkFun SEN-13679 ±5A Current Sensor Breakout
