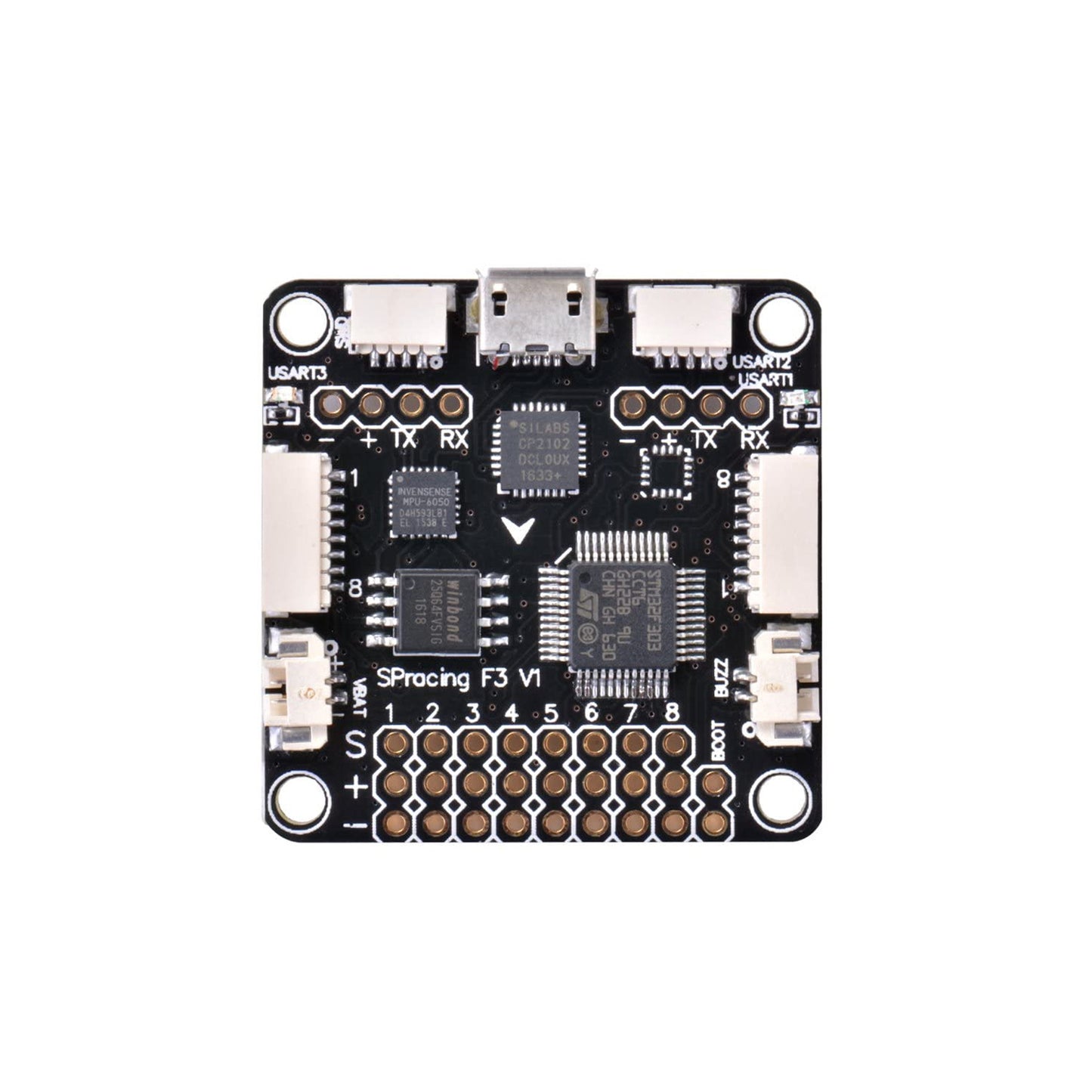

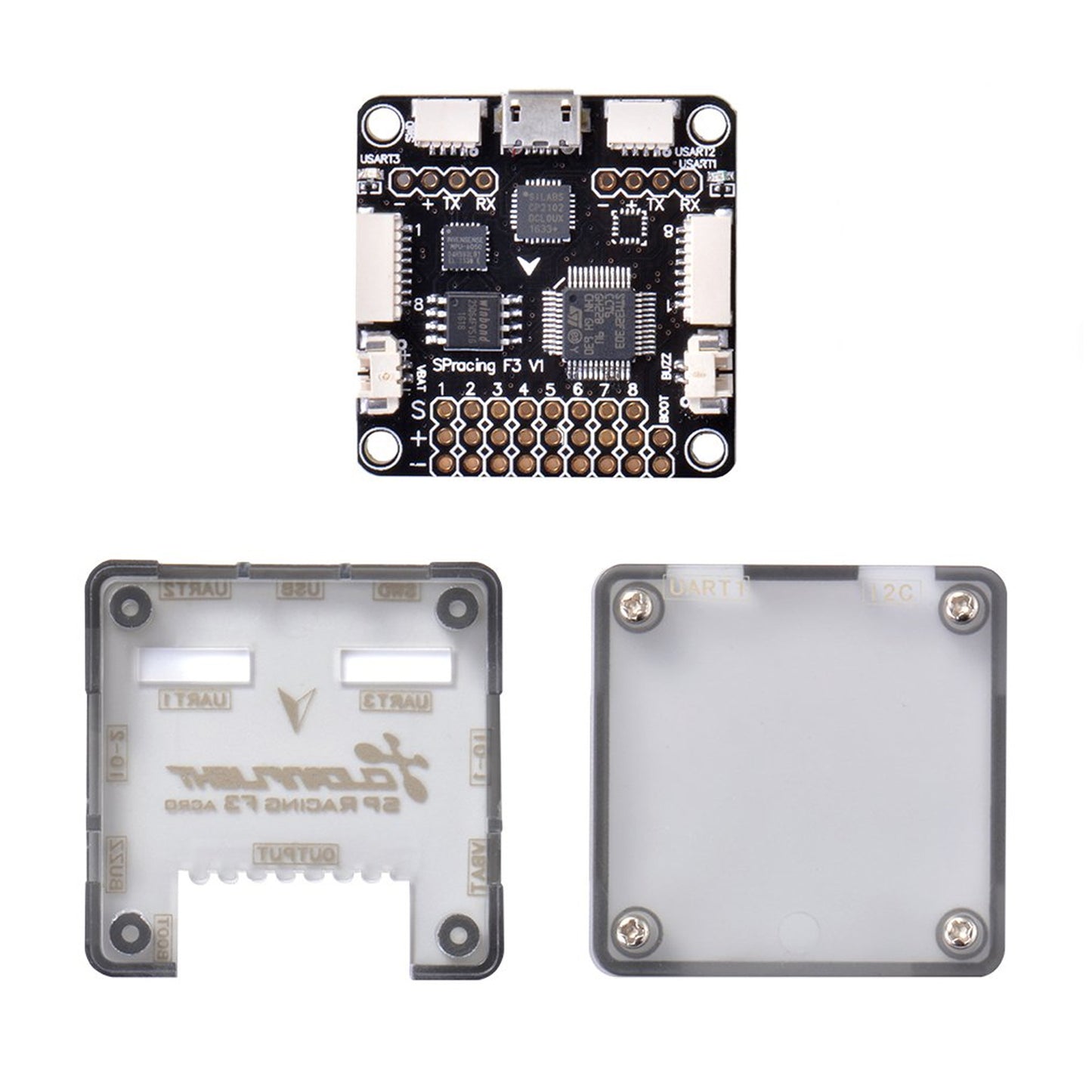

SP Racing F3 Flight Controller ACRO Flight Controller F3 Flight Controller For FPV Racing Drones High Performance F3 Flight Controller ACRO Version SP Racing F3 ACRO Flight Controller For RC Drones - RS7310

Description:

The SP Racing F3 Flight Controller STM32F3 CPU, MPU 6050 sensor, and 16M high-capacity flash memory The SP F3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).

SP Racing F3 Flight Controller ACRO Version Tiny and lightweight, the Racing F3 has a standard 36x36mm form factor with 30.5mm mounting holes and weighs just 6 grams. Flight Logging, On-board high-capacity black box flight log recorder – optimize your tuning and see the results of your setup without guesswork.

OneShot ESC, full support for OneShot ESCs for easy PID tuning and sharper response. Broad RC receiver supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, and PWM receivers, no external inverters are required (built-in).

Specifications:

• Item Type: Flight Controller
• Model: SP Racing F3-ACRO
• Input Voltage (V): 5 VDC
• Sensor: MPU6000
• Micro SD Card Slot (Y/N): No

Features:

• OneShot ESC, full support for OneShot ESCs for easy PID tuning and sharper response.
• Broad RC receiver supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, and PWM receivers, no external inverters are required (built-in).
• Programmable LED, a dedicated output for programmable LEDs – great for orientation, racing, and night flying.
• The STM32F3 CPU, MPU 6050 sensor, 16M high-capacity flash memory
• The SP F3 runs Cleanflight which can be configured to suit your needs using a cross-platform GUI (Windows/OSX/Linux).
• Tiny and lightweight, the Racing F3 has a standard 36x36mm form factor with 30.5mm mounting holes and weighs just 6 grams.
• Flight Logging, On-board high-capacity black box flight log recorder – optimize your tuning and see the results of your setup without guesswork.
• Battery Monitoring, battery monitoring ports for voltage and current.
• Sonar support for precision low-altitude hold.
• The I2C port is always powered, perfect for external sensors or an always-on OLED Screen.
• Buzzer port for audible warnings and notifications.

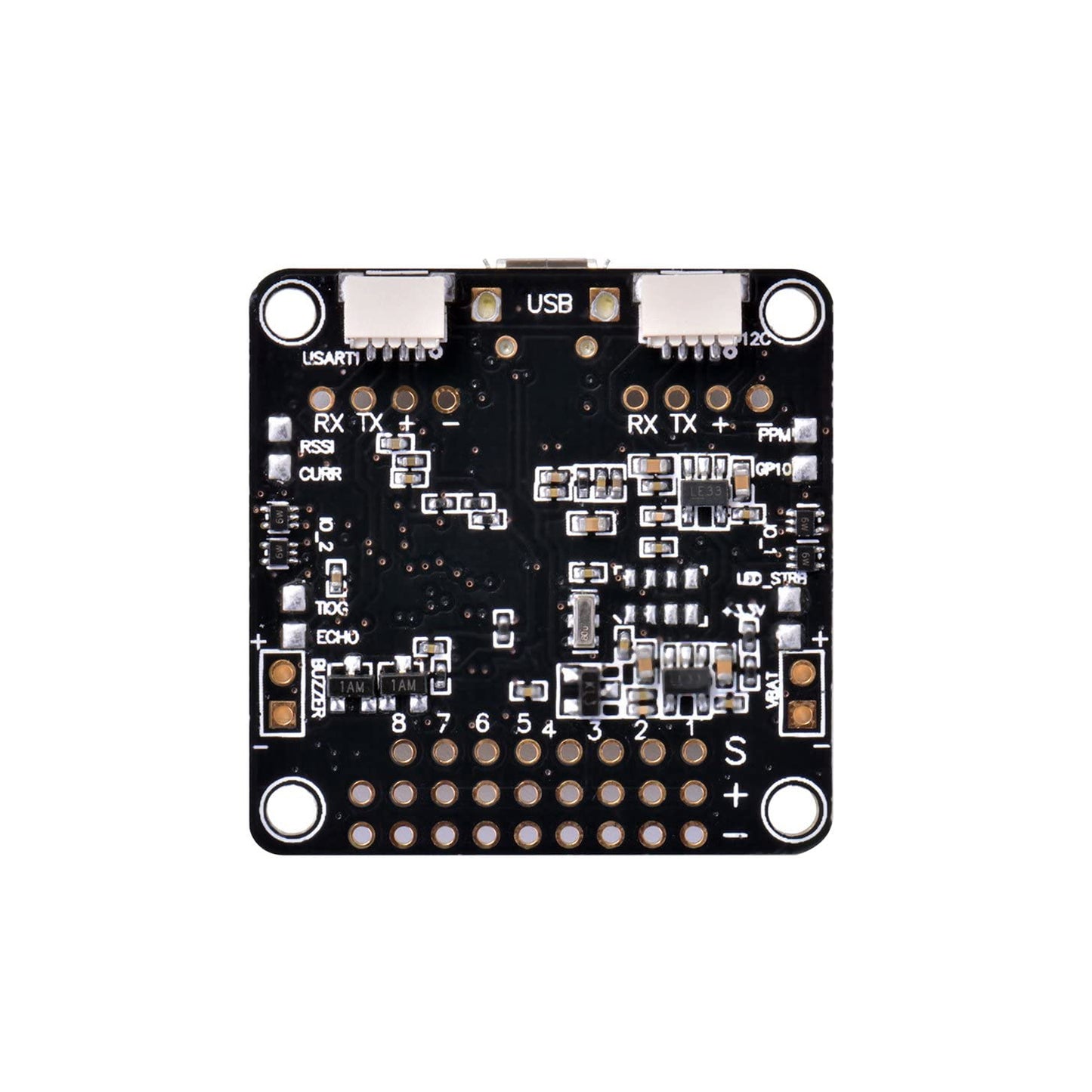

Pin in Details:

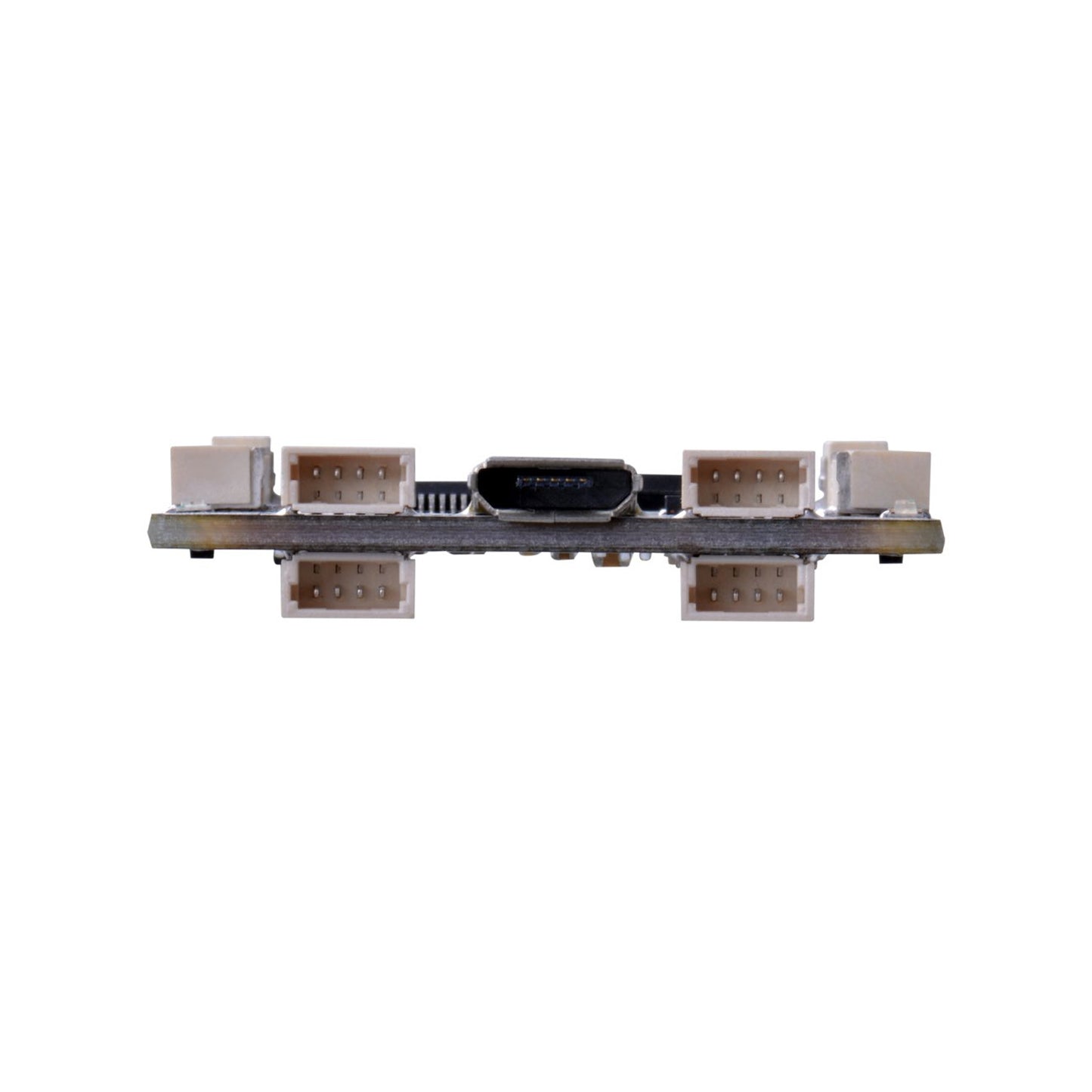

4 x 4pin JST-SH sockets (I2C, SWD, 2xUART)
2 x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
8 x 3pin through -holes for pin headers for ESC/Servo connections
2 x 4pin through-holes for pin headers for 2x serial ports
2 x 2 pin through-holes for pin headers for battery voltage and buzzer.

Highlights:

1. Practical – Easy to access connectors and solder pads.
2. Configurable – Choose to use connectors, solder pads, or pins.
3. Stackable – Mount to your PDB or OSD.
4. Compact – Only 36x36mm.
5. Professional – Symmetrical, Neat, and Tidy.
6. 8 Dedicated PWM outputs
7. 8 PWM Inputs
8. 36 I/O Connections
9. 72Mhz Clock Speed
10. 3 Hardware Serial Ports
11. 64Mb Flash Storage

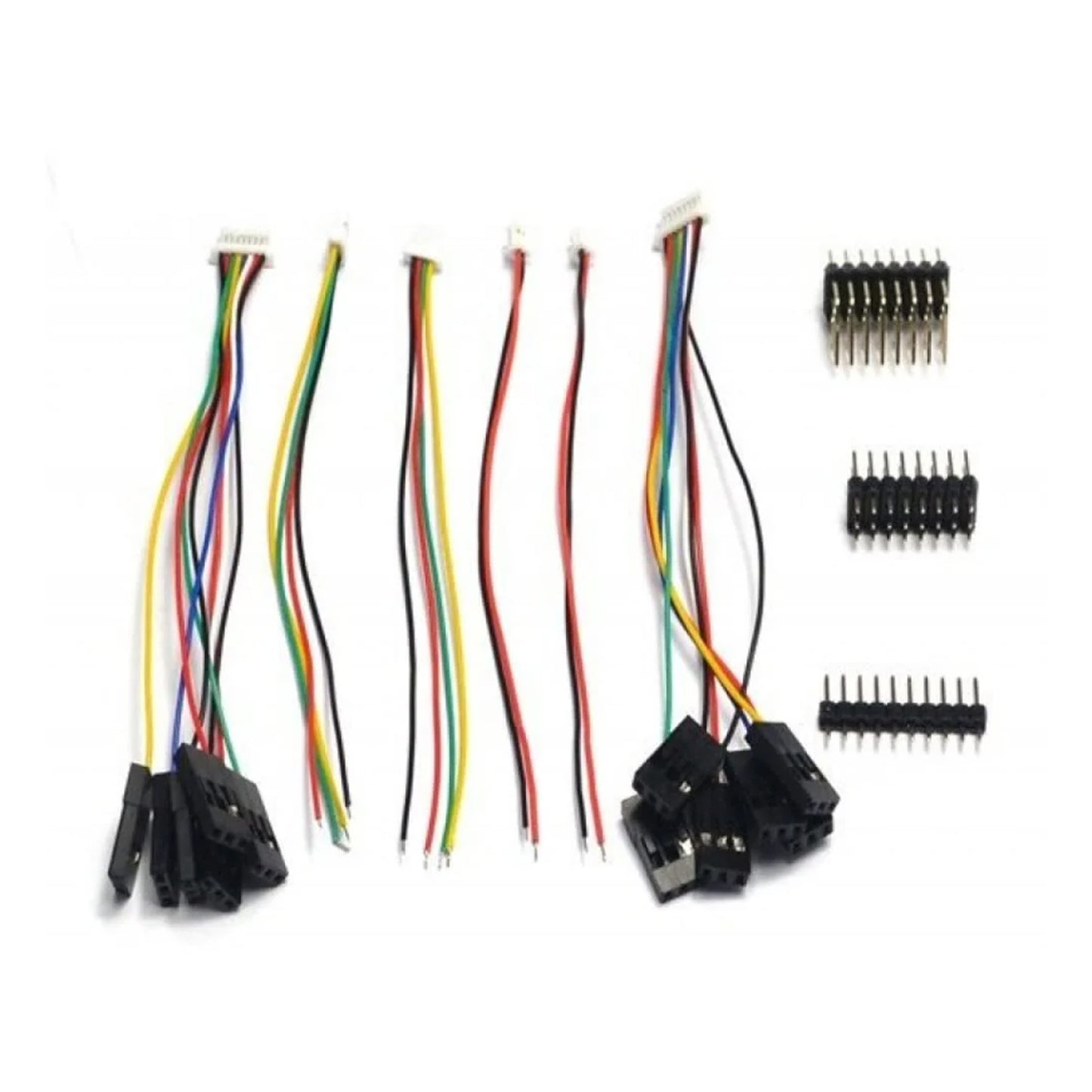

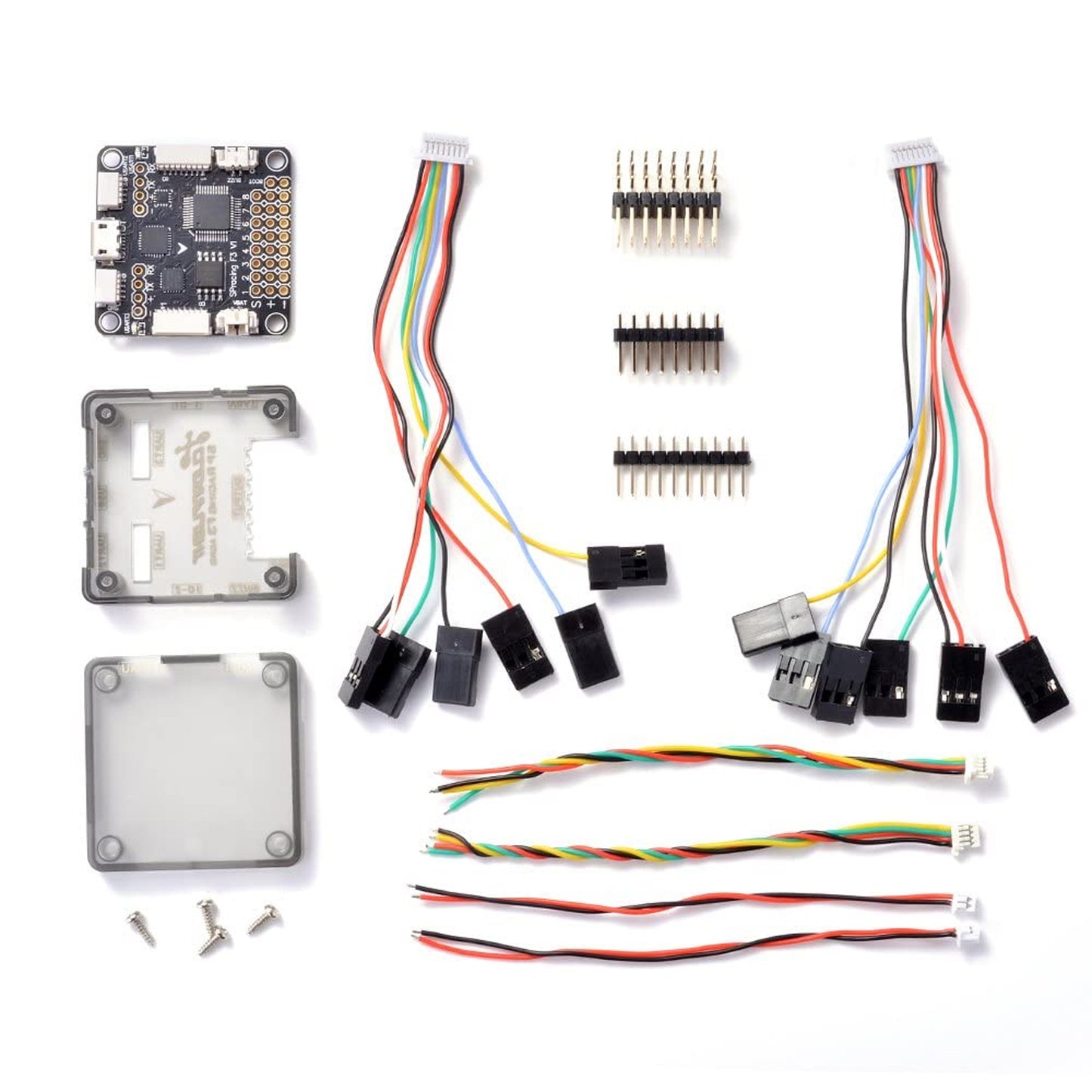

Package Included:

1 x SP Racing F3 Flight Controller ACRO Flight Controller F3 Flight Controller For FPV Racing Drones High Performance F3 Flight Controller ACRO Version SP Racing F3 ACRO Flight Controller For RC Drones
