Description:
The SP Racing F3 Flight Controller Deluxe was created with a next-generation CPU to deliver unmatched I/O capabilities in a compact and incredibly light form factor, all while delivering fantastic flight performance based on tried-and-true sensors.
This F3 Flight Controller Deluxe has several fascinating features, such as a faster ARM-Cortex M4 core and a next-generation STM32 F3 CPU with a hardware floating point unit for effective flying calculations. Additionally, it has a high-capacity black box flight log recorder that eliminates the need for guesswork and helps you optimize your tuning. The extra integrated sensors for direction and altitude, together with the barometer placed at the board’s bottom for convenient wind isolation, are some more fantastic features that are supported simultaneously by the no-compromise I/O.
F3 Flight Controller With Integrated OSD Deluxe is powered by the free and open-source Cleanflight flight control (FC) program, which has a thriving user and development community. Because it’s open-source, you can add features to the system. With all the capabilities you need for the core of your aircraft, the F3 Deluxe is ideal whether you’re interested in aerial photography, FPV racing, or acrobatic flight.
Specifications:
- Item Type: Flight Controller
- Model: SP Racing F3-Deluxe
- Input Voltage (V): 5 VDC
- Firmware: Support KVteam, MWOSD firmware
- Sensor: MPU6050-Accelerometer/Gyro, MS5611 barometer, HMC5883 compass
- Processor: STM32F303 CPU, 72Mhz inc FPU
- Micro SD Card Slot (Y/N): No
Features:
- Stackable design – perfect for integrating with OSDs and power distribution boards.
- 16 PWM I/O lines for ESCs, Servos, and legacy receivers. 8 available on standard pin headers. 8 via side-mounted connectors.
- Full support for OneShot ESCs for easy PID tuning and a sharper response.
- Supports SBus, SumH, SumD, Spektrum1024/2048, XBus, PPM, PWM receivers. No external inverters are required (built-in).
- Dedicated output for programmable LEDs – great for orientation, racing, and night flying.
- Dedicated I2C port for connection of OLED display without needing flight battery.
- Battery monitoring ports for voltage and current.
- Sonar support for precision low-altitude hold.
- Buzzer port for audible warnings and notifications.
- Developer-friendly debugging port (SWD) and boot mode selection, unbreakable bootloader.
- Symmetrical design for super tidy wiring.
- Wire up using pin headers, JST-SH sockets, or solder pads. Use either right-angled or straight pin-headers.

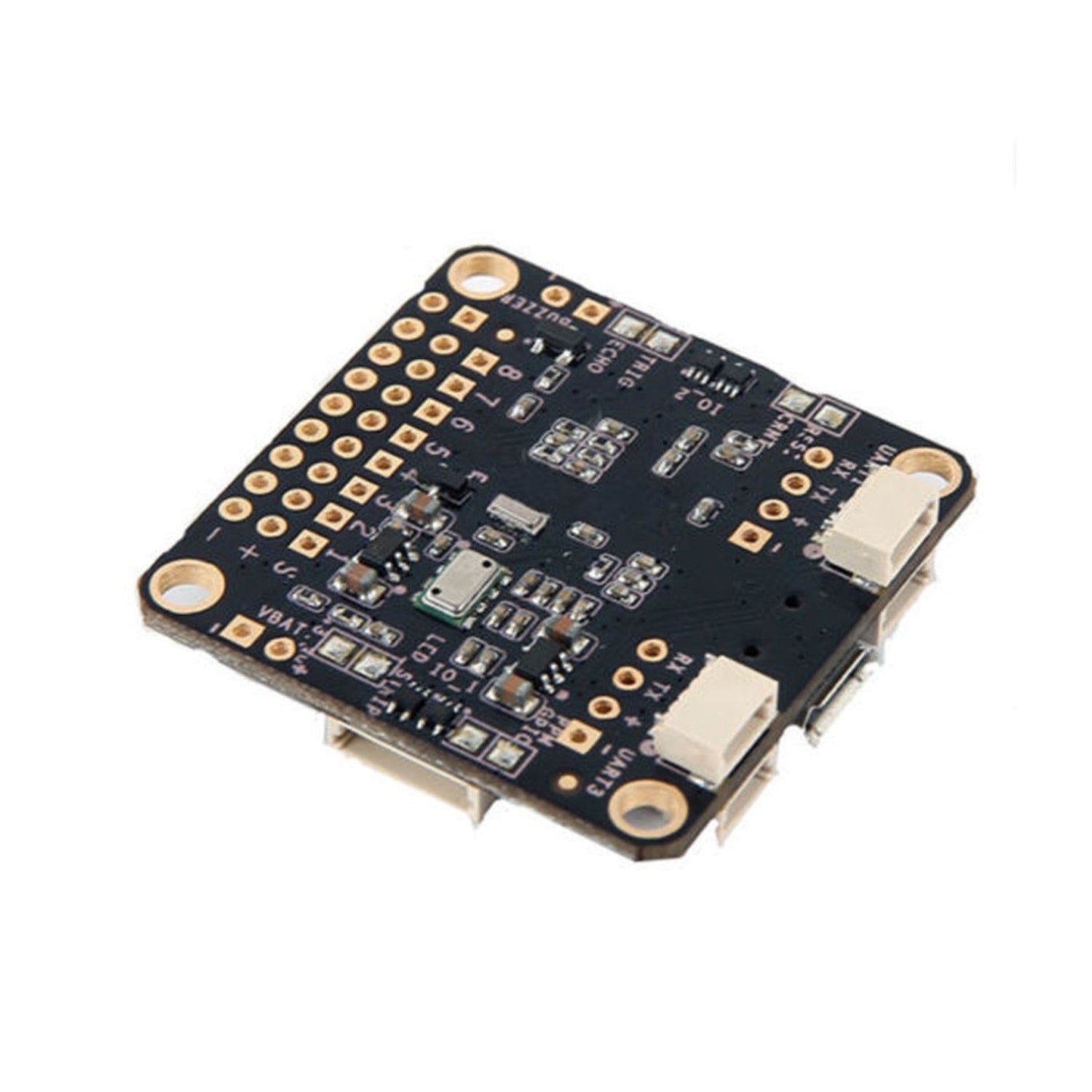

- The barometer is mounted on the bottom of the board for easy wind isolation.
- Loop times up to ~2x as fast as previous-generation STM32F1-based boards.
- A configuration of the flight controller via a cross-platform GUI (Windows/OSX/Linux).
- Supports a variety of aircraft, tri copters, quadcopters, hexacopters, octocopters, planes, and more.
- Available in Acro and Deluxe versions.
- No compromise I/O. Use all the features all the time; e.g. Connect your OSD + SmartPort + SBus + GPS + LED
- Strip + Battery Monitoring + Sonar + 8 motors – all at the same time!
- On-board high-capacity black box flight log recorder – optimize your tuning and see the results of your setup without
- guesswork ( Deluxe).
- Next-generation STM32 F3 processor with hardware floating point unit for efficient flight calculations and faster
- ARM-Cortex M4 core.
Pins and Ports:
- MicroUSB socket.
- 4x 4pin JST-SH sockets (I2C, SWD, 2xUART)
- 2x 8pin JST-SH sockets (PPM, PWM, SERIAL RX, GPIO, ADC, 3V, 5V, GND)
- 8x 3pin through-holes for pin headers for ESC/Servo connections.
- 2x 4pin through-holes for pin headers for 2x serial ports.
- 2x 2pin through-holes for pin headers for battery voltage and buzzer.
Follow the advice below for the best performance and long life of your flight controller:
- Apply resin/glue to reinforce JST-SH connectors – helps if you crash your aircraft.
- Using an enclosure/box for the flight controller is recommended.
- Install open-cell foam under the pressure sensor – sandwich some between the FC
- and frame.
- Route motor/battery wires as far away from the compass sensor (magnetometer)
- as possible.
- Only install the BOOT jumper pins if you need them.
- Using color-coded pin headers is recommended (not supplied), especially for VBAT
- headers.
- Do everything you can to prevent vibrations from reaching the accelerometer/gyro sensor. e.g. balance props, motors, and secure everything
Package Included:

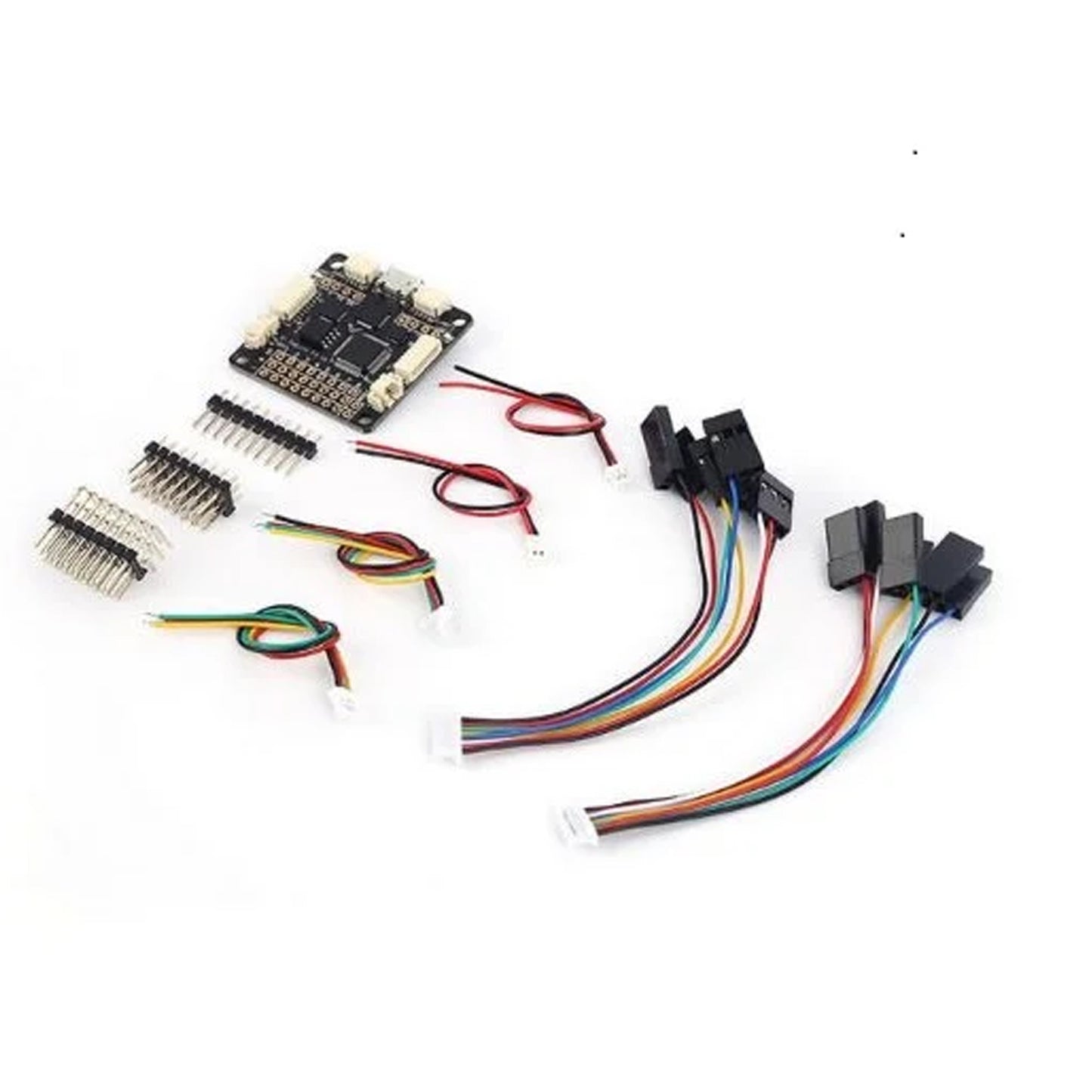

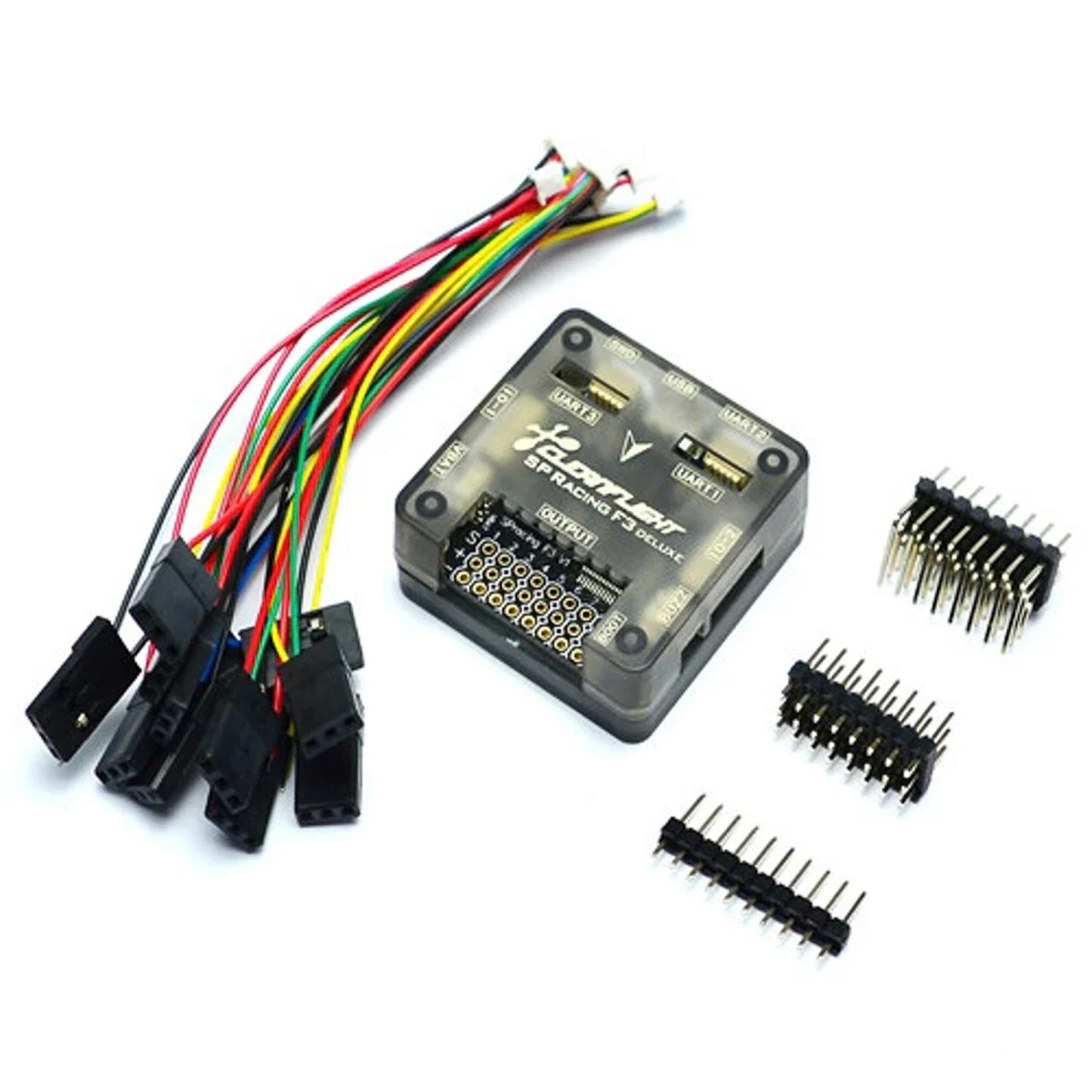

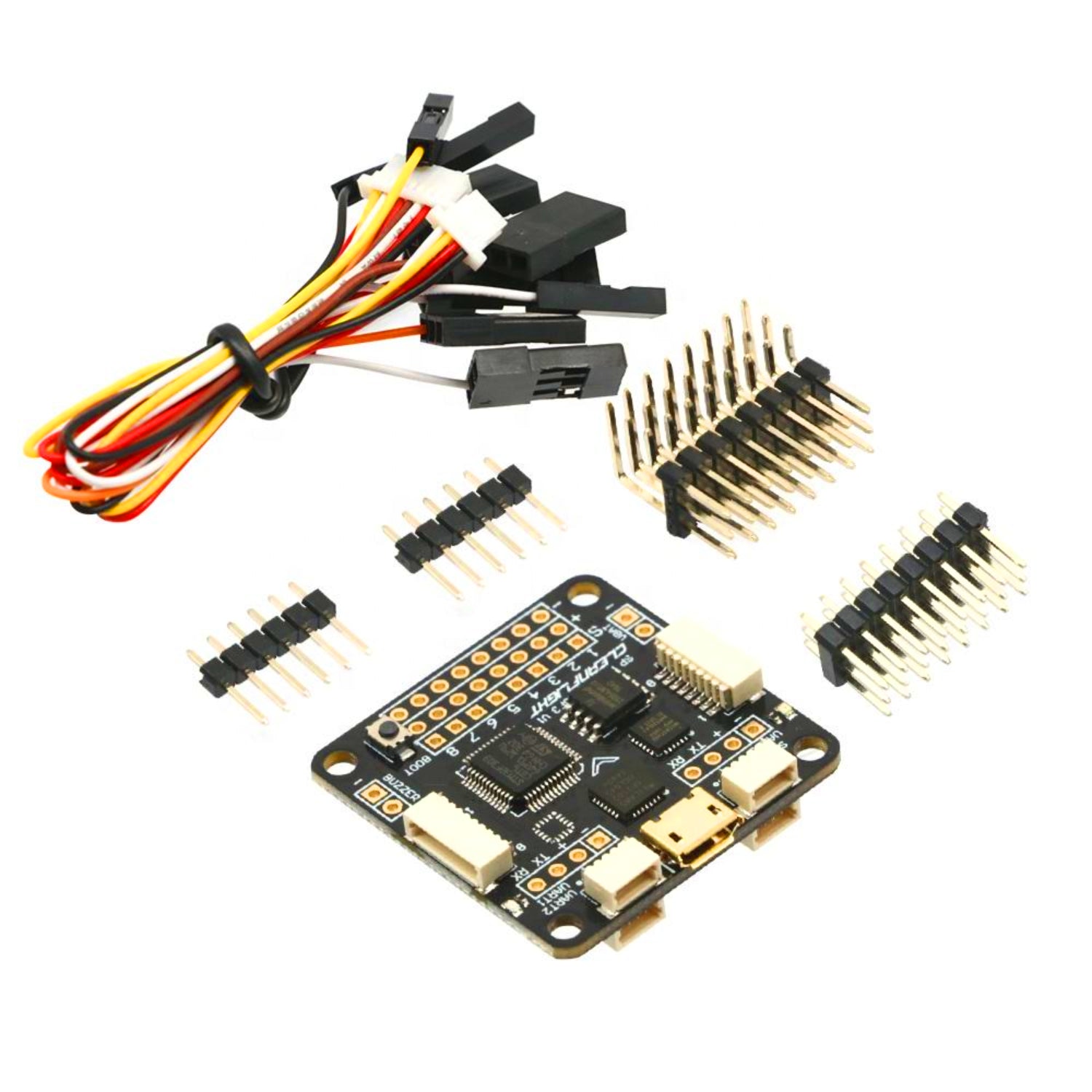

1 x SP Racing F3 Deluxe Flight Controller F3 Flight Controller Deluxe For F3 Flight Controller With Integrated OSD Deluxe for FPV Multicopter High-Performance F3 Deluxe Drone Flight Controller
