Description:

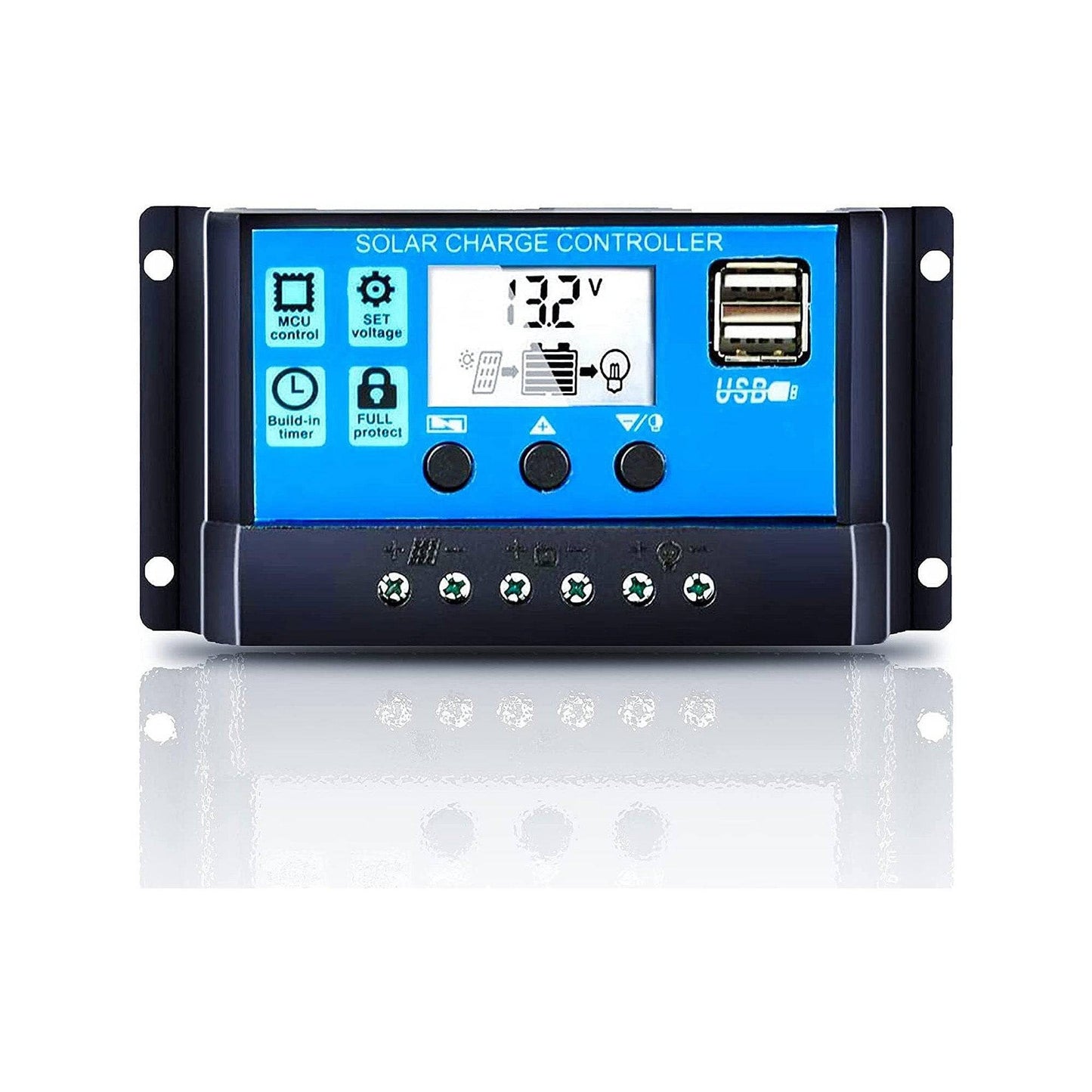

This Solar Charge Controller is for the lead-acid batteries connected to a solar power system. When connected to the battery, this charge controller automatically detects the battery voltage from 12V to 24V. This Solar Charge Controller has some advanced features like built-in short circuit protection, open-circuit protection, reverse voltage protection, overload protection, etc which makes it ideal for grid power systems.
Specifications:
- Battery Input: 12V~24V
- Charging Current: 20A
- Discharge Current: 20A
- Max. Solar Input: <50V
- USB: 3A@5V
- Operating Temperature: -35 to 60°C
Features:
- Built-In Industrial Micro Controller

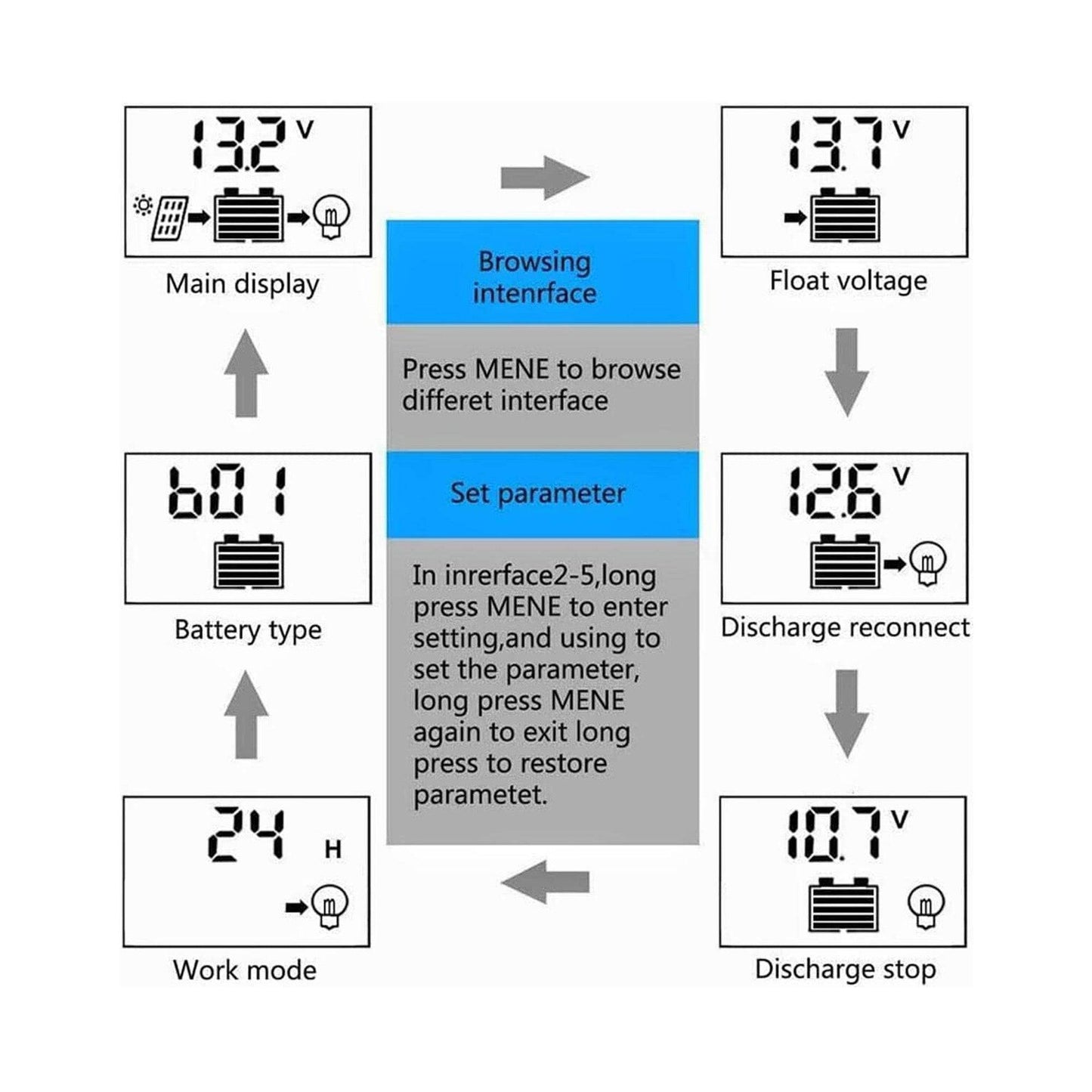

- Also has a big LCD Display
- Full 4-Stage PWM Charge Management
- It has low Heat Production
- Dual MOSFET Reverse Current Protection
Package Included:
1 x Solar Charge Controller, 20A Solar Panel Controller 12V 24V Adaptive PWM Auto Parameter Adjustable LCD Display Solar Panel Battery Regulator with Dual USB Port
