Description:
This is an easy-to-use digital Soil Moisture Sensor. Just insert the sensor into the soil and it can measure moisture or water level content in it. Soil Moisture Sensor gives a digital output of 5V when the moisture level is high and 0V when the moisture level is low in the soil. The Soil Moisture Sensor includes a potentiometer to set the desired moisture threshold.
When the sensor measures more moisture than the set threshold, the digital output goes high and an LED indicates the output. When the moisture in the soil is less than the set threshold, the output remains low. The digital output can be connected to a microcontroller to sense the moisture level. The Soil Moisture Sensor also outputs an analogue output which can be connected to the ADC of a microcontroller to get the exact moisture level in the soil. This sensor is great for making water gardening projects, water sensing, etc.
Specifications:
- Operating voltage: 3.3V~5V
- Dual output mode, analogue output more accurate
- A fixed bolt hole for easy installation
- With power indicator (red) and digital switching output indicator (green)
- Having an LM393 comparator chip, stable

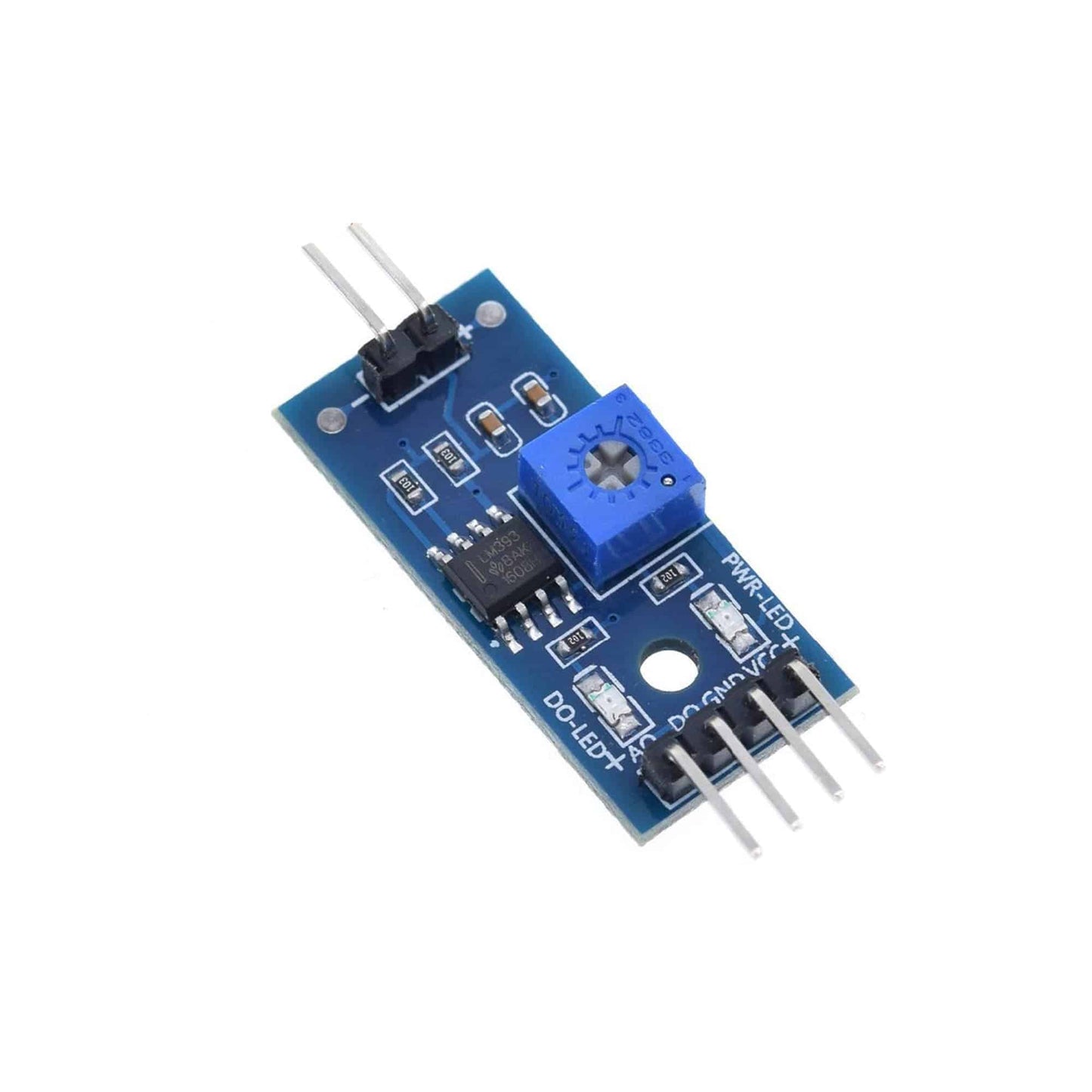

- Panel PCB Dimension: Approx.3cm x 1.5cm

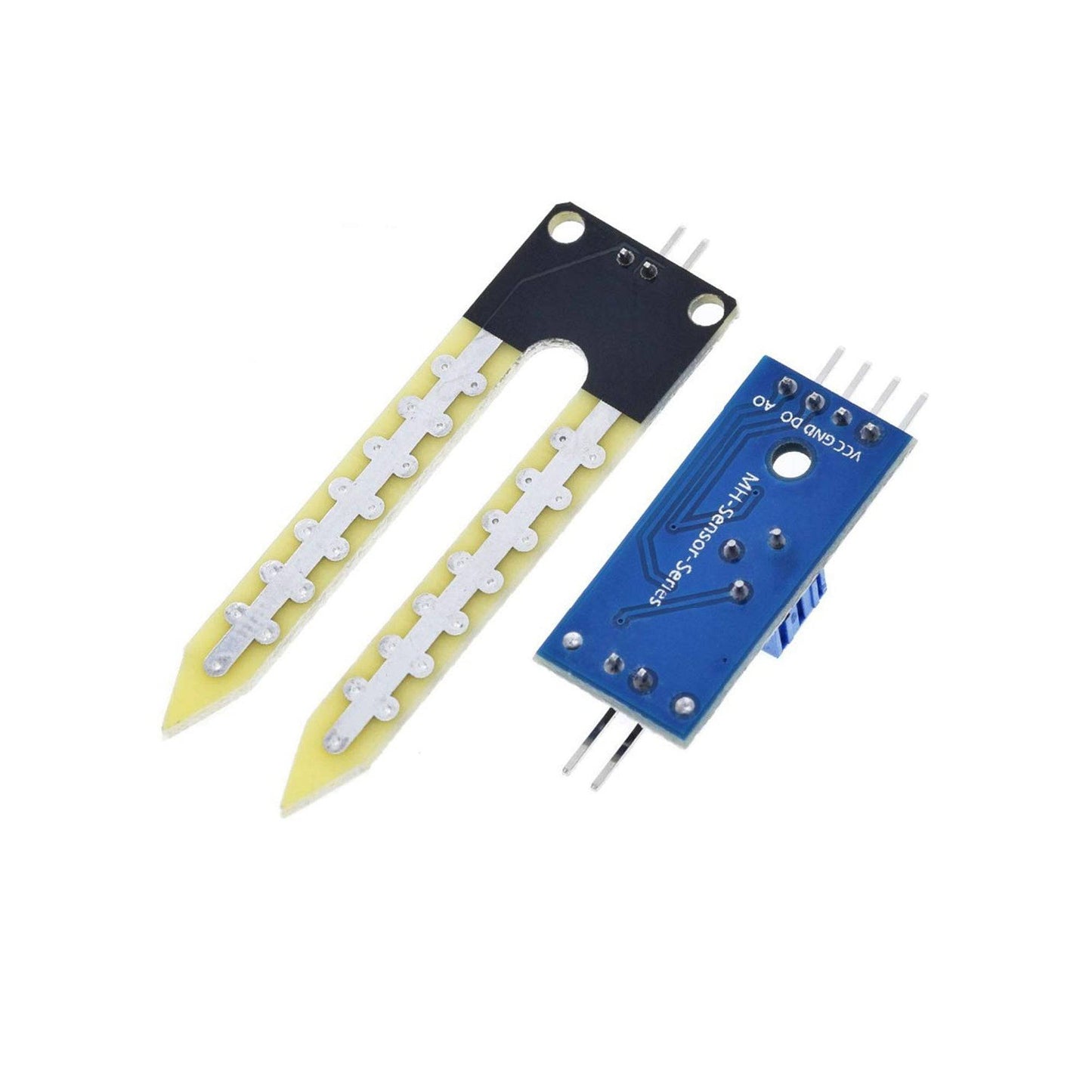

- Soil Probe Dimension: Approx. 6cm x 3cm
- Cable Length: Approx.21cm
Connections:
- VCC: Connect to 3.3V-5V
- GND: Connect to GND
- DO: Digital value output connector（0 or 1）
- AO: Analog value output connector
Package Included:

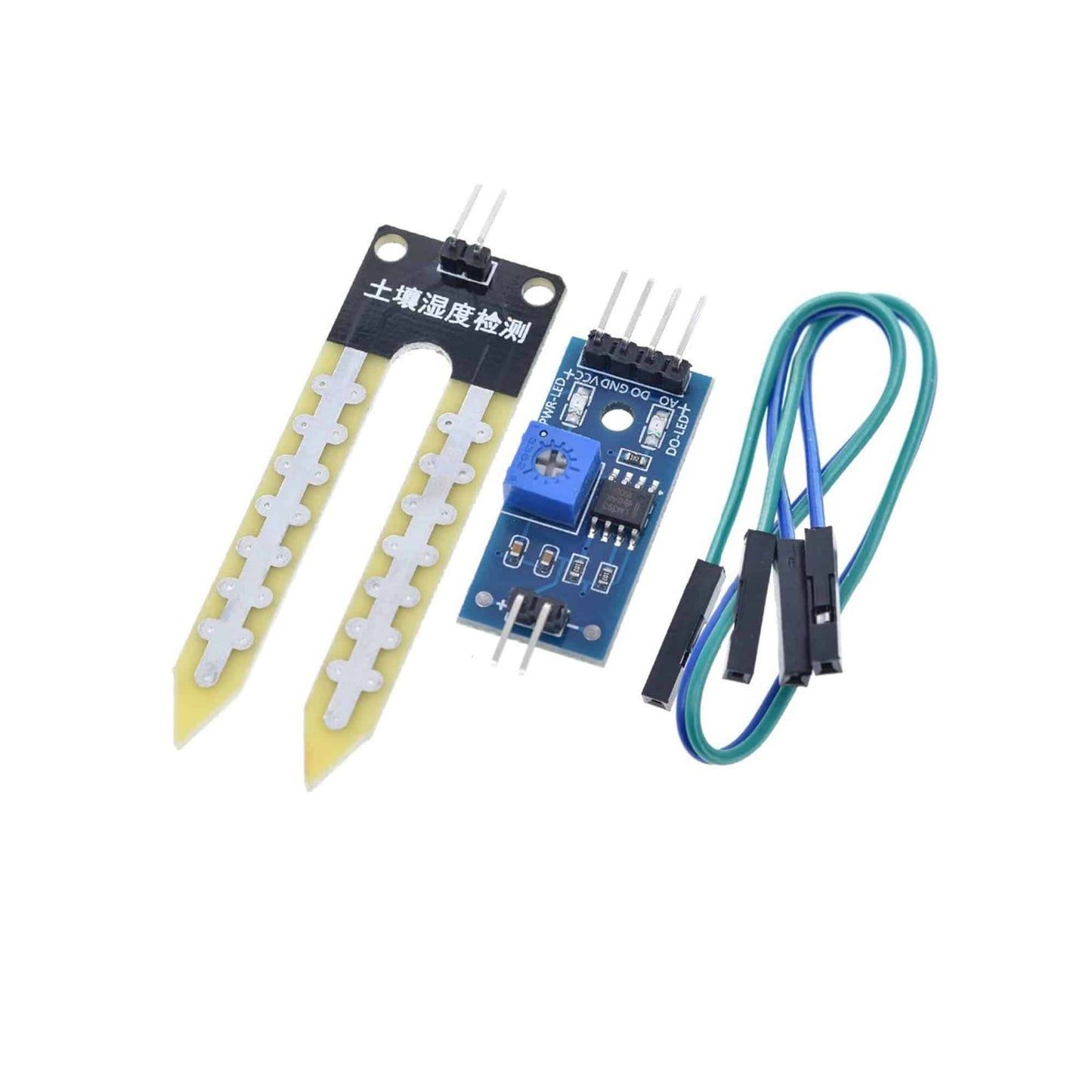

1 x Soil Moisture Sensor, Soil Moisture Meter, Soil Humidity Sensor, Water Sensor, Soil Hygrometer for Arduino
