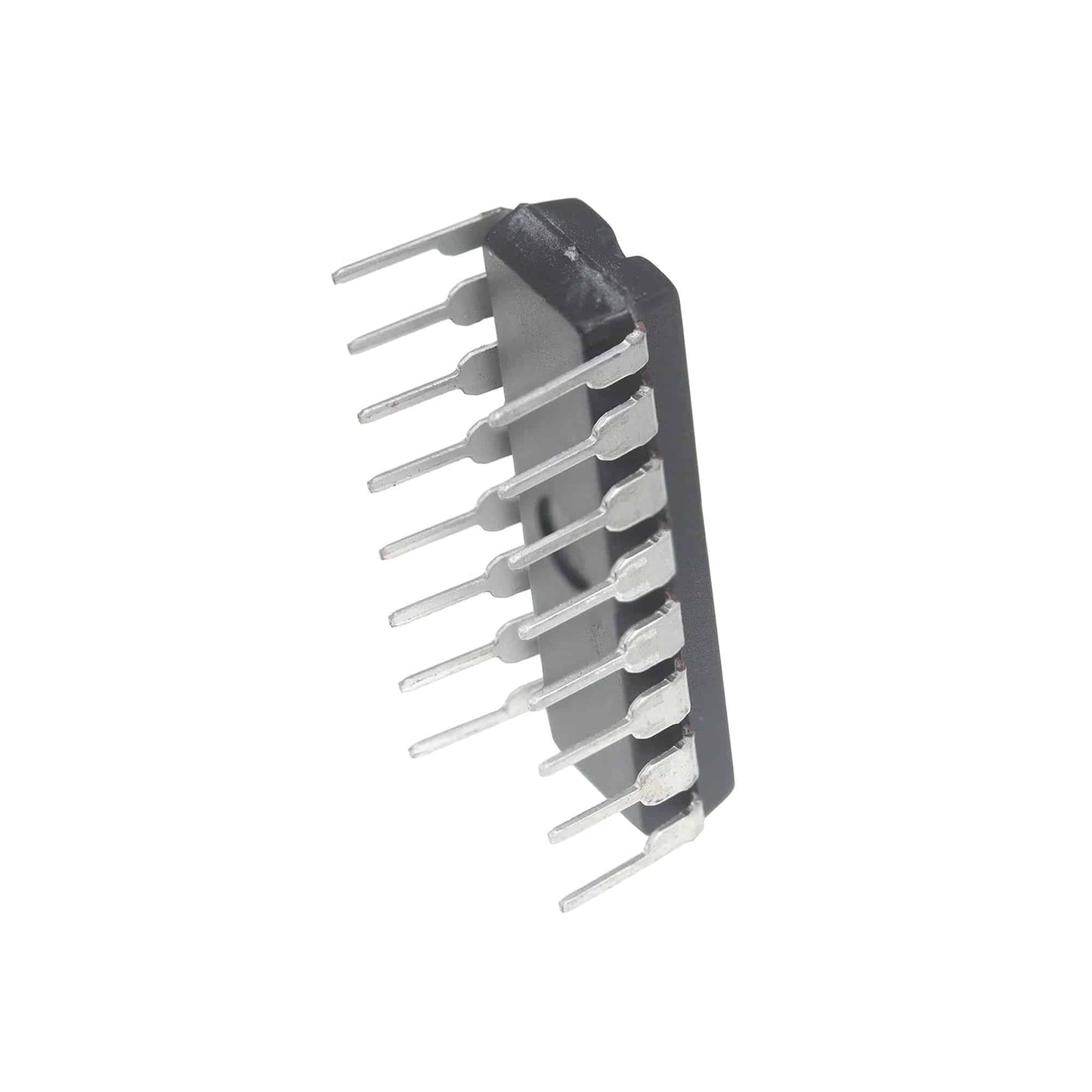

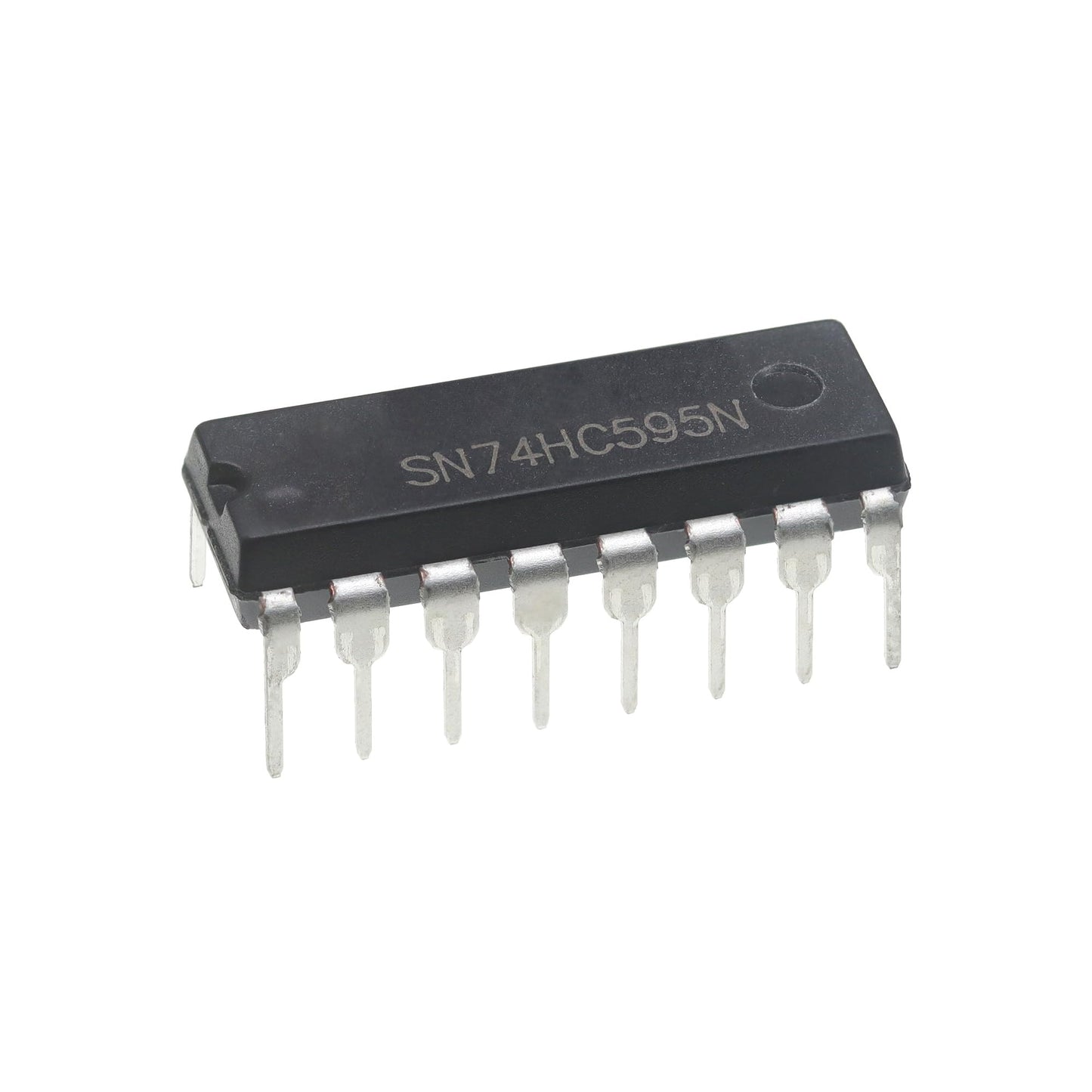

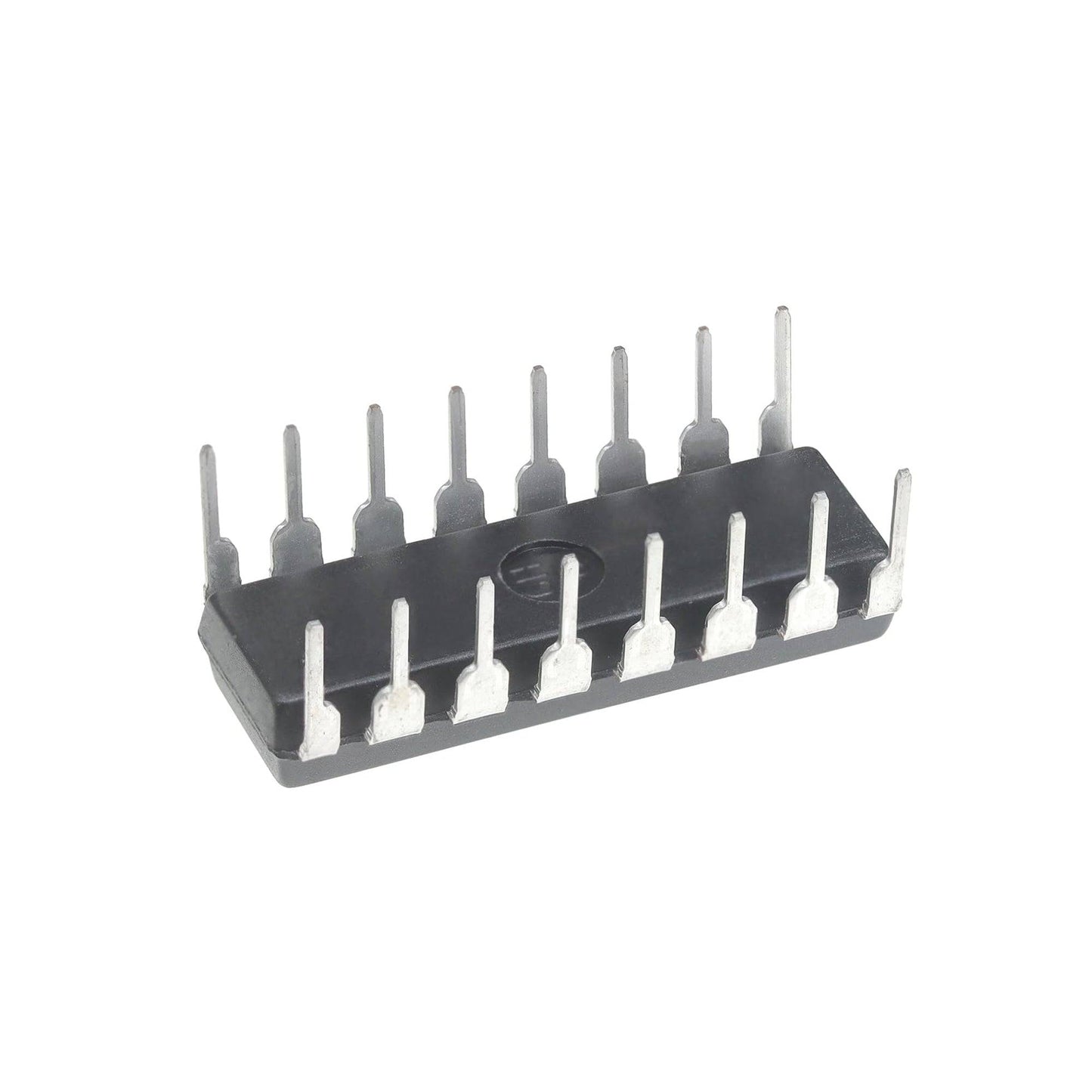

SN74HC595N IC 8 Bit Shift Register DIP16 IC - RS457

SN74HC595N IC 8 Bit Shift Register DIP16 IC - RS457

SKU:RS457

Low stock: 6 left

Regular price Rs. 10.00
Regular price Sale price Rs. 10.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

The SN74HC595N IC is an 8-bit serial-in/serial or parallel-out shift register with a storage register and 3-state outputs. Both the shift and storage register have separate clocks. The SN74HC595N IC features a serial input (DS) and a serial output (Q7S) to enable cascading and an asynchronous reset MR input. A LOW on MR will reset the shift register. Data is shifted on the LOW-to-HIGH transitions of the SHCP input.

The data in the shift register is transferred to the storage register on a LOW-to-HIGH transition of the STCP input. If both clocks are connected together, the SN74HC595N IC will always be one clock pulse ahead of the storage register. Data in the storage register appears at the output whenever the output enable input (OE) is LOW. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the registers. Inputs include clamp diodes. SN74HC595N IC enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.

Specifications:

  • Logic Family: HC
  • Logical Function: Shift Register
  • Operating Supply Voltage (Typ): 5V
  • Output Type: 3-State
  • Package Type: DIP
  • Propagation Delay Time: 265ns
  • Operating Temp Range: -40°C to 125°C
  • Operating Supply Voltage (Min): 2V
  • Operating Supply Voltage (Max): 6V

Features:

  • SN74HC595N IC has 8-bit serial input
  • Also it has 8-bit serial or parallel output
  • Storage register with 3-state outputs
  • Shift register with direct clear
  • 100 MHz (typical) shift out frequency
  • Complies with JEDEC standard no. 7A
  • Input levels:
  • For 74HC595: CMOS level
  • For 74HCT595: TTL level
  • ESD protection:
  • HBM JESD22-A114F exceeds 2000 V
  • MM JESD22-A115-A exceeds 200 V
  • Multiple package options

Package Included:

1 x SN74HC595N IC 8 Bit Shift Register DIP16 IC
