SMA Jack Bulkhead Right Angle PCB Mount - RS3205
SMA Jack Bulkhead Right Angle PCB Mount - RS3205
SKU:RS3205
Low stock: 4 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
- Impedance : 50 Ohm
- Frequency Range : 18GHz
- Dielectric Withstand Voltage : 750 Veff
- Insulation Resistance : 5000 M-Ohm
- Contact Plating : Gold
- Operating Temparature : -40 to +155 Deg C
Description:

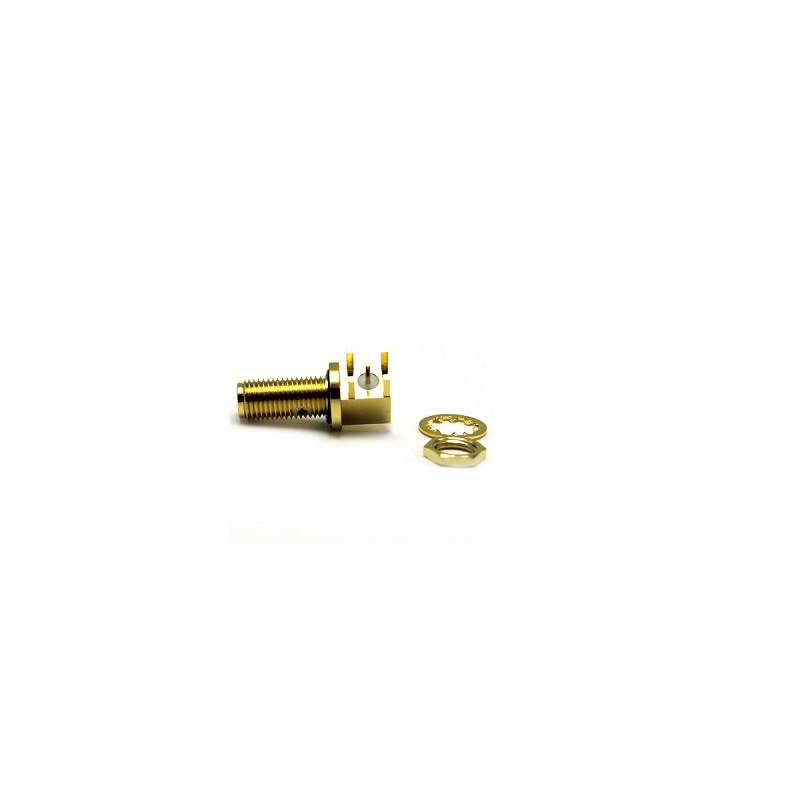

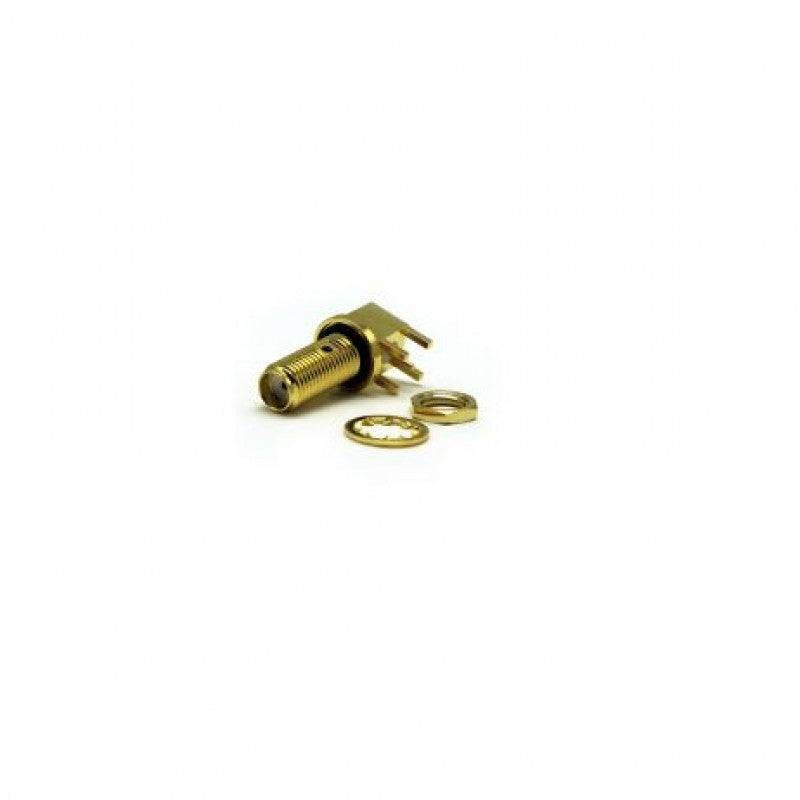

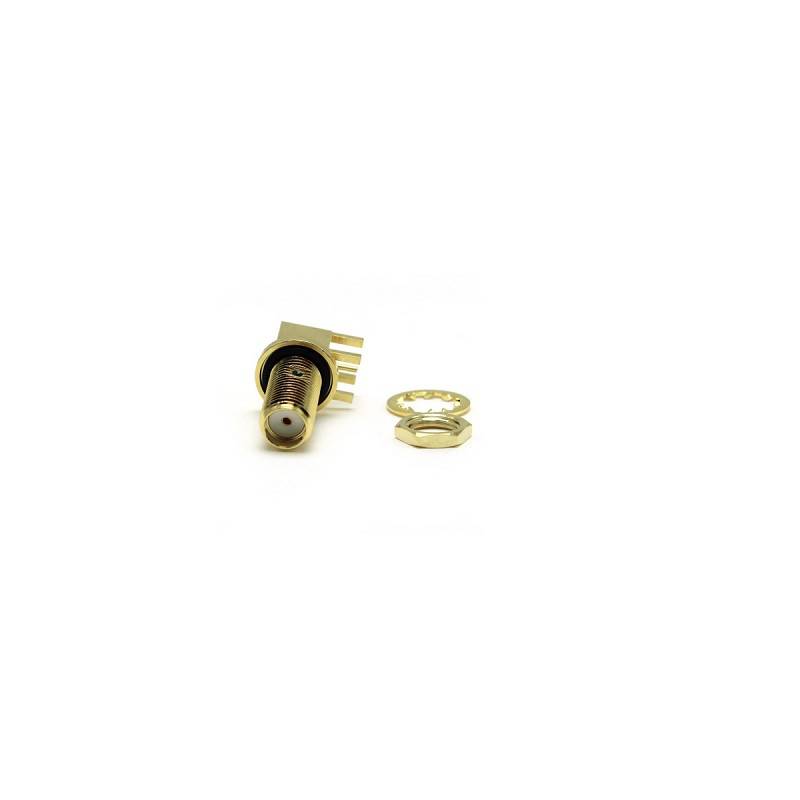

This is an SMA Jack Bulkhead Right Angle PCB Mount. SMA sub-miniature series are a popular general-purpose high-performance 50-ohm connector. SMA has a screw together coupling with versions available for use up to 11 GHz and features gold plated bodies and centre contacts. SMA connectors are suited to a wide variety of industries from high-performance applications in defence and aerospace to general purpose industrial.
Features:
- Pcb Mount, plug/male, Angled/90, 50.
- Snap-on coupling design for fast installation.
- With broadband performance and low reflection.
Specifications :
- Impedance : 50 Ohm
- Frequency Range : 18GHz
- Dielectric Withstand Voltage : 750 Veff
- Insulation Resistance : 5000 M-Ohm
- Contact Plating : Gold
- Operating Temparature : -40 to +155 Deg C
Package Included:
1 x SMA Jack Bulkhead Right Angle PCB Mount
