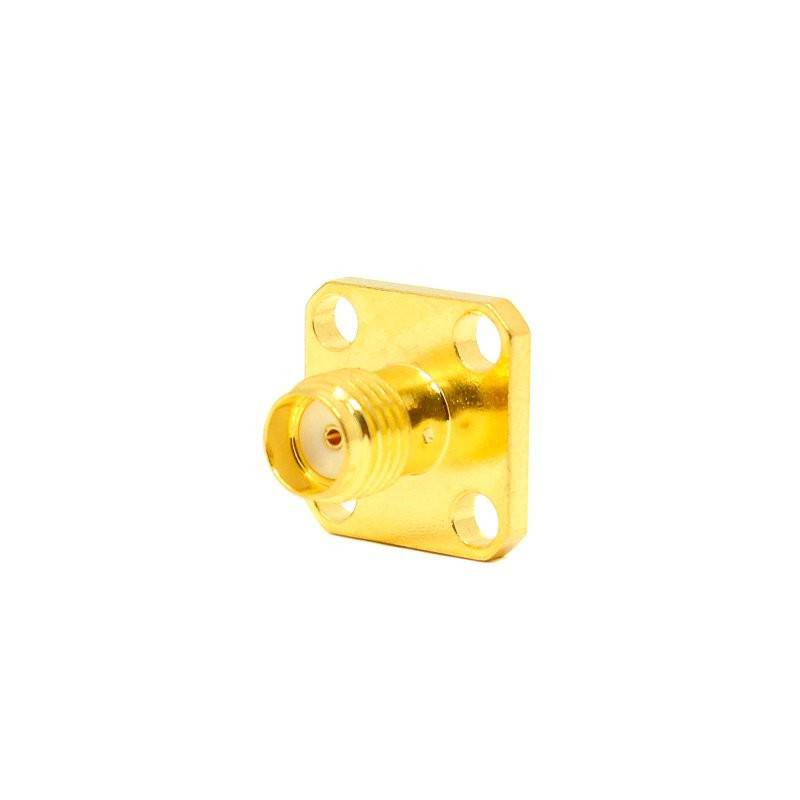

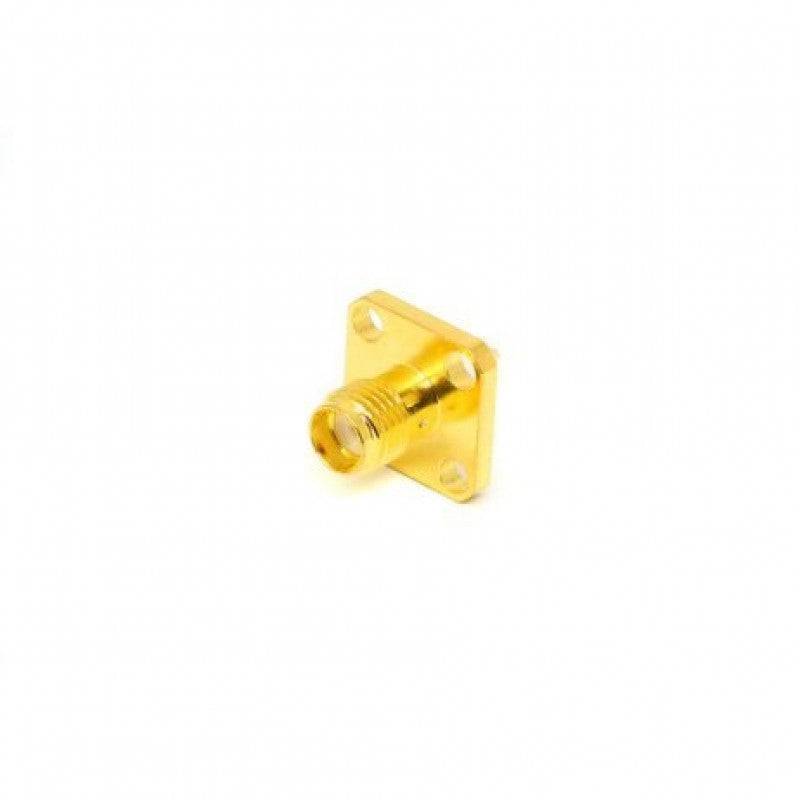

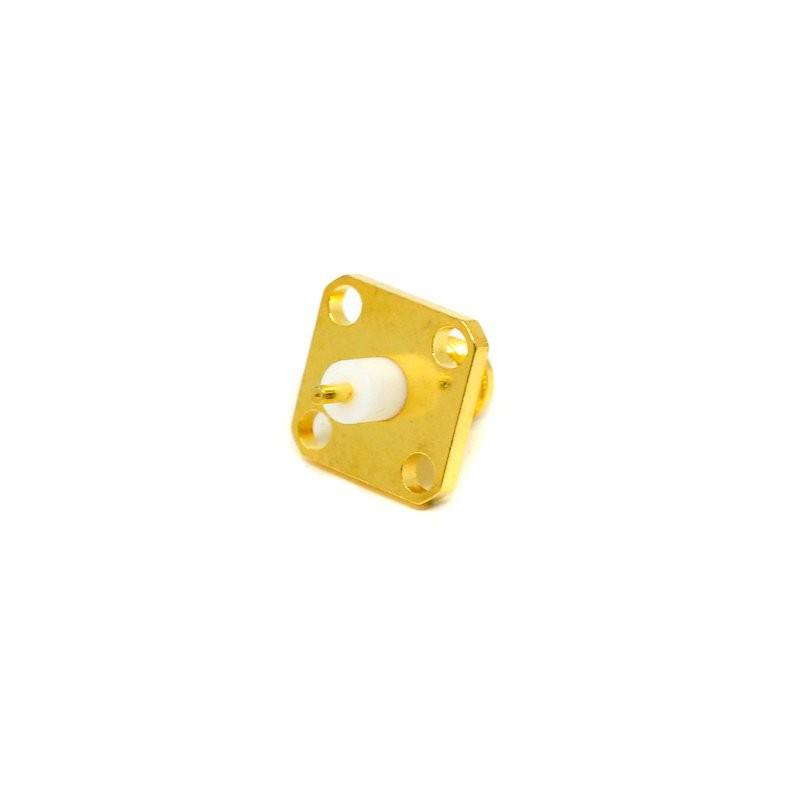

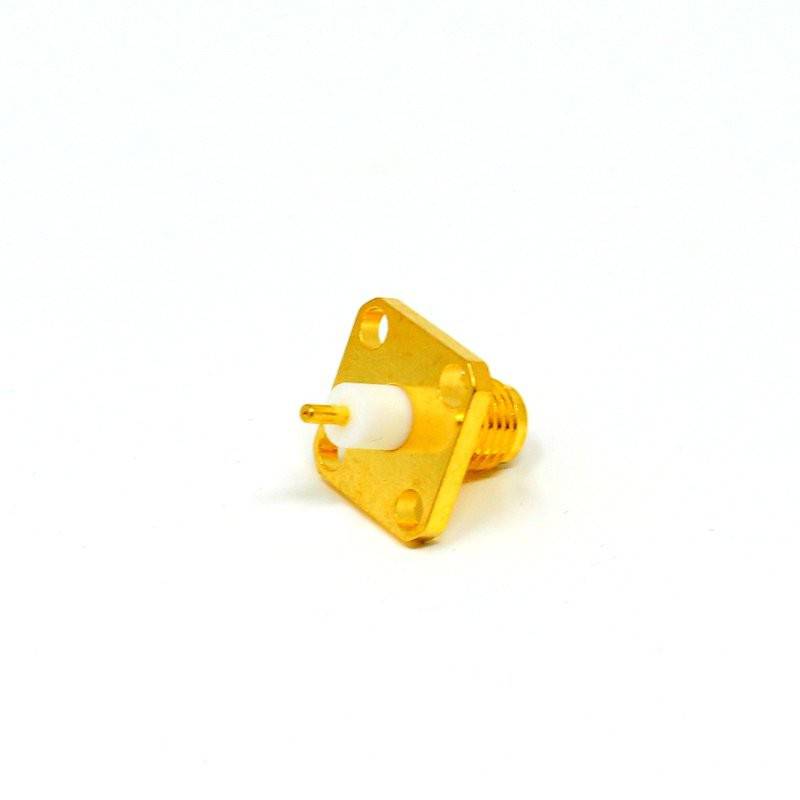

SMA Female Video Connector 4 Hole Square Flange Jack for Panel Mount - RS3272

SMA Female Video Connector 4 Hole Square Flange Jack for Panel Mount - RS3272

SKU:RS3272

Low stock: 10 left

Regular price Rs. 65.00
Regular price Sale price Rs. 65.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Impedance 50 ohm
  • Frequency Range:0~6 GHz
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage:1000 V rmsmin for RG142, RG405
  • 750 V rms min. for RG316, RG402
  • 500v rms min. for RG178
  • Working Voltage: 500 V rms max. for RG142, RG405
  • 375 V rms max. for RG316, RG402
  • 170 V rms max. for RG178

Description :

These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.

Main Application of SMA Connectors:

  • Aerospace and Defense: Hand-held field Device and Instrumentation
  • Medical: Instrumentation
  • Commercial Vehicle: Bluetooth and GPS
  • Telecommunications: Wireless Base Stations, Cellular Mobile System
  • Data/Communications: Wifi, WiMAX
  • Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System

Features:

  • Videos SMA Connector 4Hole Square Flange Jack for Panel Mount;
  • Excellent electrical performance up to 18GHz with low reflection;
  • Thread type coupling mechanism ensure small loss and high security in a compact design;
  • High-Quality Product.

Electrical Characteristics

  • Impedance 50 ohm
  • Frequency Range:0~6 GHz
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage:1000 V rmsmin for RG142, RG405
  • 750 V rms min. for RG316, RG402
  • 500v rms min. for RG178
  • Working Voltage: 500 V rms max. for RG142, RG405
  • 375 V rms max. for RG316, RG402
  • 170 V rms max. for RG178
  • Center Contact Resistance 6.0 m (Milliohms max.)
  • Outer Contact Resistance 2.0 m (Milliohms max.)
  • Insulation Resistance 5 x 10 m (Megohms min.)

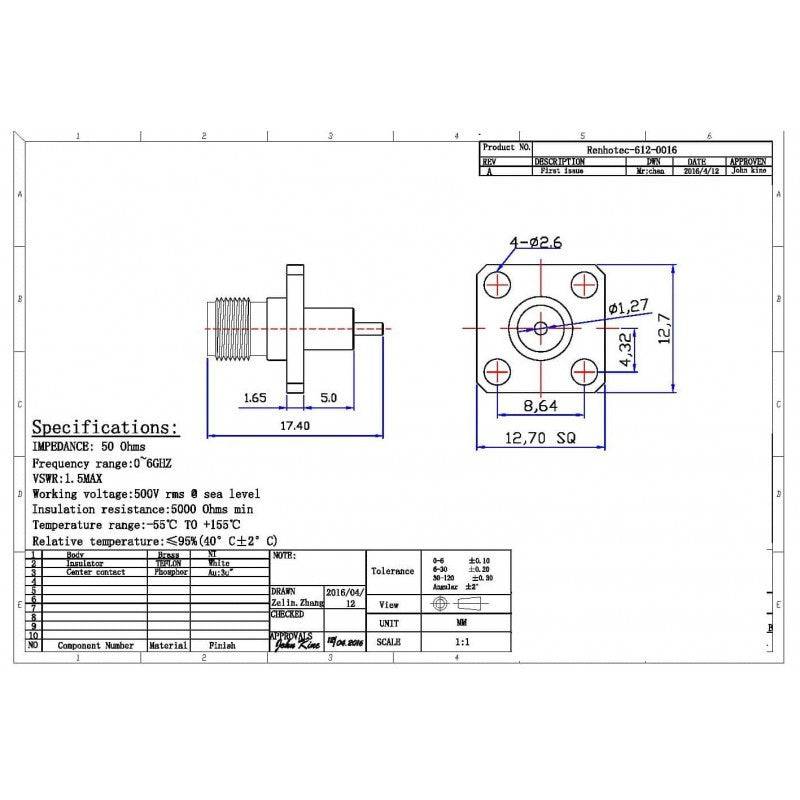

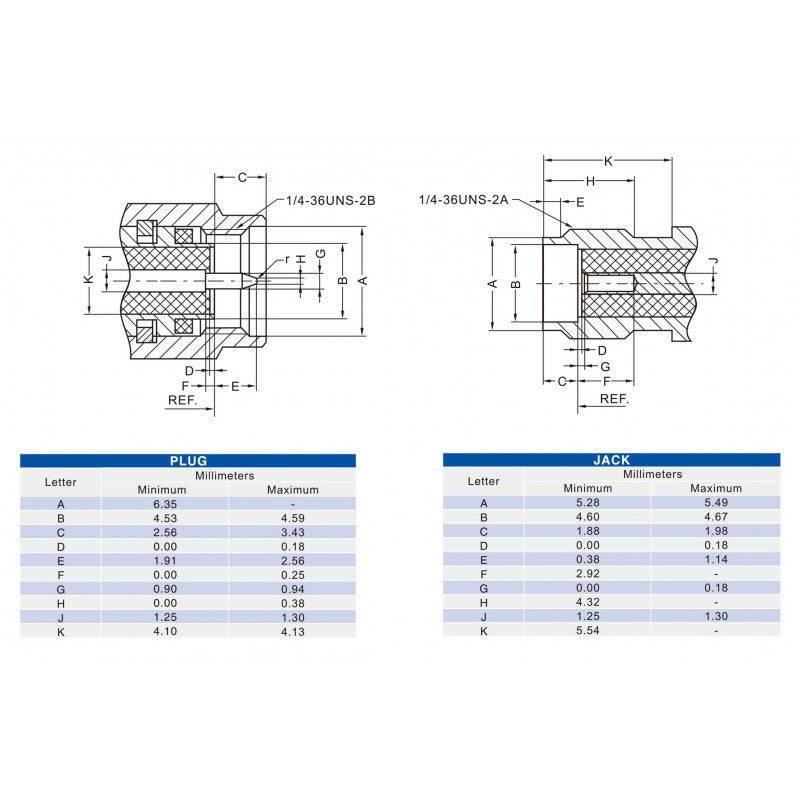

Mechanical Characteristics

  • Coupling: 1/4-36 thread
  • Contact Retention: 15 in-lbs min.
  • Coupling nut torque: 30 in-lbs. min.
  • Durability(mating) 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics:-55C ~ +155C
  • Vibration: MIL-STD-202 Meth.204
  • Corrosion resistance: MIL-STD-202 Meth. 101

Specifications:

  • Brand : ElecBee
  • Orientation : Straight
  • Gender : Female
  • Mounting Type : Panel Mount
  • Termination Style : Solder Type
  • Mounting Feature : 4 Hole Flange
  • Function : Other
  • Polarity : Standard
  • Body Material : Copper
  • Body Plating : Gold Plating
  • Impedance : 50 ohms

Package Included:

1 x SMA Female Video Connector 4 Hole Square Flange Jack for Panel Mount
