- Aerospace and Defense: Hand-held field Device and Instrumentation
- Medical: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications: Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Description :
These connectors are designed to provide compatibility with industry-grade 50 ohm and 75-ohm cables for longer operational life with gold and nickel plating for environmental protections.
Appliance:
- Aerospace and Defense: Hand-held field Device and Instrumentation
- Medical: Instrumentation
- Commercial Vehicle: Bluetooth and GPS
- Telecommunications: Wireless Base Stations, Cellular Mobile System
- Data/Communications: Wifi, WiMAX
- Industrial: Active and passive components, instrumentation, M2M Communications, Vehicle Tracking System
Features:

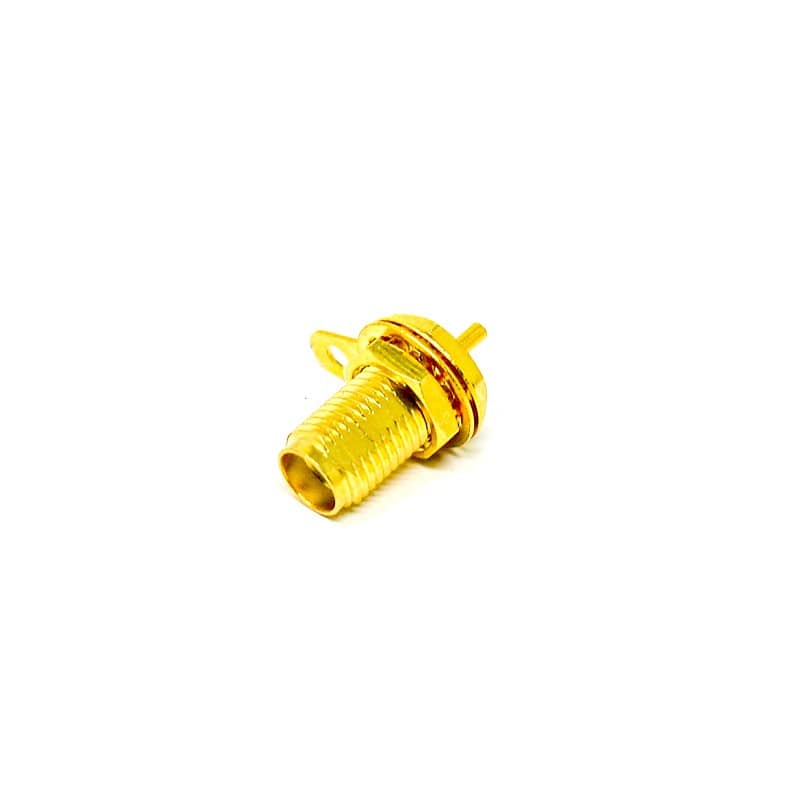

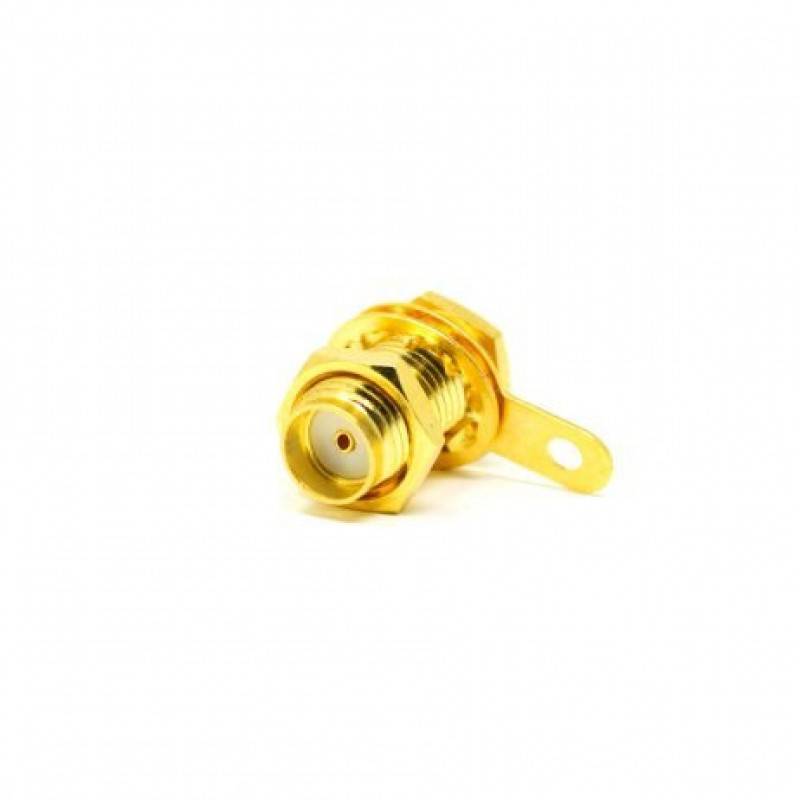

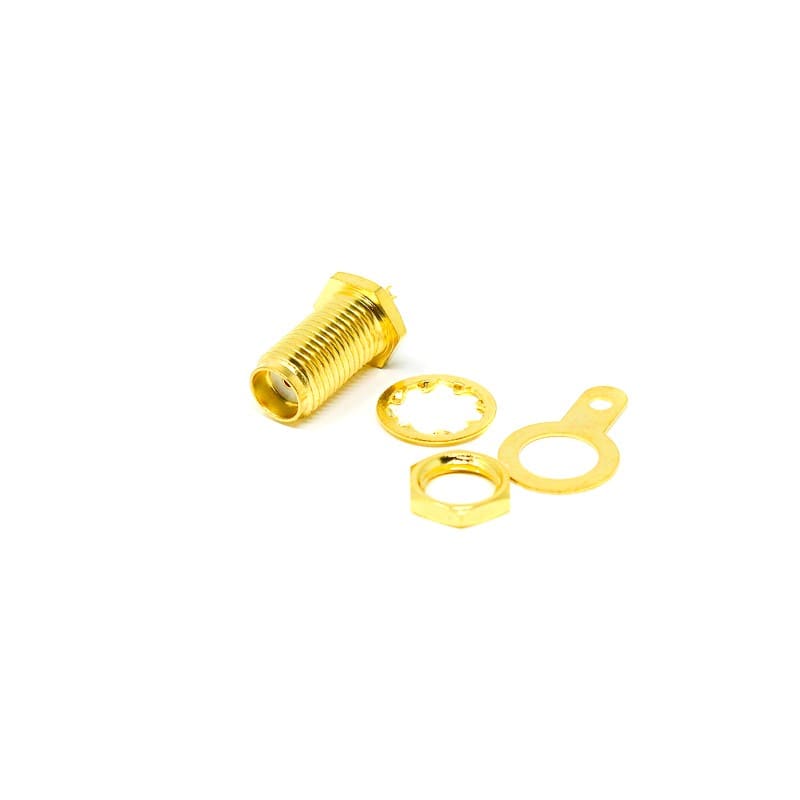

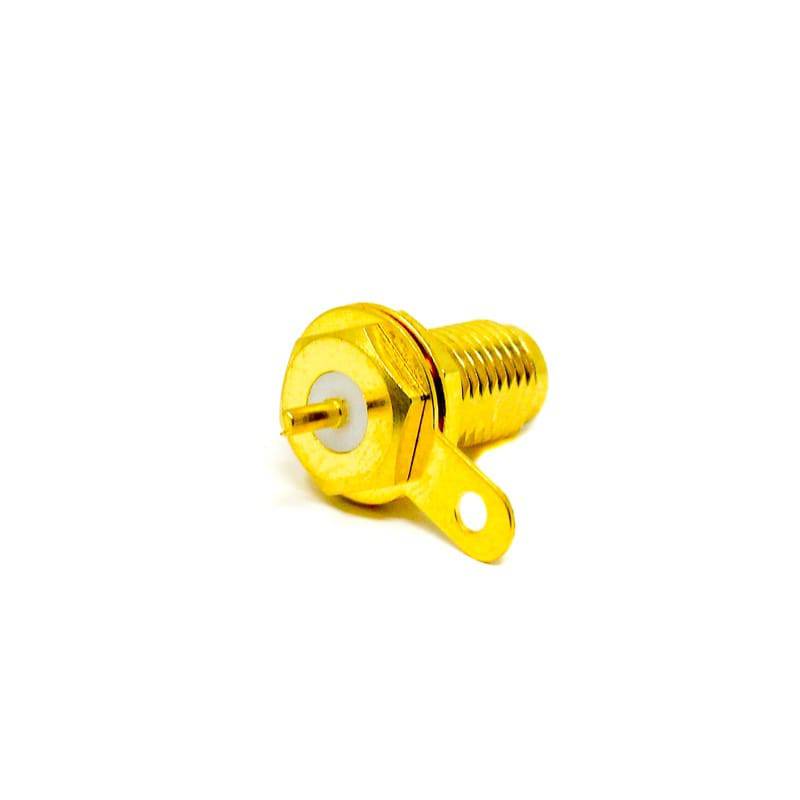

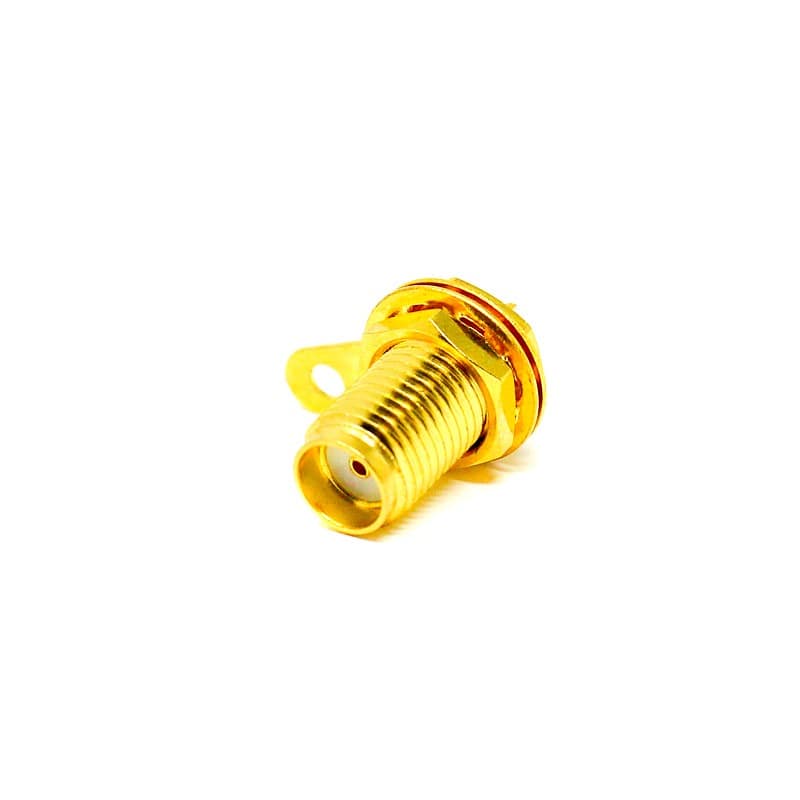

- SMA Connector,Jack,Straight,50ohm,solder,Bulkhead-front Mount,Gold Plating,Brass
- Excellent electrical performance up to 18GHz with low reflection;
- Thread type coupling mechanism ensure small loss and high security in compact design;
Electrical Characteristics
- Impedance : 50 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type 1.3max / R/A type 1.5max
- Dielectric Withstanding Voltage: 1000 V rmsmin for RG142, RG405
- 750 V rms min. for RG316, RG402
- 500v rms min. for RG178
- Working Voltage:500 V rms max. for RG142, RG405
- 375 V rms max. for RG316, RG402
- 170 V rms max. for RG178
- Center Contact Resistance : 6.0 m (Milliohms max.)
- Outer Contact Resistance : 2.0 m (Milliohms max.)
- Insulation Resistance : 5 x 10 m (Megohms min.)

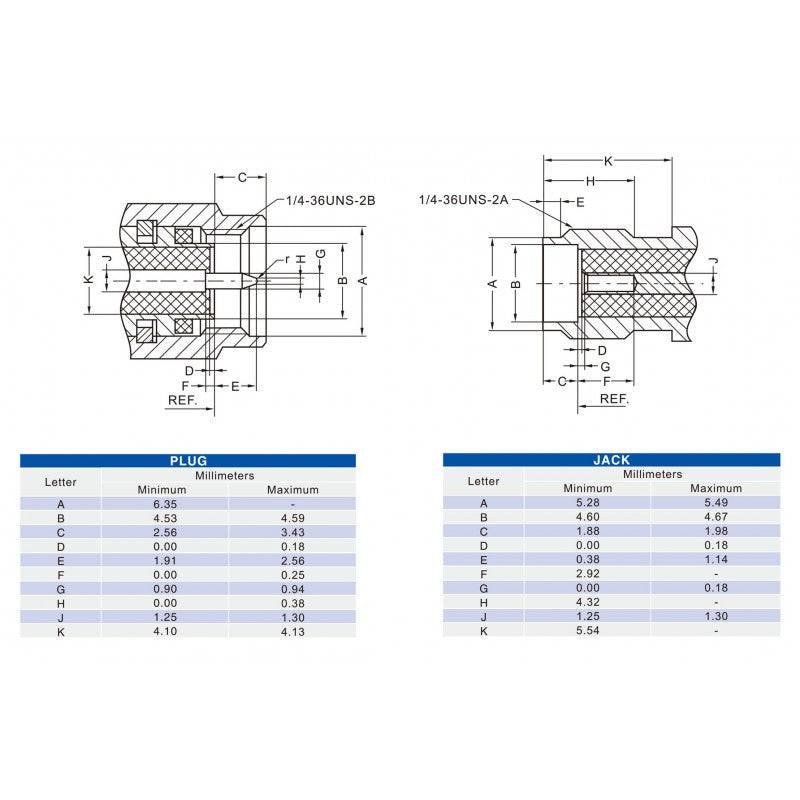

Mechanical Characteristics
- Coupling : 1/4-36 thread
- Contact Retention : 15 in-lbs min.
- Coupling nut torque : 30 in-lbs. min.
- Durability(mating) : 500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Temprature Range: -55C ~ +155C
- Vibration: MIL-STD-202 Meth.204
- Corrosion resistance: MIL-STD-202 Meth. 10
Package Includes:
1 x SMA Female Straight Connector Solder Type
