Description:

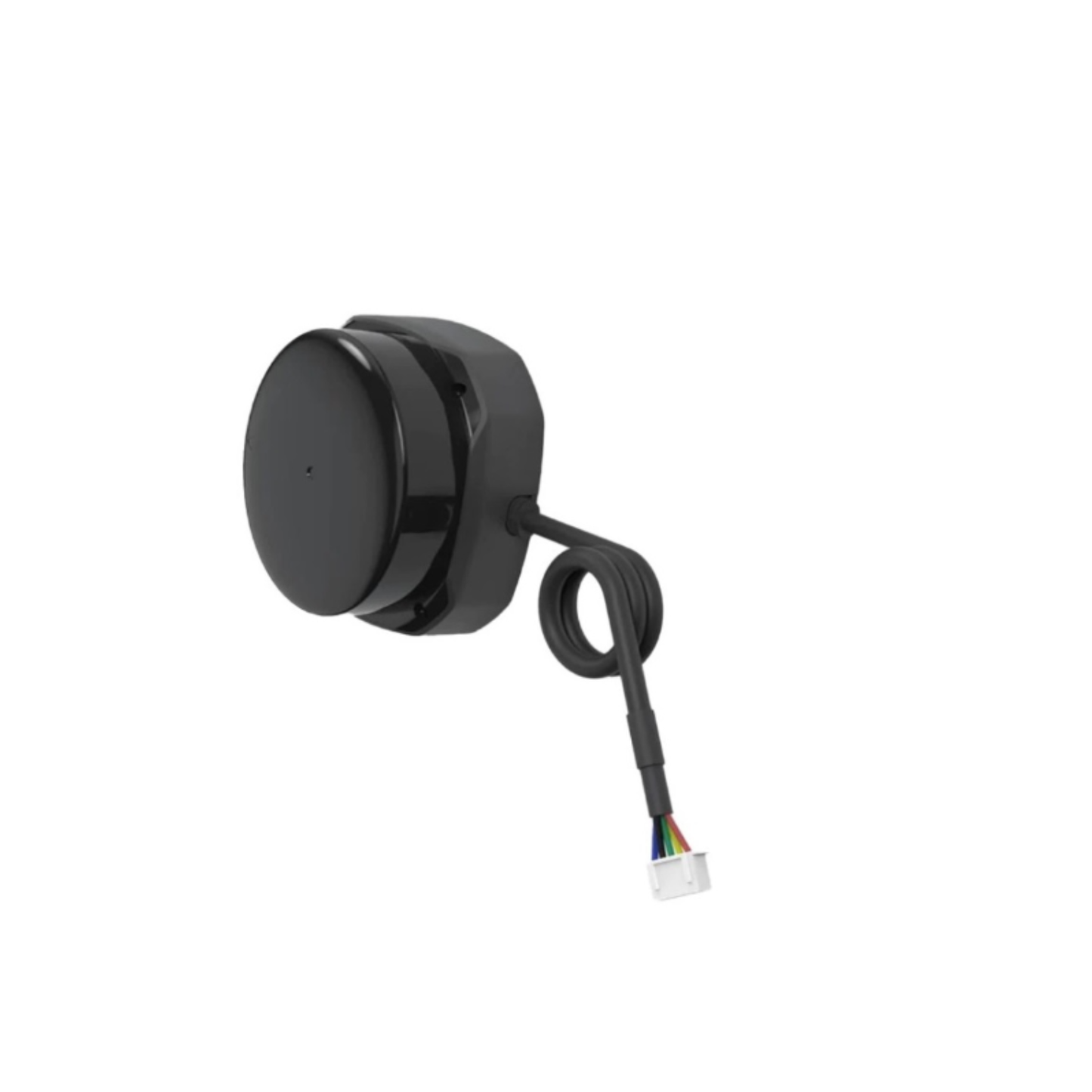

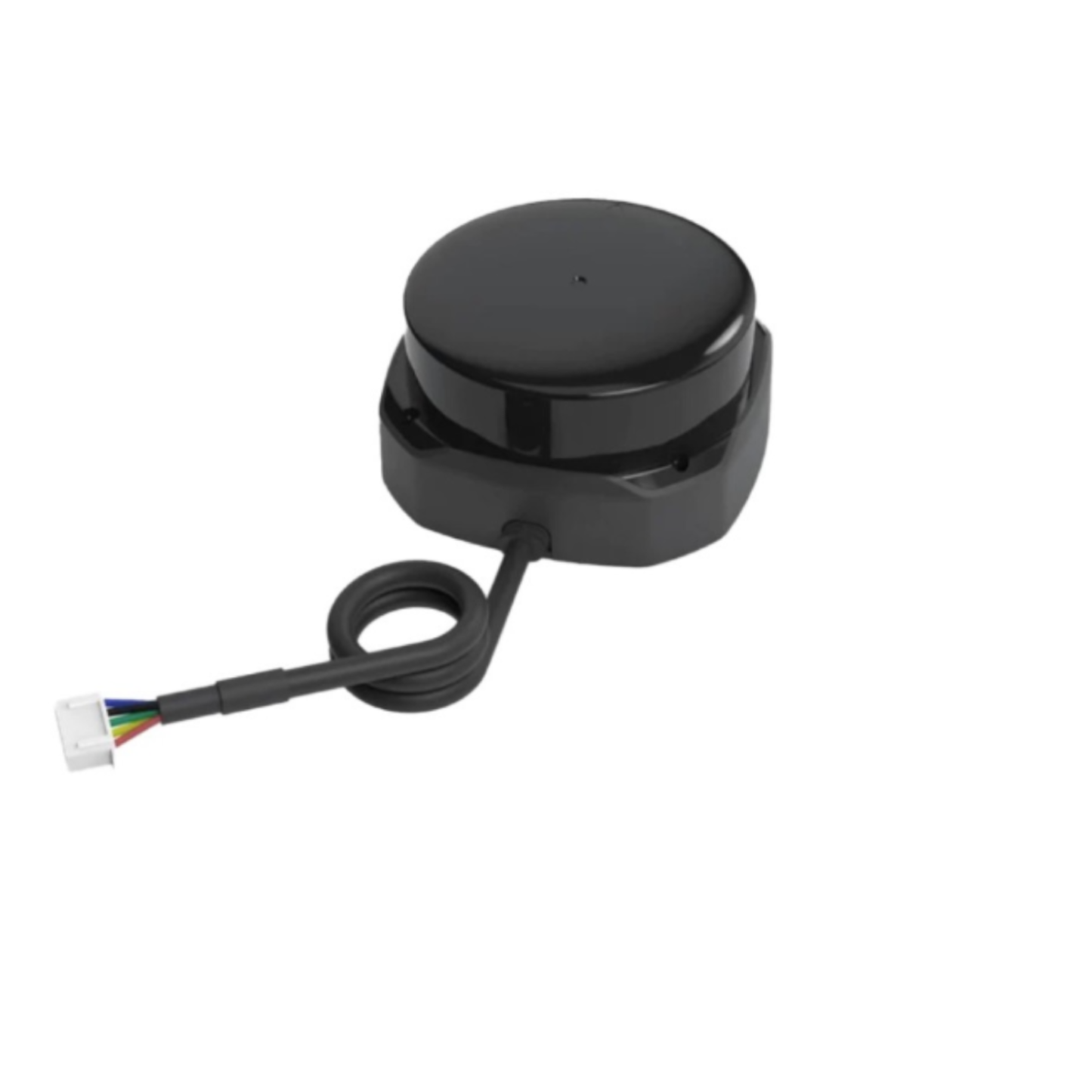

Slamtec RPLiDAR S2L LiDAR Sensor with a closed independent cover, it can fully protect the internal rotating mechanism, avoid external interference, ensure a stable working environment, and meet the application of industrial scenarios.
Abandoning the belt drive in the first generation, using the self-designed no-brush motor, reducing the mechanical friction during operation, the operation is very smooth, and there is almost no noise. 32000 Times Sample Rate, make more environmental details to be retrieved during the mapping and navigation process.
S2L Ridar Workable in both Indoor and Outdoor,even in 80Klux strong sunlight interference.Achieve stable ranging and high-precision mapping.Output high-quality point cloud data to capture more environmental details.
Widely used in service robot navigation and obstacle avoidance, AGV vehicle obstacle detection and avoidance, parking space detection, multi-touch and large screen interaction, environmental scanning and 3D reconstruction, drone mapping and obstacle avoidance.
Specifications:
- Model Type: Laser Range Scanner
- Distance Measure (cm): 5Cm – 1800Cm
- Operating Temperature (°C): -10℃ – 50℃
- Power Consumption (W): ＞ 2W
- Angular Resolution (°): 0.12°
- Operating Voltage (V): 5V
- Working Current (mA): 400mA
- Rotational Speed: 10Hz
- Motor Type: Brushless
- Resolution: Range 13mm
- Accuracy: ≤30mcm
Features:
- Generate 2D point cloud map information up to 30m radius, within 30mm precision.
- Up to 32KHz measurement frequency, 10Hz rotational speed, resist up to 80000 lux light.
- Apply OPTMAG light magnetic fusion technology for support up to five years of reliable running.
- IP65 high ingress protection, small and compact, capable of every indoor and outdoor deployment.
- Safe as IEC-60825 Class One eye safety rating.
Package Included:
1 x SLAMTEC RPLiDAR S2L LiDAR Sensor 360 Degree Laser Range Scanner With 80000 lux Light Resistance and IP65 Waterproof Rating and 2D Point Cloud Mapping High Safety For Human Eye
