Description:

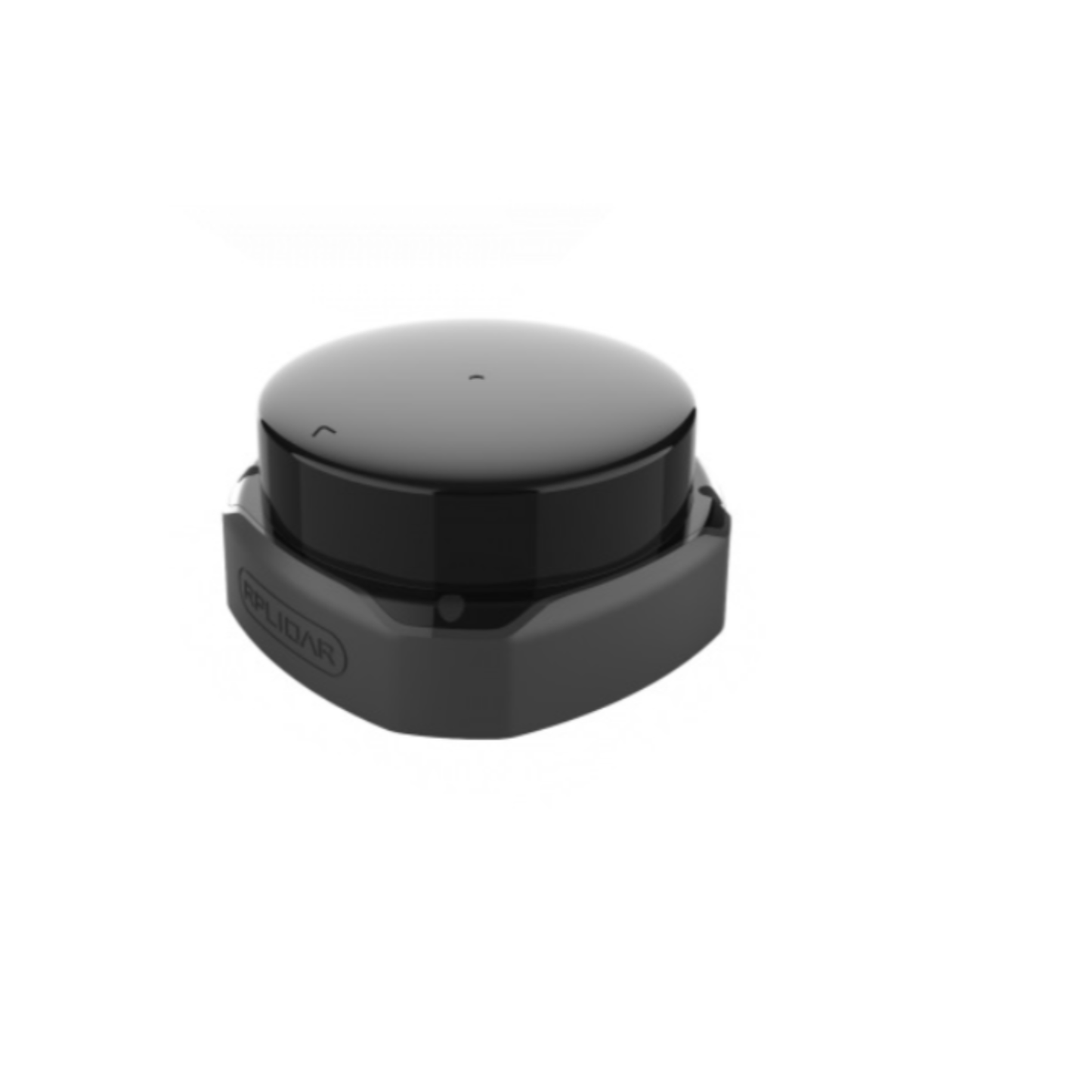

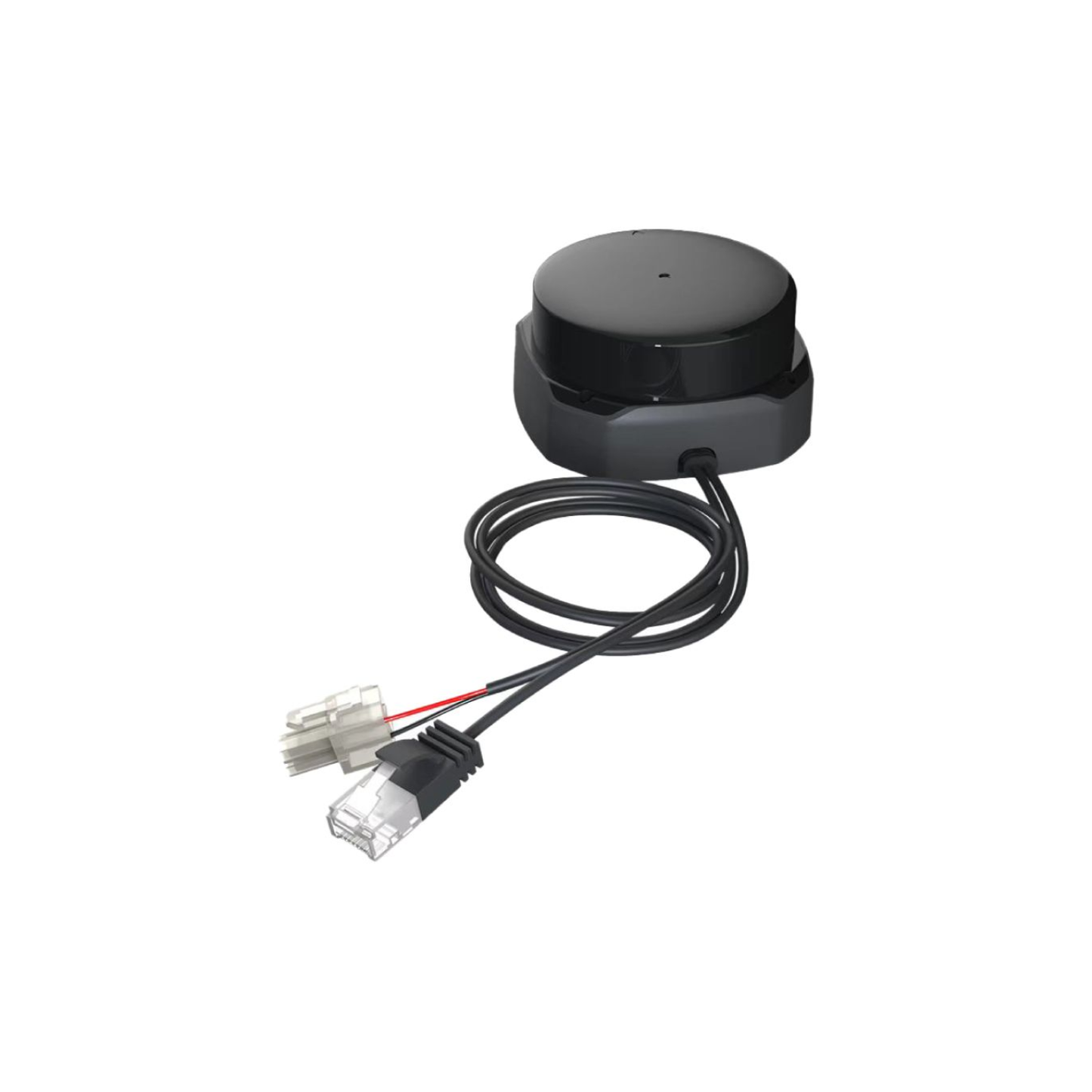

The RPLIDAR S2E Laser Scanner features upgraded hardware and optimized internal algorithms for enhanced performance. Supporting Ethernet UDP connection, it utilizes Direct Time of Flight (DToF) technology, emitting and receiving laser pulses to measure distance by calculating flight time.
Compared to traditional Triangulation Laser Sensors, the RPLIDAR S2E offers superior precision, faster sampling frequency, and a longer measurement range, making it ideal for high-performance applications in robotics and mapping.
Specifications:
- Model Type: Laser Range Scanner
- Distance Measuring Range(M): 30
- Rotational Speed: 10Hz
- Angular Resolution (°): 0.12°
- Motor Type: Brushless
- Operating Voltage (V): 12V
- Working Current (mA): 200mA
- Power Consumption (W): ＞ 2W
- Resolution: Range 13mm
-
Accuracy: ≤30mm
Features:
- Generate 2D point cloud map information up to 30m radius, within 30mm precision.
- Up to 32KHz measurement frequency, 10Hz rotational speed, resist up to 80000 lux light.
- Apply OPTMAG light magnetic fusion technology for support up to five years of reliable running.
- IP65 has high ingress protection, small and compact, capable of every indoor and outdoor deployment.
- Safe as IEC-60825 Class One eye safety rating.
Package Included:
1 x SLAMTEC RPLiDAR S2E Laser Scanner 360° LiDAR Scanner With 30m Range High Precision 2D Point Cloud Mapping, and 80000 Lux Light Resistance, IP65, High Safety For Human Eye
