Description:

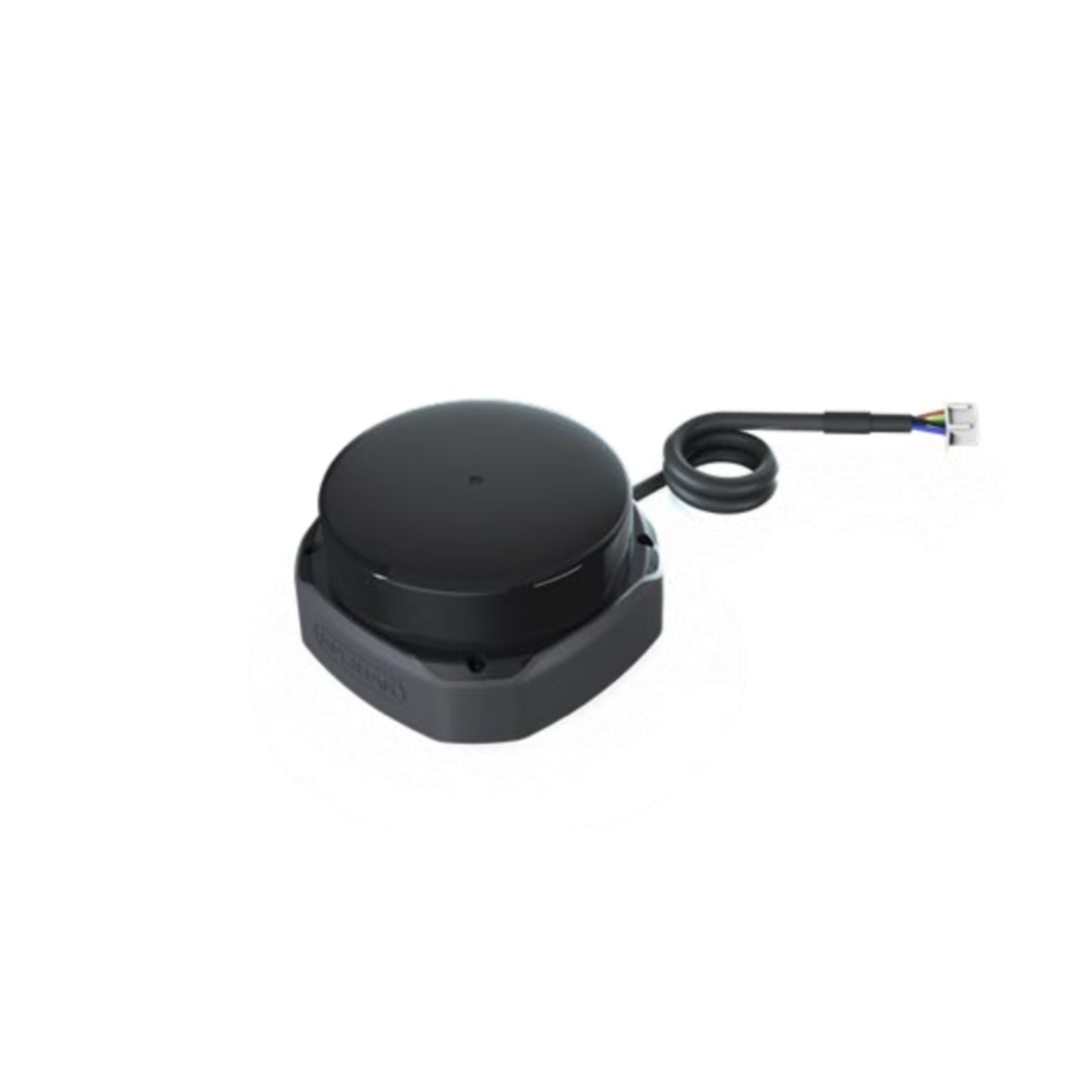

The RPLIDAR S2 is an advanced, low-cost two-dimensional laser ranging radar (LIDAR) designed for precise 360-degree omni-directional scanning within a 30-meter radius. This powerful device generates detailed flat point cloud maps of its surroundings, which can be used for a variety of applications such as map surveying, robot navigation, and environmental modeling.
Leveraging laser time-of-flight ranging technology, the RPLIDAR S2 is capable of performing 32,000 distance measurements per second. Its non-contact energy and signal transmission technology eliminate the lifespan constraints typically associated with traditional LIDAR systems, ensuring long-term, reliable, and stable performance.
In comparison to other LIDAR models, the RPLIDAR S2 stands out for its exceptional stability when measuring long-range objects or transitioning between high-contrast surfaces, such as black and white objects or areas with intense lighting. Its superior performance makes it ideal for accurate and consistent mapping within a 30-meter range.
Specifications:
- Model: RPLiDAR S2
- Model Type: Laser Range Scanner
- Supply Voltage (V): 5V
- Distance Measuring Range(M): 30
- Communication Mode: TTL,UART
- Operating Temperature (°C): -10 to 50
- Supply Current (A): 40mA(5V power supply, during sleep） 400mA(5V power supply, working)
Features:
- Reliable and stable operation for a long time.
- Built-in speed detection and adaptive system.
- Non-contact energy and signal transmission technology.
- Excellent application in both indoor and outdoor environments.
- High-speed laser ranging sampling capability of 32,000 times per second
- Coverage area with a radius of 30 meters on a two-dimensional plane.
- 360° omnidirectional laser ranging scanning.
- Cost reduction because there is no need to provide a complex power supply system.
- The emitted laser power complies with IEC-60825 Class 1 human eye safety level.
Applications:
- General robot navigation and positioning.
- Environmental scanning and 3D reconstruction.
- Positioning and obstacle detection of smart toys.
- Navigation and positioning of home care/cleaning robots.
- Universal simultaneous positioning and mapping. (SLAM)
- Service robots and industrial fields that need to work continuously for a long time.

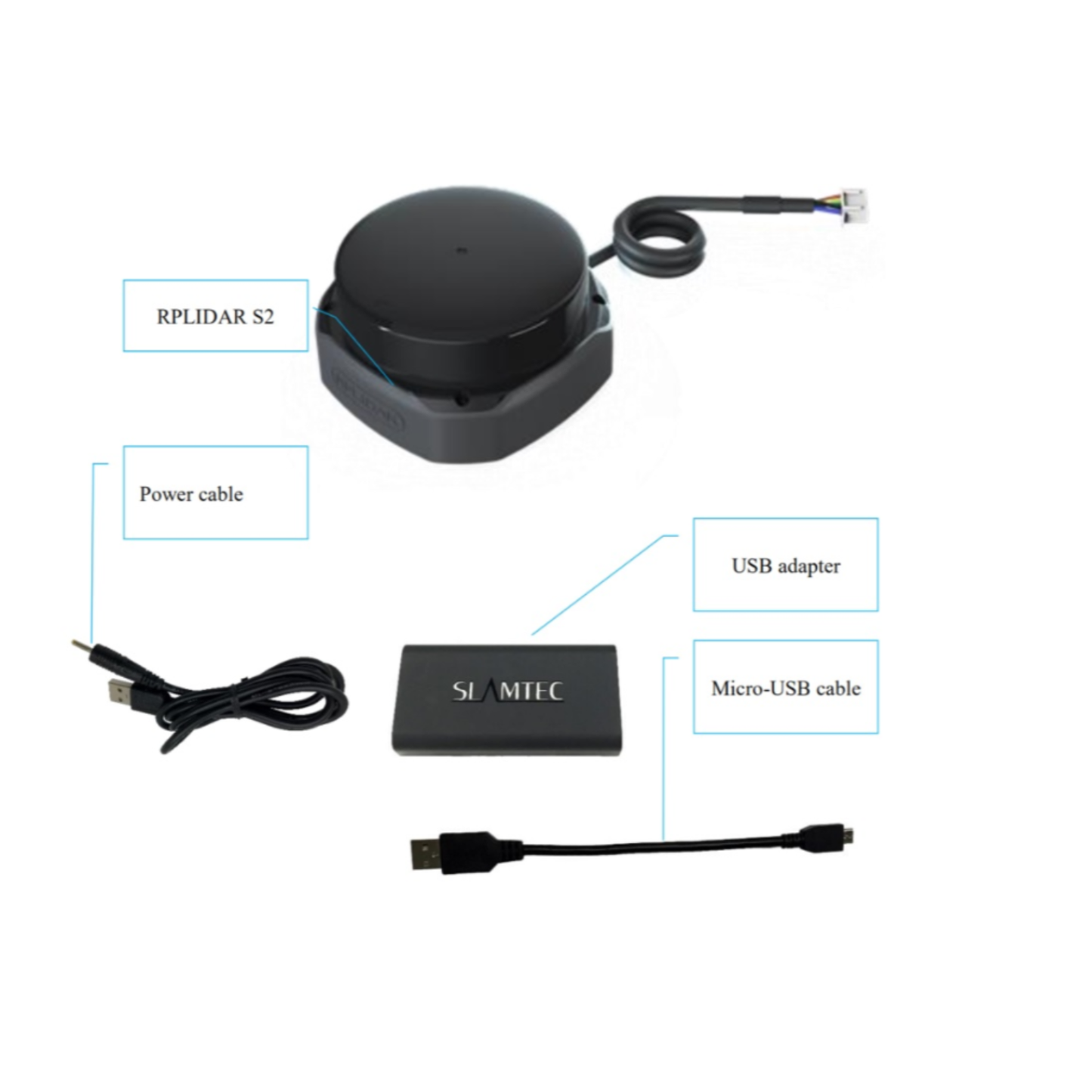

Package Included:
- 1 x SLAMTEC RPLIDAR S2 module (built-in PWM motor driver)
- 1 x USB adapter
- 1 x Micro-USB cable
- 1 x Power cable
