Description:
The RPLiDAR C1M1-R2 Portable ToF Laser Scanner Kit is an advanced, 360-degree 2D laser scanner. It harnesses laser flight-of-time (TOF) ranging, enabling it to rotate at high speeds and capture up to 5000 samples of laser range measurement per second. Embedded contactless power and signal transmission technology ensures its long-term stability and reliability, surpassing traditional LIDAR systems.
Each RPLiDAR C1M1 undergoes rigorous testing to ensure compliance with the eye-safety standard of IEC-60825 Class 1, guaranteeing the laser output power is safe for human eyes. Boasting a 12-meter radius measurement distance with a 0.05-meter blind zone, the RPLiDAR C1M1 is perfect for scanning, measuring objects at various distances, and obstacle avoidance.e.
The RPLiDAR C1M1-R2 boasts a 10Hz (600rpm) scanning frequency, granting it a sample rate of 5KHz and a remarkable angular resolution of 0.72°. This ensures comprehensive information is collected, comprising position and reflectivity data with 2.5D multidimensionality.
The versatility of the RPLiDAR C1M1 makes it suitable for diverse applications, including home robots, educational ROS cars, commercial robots, autonomous vehicles in low-speed parks, and parking lot space monitoring. Despite its powerful performance, it features a compact and agile design with low noise and vibration levels, facilitating easy integration into a wide range of applications.
Specifications:
- Distance Measuring Range(M): 0.05 to 12
- Scanning Frequency(Hz): 8~12Hz, 10Hz@typical
- Angular Resolution (°): 0.72°
- Communication Mode: TTL UART
- Ambient Light Immunity(Klux): 40,000lux
- Sample Rate: 5KHz
- Accuracy: ±30mm
- Resolution: 15mm
- Protection Level: IP54
Features:
- RPLiDAR C1M1-R2 Portable LiDAR Sensor Kit Offers 360-degree full-range laser scanning with a sampling frequency of 5000 times per second.
- Enhanced Perception Capabilities Beyond Flat Surfaces: Not only captures position information data but also provides reflectivity data and 2.5D multidimensional information.
- Time-of-Flight Laser Scanner Kit Has an impressive measuring distance of up to a 12-meter radius. It also boasts a remarkably low blind range of only 0.05 meters, enabling precise obstacle avoidance.
- Its small size, low levels of noise and vibration, and versatility make it easy to integrate into a wide range of applications, offering flexibility and adaptability.
- 12M LiDAR Range Scanner Utilizes a low-power infrared laser light source that is driven by modulated pulses. It adheres to the Class 1 Laser Safety Standard, ensuring the safety of human eyes.

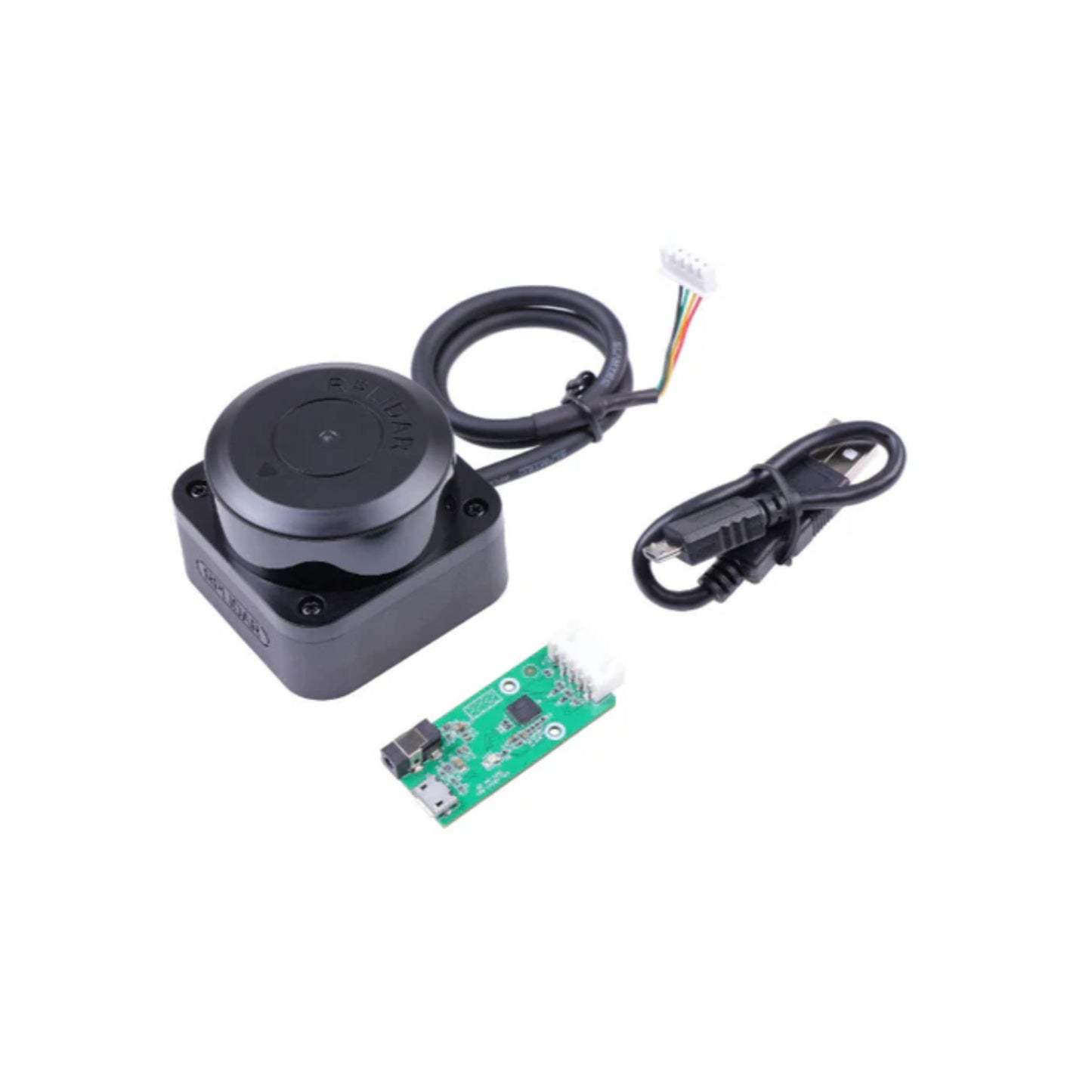

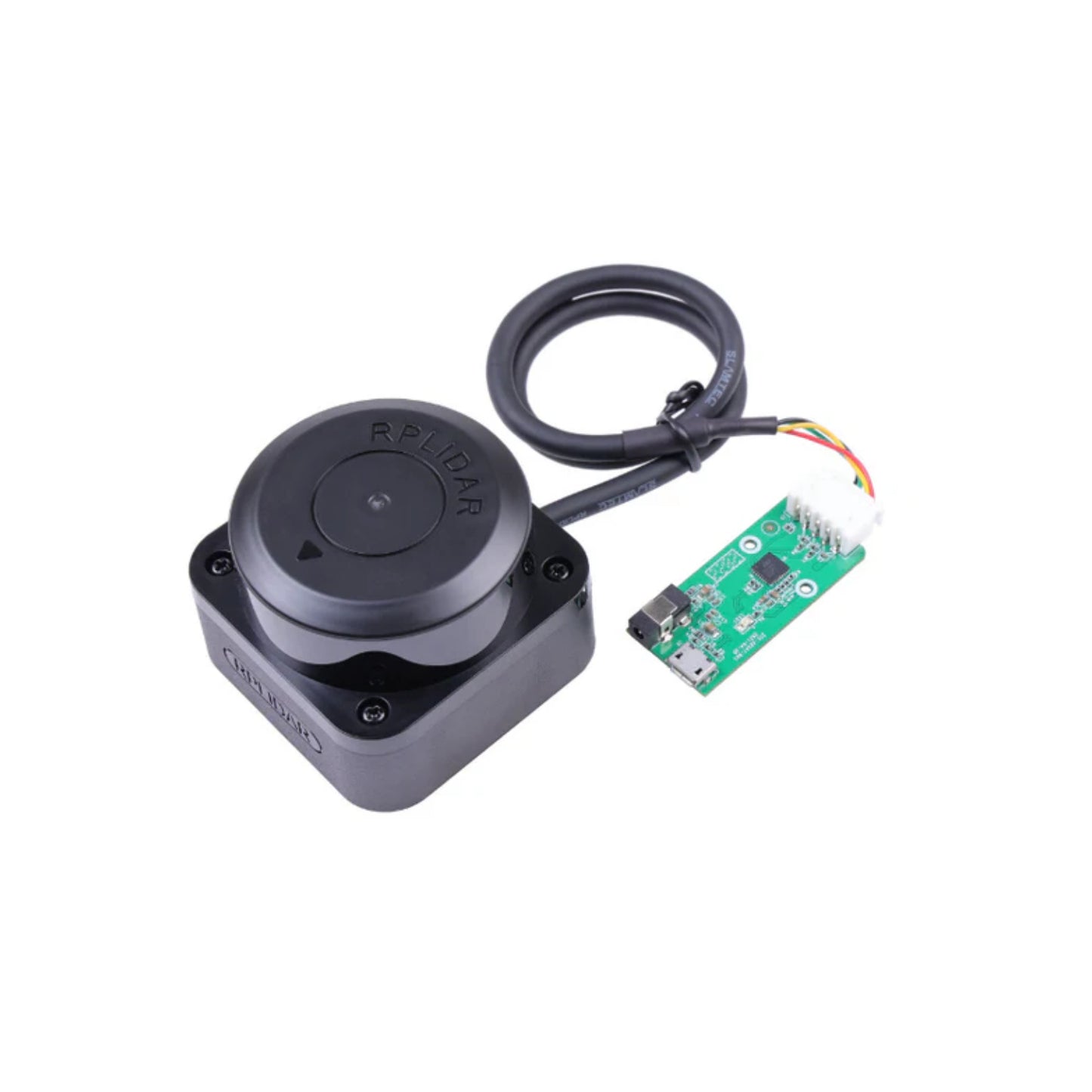

Package Included:
1 x SLAMTEC RPLiDAR C1M1-R2 Portable LiDAR Sensor Kit Time-of-Flight Laser Scanner Kit 12M LiDAR Range Scanner For Robotics and Mapping
