Description:

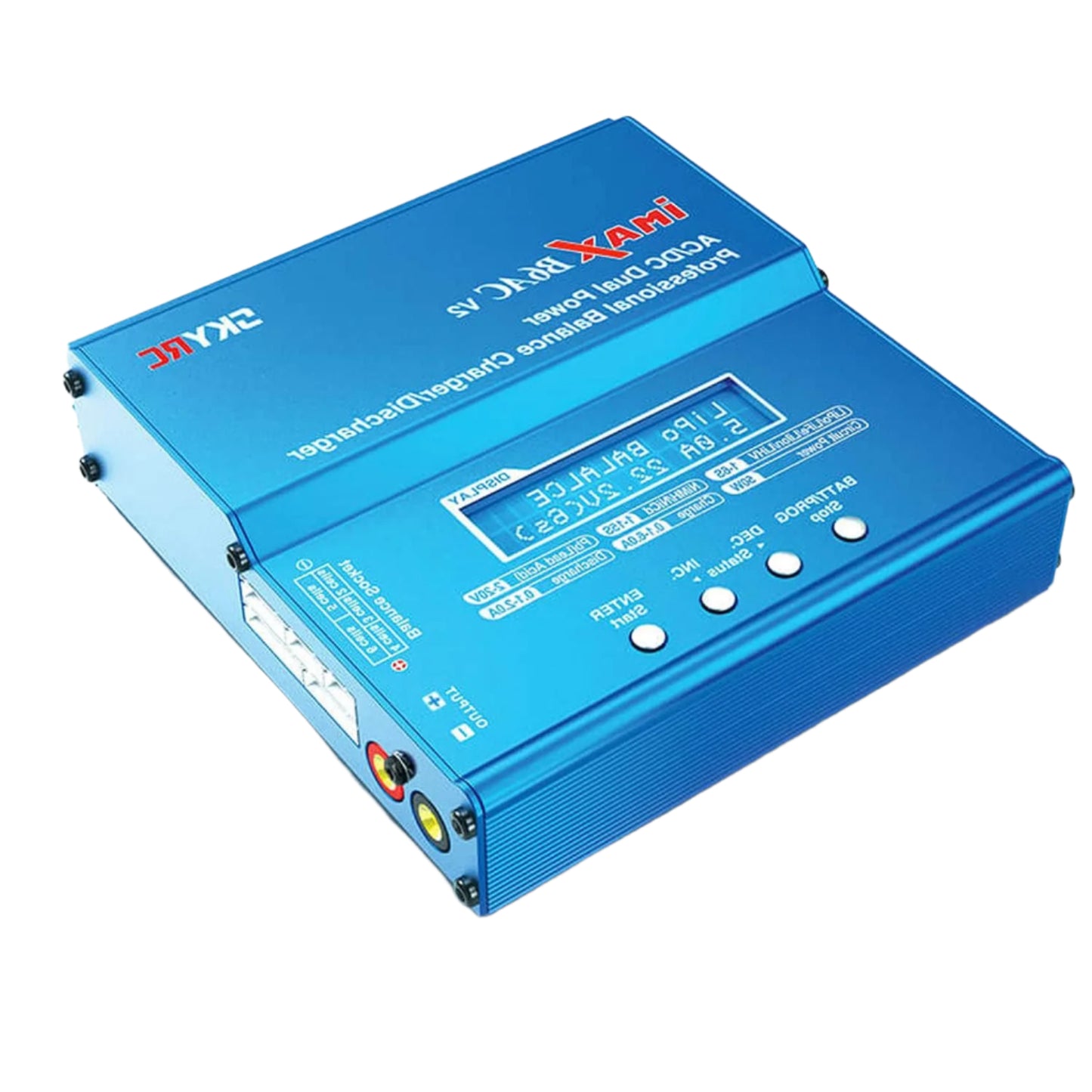

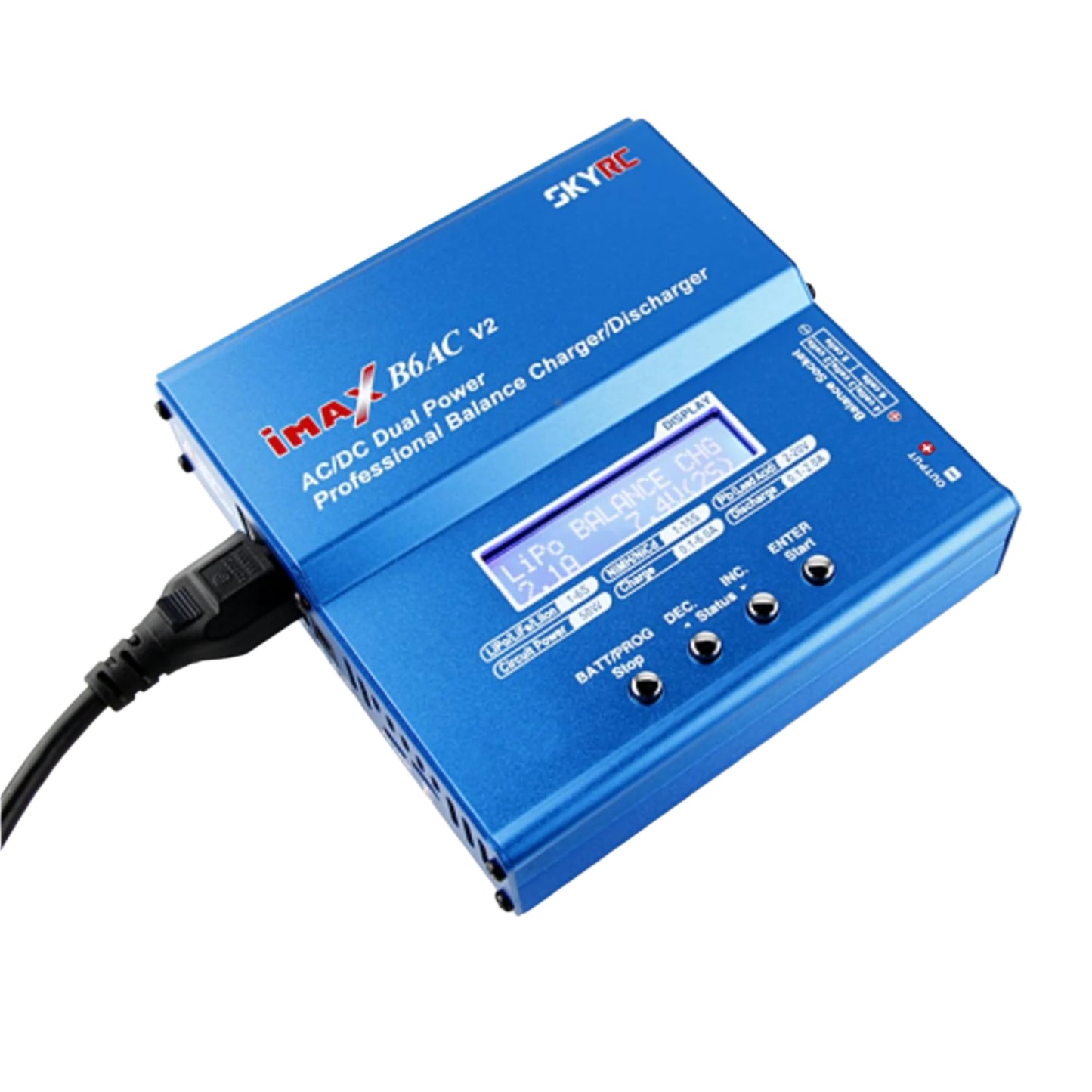

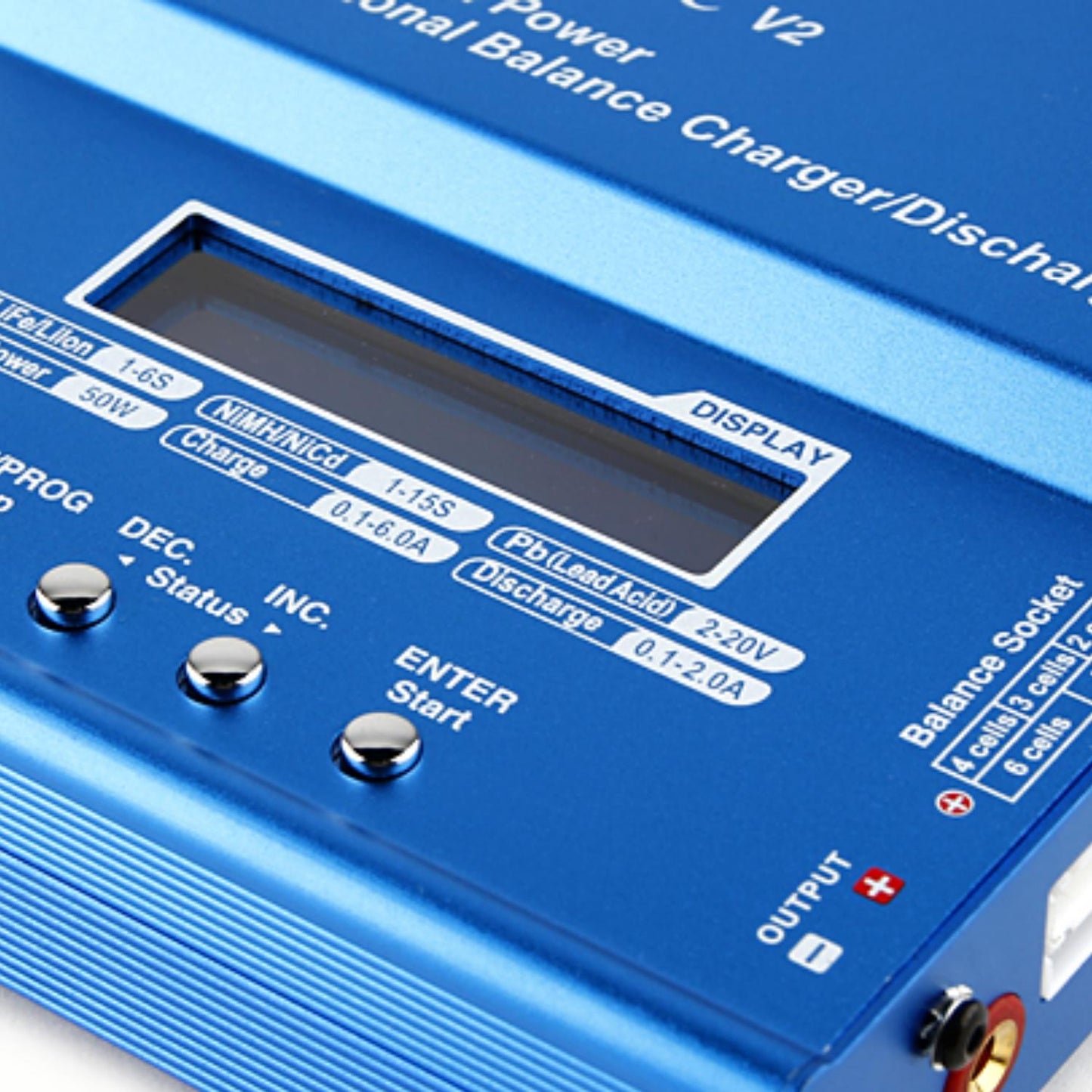

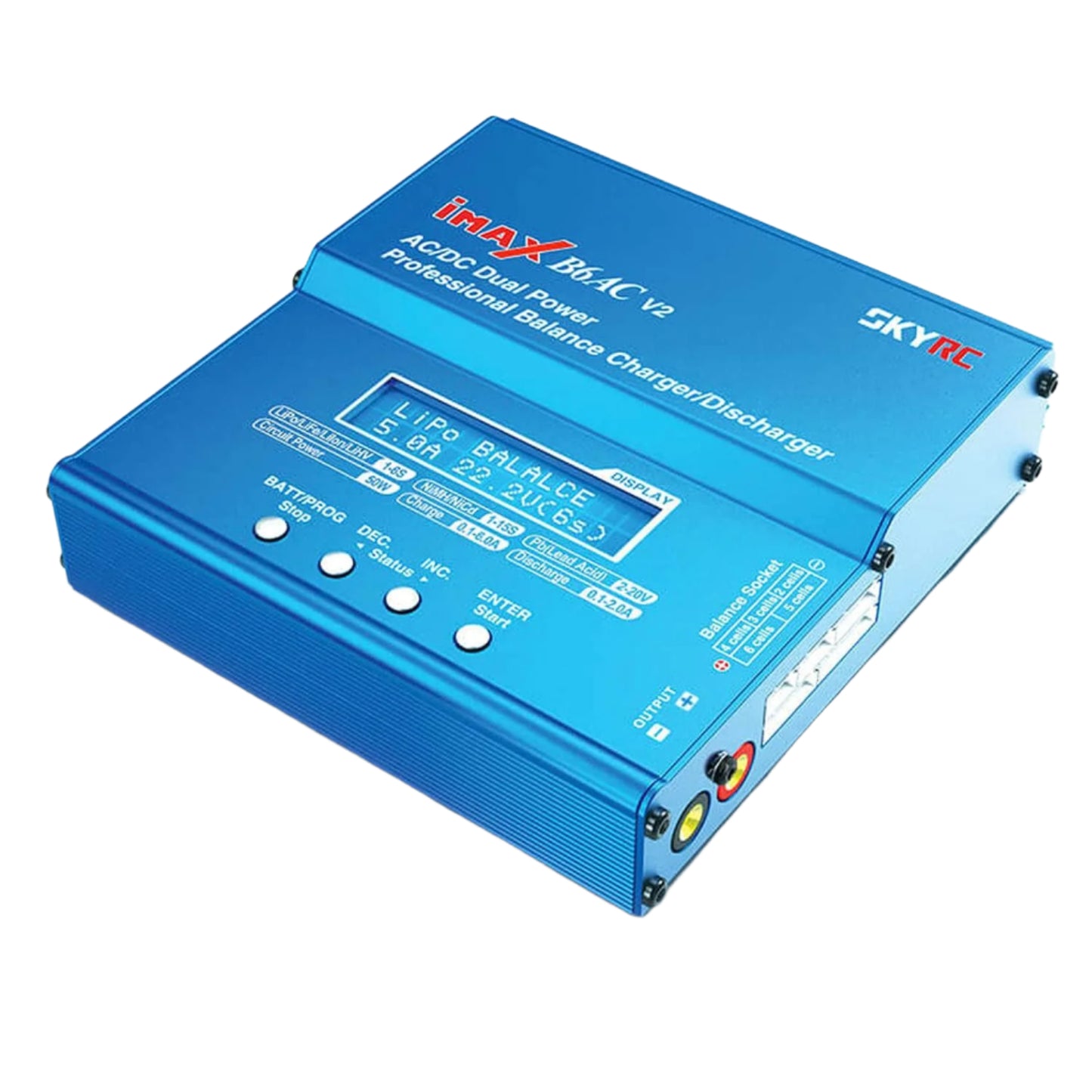

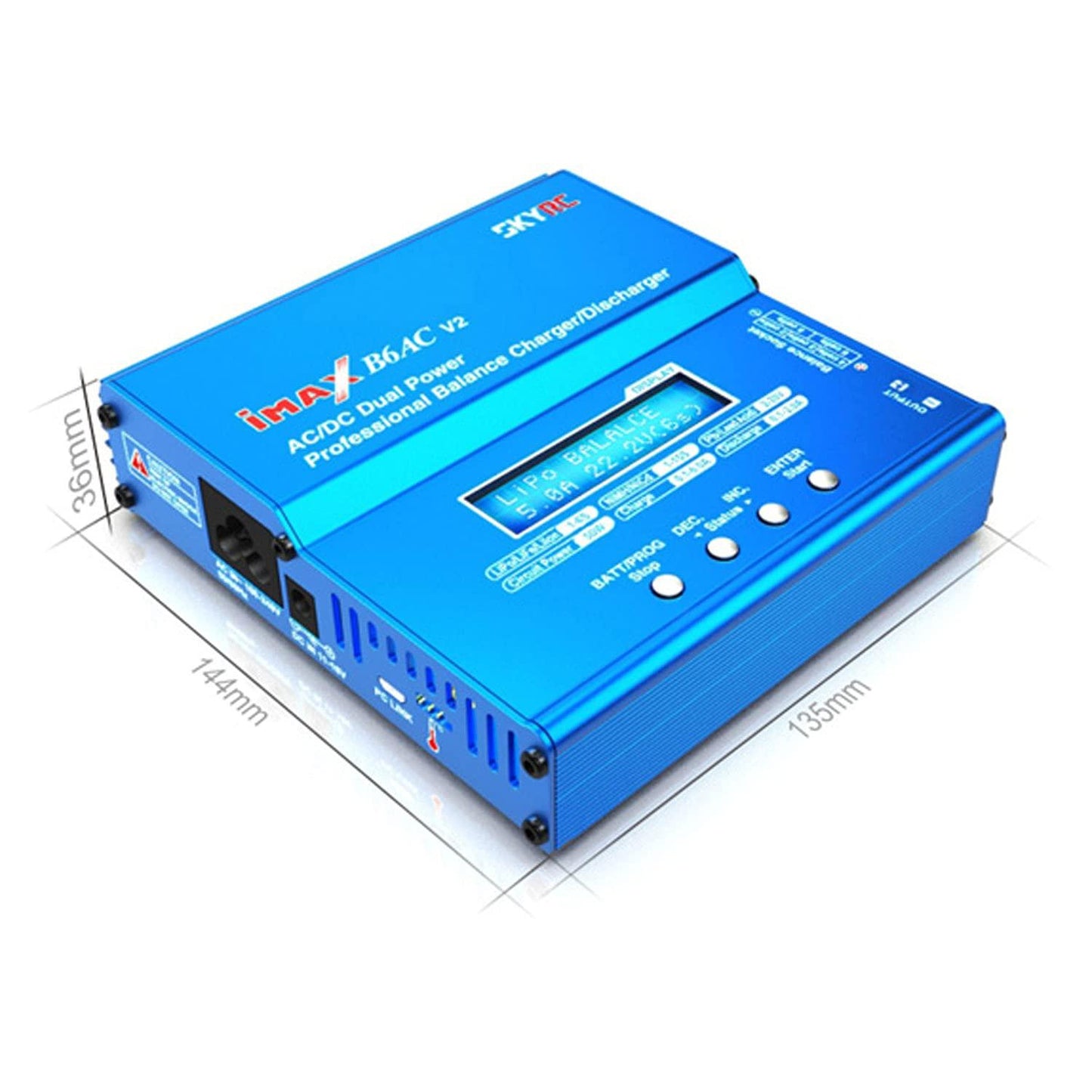

SkyRC IMAX B6AC V2 Charger is the upgraded version of the well-known iMAX B6AC. Compared with iMAX B6AC, it is more accurate and stable and also has some new features and functions. Users could set the terminal voltage by themselves and connect it to the PC for PC control and firmware upgrade. What's more, users could also use it as a Lithium Battery Meter and Battery Internal Resistance Meter. There are Automatic Charging Current Limits, Capacity Limits, Temperature Thresholds, and Processing Time Limits which make the charger safer than V1.
Professional Balance Charger Discharger (Original) is a high-performance, micro processor control charge/discharge station with battery management suitable for use with all current battery types, with integral equalizer for six-cell Lithium- Polymer (LiPo), Lithium High Voltage, Lithium iron phosphate(LiFe) and Lithium-Ion (LiIon) batteries; maximum 6A charge current and maximum 50W charge power.
Specifications:
- Charge Current Range (A): 1 to 5
- Discharge Current Range (A): 0.1 to 1.0
- No. of Cells: 1 to 6S
- Input Voltage (VAC): 110 ~ 240
- Input Voltage (VDC): 12
- Output Power (W): 50W
- Discharging Power (W): 5
- Drain Current for Balancing: 300
- NiCd/NiMH cell count: 1 ~ 15 Cells
- Pb battery voltage: 2 ~ 20
Features:
- PC connectivity
- Microprocessor controlled
- Delta-peak sensitivity
- Individual cell balancing
- Li-ion, LiPo, and LiFe are capable
- Ni-Cd and NiMH are capable
- Large range of charge currents and automatic charge current limit
- Store function allows safe storage of current
- Time limit function
- Input voltage monitoring (Protects car batteries at the field)
- Data storage (5 pack memory)
- Battery break-in and cycling.
- Terminal voltage adjustment for heavy-duty batteries
- It can be controlled using smartphones and PCs.
- Balance charging and discharging options
- It’s easy to upgrade

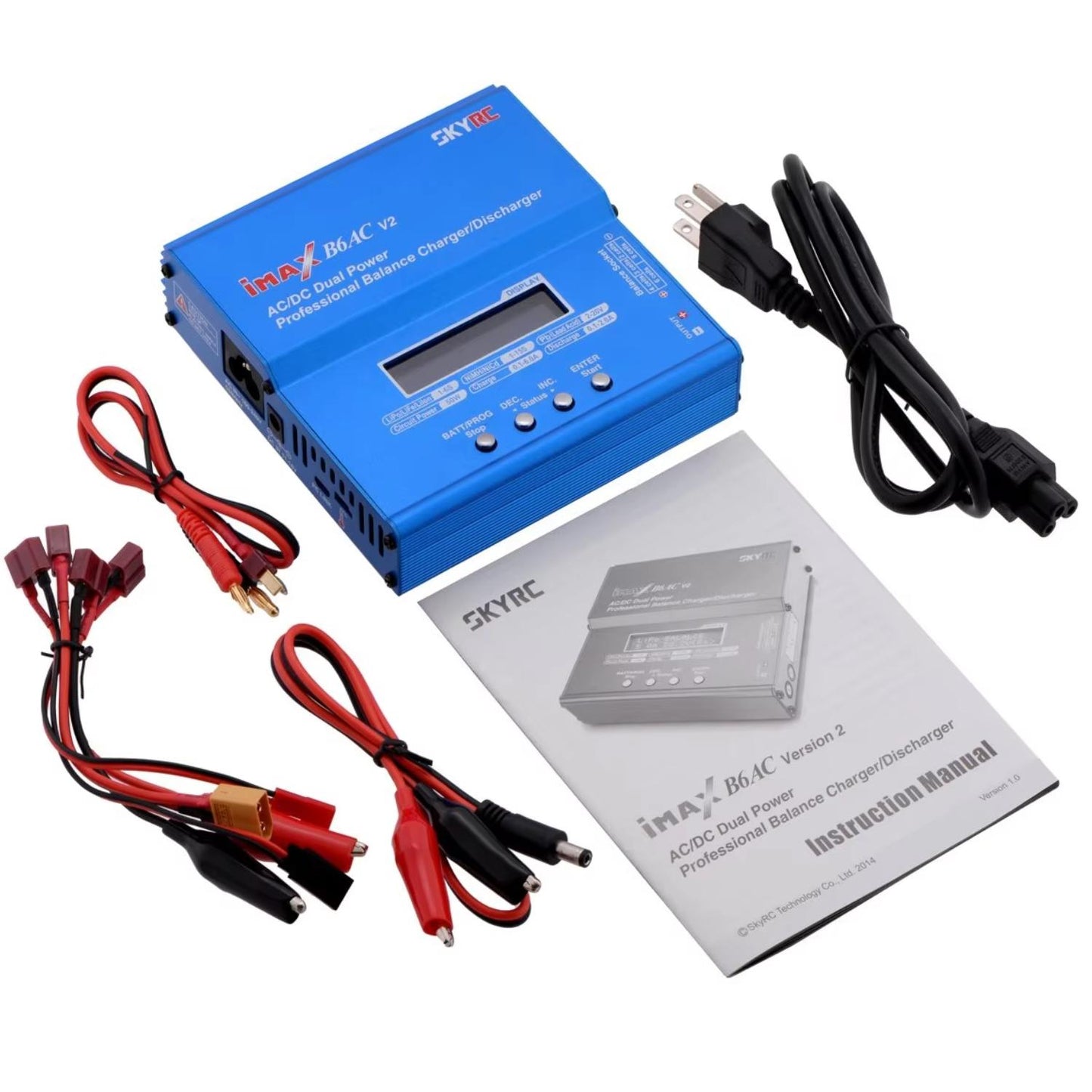

Package Included:
- 1 x 1 x SkyRC IMAX B6AC V2 Professional Balance Charger.

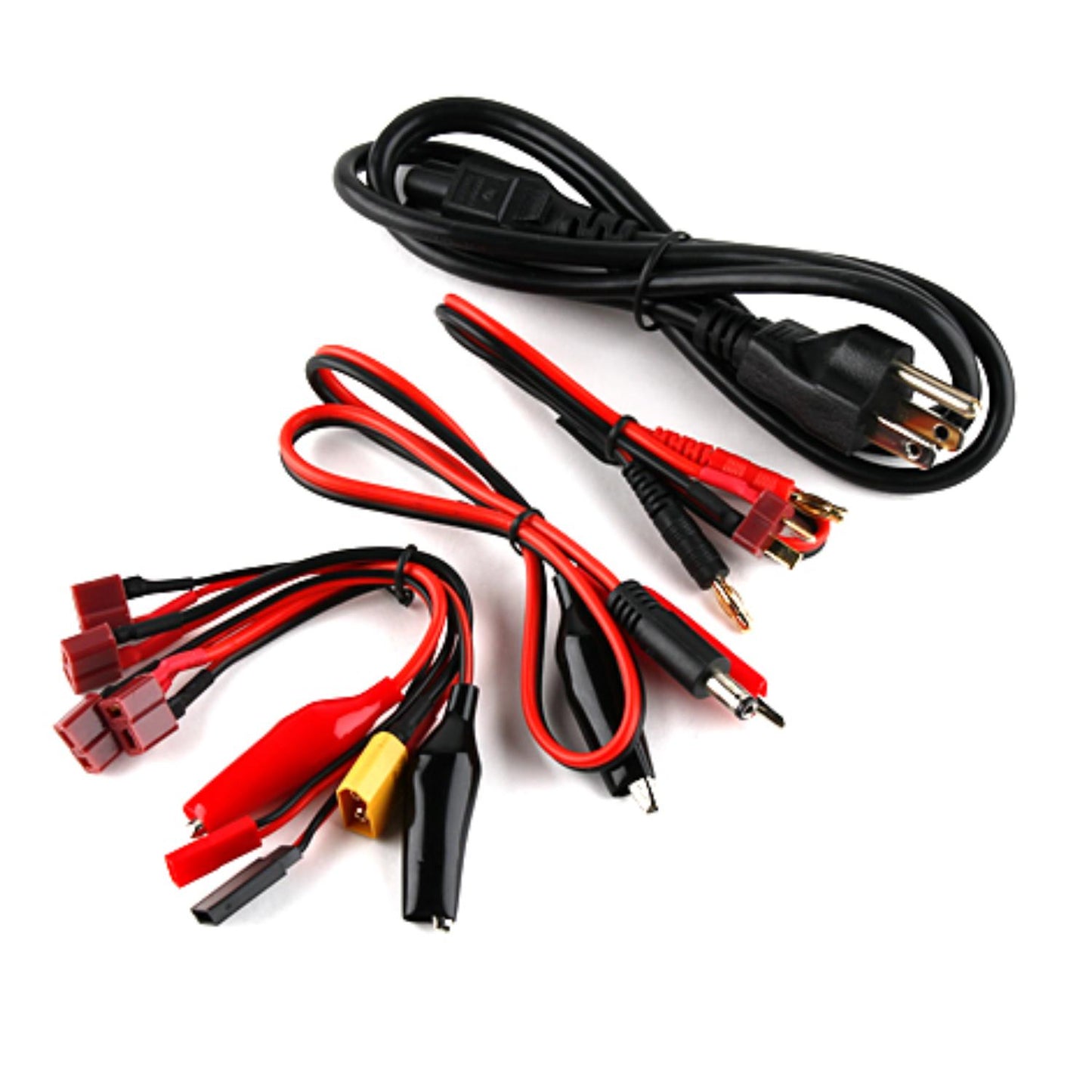

- 1 x AC 100-240V 50/60 Hz 16A power Cord with Eu Plug.
- 1 x DC Jack plug to crocodile clips.
- 1 x male T connector charge lead to 4mm banana plugs
- 1 x XT60 charge lead
- 1 x JST charge lead
- 1 x Crocodile clip charge lead
- 1 x Futaba style charge lead.
- 1 x English manual.
