Description:

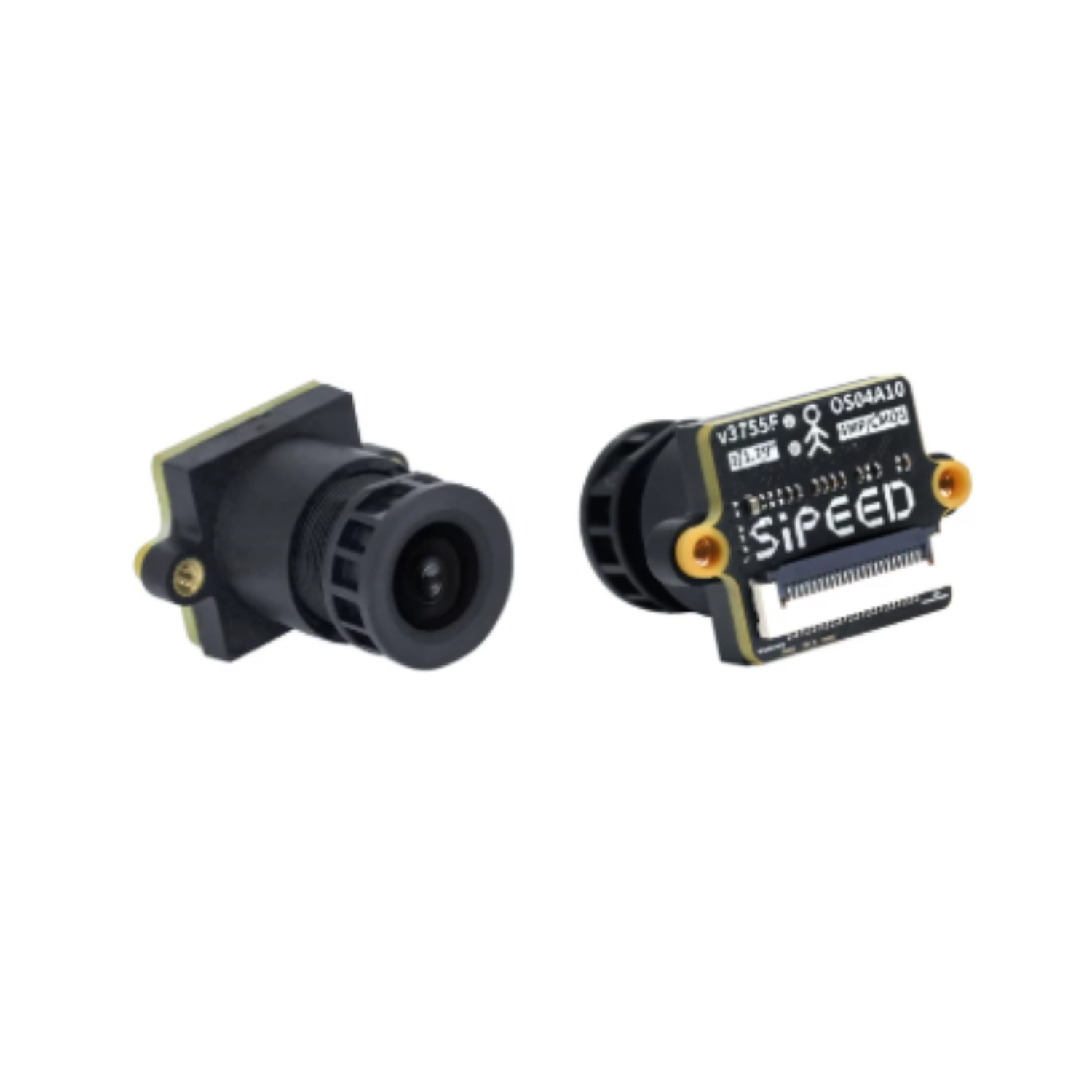

The Sipeed OS04A10 4MP Embedded Vision Camera Module with NIR Support is a high-performance AI vision camera designed for advanced embedded imaging, robotics, and computer vision applications. Powered by the powerful OS04A10 4MP image sensor, this module delivers exceptional low-light performance, HDR imaging, and near-infrared (NIR) sensitivity for accurate image capture even in challenging lighting conditions. Its compact design and MIPI CSI interface make

It's ideal for AI boards, edge computing devices, smart surveillance systems, machine vision, and IoT projects. With high sensitivity, wide dynamic range, and optimized image processing, the Sipeed OS04A10 camera module is a reliable solution for developers, makers, and AI enthusiasts building next-generation vision-based applications.

Specifications:

  • Resolution & FPS: 2688x1520@30fps (2K / 4MP)
  • Pixel Size: 2.9µm x 2.9µm
  • Output Format: 16/12/10-bit RAW RGB
  • Shutter Type: Rolling Shutter
  • CRA: 9°
  • FOV: D100° H87° V49°
  • Max Exposure: 45s
  • Dynamic Range: >120dB (2x/3x staggered HDR)
  • Sensitivity: 32,000 e-/Lux-sec (green pixel @ 530nm illumination)
  • Operating Temp: -30°C ~ 85°C
  • Application: High-quality imaging, color night vision, HDR, higher heat

Features:

  • 4MP High-Resolution Embedded Vision Camera
  • Advanced OS04A10 Image Sensor for Clear Imaging
  • Excellent Low-Light & Night Vision Performance
  • NIR (Near Infrared) Support for AI Vision Applications
  • HDR Technology for Enhanced Dynamic Range
  • High Sensitivity 2.9μm Large Pixel Size
  • Compact & Lightweight Design for Embedded Systems

Package Included:

1 x Sipeed OS04A10 Camera Module
