Description:

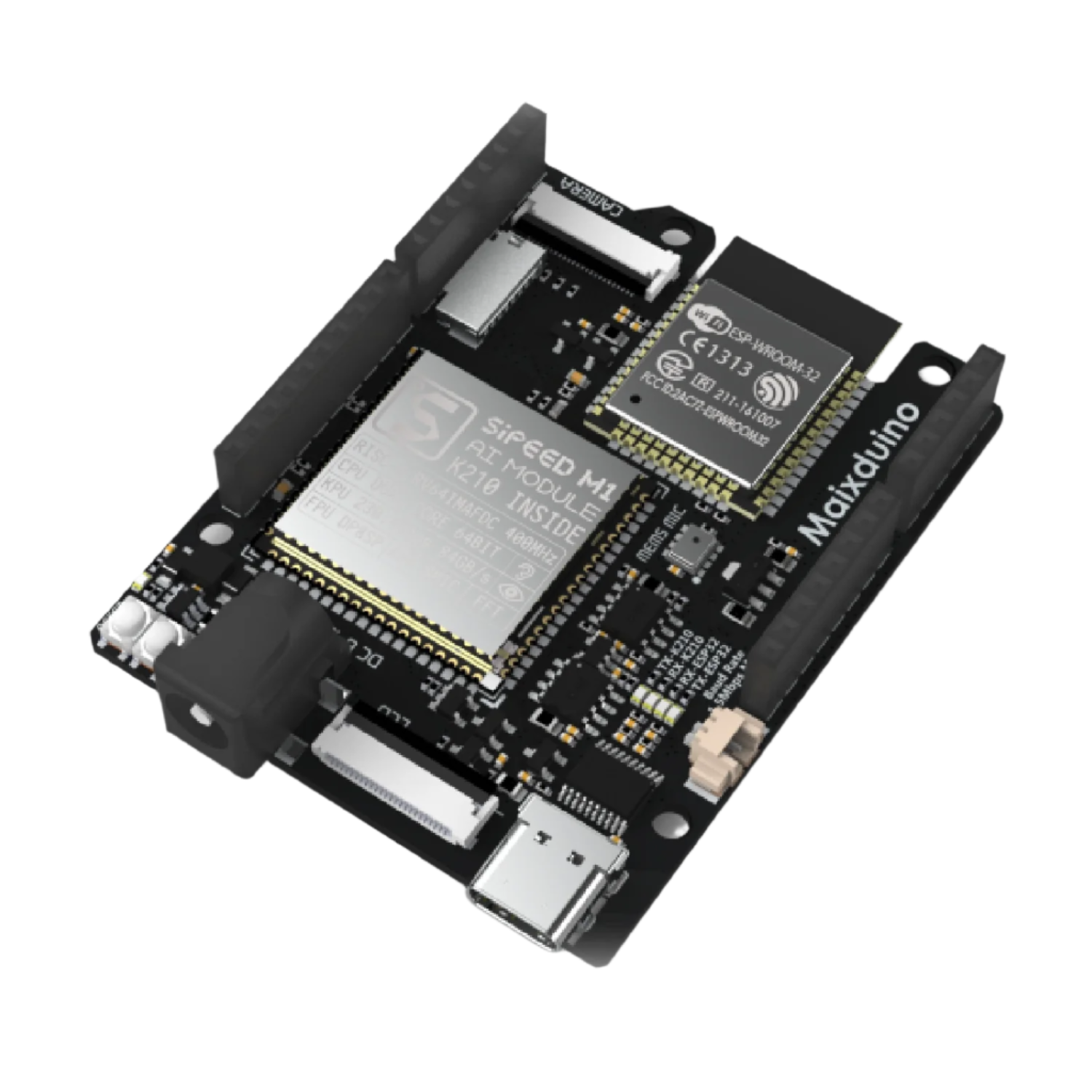

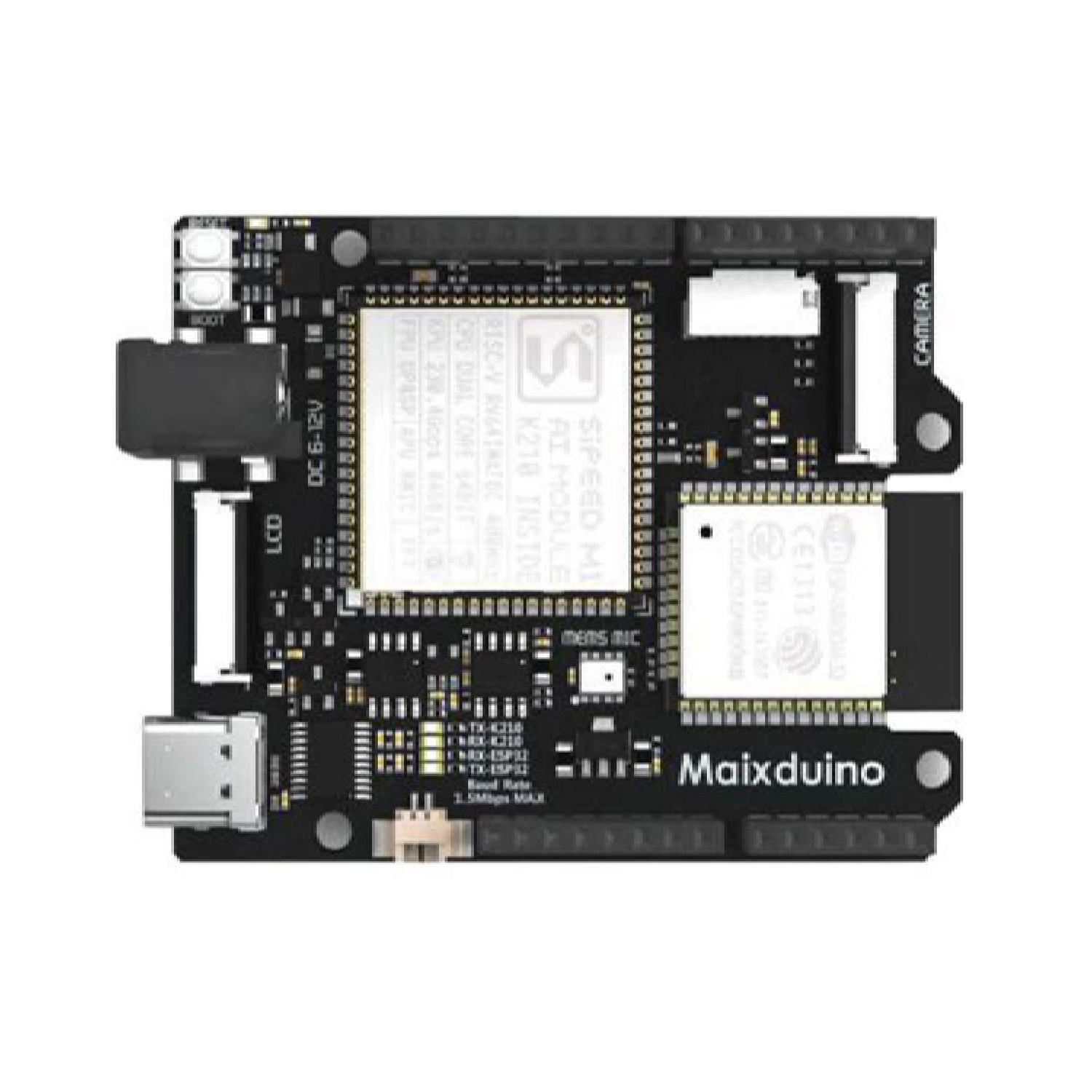

The Sipeed Maixduino RISC-V AI + IoT Development Board is a versatile development board designed for Artificial Intelligence (AI) and Internet of Things (IoT) applications. Built around a powerful RISC-V 64-bit processor, the Maixduino leverages the MAIX module to provide a robust platform for your projects. What sets the Maixduino apart is its Arduino Uno form factor, making it compatible with a wide range of readily available shields and accessories.
This board integrates an ESP32 module for Wi-Fi and Bluetooth connectivity, alongside the MAIX AI module for accelerated machine learning capabilities. It also includes a ZV-T01-GA4.4 camera module, enabling computer vision applications right out of the box. Whether you're a beginner exploring AI and IoT or a seasoned developer looking for a flexible platform, the Maixduino offers a compelling solution for your embedded projects.
Specifications:
| Item Type: |
Sipeed Maix |
|---|---|
| Power Input |
USB Type-C DC-DC step-down circuit:support 6-12V input;Provide 5V 1.2A output |
| Supported |
MSM261S4030H0 is an omnidirectional, Bottom-ported, I2S digital output MEMS Microphone. It has high performance and Reliability, Self-elastic card holder |
| DVP Camera interface |
24P 0.5mm FPC connector |
| LCD connector |
8bit MCU LCD 24P 0.5mm FPC connector |
| Audio Output |
DAC+PA: TM8211:16 bit dynamic range;Low harmonic distortion NS4150:3W output power;Up to 90% efficiency; |
| ESP32 module |
Support 2.4G 802.11.b/g/n 802.11 n (2.4 GHz) speeds up to 150 Mbps Bluetooth v4.2 full standard, including traditional Bluetooth (BR/EDR) and Bluetooth Low Energy (BLE) |
| Input Supply Voltage (VDC) |
4.8V ~ 5.2V, external power supply |
| Supply Current (A) |
>600mA, external power supply |
| Temperature rise |
<30K |
| Operating Temperature (°C) |
-30℃ ~ 85℃ |
| Wireless Standard |
802.11 b/g/n |
| Frequency |
2400Mhz – 2483.5Mhz |
| TX Power(Conduction test) |
802.11.b : +15dBm 802.11.g : +10dBm(54Mbps) 802.11.n : +10dBm (65Mbps) |
| Antenna Connector Type |
IPEX 3.0×3.0mm |
| WiFi Mode |
Station/SoftAP/SoftAP+Station |
Features:
- Onboard ESP32 module support 2.4G 802.11. b/g/n and Bluetooth 4.2
- Arduino Uno form factor, Arduino compatible interface
- Onboard omnidirectional I2S digital output MEMS Microphone
- 24P 0.5mm FPC connector for DVP Camera
- 8bit MCU LCD 24P 0.5mm FPC connector
- Support self-elastic micro SD card holder
- Reset and boot button; 3W DAC+PA Audio output
- Just connect the USB Type-C cable to complete the download
- Machine vision based on convolutional neural network
- High-performance microphone array processor for machine hearing
- Support MaixPy IDE, Arduino IDE, OpenMV IDE, and PlatformIO IDE
- Support Tiny-Yolo, Mobilenet, and TensorFlow Lite for deep learning

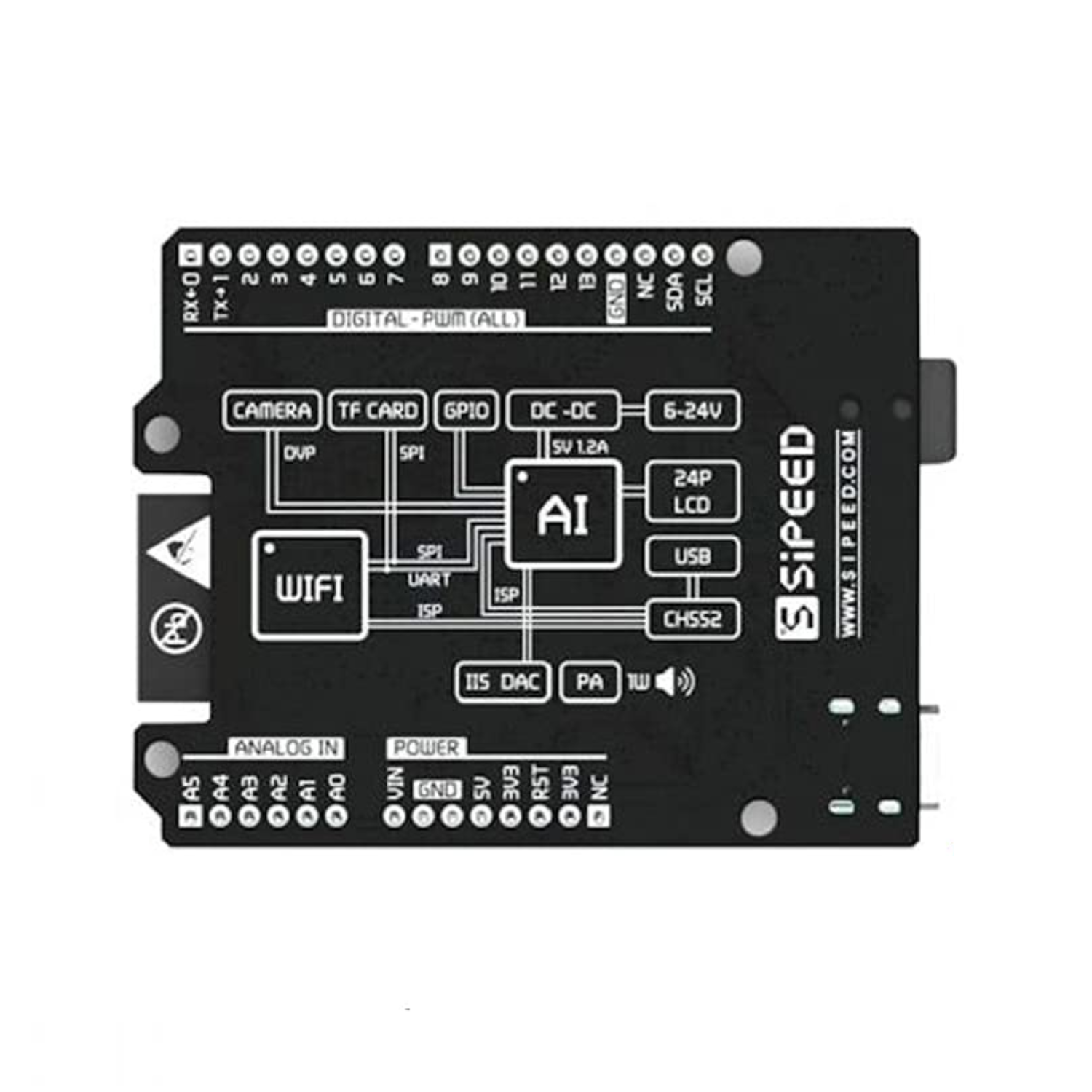

Pin Description:
Package Included:

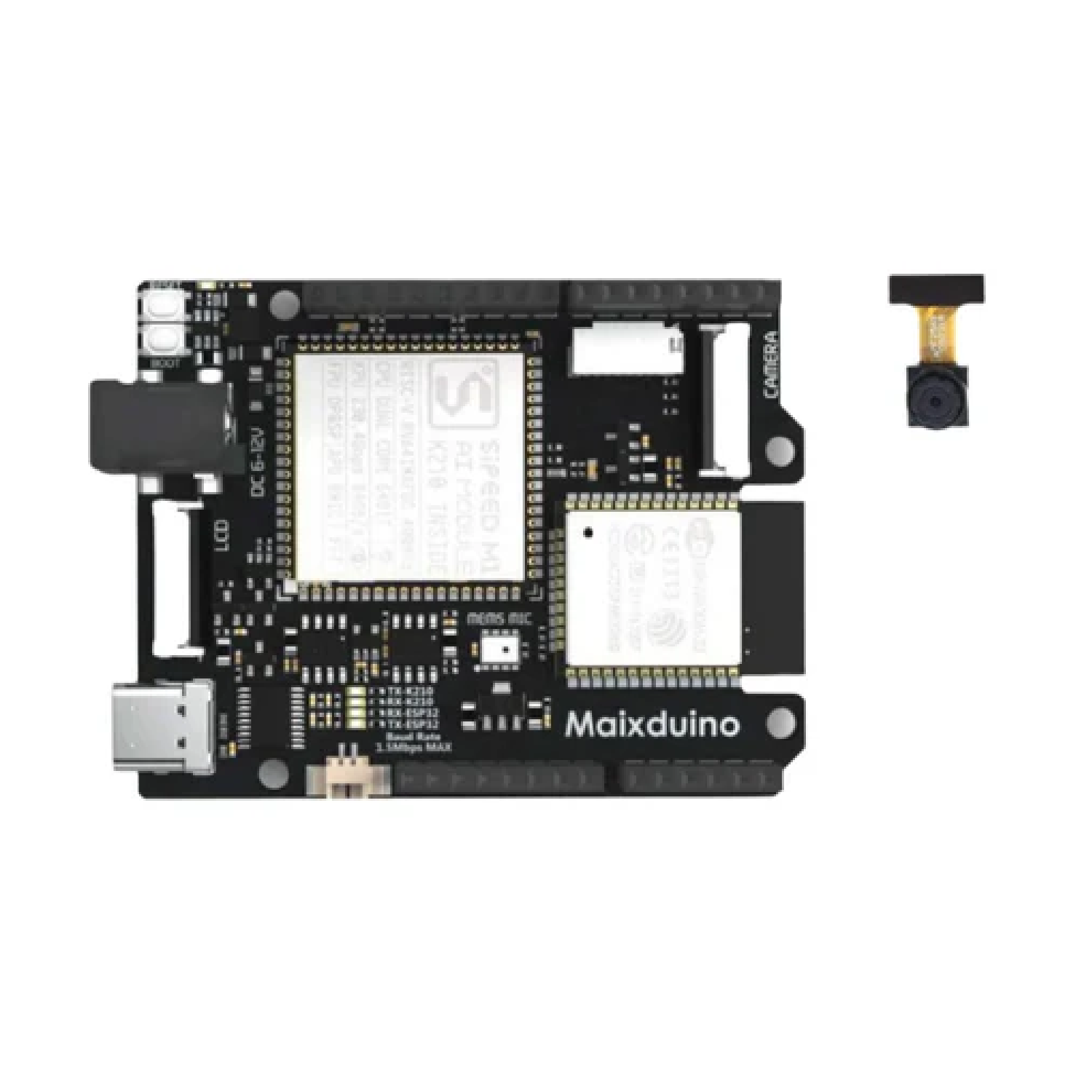

- 1 x Maixduino dev. board
- 1 x OV2640 camera module
