Description:

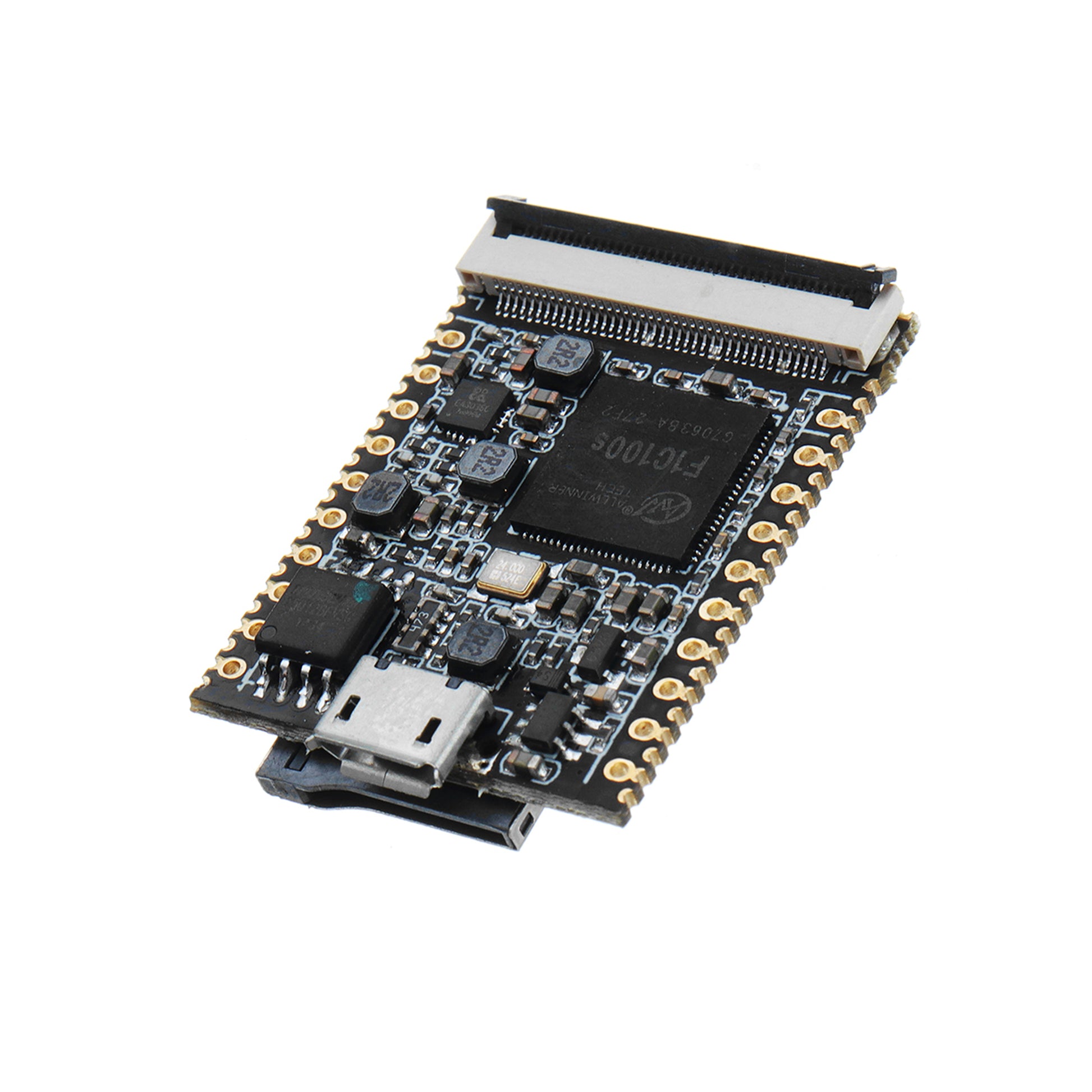

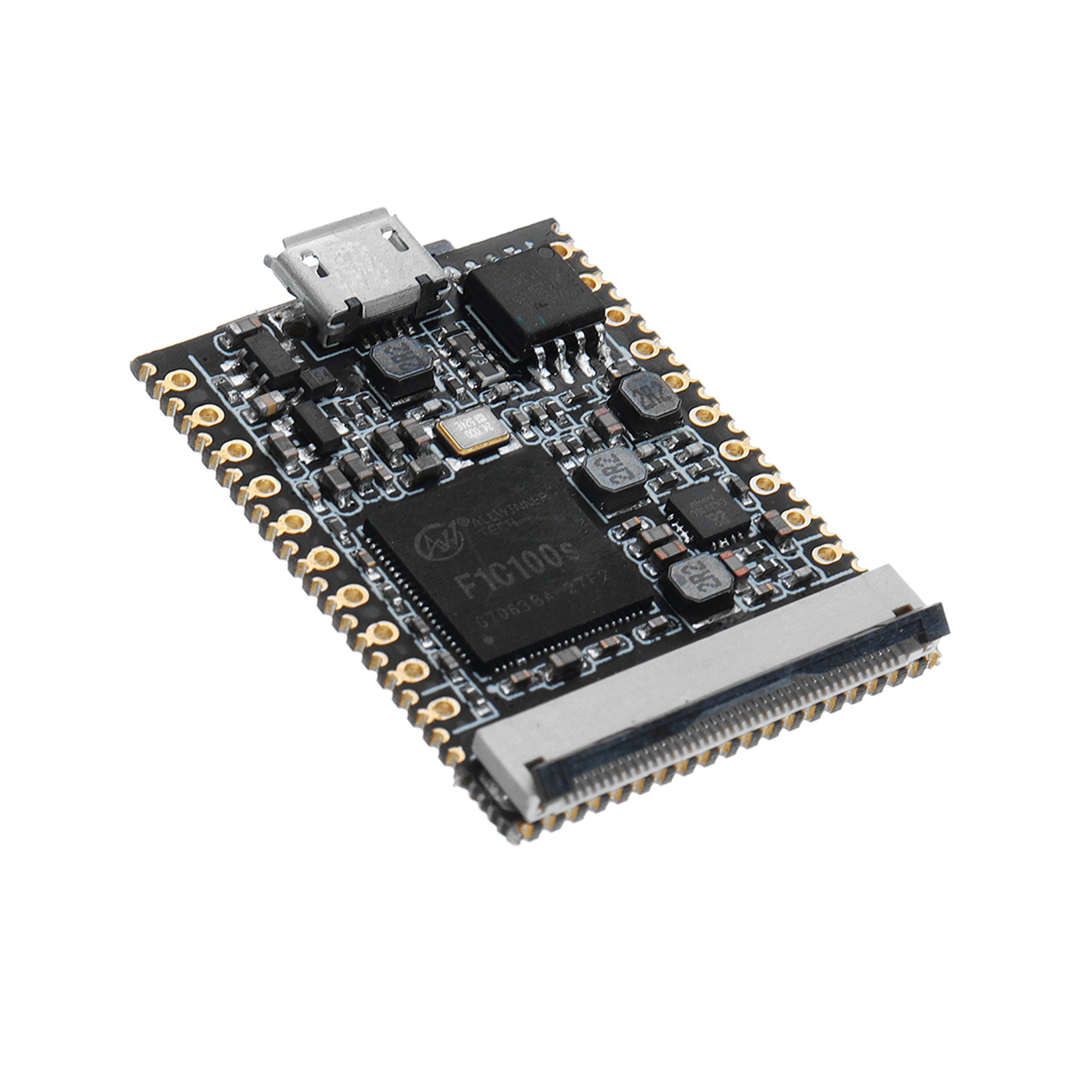

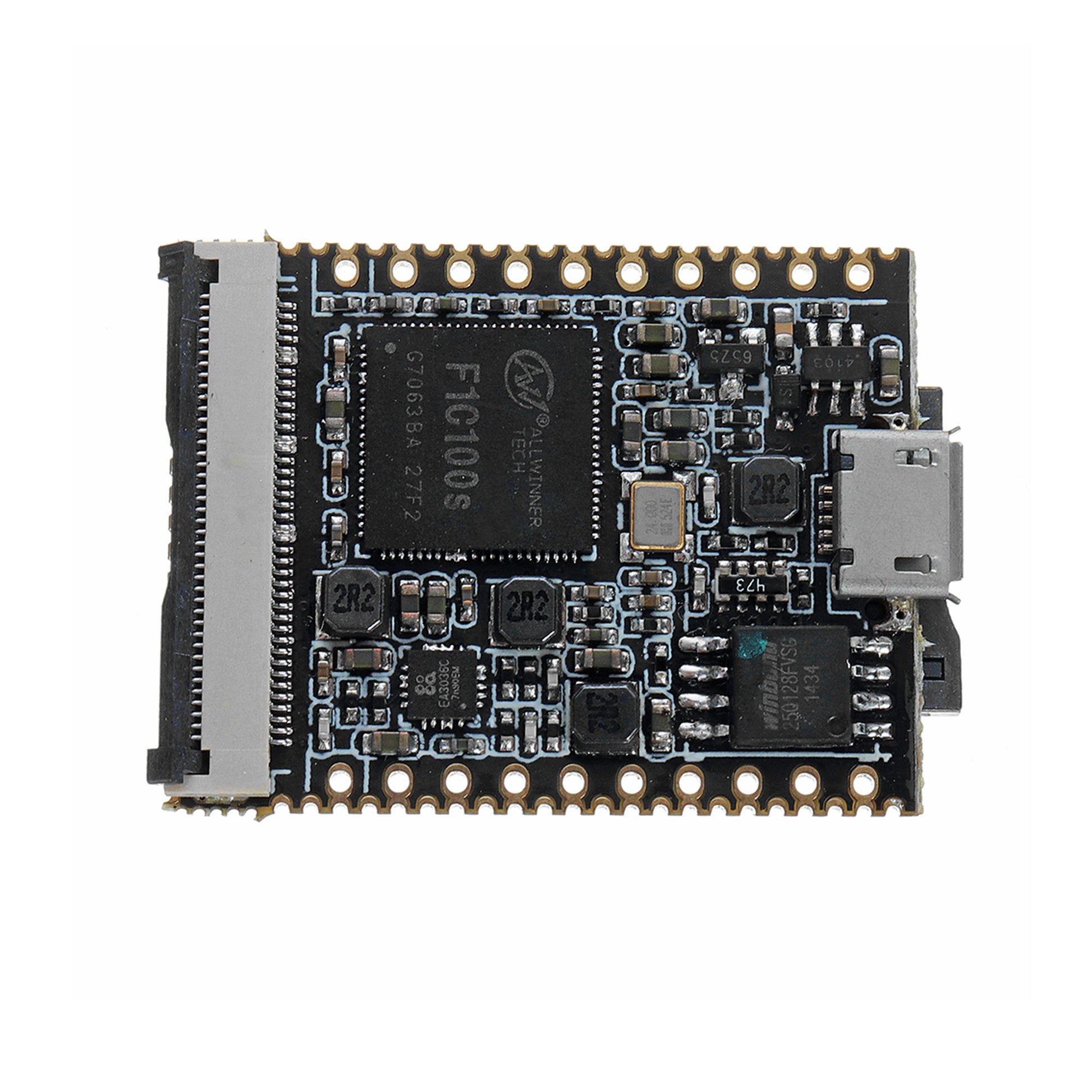

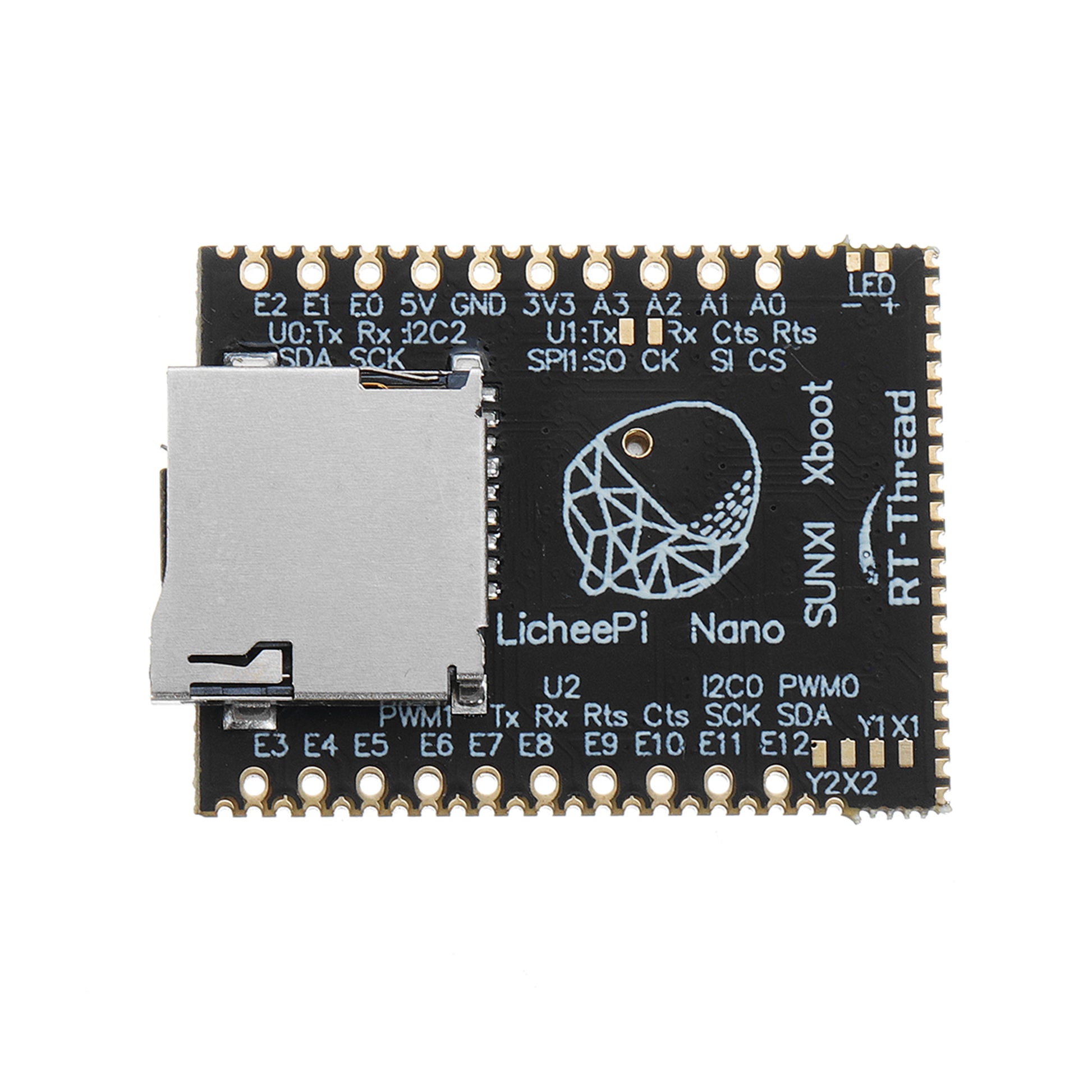

This is a Sipeed Lichee Nano Linux Development Board. Using F1C100s as the main chip of lichee pi Nano, Arm9 architecture, 16KB D-Cache, 32KB I-Cache, support boot from SPI Flash or TF card, support USB OTG loading update.
Specifications:
- CPU: Allwinner F1C100s, ARM 926EJS processor,up to 900MHz
- Memory: 32MB DDR integrated into SoC
- SPI Flash: 16MB
- Communication Interface: SDIO for WiFi module, SPI x2, TWI x3, UART x3, OTG USB x1, TV out
- Other Interface: PWM x2, LRADC x1, Headphone output x2, Mic x1
- Input Voltage: 5V via micro USB port, 3.3 to 5V via pin
- Output Voltage: 3.3V
- Power Consumption: 54mA (idle) with Linux, 250mA with display
- Storage Temperature: -40 ~ 125°C
- Operating Temperature: -20 to 70°C
Features:
- Micro USB 5V power supply; 2.54mm pin 3.3V~5V power supply; 1.27mm stamp hole power supply
- Output 3.3V, selectable input RTC voltage
- 900MHz linux no-load operating current 54mA, with screen operating current ~250mA
Also Supports:
- CSI Camera
- Full HD Video Engine (H.264, H.263, JPEG / MJPEG, etc.)
- RGB LCD Interface
- CVBS Input / Output
- Audio Codec
- I2S / PCM
- SD / eMMc

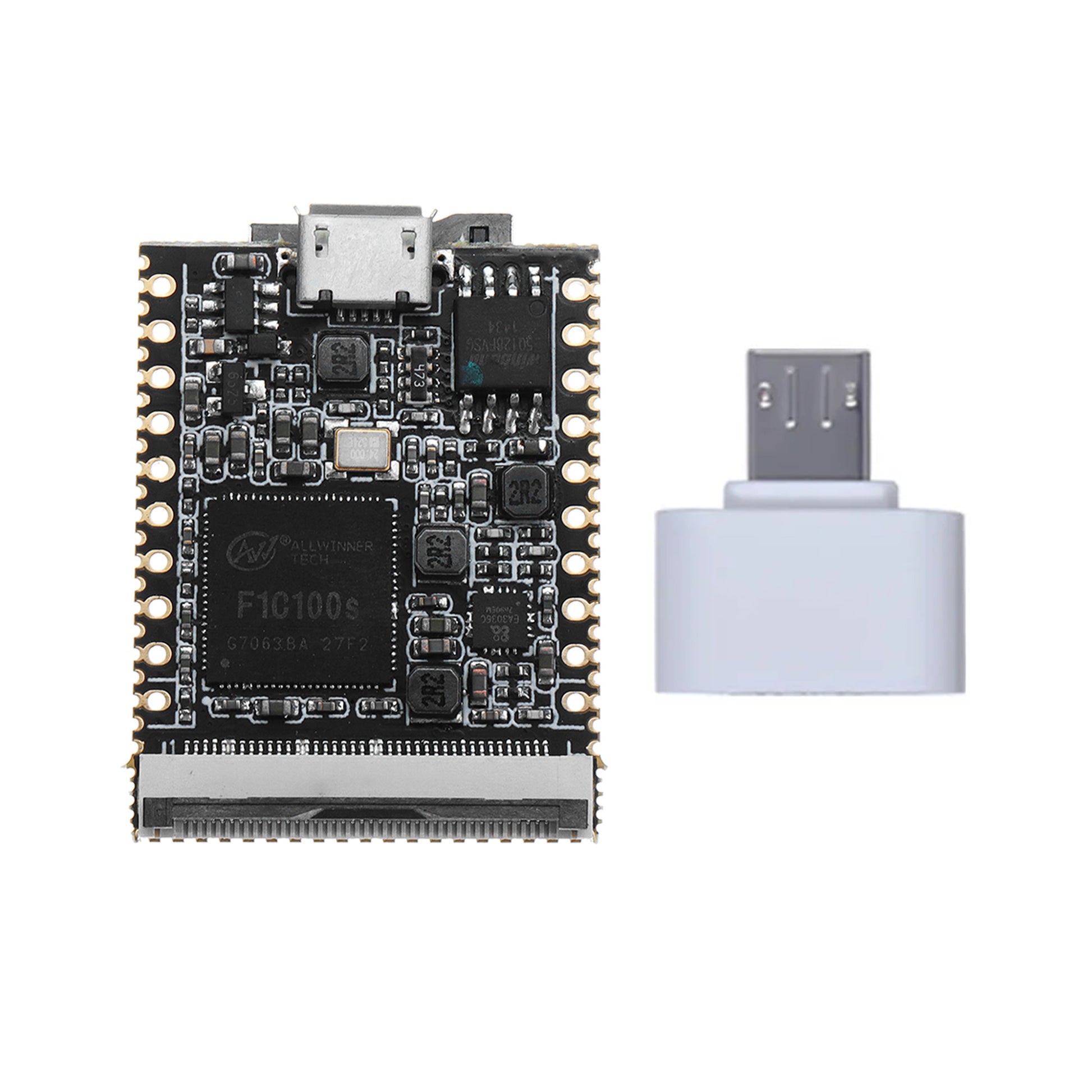

Package Included:
- 1 x Lichee Pi Nano Board
- 1 x Adapter
