Description:

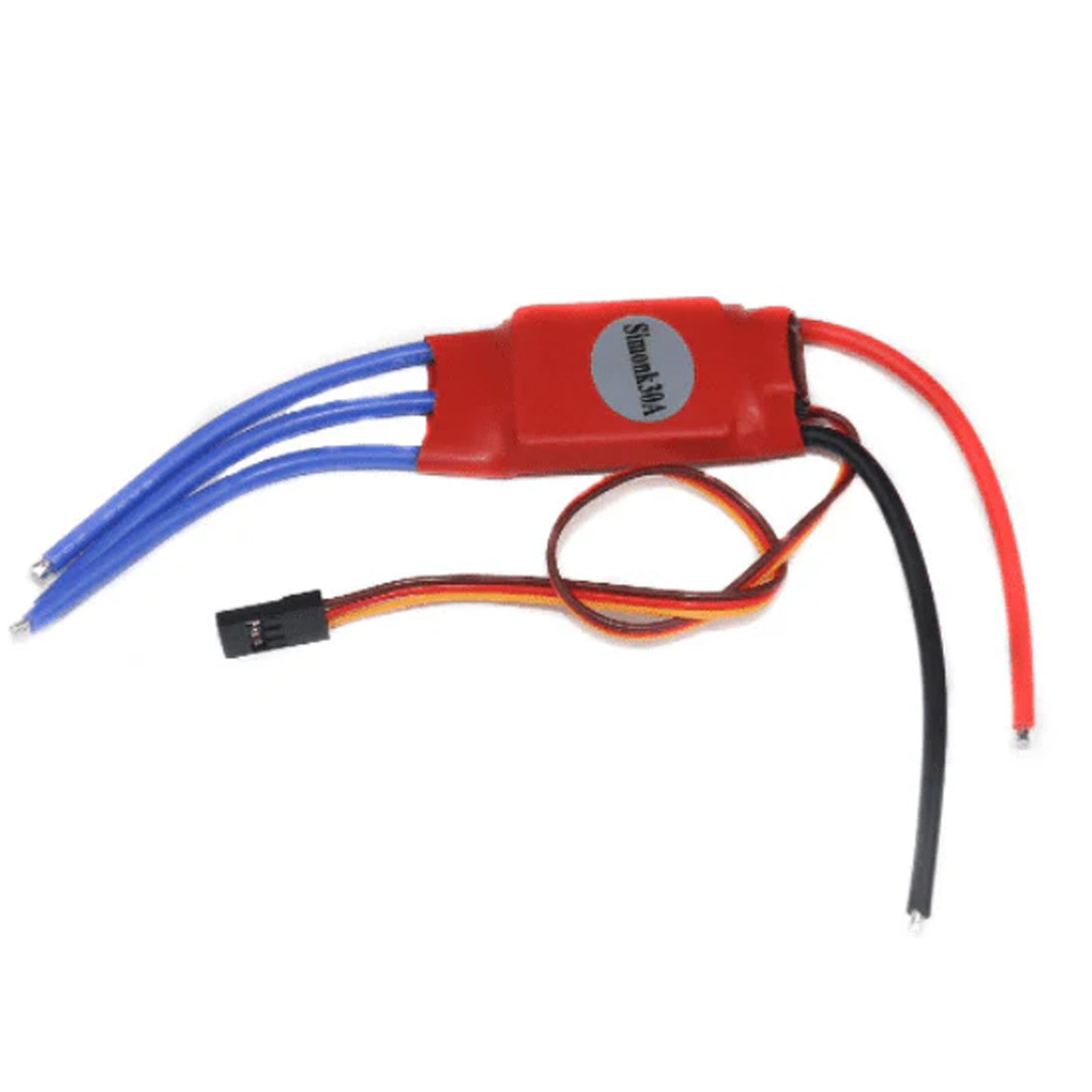

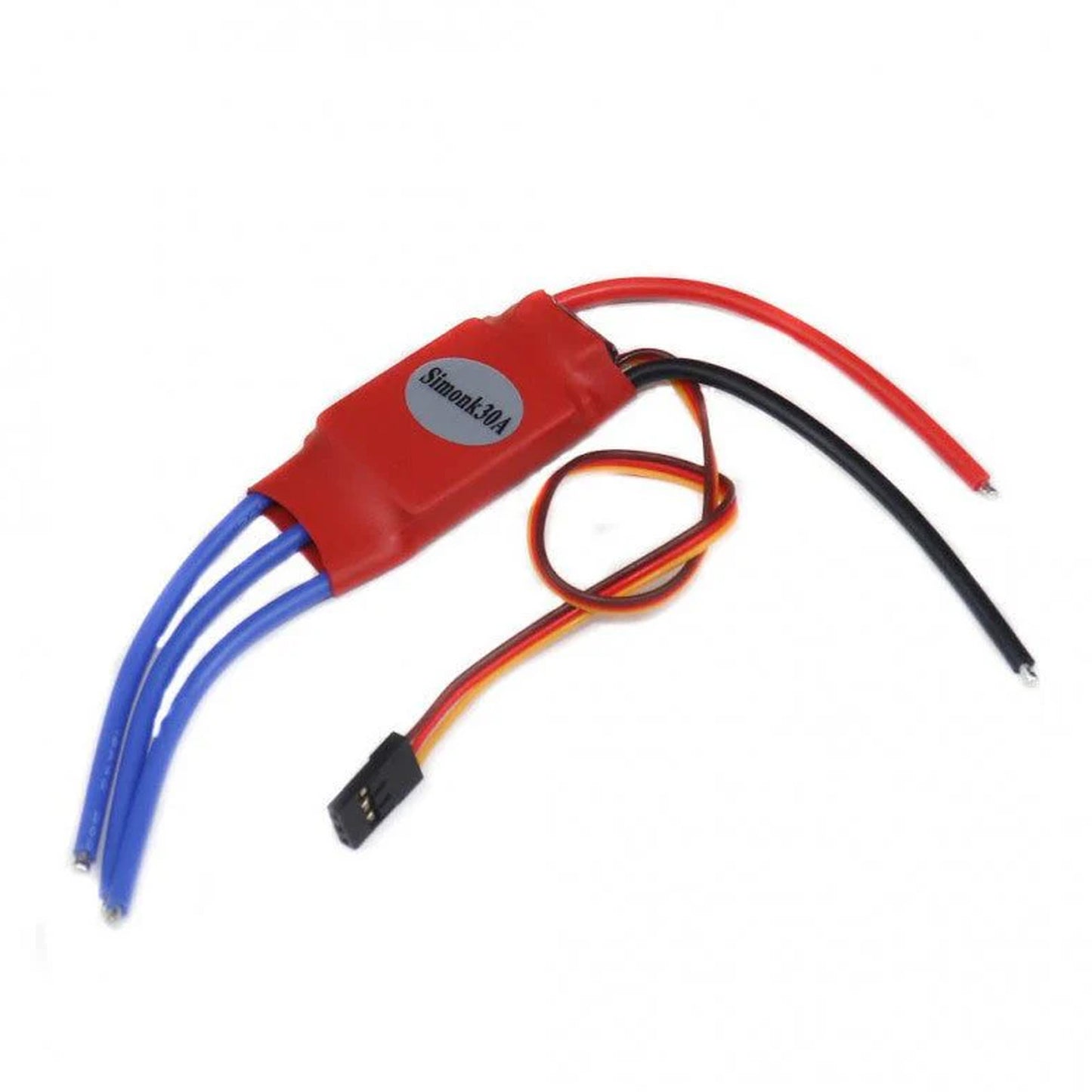

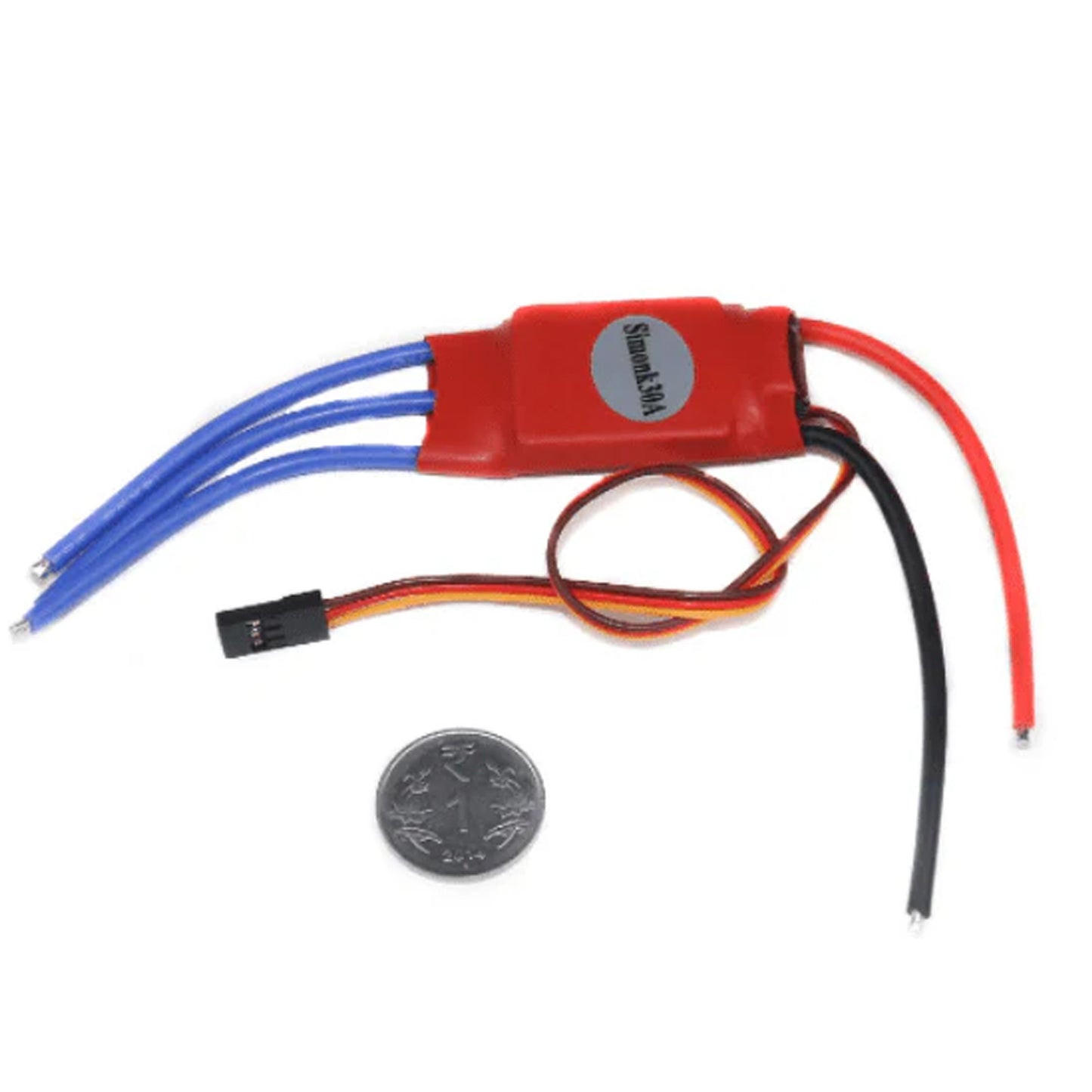

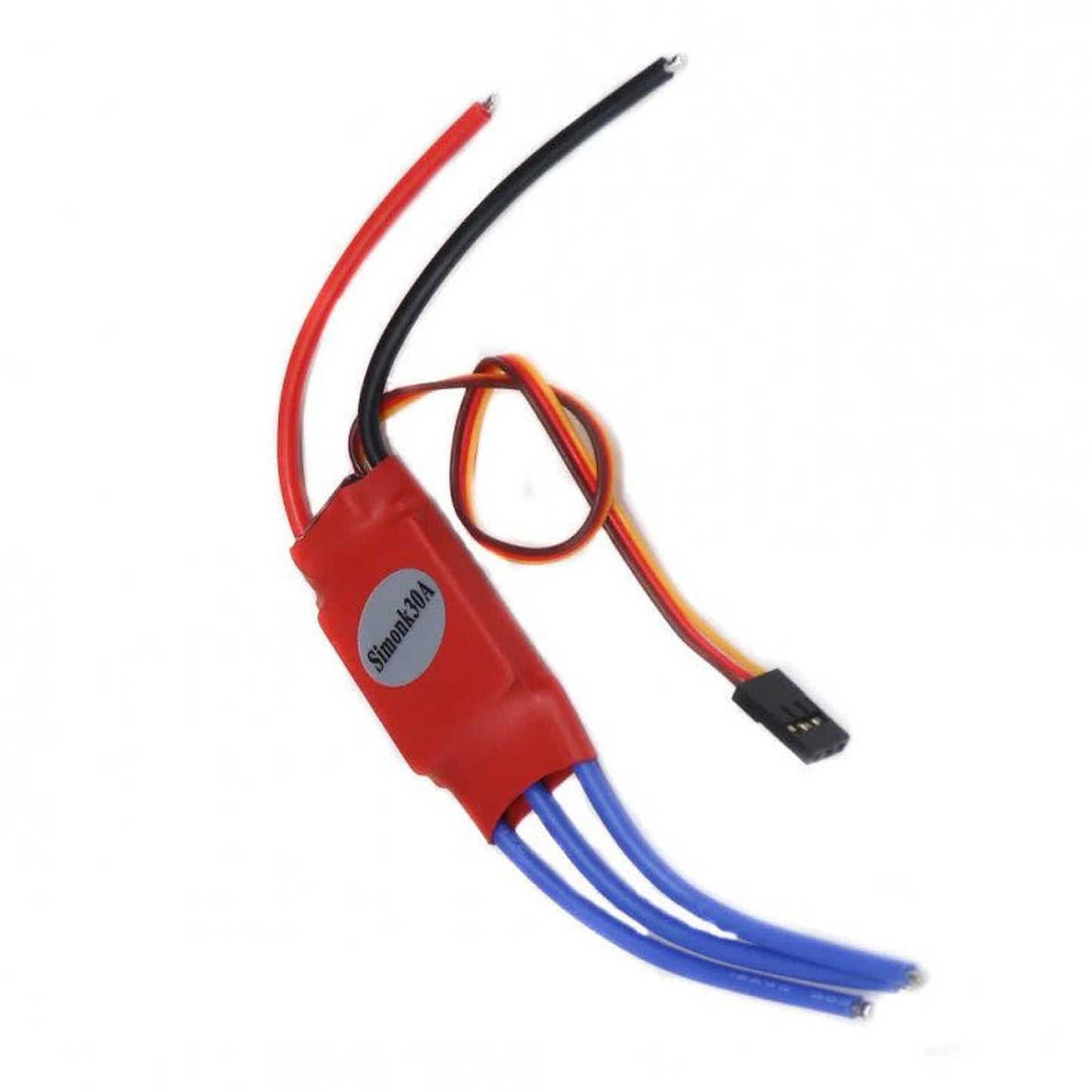

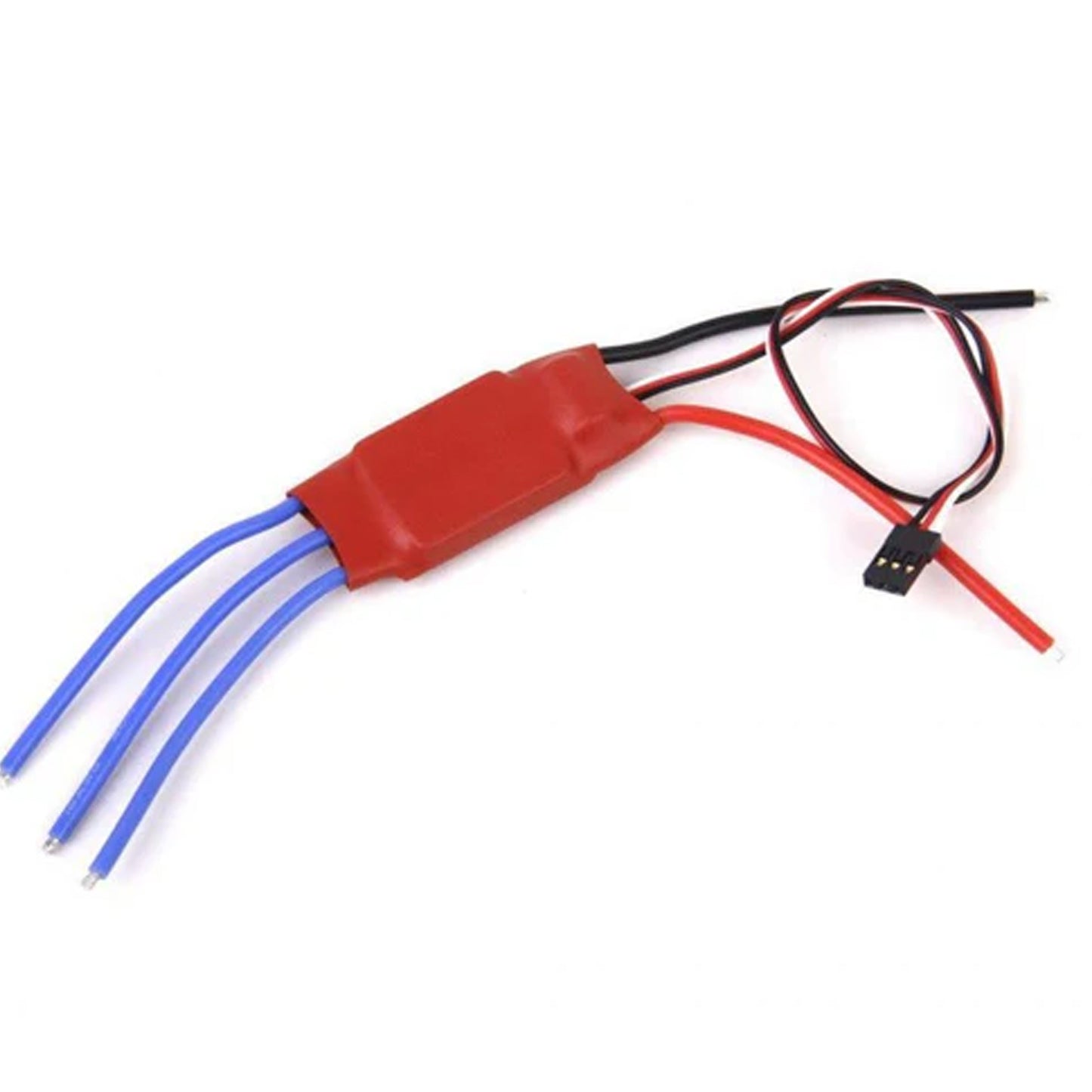

The Simonk 30A ESC is an Electronic Speed Controller (ESC)that is used to drive brushless DC motors and is capable of supplying current up to 30A. The 30A Simonk controller is made for quadcopters and multicopters to provide faster and better motor speed control.
This SimonK 30A BLDC ESC features a battery eliminator circuit (BEC) that provides 5V and 2A to the receiver or flight controller, so an extra battery to power those are not needed. These electronic speed controllers are best used with A2212 BLDC motors of 1000kv,1400kv, and 2200kv.
Specifications:
- Item Type: Brushless ESC
- Model: SIMONK 30A
- Burst Current (A): 40
- Constant Current (A): 30
- BEC (Y/N): (5V/2A), Yes
- Compatible LiPO Batteries: 2 to 3S
- Colour: Red
Features:
- High-quality MOSFETs for BLDC motor drive
- High-performance microcontroller for best compatibility with all types of motors at greater efficiency
- 3 start modes: Normal / Soft / Super-Soft, compatible with fixed-wing aircraft and helicopters
- The throttle range can be configured to be compatible with any remote control available in the market.
- Fully programmable with any standard RC remote control
- Heat sink with high-performance heat transmission membrane for better thermal management

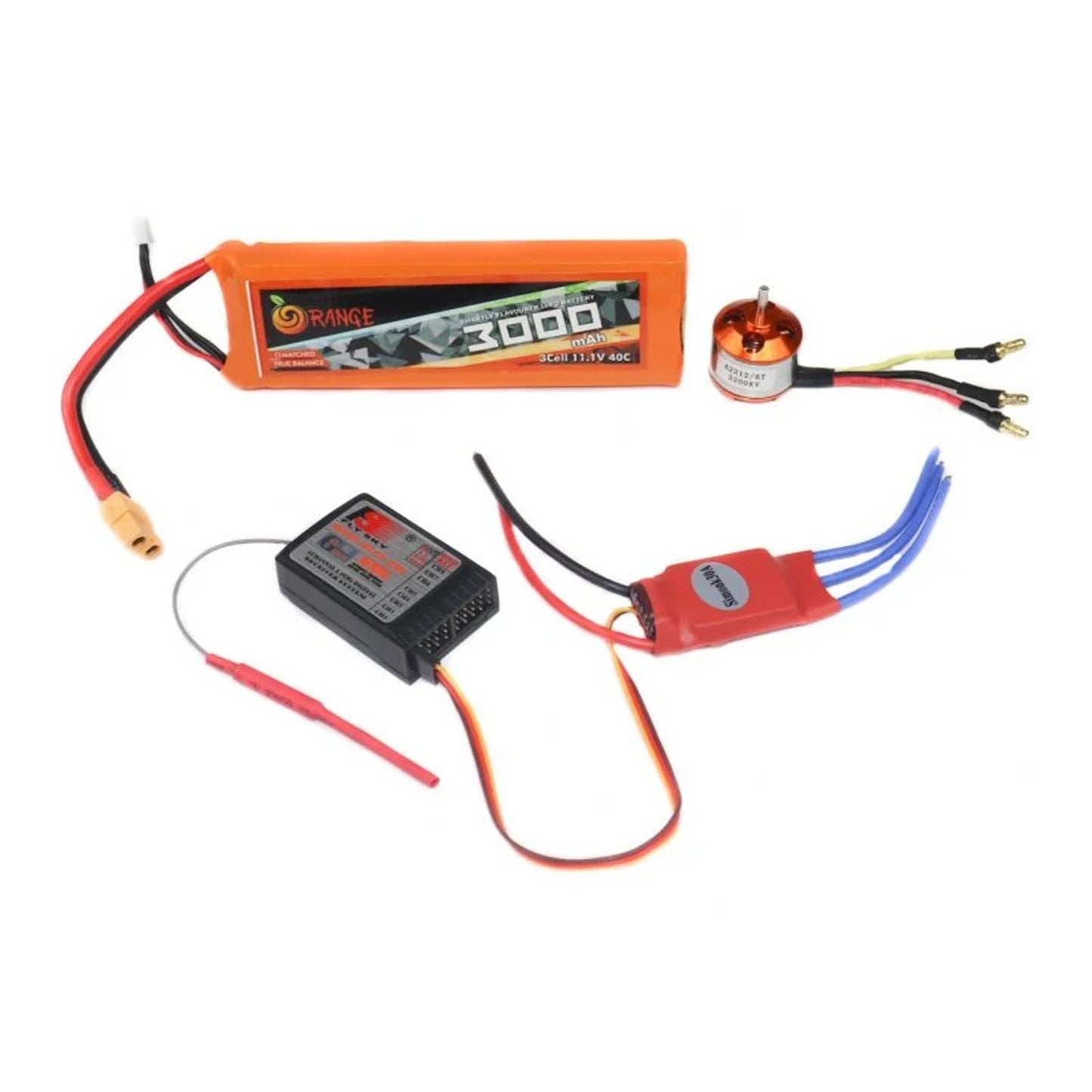

Connections:
Package Included:
1 x SimonK 30A BLDC ESC 30A 2-3S Brushless Electronic Speed Controller With 5V 30A ESC Without Connectors For Quadcopter Drone RC Electronic Speed Controller For RC Model
