Description:

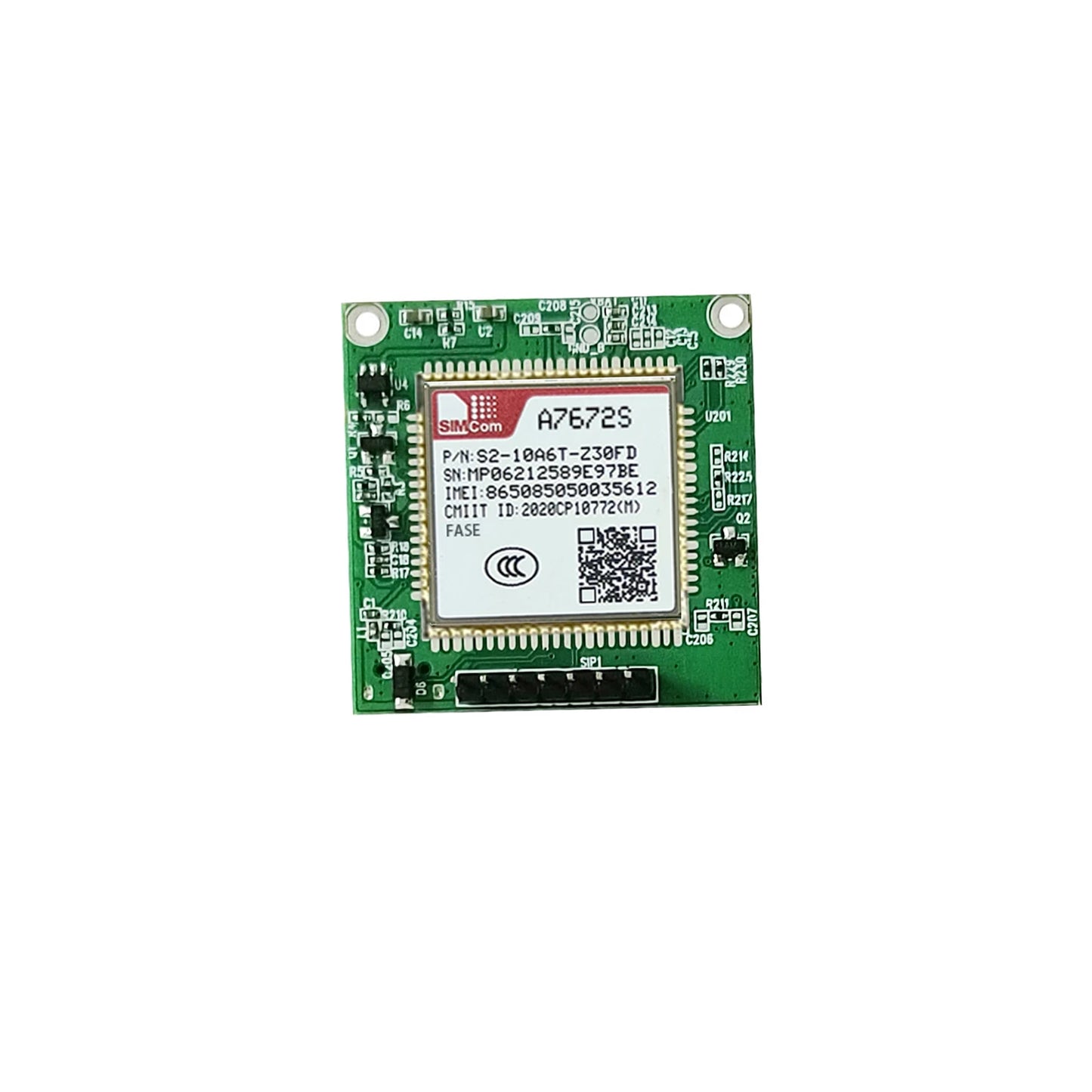

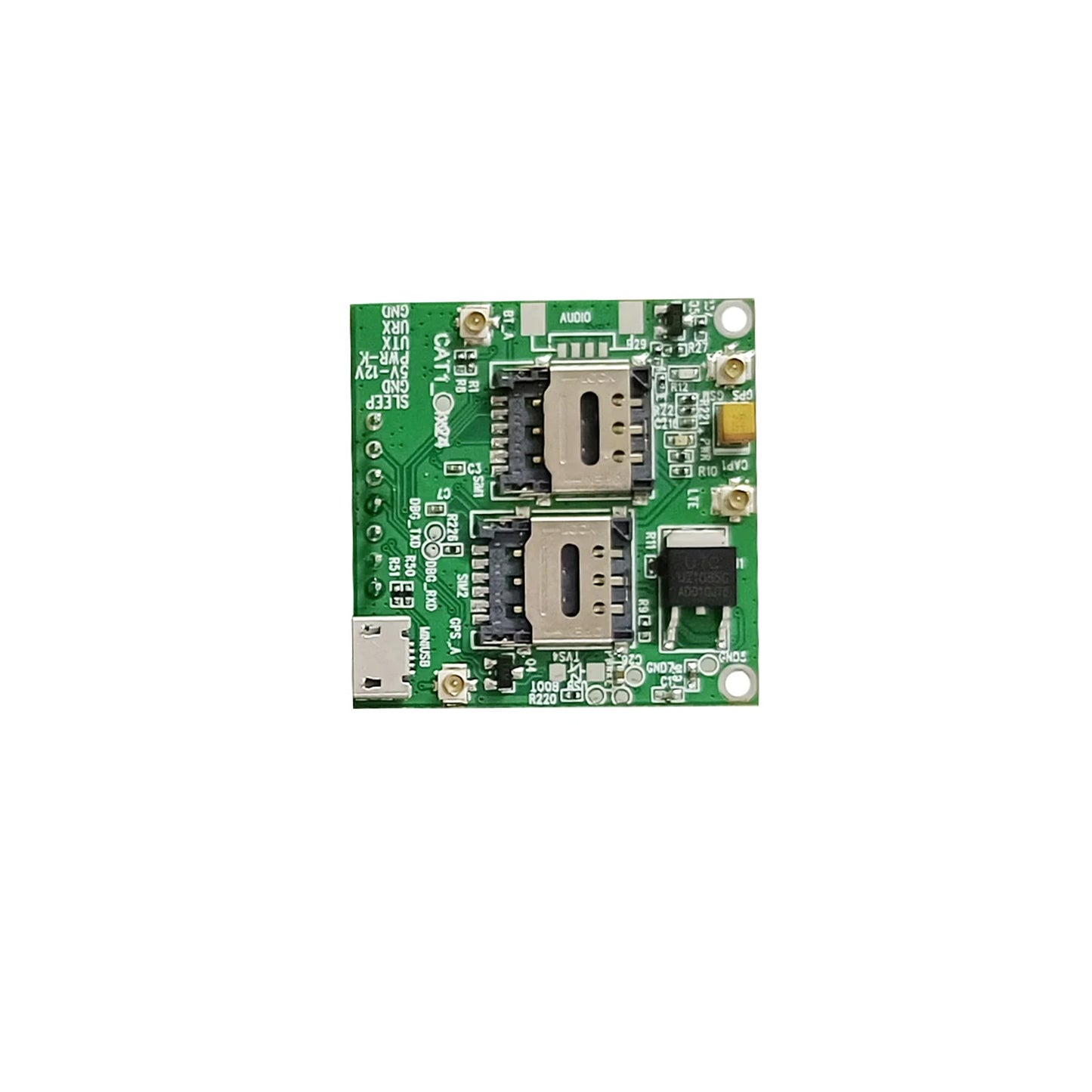

This is a SIMCOM A7672S-FASE Module Motherboard LTE Cat1 with GNSS VOICE B1/B3/B5/B8/B34/B38/B39/B40/B41 compatible with SIM7000 SIM7070. It has a compact size with abundant interfaces. The form factor is compatible with the SIM7000/SIM7070 series
Specifications:
- Model: DD-MCore-A7672S-FASE
- Package: 7PIN(2.54mm
- Power: 5-16V DC
- UART: 3.3V TTL (Default)
- Antenna Interface: IPEX 1
- SIM Card: MIRCO SIM
- LED: Power/Network light
- Operating Temperature: -40°C-85°C
- Network Band: LTE-TDD: B34/B38/B39/B40/B41, LTE-FDD: B1/B3/B5/B8, GSM/GPRS/EDGE: 900/1800 MHz
- Network Speed: LTE:10Mbps(DL) 5Mbps(UL), GPRS: 85.6Kbps
- Network Protocol: TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/DNS/RNDIS/ECM/PPP
- Function: LTE CAT1+4G+2G+Voice+BT+GNSS
Features:
- Compact size with abundant interfaces
- Supports BLE and GNSS functions
- Abundant software features: FOTA, LBS, SSL
- The form factor is compatible with the SIM7000/SIM7070 series
Package Included:
1 x SIMCOM A7672S-FASE Module Motherboard LTE Cat1 with GNSS VOICE B1/B3/B5/B8/B34/B38/B39/B40/B41 compatible with SIM7000 SIM7070
