Description:
A7672S Development Board adopts LCC+LGA form factor and is compatible with SIM7000/SIM7070 series (NB/Cat M modules), and SIM800A/SIM800F series (2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.
A7672S Development Board supports both multiple built-in network protocols and the drivers for main operation systems (USB driver for Windows, Linux and Android). The software functions and AT commands are compatible with the SIM800 series modules. A7672S also supports BLE* and GNSS* and it integrates abundant industrial standard interfaces with powerful expansibility, such as UART, USB, I2C and GPIO, which makes the A7672S Development Board perfectly suitable for main IOT applications such as telematics, POS, surveillance devices, industrial routers, and remote diagnostics etc.
Specifications:
- Model: CC-MCore-A7672S-FASE
- Package: 48PIN(2.54mm)
- Power: 5-16V DC
- UART: 3.3V TTL (Default)
- Antenna Interface: IPEX 1
- SIM Card: Micro SIM
- Network Band: TDD-LTE: B34/B38/B39/B40/B41, FDD-LTE: B1/B3/B5/B8, GSM/GPRS/EDGE: 900/1800 MHz
- Network Protocol: TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/D NS/RNDIS/ECM/PPP
- Function: LTE CAT1+4G+2G+BT+GNSS
Features:
- This is easy to install
- Compact size with abundant interfaces
- It has high Efficient Switching Regulator
Package Included:

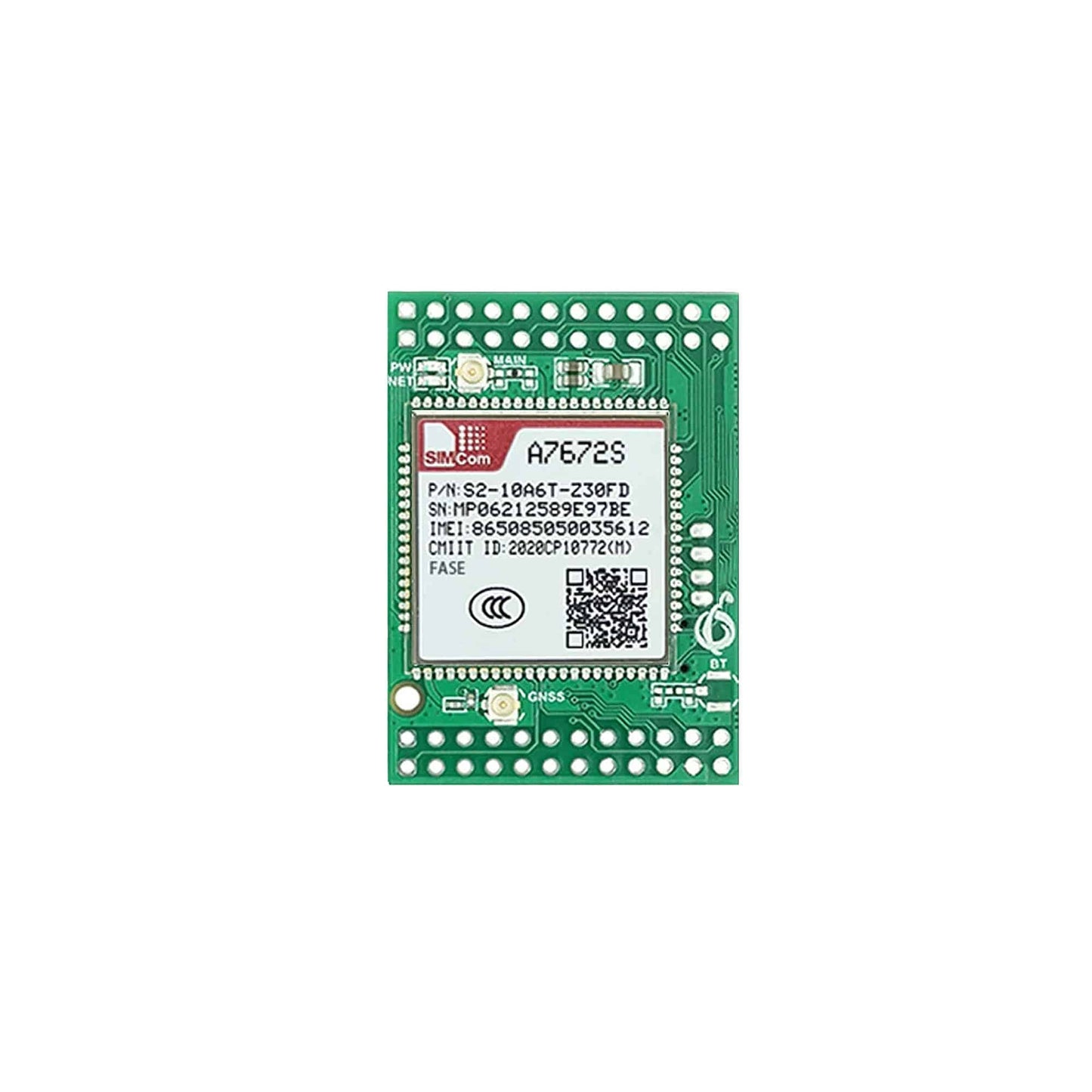

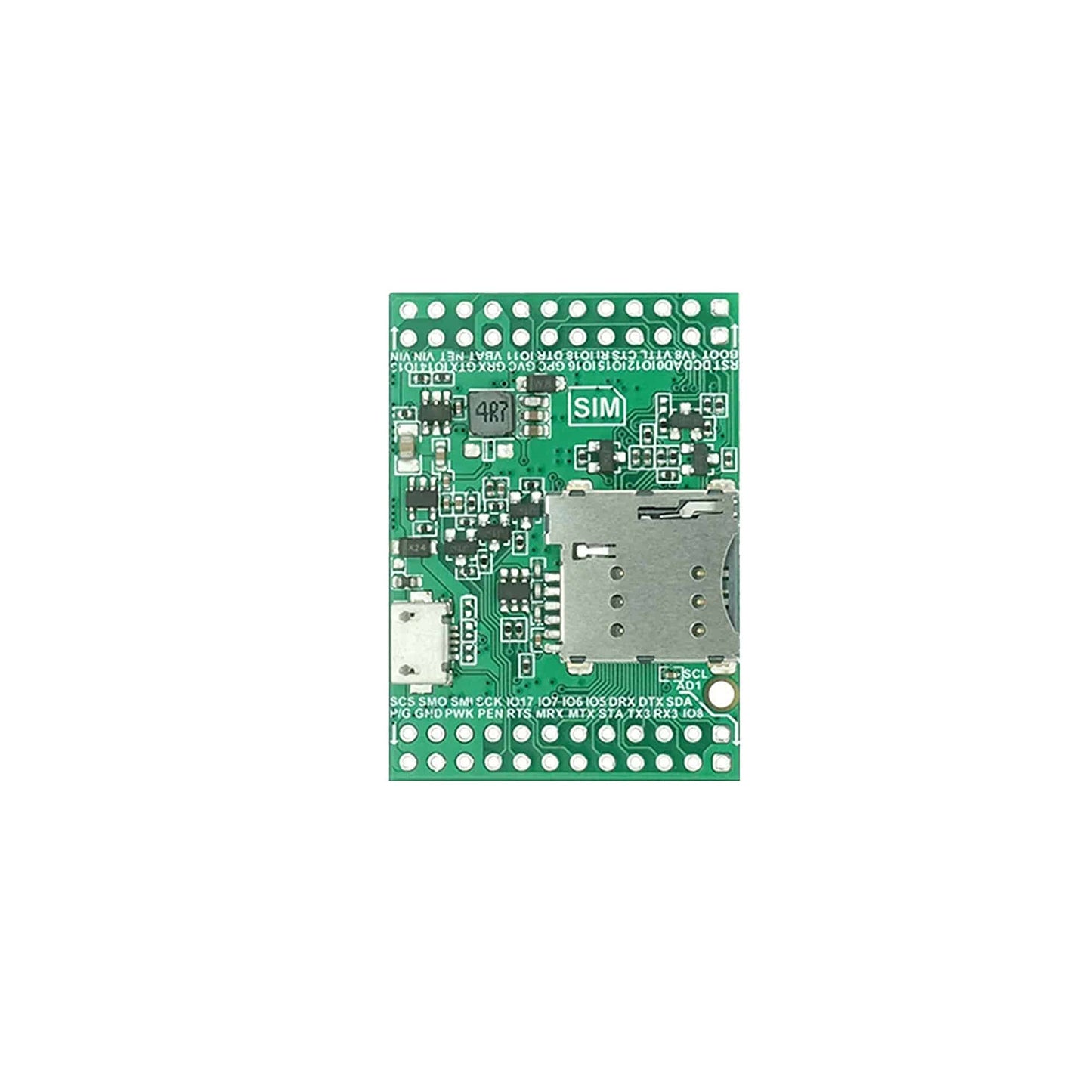

1 x SIMcom A7672S Development Board A7672S-FASE A7672S Development Board LTE CAT1+4G+2G+Voice+GNSS
