Description:
SIMCOM A7670C-LASS LTE 4G Module is The Cat-1 Module which supports wireless communication modes of LTE-TDD/LTE-FDD. It supports a maximum 10Mbps downlink rate and a 5Mbps uplink rate. A7670 provides 124 pins, including 80 LGA pins in the outer ring and 44 LGA pins in the inner ring.
The SIMCOM A7670C series adopts an LGA form factor and is compatible with SIM7000/SIM7070 series(NB/Cat M modules), and SIM800A/SIM800F(2G modules), which enables smooth migration from 2G/NB/Cat M products to LTE Cat 1 products, and greatly facilitates more compatible product design for the customer needs.
The SIMCOM A7670C-LASS supports multiple built-in network protocols, supports drivers for main operation systems(USB driver for Windows, Linux Android, etc.), and software function, AT commands are compatible with SIM7500/SIM7600 series modules.
The A7670 series integrates main industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, I2C, and GPIO, which is suitable for main IOT applications such as telematics, surveillance devices, POS, industrial routers, remote diagnostics, etc.
Specifications:
- Model Number: A7670C
- Output Voltage: 4.2V
- Power Consumption: 3.8mA
- Supply Voltage: 3.4~ 4.2V
- Support SIM Card: 1.8V/3.0V
Features:
- Suitable for LTE and GSM networks.
- Supports LTE-FDD, LTE-TDD, and GSM, frequency bands.
- Control via AT commands.
- SIM Card Holder.
- Power LED and Network Status.
- Powerful TCP/IP protocol stack for internet data transfer.
- Supports maximum 10Mbps downlink rate and 5Mbps uplink rate.
- Abundant software functions: FOTA, LBS, SSL.
- DC Jack input voltage 7-12V.
Package Included:

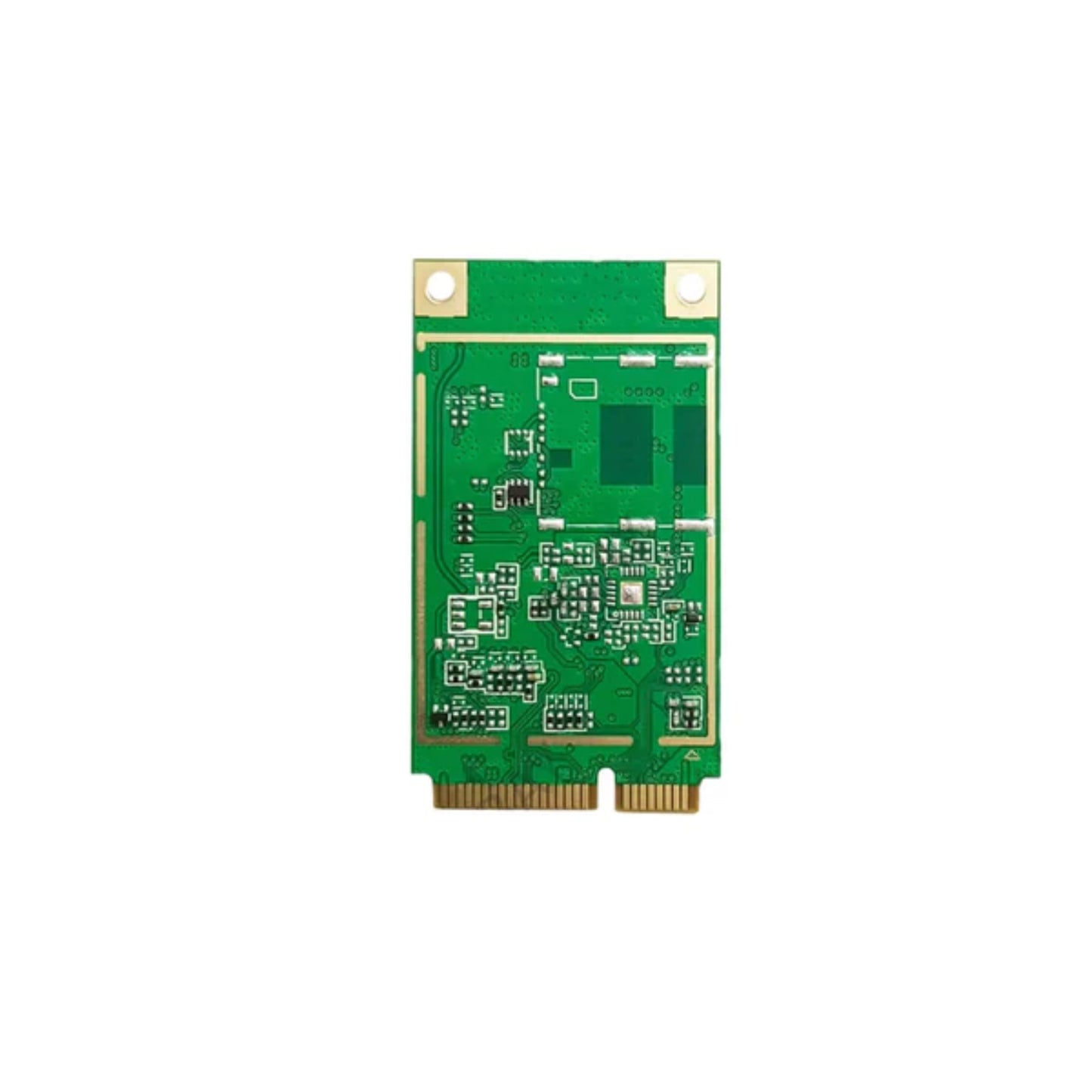

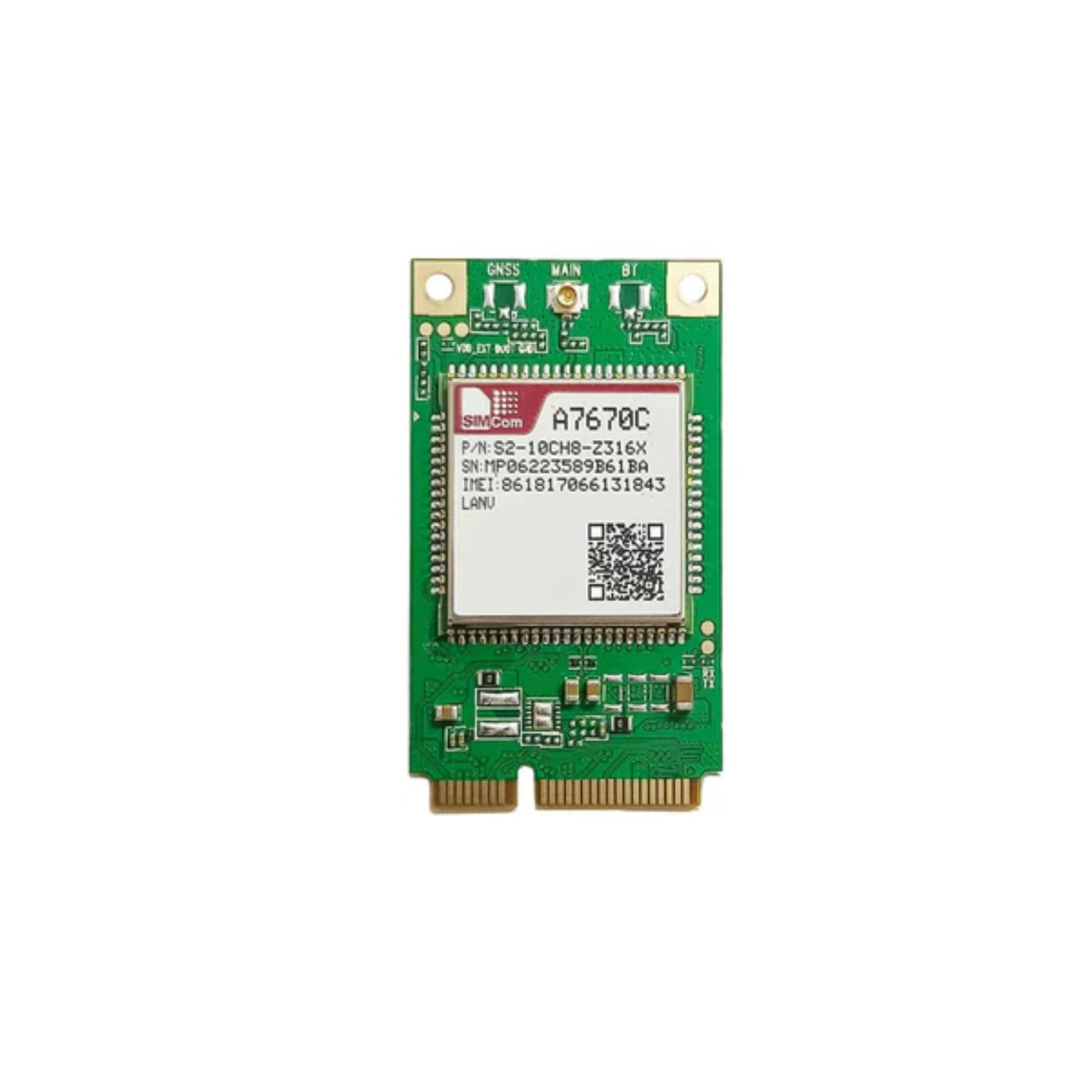

1 x SIMCOM A7670C LTE Cat1 PCIe Module A7670C LTE Cat1 Cellular Module With PCIe Compact and Reliable Cellular Connectivity For PCIe-Based Devices And Systems
