Description:

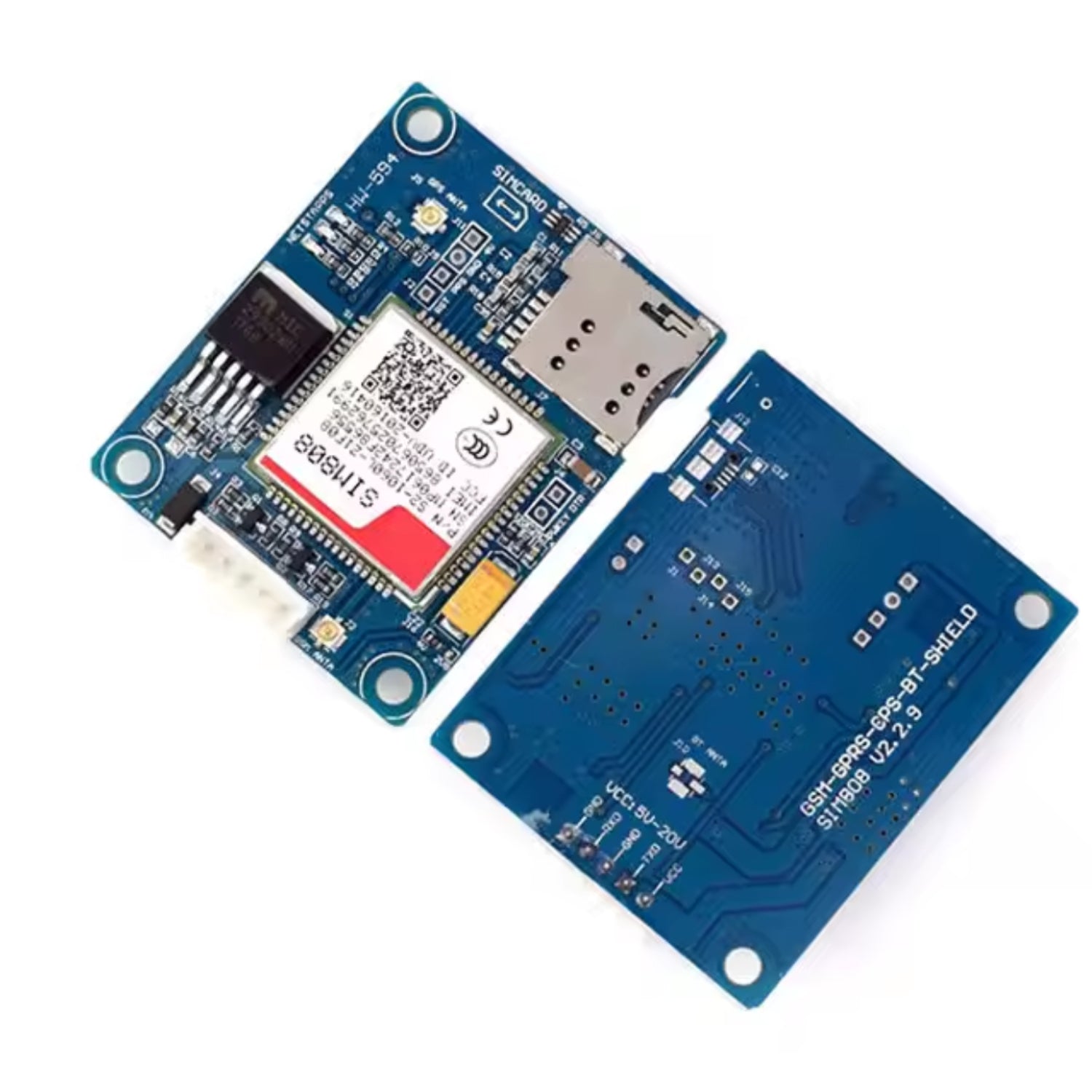

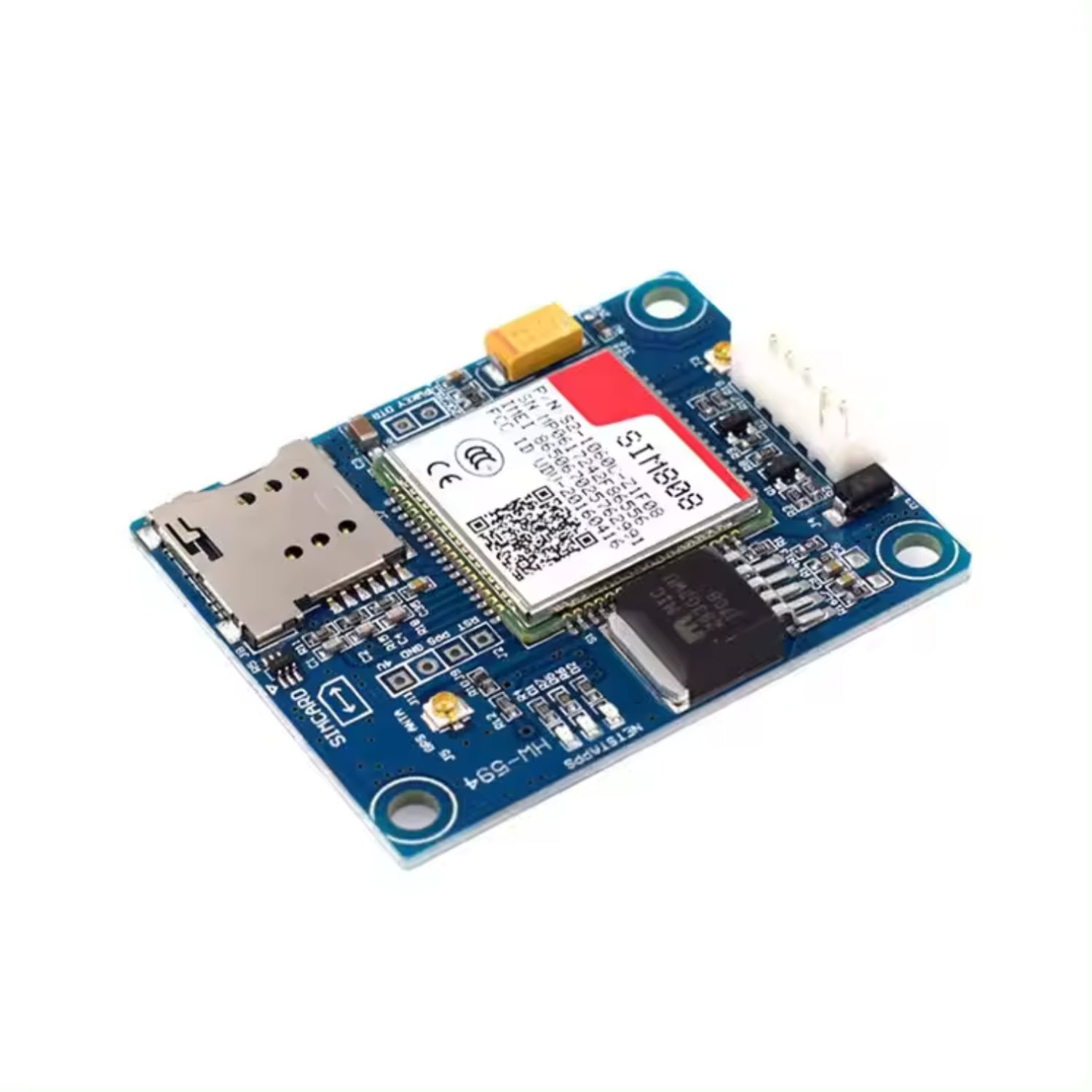

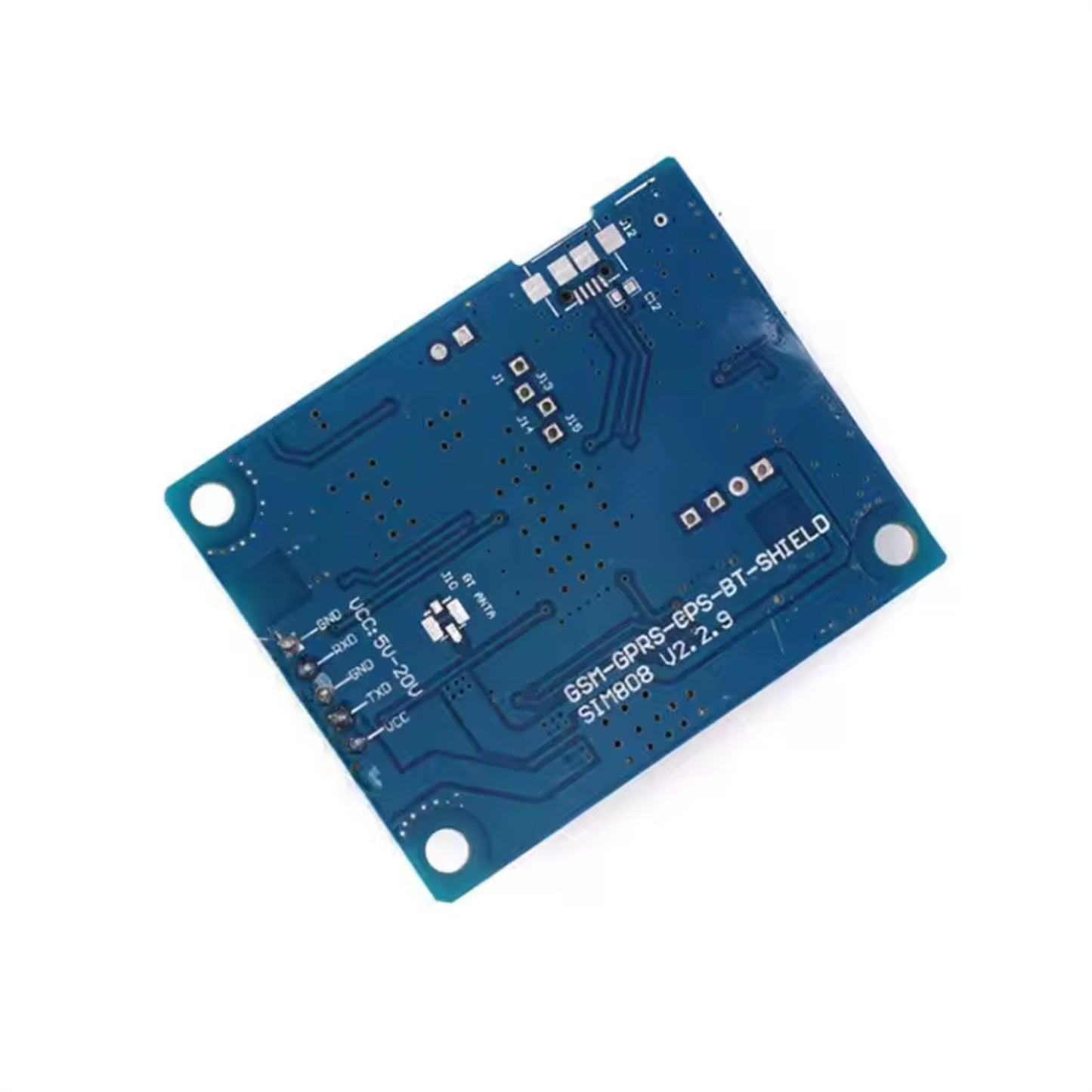

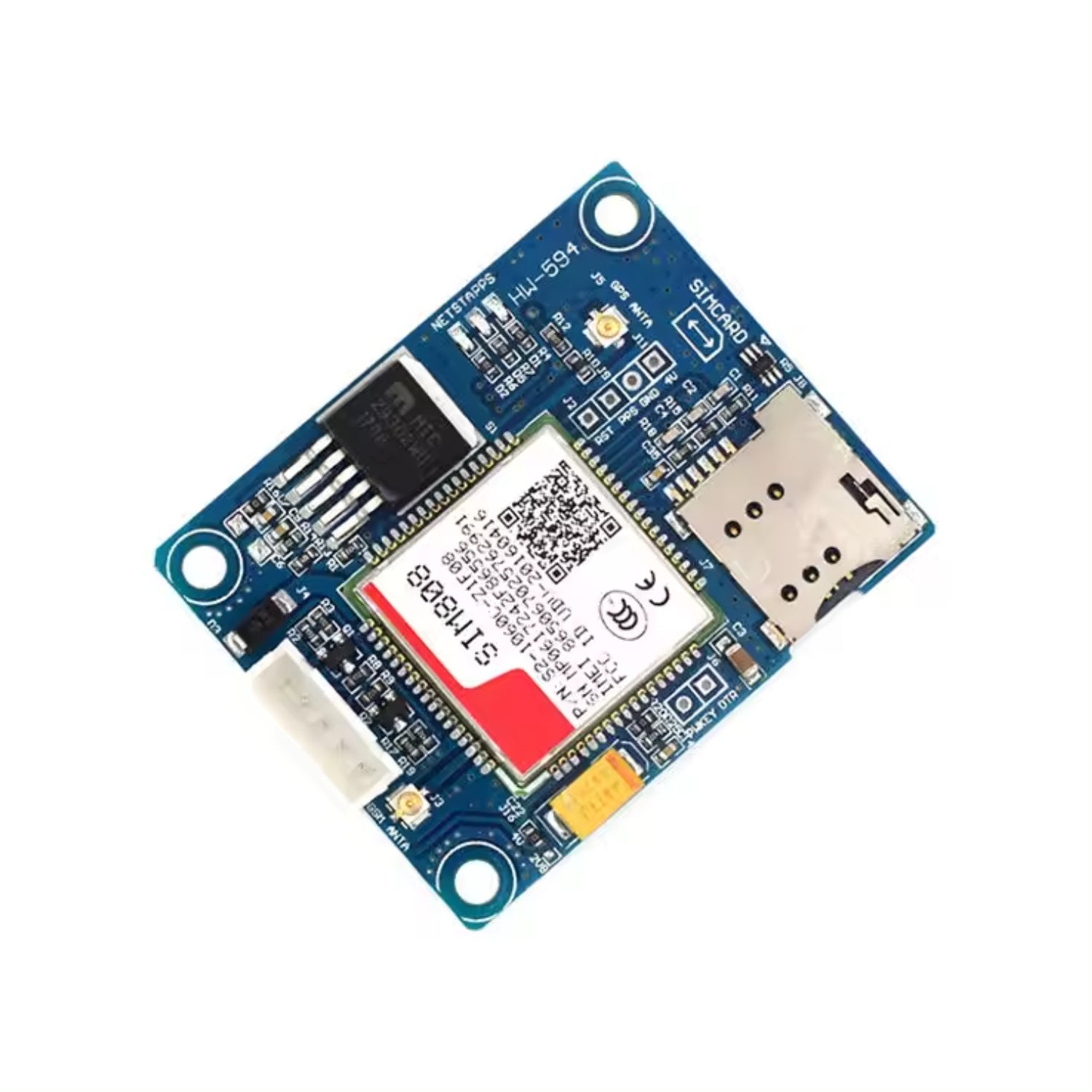

The SIM808 Module is a powerful GSM and GPS two-in-one communication module designed for advanced IoT and embedded electronics projects. Based on the latest SIM808 GSM/GPS module from SIMCOM, it supports GSM/GPRS Quad-Band networks and integrates GPS technology for accurate satellite navigation.
This module features ultra-low power consumption in sleep mode and comes with an integrated charging circuit for Li-Ion batteries, ensuring long standby times and convenience for projects using rechargeable batteries. It offers high GPS receive sensitivity with 22 tracking channels and 66 acquisition channels, and also supports A-GPS for improved indoor localization.
Specifications:
- Item Type: Development Board
- Operating Temperature: -40 to 85°C
- Characteristic: GSM/GPRS
- Colour: Blue
Features:
- Standard SIM Card
- Quad-band 850/900/1800/1900MHz
- GPRS multi-slot class12 connectivity: max. 85.6kbps(down-load/up-load)
- GPRS mobile station class B
- Controlled by AT Command (3GPP TS 27.007, 27.005, and SIMCOM enhanced AT Commands)
- Supports charging control for Li-Ion battery
- Supports Real-Time Clock
- Integrated GPS/CNSS and supports A-GPS
- Low power consumption, 10mA in sleep mode
- Supports GPS NMEA protocol
- AT command operation can support SMS, phone, GPRS data, and GPS data, which is automatically output. Embedded Ta CP protocol to support transparent mode and command mode, supports HTTP protocol to support DTMF decoding, supports MMS, supports recording function, etc.
Package Included:
1 x SIM808 GSM GPRS Development Board
