- Normal operation temperature: -20 °C to +55 °C
- Input Voltage: 5V-12V DC
- Dual-Band GSM/GPRS 900/ 1800 MHz
- RS232 interface for direct communication with computer or MCU kit
- Configurable baud rate
- Power controlled using 29302 WU IC.
Description:

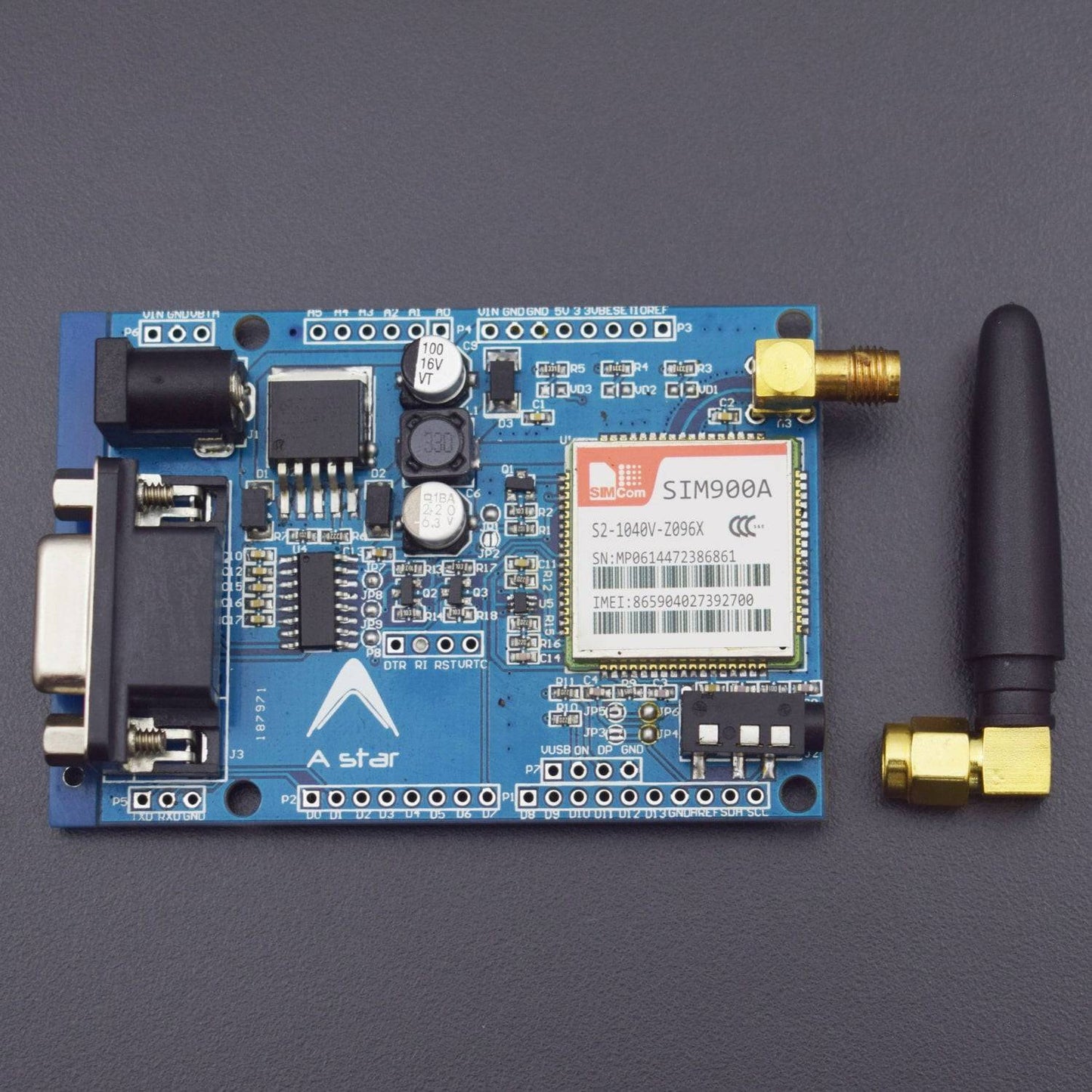

GSM/GPRS Modem-RS232 is built with a Dual Band GSM/GPRS engine- SIM900A works on frequencies 900/ 1800 MHz. The Modem is coming with an RS232 interface, which allows you to connect the PC as well as the microcontroller with RS232 Chip(MAX232). The baud rate is configurable from 9600-115200 through AT command. The GSM/GPRS Modem is having internal TCP/IP stack to enable you to connect with the internet via GPRS. It is suitable for SMS, Voice as well as DATA transfer applications in the M2M interface. The onboard Regulated Power supply allows you to connect a wide range of unregulated power supplies. Using this modem, you can make audio calls, SMS, Read SMS, attend the incoming calls and the internet etc through simple AT commands.
Specification:
- Normal operation temperature: -20 °C to +55 °C
- Input Voltage: 5V-12V DC
Features:
- Dual-Band GSM/GPRS 900/ 1800 MHz
- RS232 interface for direct communication with computer or MCU kit
- Configurable baud rate
- Power controlled using 29302WU IC.
- ESD Compliance.
- Enable with MIC and SPeaker socket.

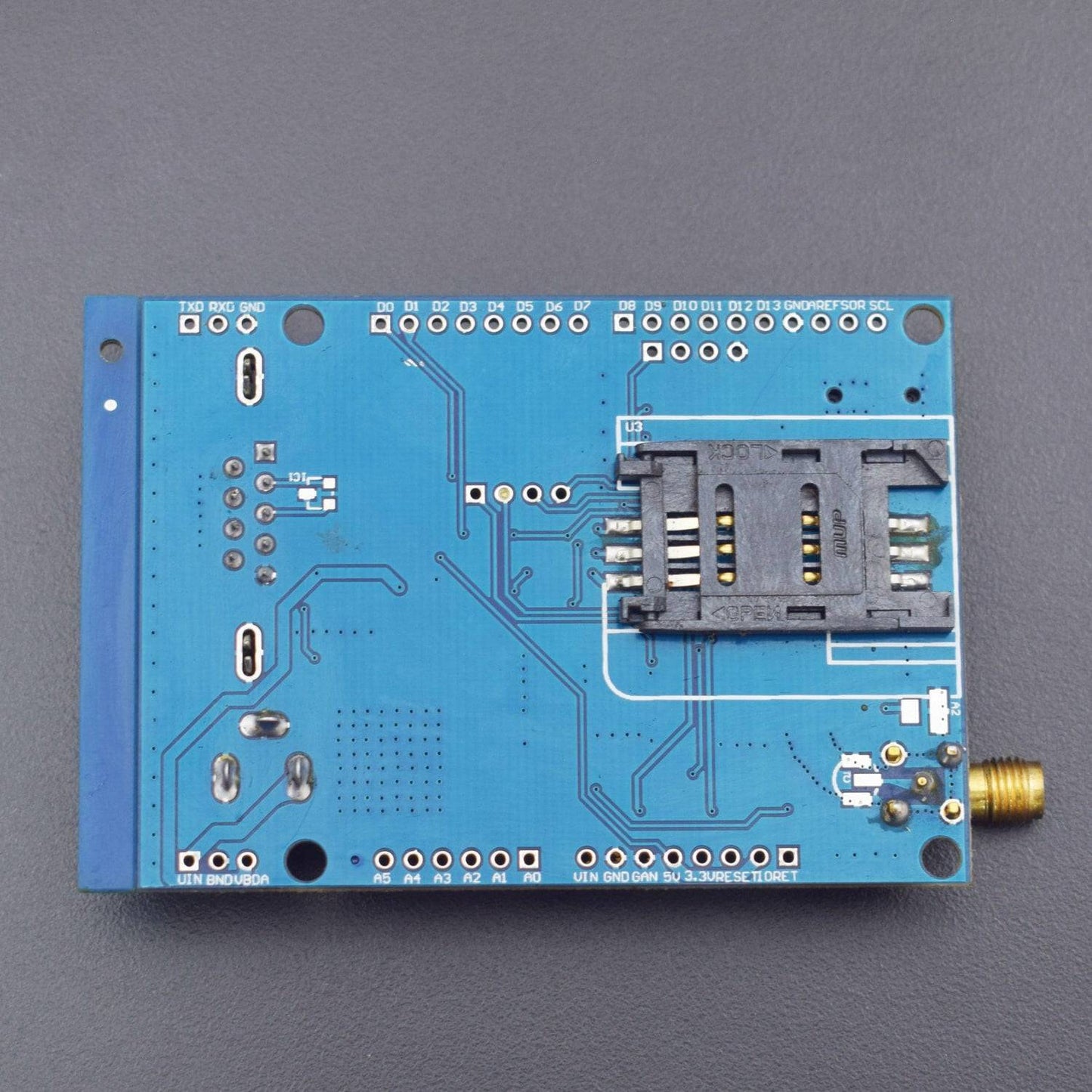

- With slid in SIM card tray.

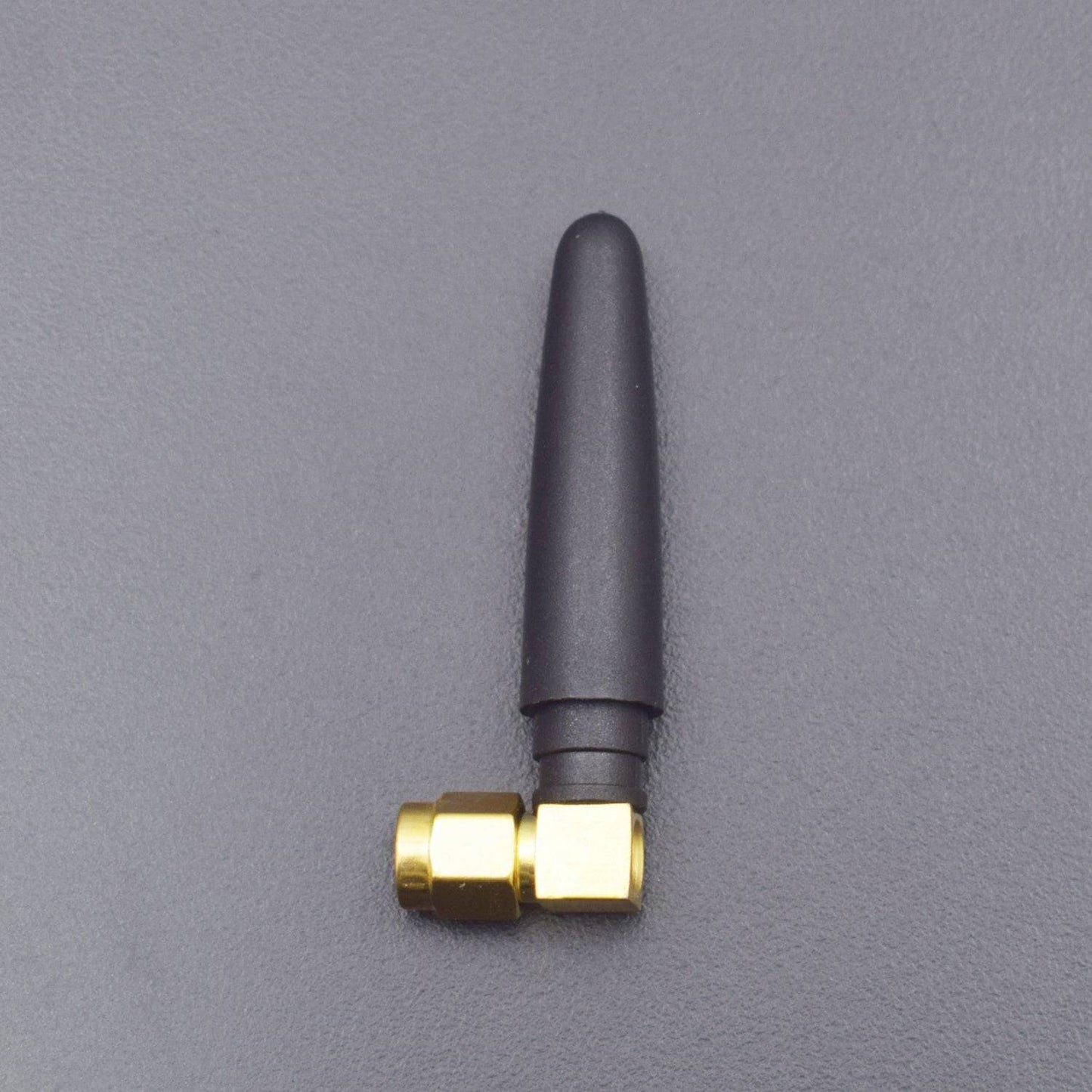

- With Stub antenna and SMA connector
- High-quality PCB FR4 Grade with FPT Certified.
Interfaces:
- Interface to external SIM 3V/ 1.8V
- Analog audio interface
- RTC backup
- SPI interface (option)
- Serial interface
- Antenna pad
- I2C
- GPIO
- PWM
- ADC
Application:
- Industrial automation.
- GPRS-based data logging.
- GPRS and GPS application.
- Home automation.
- Health monitoring.
- Agriculture automation.
- Vehicle tracking.
- Remote monitoring and controlling.
- GPRS-based Weather report logging.
- GSM GPRS-based Security alert.
- GPRS-based remote terminal for file transfer.
- IVRS.
- Bulk SMS sending.
Package Included:
1 x Sim 900A Module
