Description:

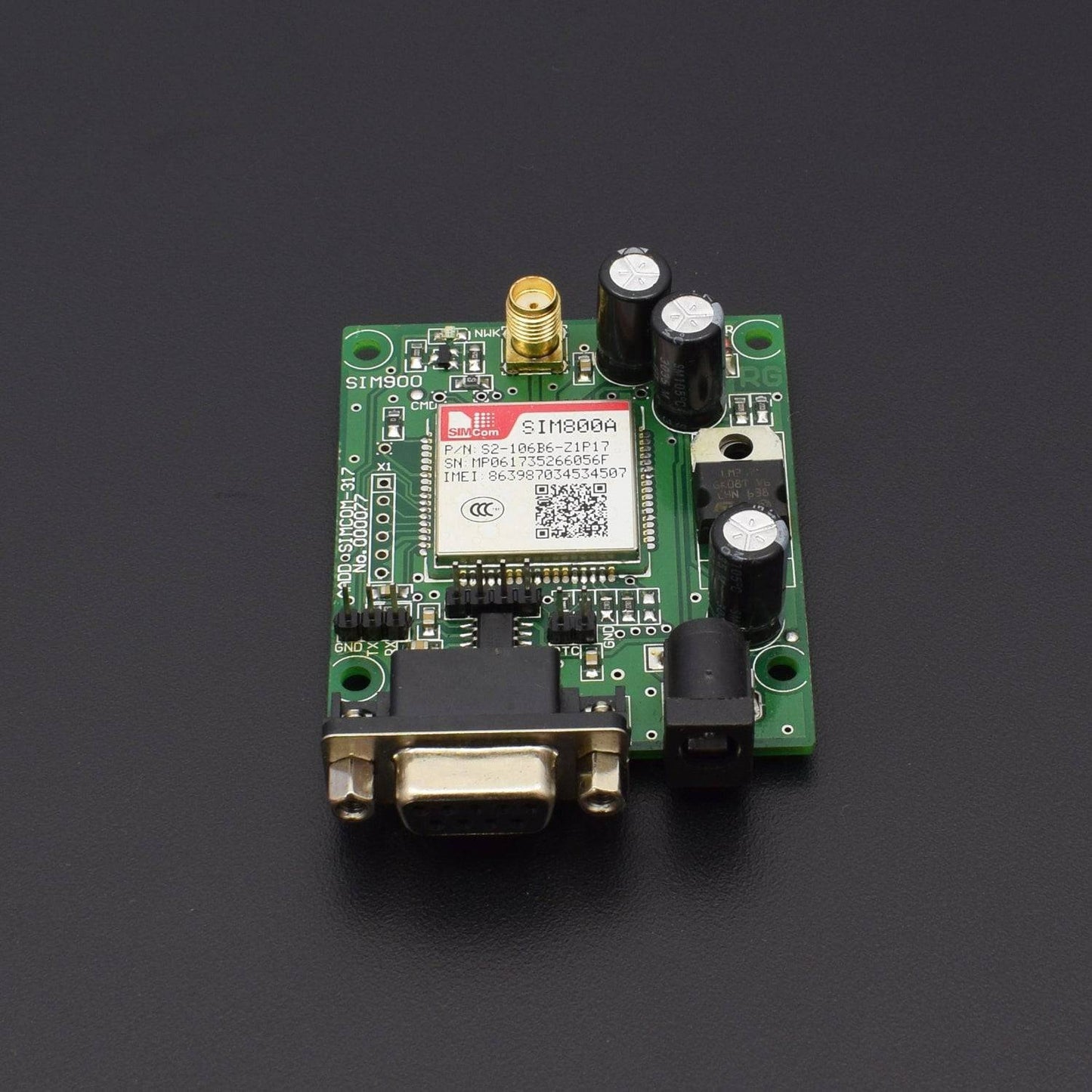

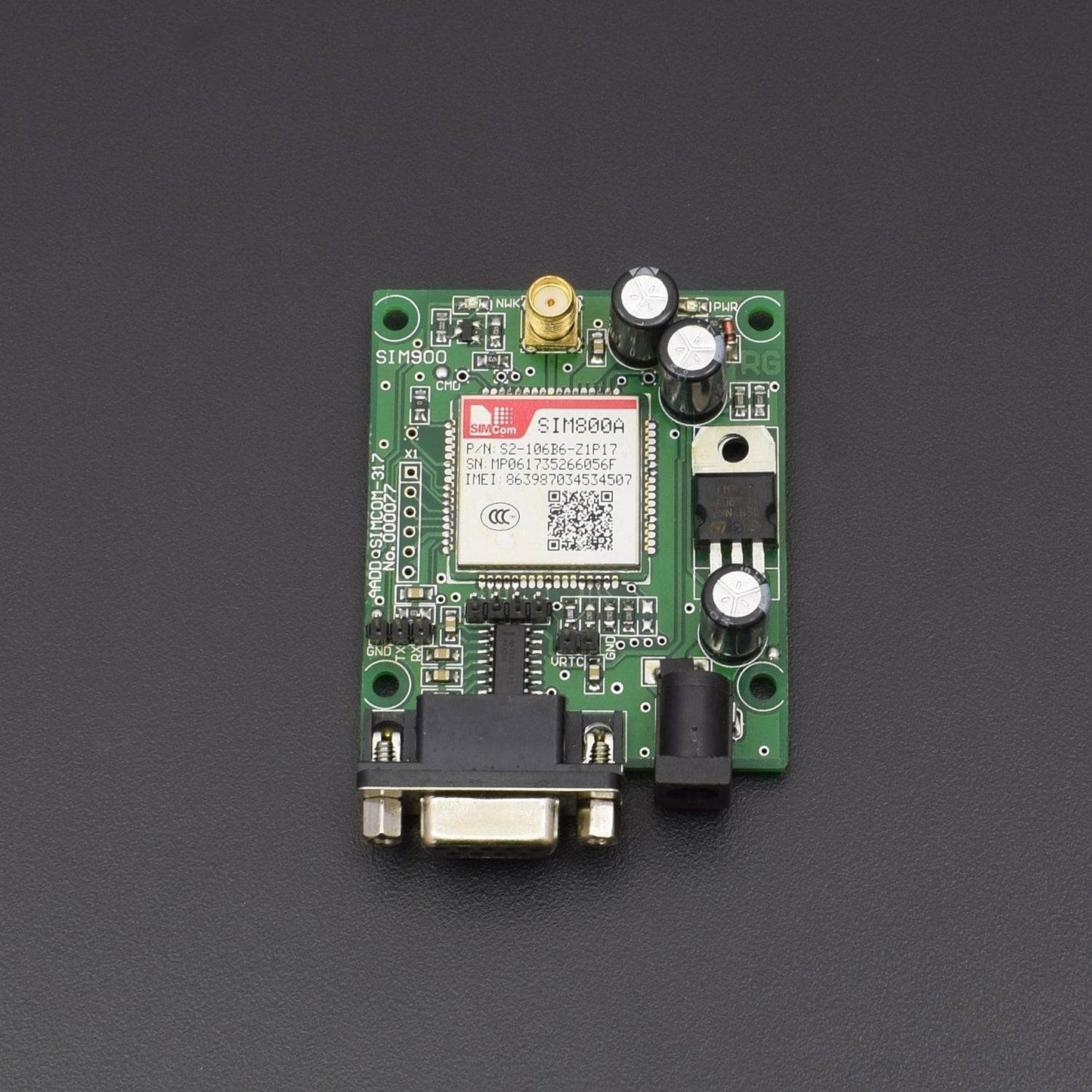

This is dual frequency 900/1800MHz SIM800A based GSM/GPRS Modem. It can be easily interfaced with range of microcontrollers or microcontroller based development boards such as Arduino Uno. It can also be connected with Computer through RS232 port.
Specification:
- Dual frequency 900 / 1800MHz
- GPRS multi-slot class 12/10
- GPRS mobile station class B
- Meet GSM 2/2 + standards
- Class 4 (2W @900MHz)
- Class 1 (1W @1800MHz)
- Control via AT commands (GSM 07.07, 07.05 and SIM COM enhanced AT command set)
- SIM Application Toolkit
- Supply voltage range: 9v ~ 12v
- Low power consumption
- Operating temperature range: -40 ° C ~ + 85 ° C
Features:
- SIM800A Quad Band GSM Module
- Voltage Supply Required- 9VDC to 12VDC with at least 2A Peak Current Capability
- TTL Rx and TTL Tx and DB9 Connector Based RS232 Outputs
- External Finger type antenna
- Switching Regulator Based Power Supply
Package Included:
1 x SIM 800A GSM+GPRS Module with SMA Antenna
