Description:

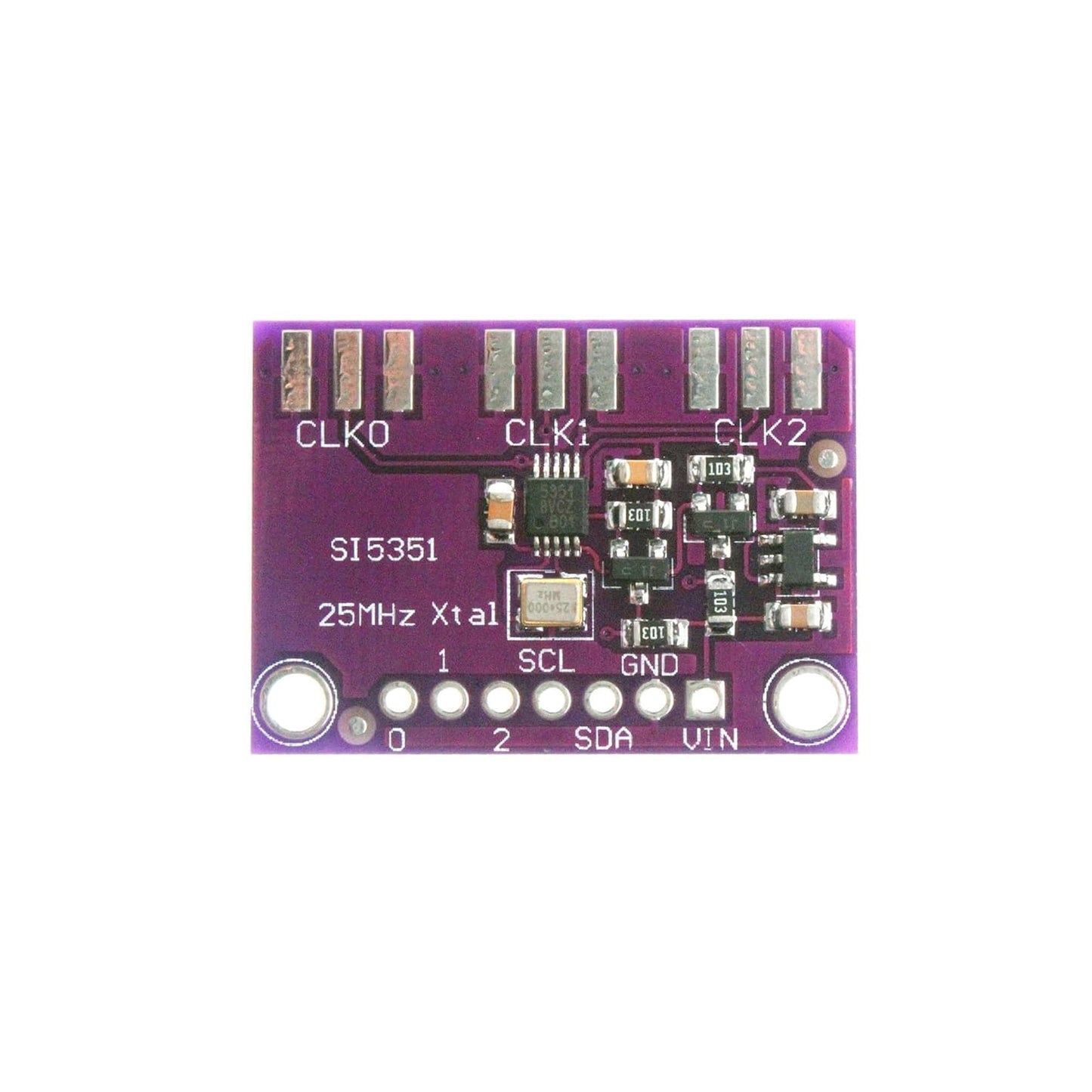

The Si5351A Clock Generator Module is an I2C controller clock generator. It uses the onboard precision clock to drive multiple PLLs and clock dividers using I2C instructions. By setting up the PLL and dividers you can create precise and arbitrary frequencies. There are three independent outputs, each with a different frequency. Outputs are 3Vpp, either through a breadboard-friendly header or, for RF work, an optional SMA connector.
Features:
- Configurable spread spectrum selectable at each output
- Operates from a low-cost, fixed frequency crystal: 25 or 27 MHz
- Si5351A Clock Generator Module supports static phase offset
- Programmable rise/fall time control
- Si5351A Clock Generator Module has glitchless frequency changes
- I2C user-definable configuration
- Exact frequency synthesis at each output (0 ppm error)
- Highly linear VCXO
- The optional clock input (CLKIN)
- Low output period jitter: 100 ps pp
- Generates up to 8 non-integer-related
- Frequencies from 8 kHz to 160 MHz
Applications:
- Residential gateways
- Networking/communication
- Servers, storage
- XO replacement
- HDTV, DVD/Blu-ray, set-top box
- Audio/video equipment, gaming
- Printers, scanners, projectors
Package Included:

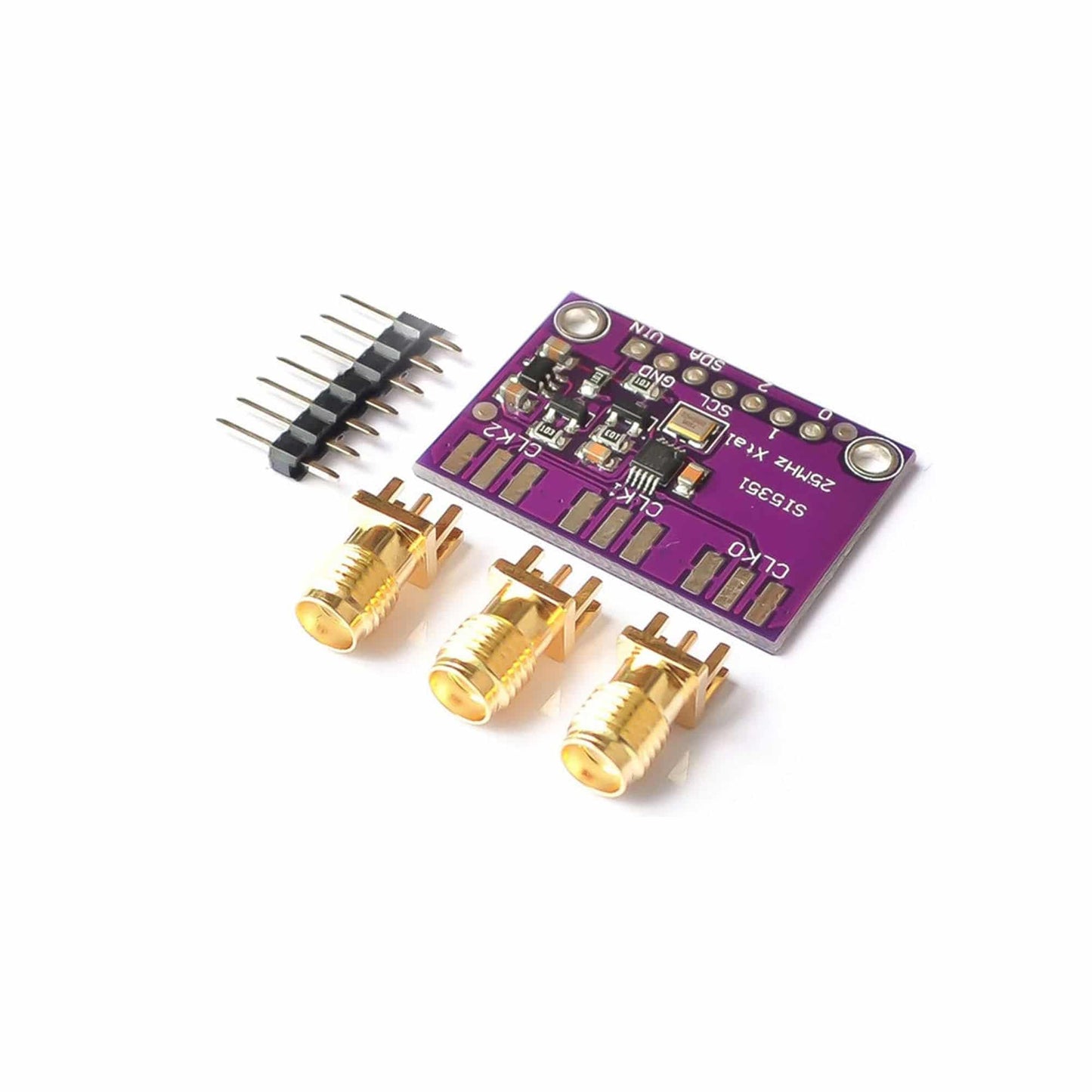

1 x Si5351A Clock Generator Module Si5351A I2C 8 Khz-160 Mhz Clock Generator Breakout Board Module
