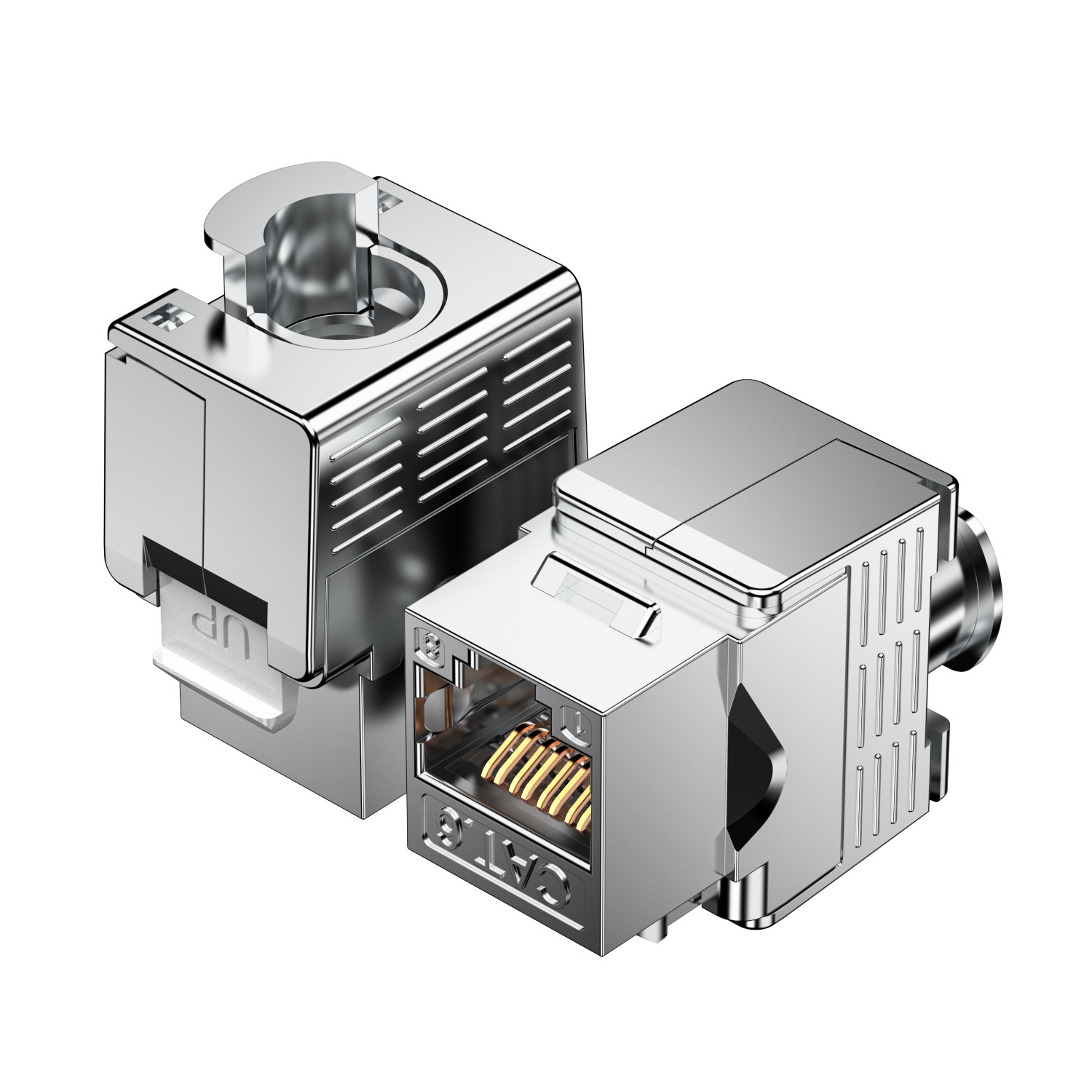

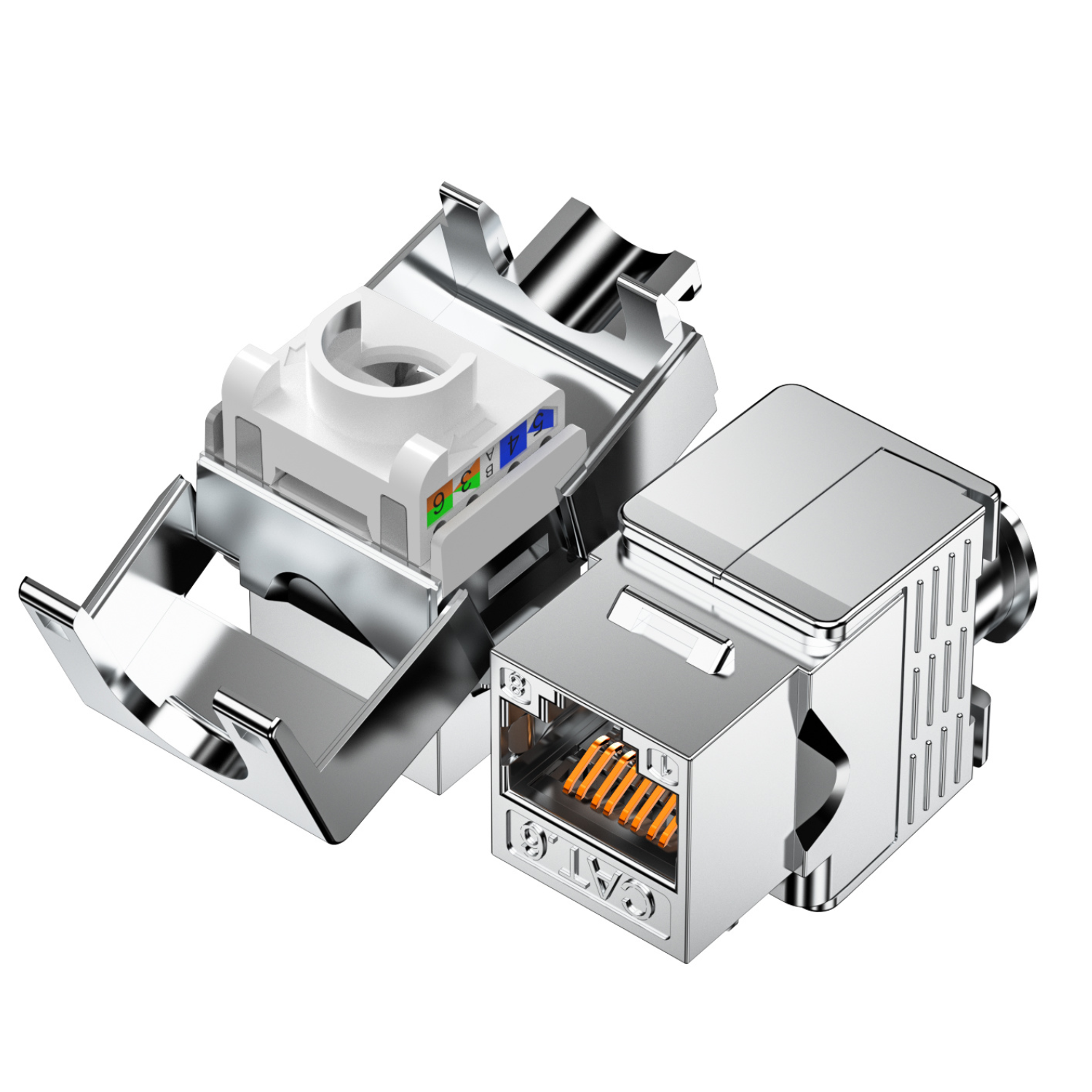

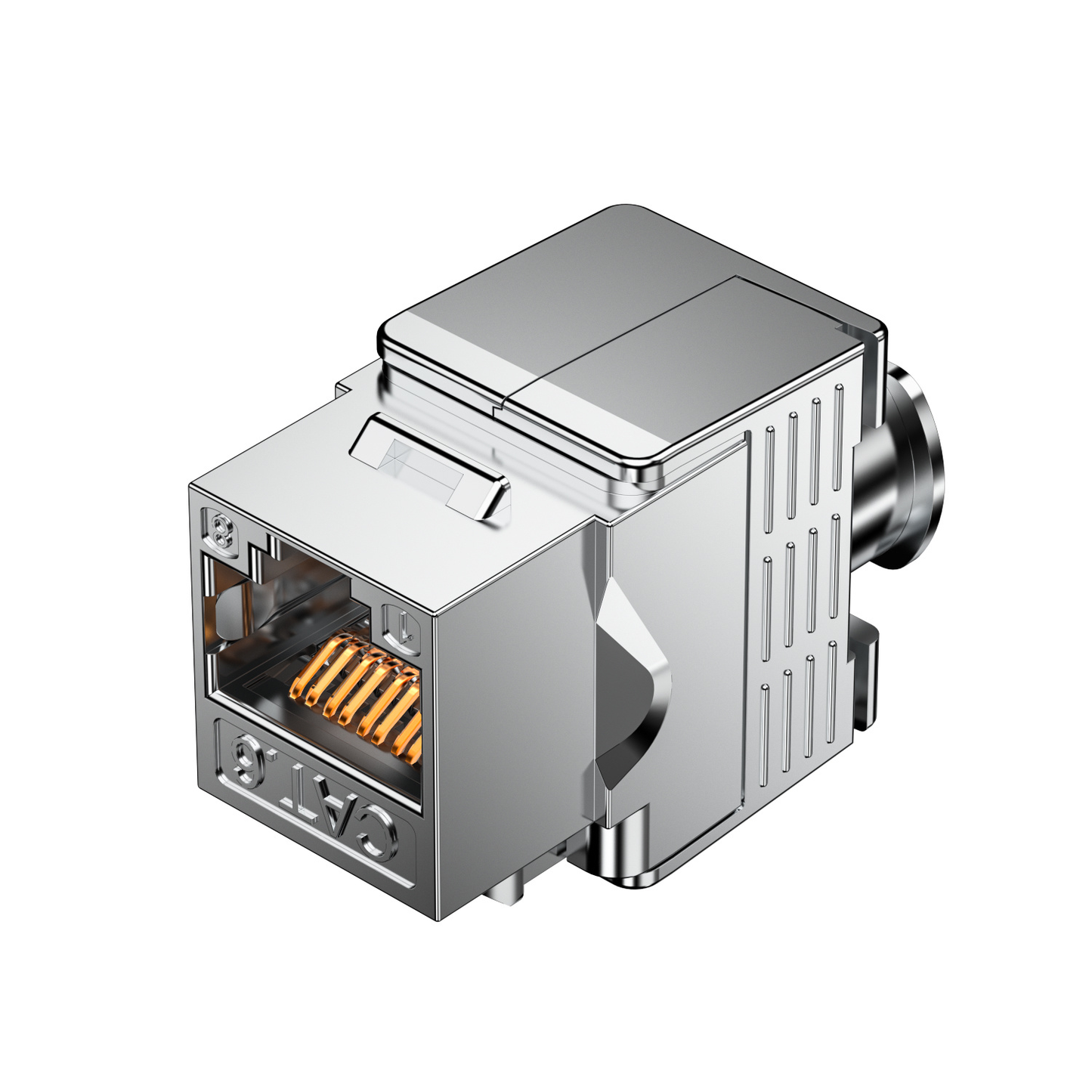

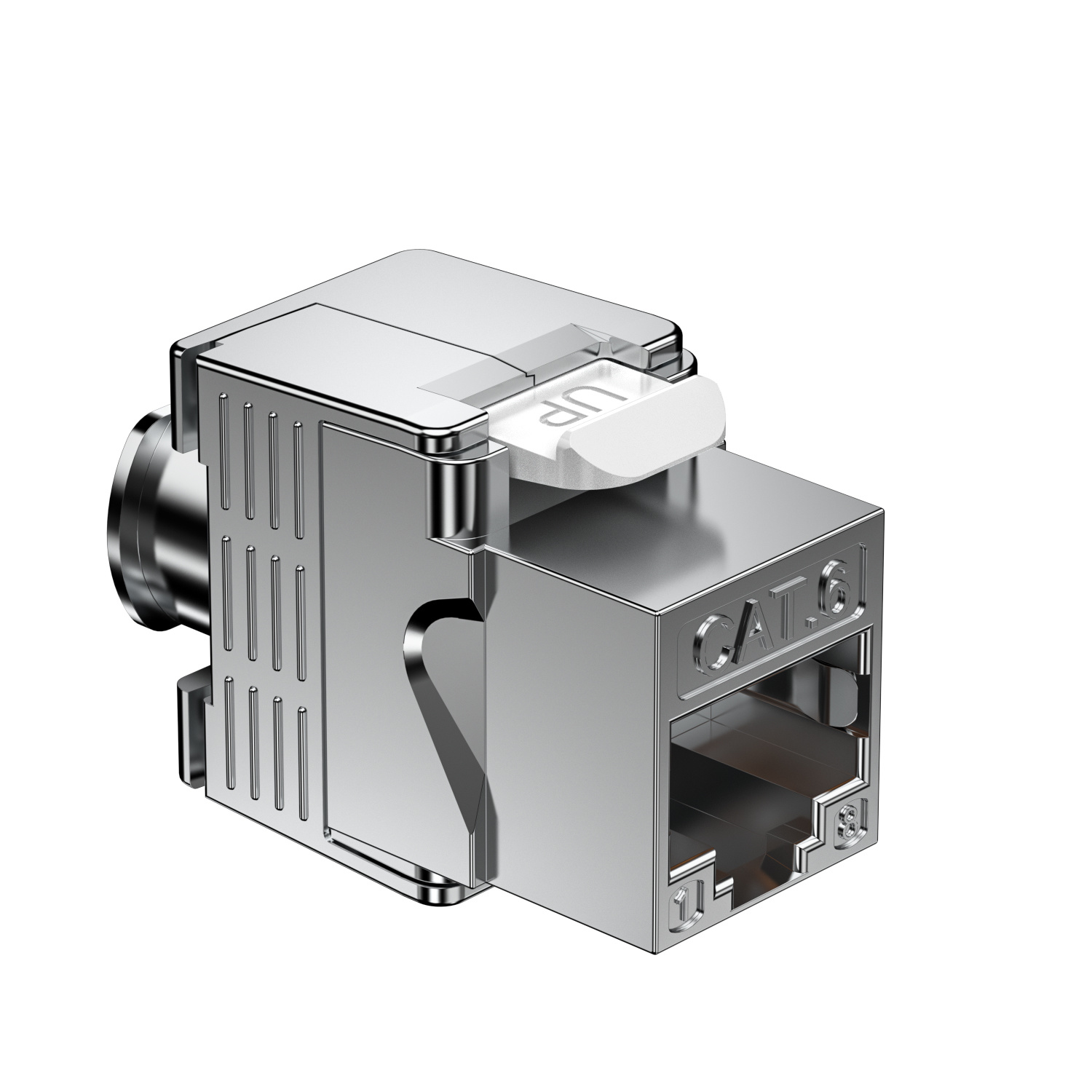

Shielded Toolless Mini Keystone Jack 180 Degree RJ45 Female Port Connector Toolless Network Cable Port
Shielded Toolless Mini Keystone Jack 180 Degree RJ45 Female Port Connector Toolless Network Cable Port
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
This durable component features zinc alloy plastic parts and offers user-friendly operation with standard 110 and LSA dual-use punching tool compatibility. Its 180-degree angled IDC clips ensure a dependable cable connection, meeting the requirements of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6 standards for optimal performance.
The carefully matched golden-plated pins, IDC clips, and internal PCB board maximize signal integrity. Longevity is ensured through nickel plating of the entire pin structure, complemented by a 6μ golden plating on the contact pins to prevent oxidation. The tinned phosphor bronze, nickel-plated IDC clips provide a high level of dependability, rated for at least 250 terminations.
Specifications:
- Model Number: HKJ-803FM
- Material: Zinc Alloy
- Gold Plated: 3u"-50u"
Electrical Characteristics:
- DCResistance: ≤300mΩ
- ContactResistance: ≤20mΩ
- Dielectricstrength: 1000V(AC750V)1min
- InsulationResistance: ≥1000MΩ
Physical Characteristics:
- Phosphor bronze nickel nickel-plated, connector pins with golden plated 6μ
- IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22- 26AWG cables
- InsertingDuration: ≥750 times
- PunchingDuration: ≥250 times
- Jack housing plastic part: UL 94V-0, RED, YELLOW, BLUE, GREEN, BLACK, and other colors available
- Termination caps material UL94V-0
- Workingtemperature: -25ºC~60ºC
Features:
- Ensures robust construction.

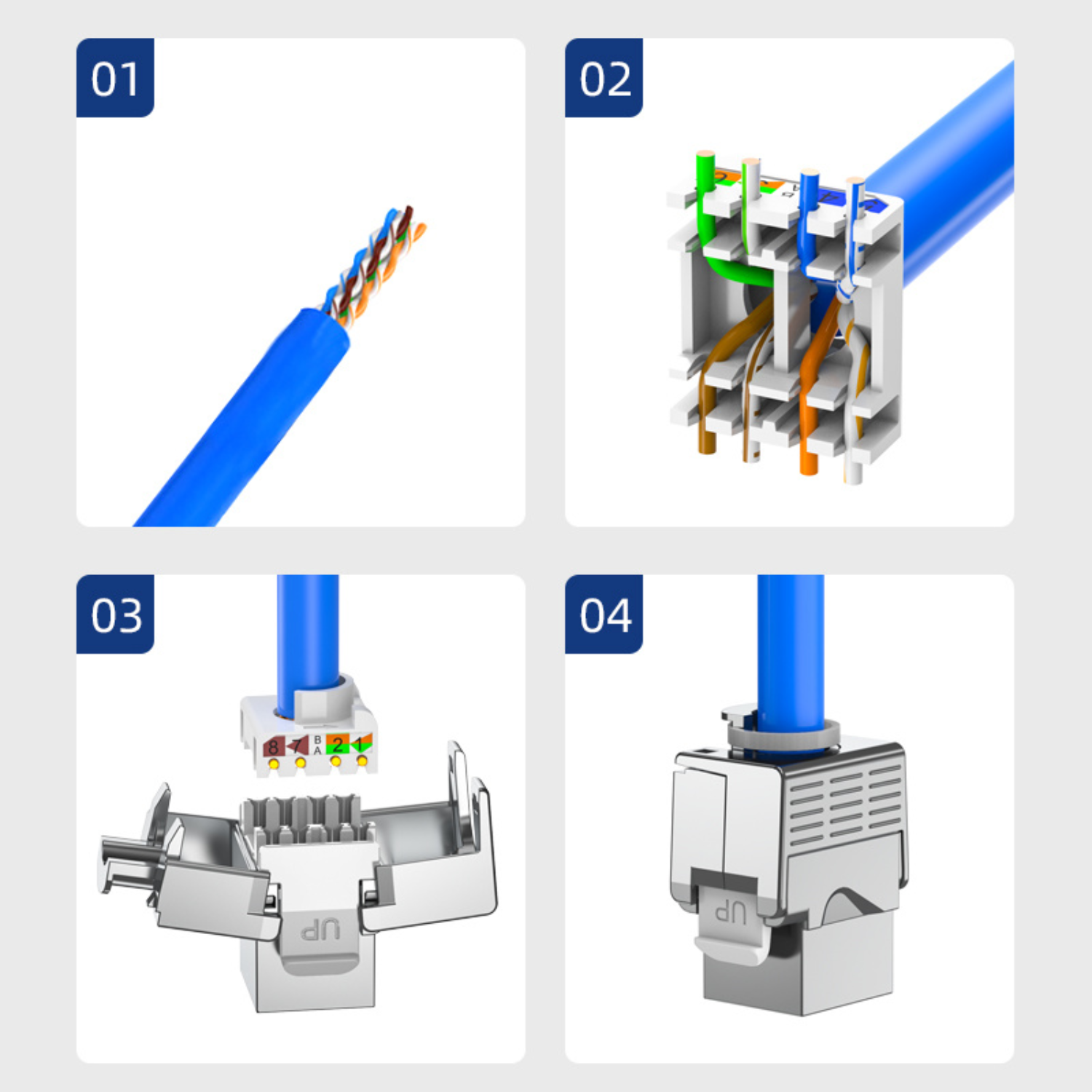

- Compatible with 110 and LSA tools for easy installation.
- 180° design for secure cable connections.
- Meets ISO/IEC 11801 & TIA/EIA 568-B.2 standards.
- Gold-plated pins, IDC clips, and PCB for superior signal.
- Nickel-plated pins with 6μ gold-plated contacts prevent oxidation.
- Tinned phosphor bronze with nickel plating, rated for 250 terminations.
Schematic:
Applications:
- Structured cabling transmits data, voice, and video
- Applied for Cat. 6 and E Classes
- Suitable for working area, central room, managing room, equipment room, and subsystem applications.
- Network
Standards:
- ISO/IEC11801
- TIA/EIA-568B.2-1
- EN50173
- UL 94V-0
Package Included:
1 x Shielded Toolless Mini Keystone Jack 180 Degree
