Description:

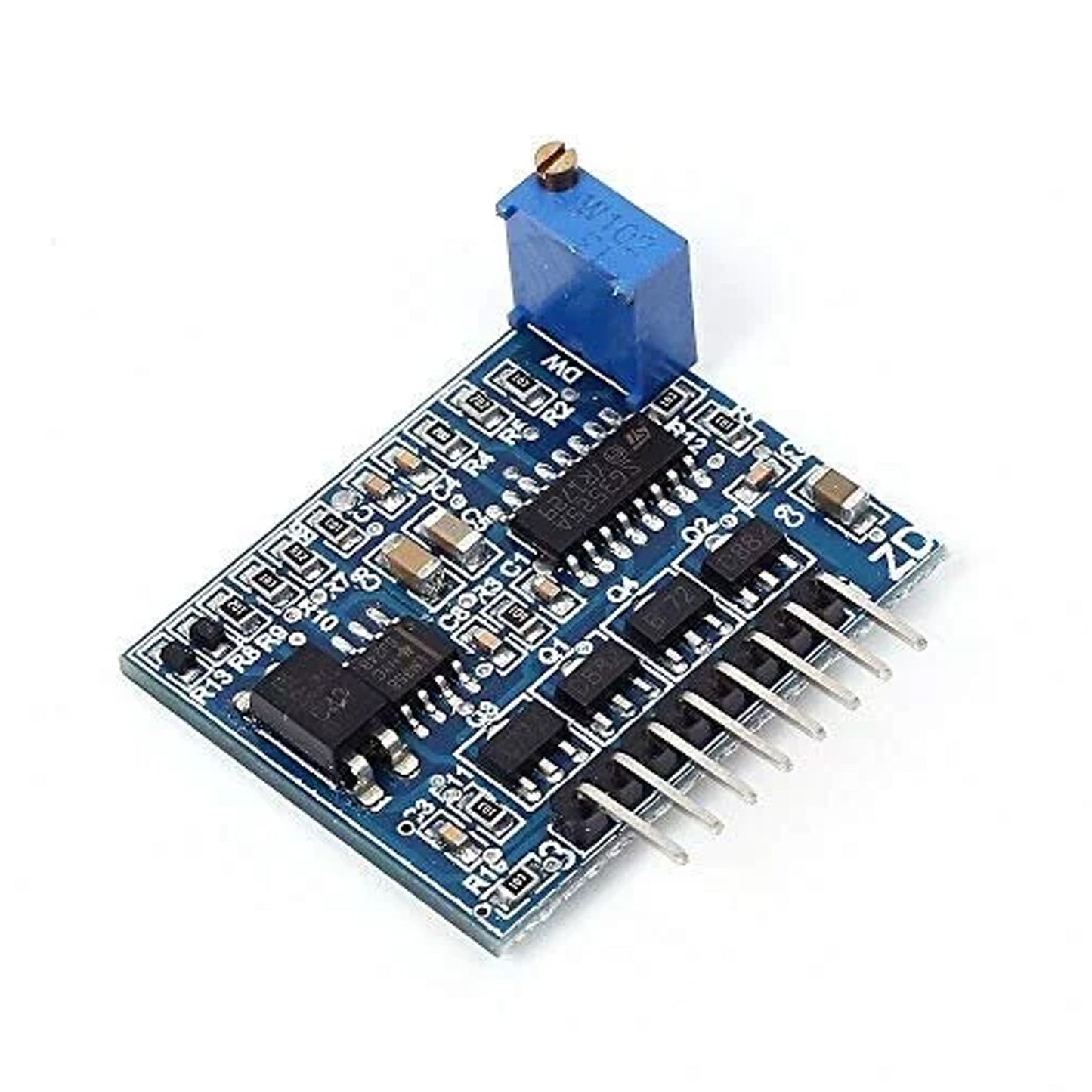

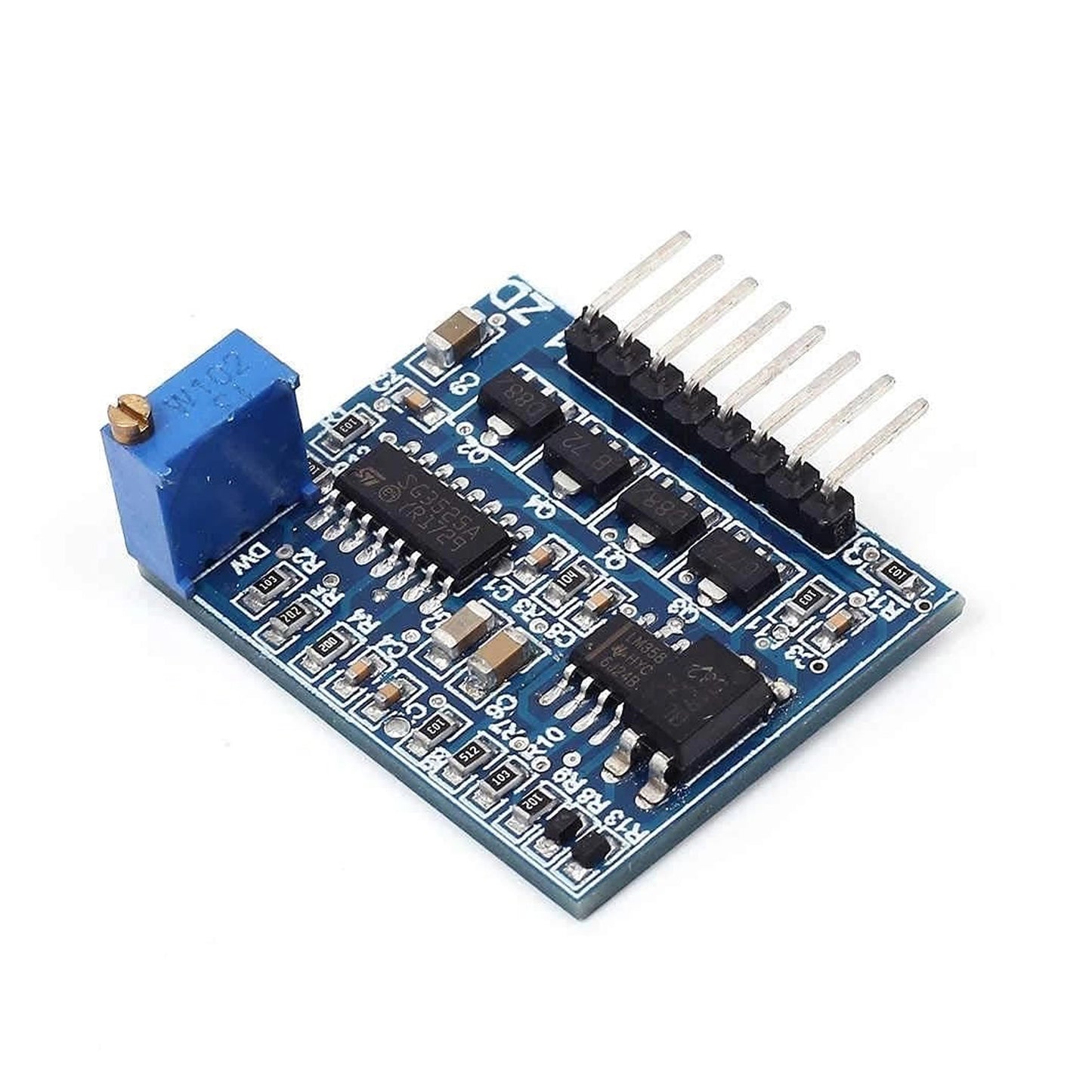

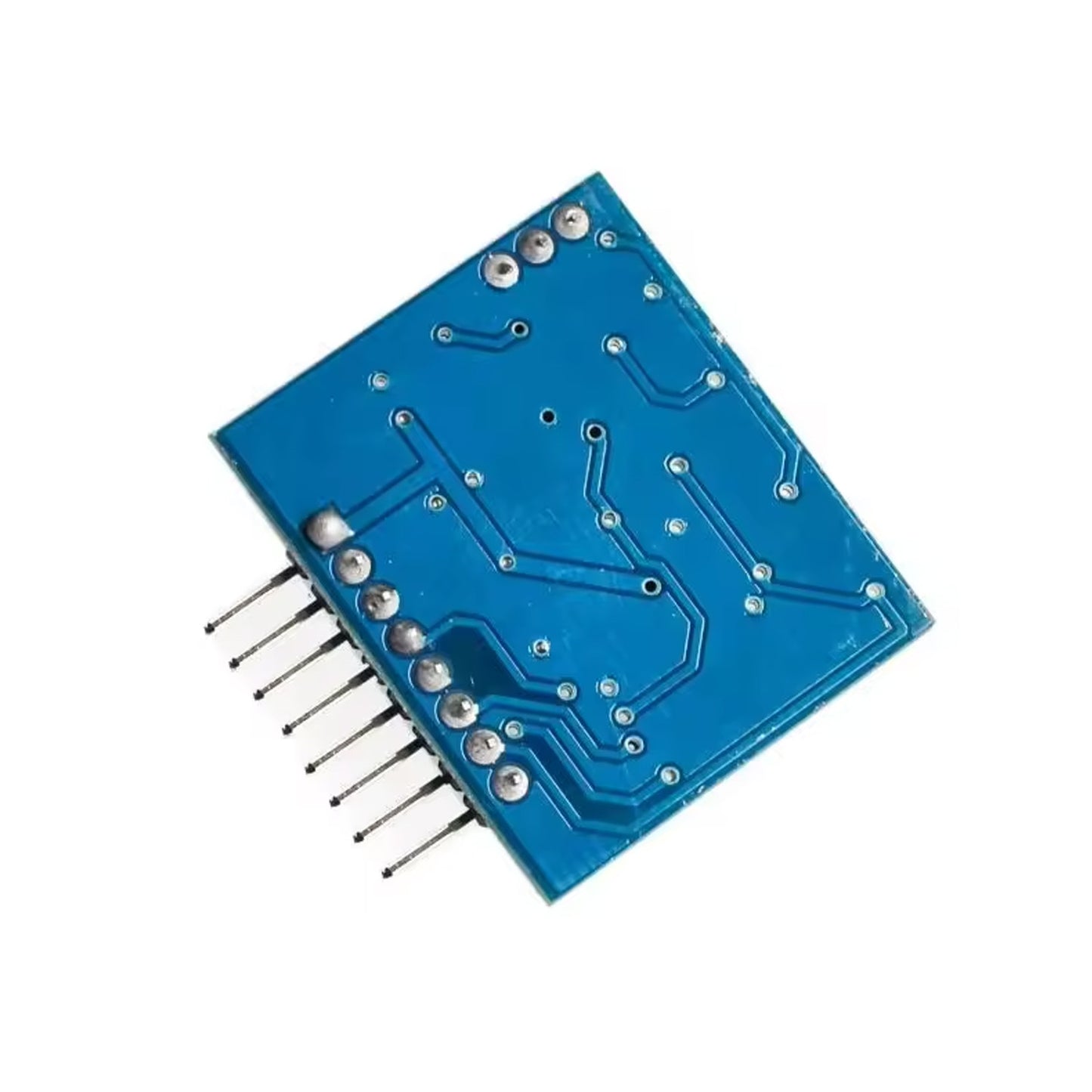

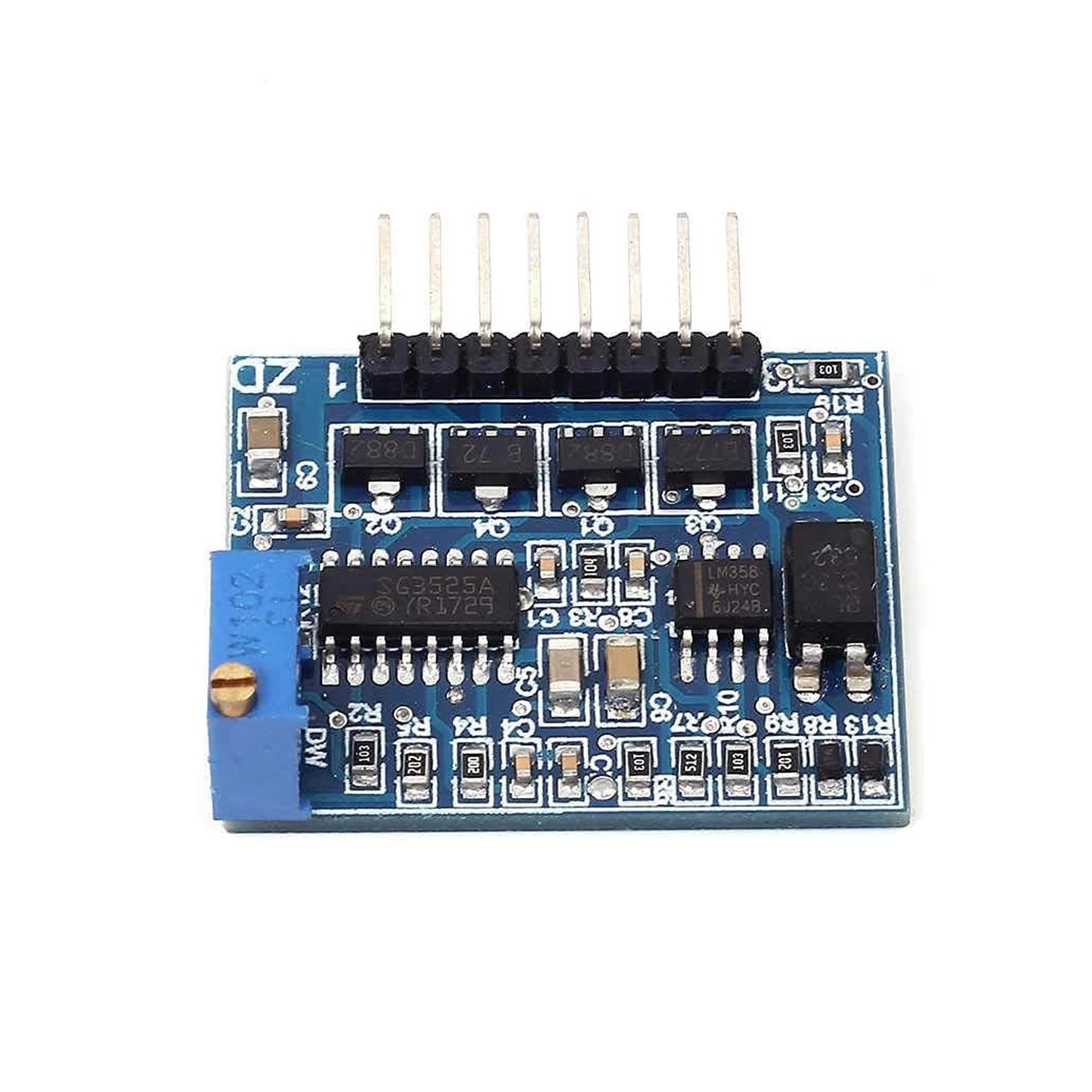

SG3525 Inverter Driver Board Mixer Preamp Drive Board 12V-24V 1A circuit offers improved performance and lower external parts count when implemented for controlling all types of switching power supplies.
The on−chip +5.1 V reference is trimmed to +-1% and the error amplifier has an input common−mode voltage range that includes the reference voltage, thus eliminating the need for external divider resistors. The output stage of the SG3525A features NOR logic resulting in a low output for an off−state.
Specifications:
- Output Voltage: 12-24V
- Controller Current: 1A Max
Features:
- Frequency adjustable.
- Overcurrent, short circuit, turn off self-locking
- The output voltage can be regulated
-
Output current up to 1A Can drive twenty 3205 effectors
Pin Description:
- Positive power supply
- The signal output
- The power anode
- The signal output
- Positive input optocoupler
- The output of the negative optocoupler
- The signal turns off on the short legs
- Feet of pulse width adjustment
Package Included:
1 x SG3525 Inverter Driver Board LM358 Preamp Driver Board 12V-24V Inverter Driver Board Versatile Audio Power Amplifier Driver Board high Frequency Machine Voltage Conversion Module
